vtkCollectPolyData Class Reference

#include <vtkCollectPolyData.h>

Inheritance diagram for vtkCollectPolyData:

[legend]

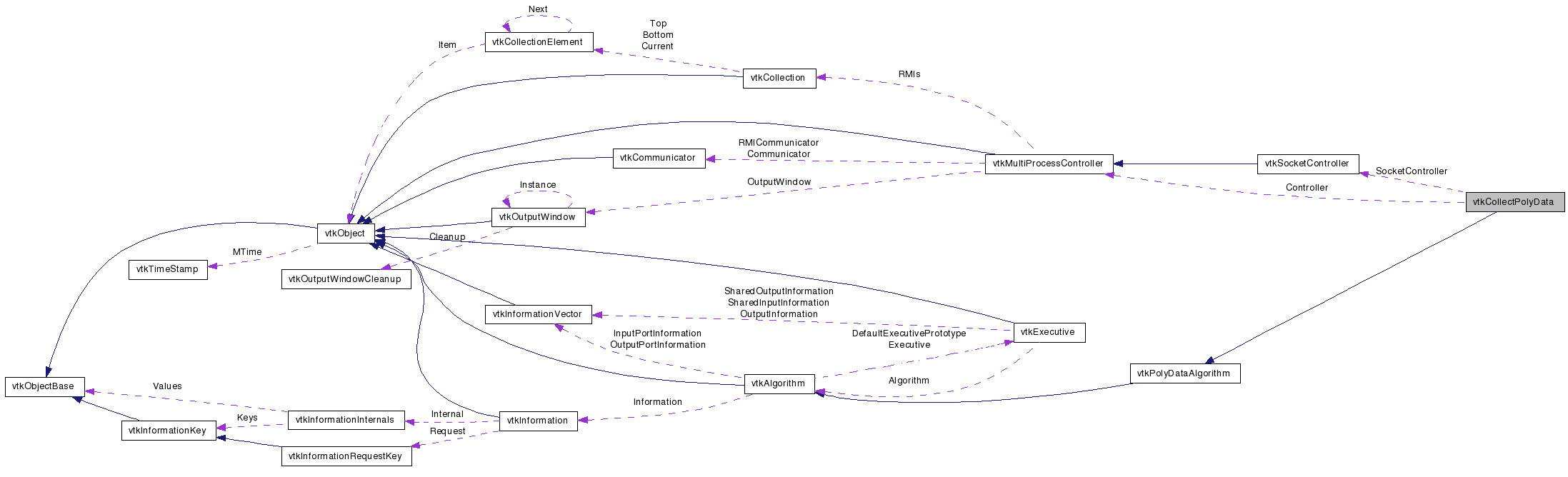

Collaboration diagram for vtkCollectPolyData:

[legend]

List of all members.

Detailed Description

Collect distributed polydata.

This filter has code to collect polydat from across processes onto node 0. Collection can be turned on or off using the "PassThrough" flag.

Definition at line 30 of file vtkCollectPolyData.h.


Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetController (vtkMultiProcessController *)
virtual vtkMultiProcessController *	GetController ()

virtual void	SetSocketController (vtkSocketController *)
virtual vtkSocketController *	GetSocketController ()

virtual void	SetPassThrough (int)
virtual int	GetPassThrough ()
virtual void	PassThroughOn ()
virtual void	PassThroughOff ()
Static Public Member Functions
static vtkCollectPolyData *	New ()
static int	IsTypeOf (const char *type)
static vtkCollectPolyData *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkCollectPolyData ()
	~vtkCollectPolyData ()
virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
int	PassThrough
vtkMultiProcessController *	Controller
vtkSocketController *	SocketController

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkCollectPolyData::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 34 of file vtkCollectPolyData.h.

Constructor & Destructor Documentation

vtkCollectPolyData::vtkCollectPolyData ( ) [protected]

vtkCollectPolyData::~vtkCollectPolyData ( ) [protected]

Member Function Documentation

static vtkCollectPolyData* vtkCollectPolyData::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkCollectPolyData::GetClassName ( ) [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkCollectPolyData::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkCollectPolyData::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkCollectPolyData* vtkCollectPolyData::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkCollectPolyData::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkCollectPolyData::SetController ( vtkMultiProcessController * ) [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual vtkMultiProcessController* vtkCollectPolyData::GetController ( ) [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual void vtkCollectPolyData::SetSocketController ( vtkSocketController * ) [virtual]

When this filter is being used in client-server mode, this is the controller used to communicate between client and server. Client should not set the other controller.

virtual vtkSocketController* vtkCollectPolyData::GetSocketController ( ) [virtual]

When this filter is being used in client-server mode, this is the controller used to communicate between client and server. Client should not set the other controller.

virtual void vtkCollectPolyData::SetPassThrough ( int ) [virtual]

To collect or just copy input to output. Off (collect) by default.

virtual int vtkCollectPolyData::GetPassThrough ( ) [virtual]

To collect or just copy input to output. Off (collect) by default.

virtual void vtkCollectPolyData::PassThroughOn ( ) [virtual]

To collect or just copy input to output. Off (collect) by default.

virtual void vtkCollectPolyData::PassThroughOff ( ) [virtual]

To collect or just copy input to output. Off (collect) by default.

virtual int vtkCollectPolyData::RequestUpdateExtent	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			`[protected, virtual]`

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkCollectPolyData::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
