vtkDataSetReader Class Reference

#include <vtkDataSetReader.h>

Inheritance diagram for vtkDataSetReader:

Inheritance graph
[legend]

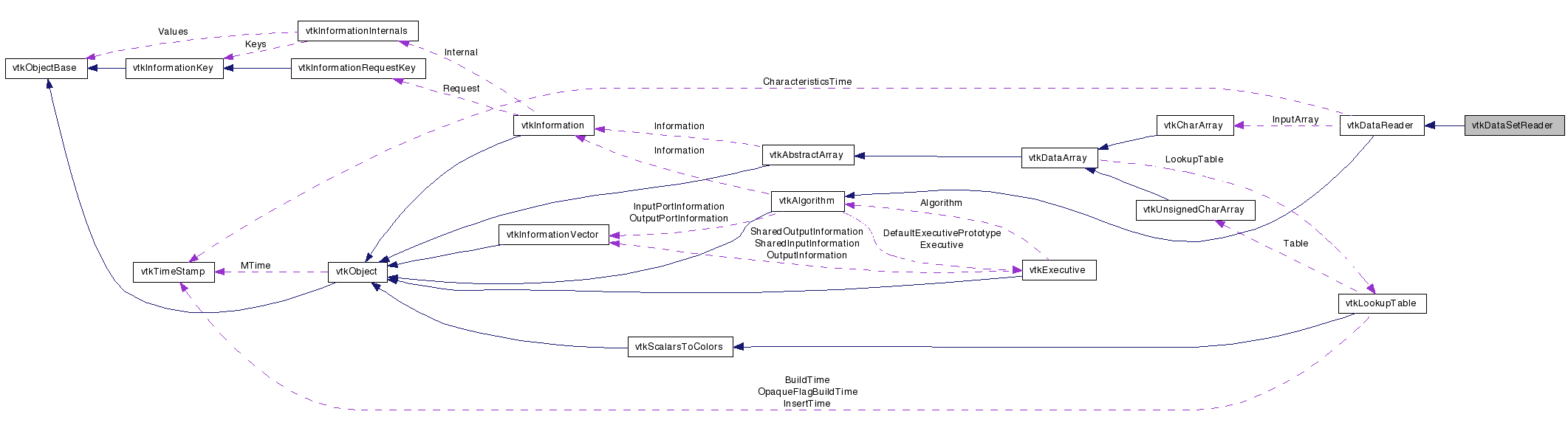

Collaboration diagram for vtkDataSetReader:

Collaboration graph
[legend]

List of all members.


Detailed Description

class to read any type of vtk dataset

vtkDataSetReader is a class that provides instance variables and methods to read any type of dataset in Visualization Toolkit (vtk) format. The output type of this class will vary depending upon the type of data file. Convenience methods are provided to keep the data as a particular type. (See text for format description details). The superclass of this class, vtkDataReader, provides many methods for controlling the reading of the data file, see vtkDataReader for more information.

Warning:
Binary files written on one system may not be readable on other systems.
See also:
vtkDataReader vtkPolyDataReader vtkRectilinearGridReader vtkStructuredPointsReader vtkStructuredGridReader vtkUnstructuredGridReader
Examples:
vtkDataSetReader (Examples)
Tests:
vtkDataSetReader (Tests)

Definition at line 51 of file vtkDataSetReader.h.


Public Types

typedef vtkDataReader Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual int ReadOutputType ()
vtkDataSetGetOutput ()
vtkDataSetGetOutput (int idx)
vtkPolyDataGetPolyDataOutput ()
vtkStructuredPointsGetStructuredPointsOutput ()
vtkStructuredGridGetStructuredGridOutput ()
vtkUnstructuredGridGetUnstructuredGridOutput ()
vtkRectilinearGridGetRectilinearGridOutput ()

Static Public Member Functions

static vtkDataSetReaderNew ()
static int IsTypeOf (const char *type)
static vtkDataSetReaderSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkDataSetReader ()
 ~vtkDataSetReader ()
virtual int ProcessRequest (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestDataObject (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillOutputPortInformation (int, vtkInformation *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Member Typedef Documentation

Reimplemented from vtkDataReader.

Definition at line 55 of file vtkDataSetReader.h.


Constructor & Destructor Documentation

vtkDataSetReader::vtkDataSetReader (  )  [protected]

vtkDataSetReader::~vtkDataSetReader (  )  [protected]


Member Function Documentation

static vtkDataSetReader* vtkDataSetReader::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataReader.

virtual const char* vtkDataSetReader::GetClassName (  )  [virtual]

Reimplemented from vtkDataReader.

static int vtkDataSetReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataReader.

virtual int vtkDataSetReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataReader.

static vtkDataSetReader* vtkDataSetReader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataReader.

void vtkDataSetReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataReader.

vtkDataSet* vtkDataSetReader::GetOutput (  )

Get the output of this filter

vtkDataSet* vtkDataSetReader::GetOutput ( int  idx  )

Get the output of this filter

vtkPolyData* vtkDataSetReader::GetPolyDataOutput (  )

Get the output as various concrete types. This method is typically used when you know exactly what type of data is being read. Otherwise, use the general GetOutput() method. If the wrong type is used NULL is returned. (You must also set the filename of the object prior to getting the output.)

vtkStructuredPoints* vtkDataSetReader::GetStructuredPointsOutput (  )

Get the output as various concrete types. This method is typically used when you know exactly what type of data is being read. Otherwise, use the general GetOutput() method. If the wrong type is used NULL is returned. (You must also set the filename of the object prior to getting the output.)

vtkStructuredGrid* vtkDataSetReader::GetStructuredGridOutput (  )

Get the output as various concrete types. This method is typically used when you know exactly what type of data is being read. Otherwise, use the general GetOutput() method. If the wrong type is used NULL is returned. (You must also set the filename of the object prior to getting the output.)

vtkUnstructuredGrid* vtkDataSetReader::GetUnstructuredGridOutput (  )

Get the output as various concrete types. This method is typically used when you know exactly what type of data is being read. Otherwise, use the general GetOutput() method. If the wrong type is used NULL is returned. (You must also set the filename of the object prior to getting the output.)

vtkRectilinearGrid* vtkDataSetReader::GetRectilinearGridOutput (  )

Get the output as various concrete types. This method is typically used when you know exactly what type of data is being read. Otherwise, use the general GetOutput() method. If the wrong type is used NULL is returned. (You must also set the filename of the object prior to getting the output.)

virtual int vtkDataSetReader::ReadOutputType (  )  [virtual]

This method can be used to find out the type of output expected without needing to read the whole file.

virtual int vtkDataSetReader::ProcessRequest ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Internal function to read in a value. Returns zero if there was an error.

Reimplemented from vtkDataReader.

virtual int vtkDataSetReader::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Internal function to read in a value. Returns zero if there was an error.

Reimplemented from vtkDataReader.

virtual int vtkDataSetReader::RequestDataObject ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

virtual int vtkDataSetReader::FillOutputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

virtual int vtkDataSetReader::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Internal function to read in a value. Returns zero if there was an error.

Reimplemented from vtkDataReader.


The documentation for this class was generated from the following file:
