vtkEnSightGoldBinaryReader Class Reference

#include <vtkEnSightGoldBinaryReader.h>

Inheritance diagram for vtkEnSightGoldBinaryReader:

[legend]

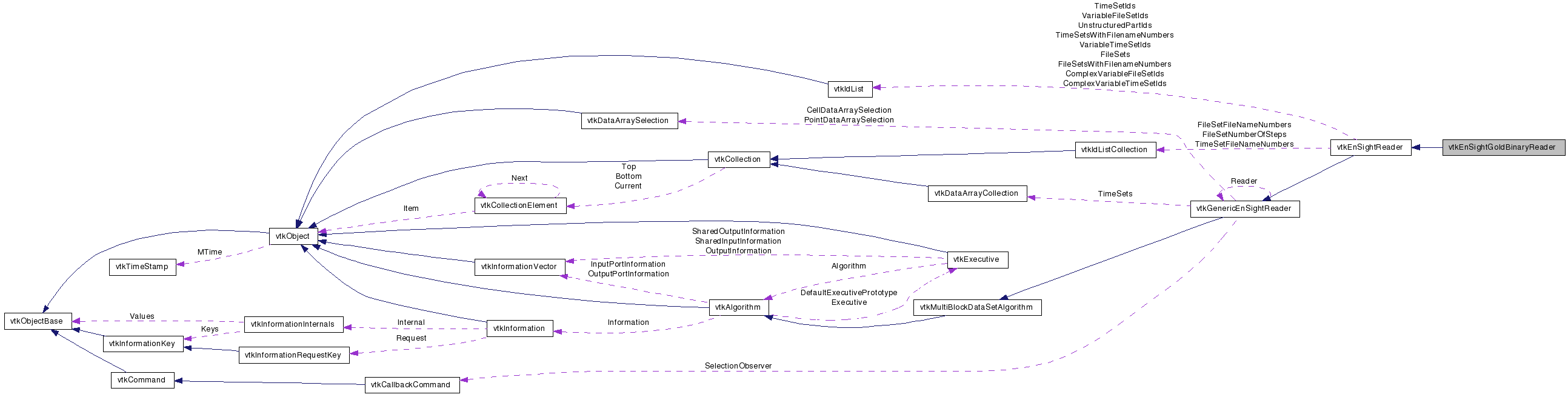

Collaboration diagram for vtkEnSightGoldBinaryReader:

[legend]

List of all members.

Detailed Description

class to read binary EnSight Gold files

vtkEnSightGoldBinaryReader is a class to read EnSight Gold files into vtk. Because the different parts of the EnSight data can be of various data types, this reader produces multiple outputs, one per part in the input file. All variable information is being stored in field data. The descriptions listed in the case file are used as the array names in the field data. For complex vector variables, the description is appended with _r (for the array of real values) and _i (for the array if imaginary values). Complex scalar variables are stored as a single array with 2 components, real and imaginary, listed in that order.

Warning:: You must manually call Update on this reader and then connect the rest of the pipeline because (due to the nature of the file format) it is not possible to know ahead of time how many outputs you will have or what types they will be. This reader can only handle static EnSight datasets (both static geometry and variables).

Thanks:: Thanks to Yvan Fournier for providing the code to support nfaced elements.

Tests:: vtkEnSightGoldBinaryReader (Tests)

Definition at line 49 of file vtkEnSightGoldBinaryReader.h.


Public Types
typedef vtkEnSightReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static vtkEnSightGoldBinaryReader *	New ()
static int	IsTypeOf (const char *type)
static vtkEnSightGoldBinaryReader *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkEnSightGoldBinaryReader ()
	~vtkEnSightGoldBinaryReader ()
int	OpenFile (const char *filename)
int	InitializeFile (const char *filename)
int	ReadLine (char result[80])
int	ReadIntArray (int *result, int numInts)
int	ReadFloatArray (float *result, int numFloats)
int	CountTimeSteps ()

virtual int	ReadGeometryFile (const char fileName, int timeStep, vtkMultiBlockDataSet output)

virtual int	ReadMeasuredGeometryFile (const char fileName, int timeStep, vtkMultiBlockDataSet output)

virtual int	ReadScalarsPerNode (const char fileName, const char description, int timeStep, vtkMultiBlockDataSet *output, int measured=0, int numberOfComponents=1, int component=0)

virtual int	ReadVectorsPerNode (const char fileName, const char description, int timeStep, vtkMultiBlockDataSet *output, int measured=0)

virtual int	ReadTensorsPerNode (const char fileName, const char description, int timeStep, vtkMultiBlockDataSet *output)

virtual int	ReadScalarsPerElement (const char fileName, const char description, int timeStep, vtkMultiBlockDataSet *output, int numberOfComponents=1, int component=0)

virtual int	ReadVectorsPerElement (const char fileName, const char description, int timeStep, vtkMultiBlockDataSet *output)

virtual int	ReadTensorsPerElement (const char fileName, const char description, int timeStep, vtkMultiBlockDataSet *output)

virtual int	CreateUnstructuredGridOutput (int partId, char line[80], const char name, vtkMultiBlockDataSet output)

virtual int	CreateStructuredGridOutput (int partId, char line[256], const char name, vtkMultiBlockDataSet output)

int	CreateRectilinearGridOutput (int partId, char line[256], const char name, vtkMultiBlockDataSet output)

int	CreateImageDataOutput (int partId, char line[80], const char name, vtkMultiBlockDataSet output)

int	ReadInt (int *result)
int	ReadPartId (int *result)

int	SkipTimeStep ()
int	SkipStructuredGrid (char line[256])
int	SkipUnstructuredGrid (char line[256])
int	SkipRectilinearGrid (char line[256])
int	SkipImageData (char line[256])
Protected Attributes
int	NodeIdsListed
int	ElementIdsListed
int	Fortran
ifstream *	IFile
int	FileSize

Member Typedef Documentation

typedef vtkEnSightReader vtkEnSightGoldBinaryReader::Superclass

Reimplemented from vtkEnSightReader.

Definition at line 53 of file vtkEnSightGoldBinaryReader.h.

Constructor & Destructor Documentation

vtkEnSightGoldBinaryReader::vtkEnSightGoldBinaryReader ( ) [protected]

vtkEnSightGoldBinaryReader::~vtkEnSightGoldBinaryReader ( ) [protected]

Member Function Documentation

static vtkEnSightGoldBinaryReader* vtkEnSightGoldBinaryReader::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkGenericEnSightReader.

virtual const char* vtkEnSightGoldBinaryReader::GetClassName ( ) [virtual]

Reimplemented from vtkEnSightReader.

static int vtkEnSightGoldBinaryReader::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkEnSightReader.

static vtkEnSightGoldBinaryReader* vtkEnSightGoldBinaryReader::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkEnSightReader.

virtual void vtkEnSightGoldBinaryReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkEnSightReader.

int vtkEnSightGoldBinaryReader::OpenFile ( const char * filename ) [protected]

int vtkEnSightGoldBinaryReader::InitializeFile ( const char * filename ) [protected]

virtual int vtkEnSightGoldBinaryReader::ReadGeometryFile	(	const char *	fileName,
		int	timeStep,
		vtkMultiBlockDataSet *	output
	)			`[protected, virtual]`

Read the geometry file. If an error occurred, 0 is returned; otherwise 1.

Implements vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadMeasuredGeometryFile	(	const char *	fileName,
		int	timeStep,
		vtkMultiBlockDataSet *	output
	)			`[protected, virtual]`

Read the measured geometry file. If an error occurred, 0 is returned; otherwise 1.

Implements vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadScalarsPerNode	(	const char *	fileName,
		const char *	description,
		int	timeStep,
		vtkMultiBlockDataSet *	output,
		int	measured = `0`,
		int	numberOfComponents = `1`,
		int	component = `0`
	)			`[protected, virtual]`

Read scalars per node for this dataset. If an error occurred, 0 is returned; otherwise 1. If there will be more than one component in the data array, it is assumed that 0 is the first component added.

Implements vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadVectorsPerNode	(	const char *	fileName,
		const char *	description,
		int	timeStep,
		vtkMultiBlockDataSet *	output,
		int	measured = `0`
	)			`[protected, virtual]`

Read vectors per node for this dataset. If an error occurred, 0 is returned; otherwise 1.

Implements vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadTensorsPerNode	(	const char *	fileName,
		const char *	description,
		int	timeStep,
		vtkMultiBlockDataSet *	output
	)			`[protected, virtual]`

Read tensors per node for this dataset. If an error occurred, 0 is returned; otherwise 1.

Implements vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadScalarsPerElement	(	const char *	fileName,
		const char *	description,
		int	timeStep,
		vtkMultiBlockDataSet *	output,
		int	numberOfComponents = `1`,
		int	component = `0`
	)			`[protected, virtual]`

Read scalars per element for this dataset. If an error occurred, 0 is returned; otherwise 1. If there will be more than one componenet in the data array, it is assumed that 0 is the first component added.

Implements vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadVectorsPerElement	(	const char *	fileName,
		const char *	description,
		int	timeStep,
		vtkMultiBlockDataSet *	output
	)			`[protected, virtual]`

Read vectors per element for this dataset. If an error occurred, 0 is returned; otherwise 1.

Implements vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadTensorsPerElement	(	const char *	fileName,
		const char *	description,
		int	timeStep,
		vtkMultiBlockDataSet *	output
	)			`[protected, virtual]`

Read tensors per element for this dataset. If an error occurred, 0 is returned; otherwise 1.

Implements vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::CreateUnstructuredGridOutput	(	int	partId,
		char	line[80],
		const char *	name,
		vtkMultiBlockDataSet *	output
	)			`[protected, virtual]`

Read an unstructured part (partId) from the geometry file and create a vtkUnstructuredGrid output. Return 0 if EOF reached. Return -1 if an error occurred.

Implements vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::CreateStructuredGridOutput	(	int	partId,
		char	line[256],
		const char *	name,
		vtkMultiBlockDataSet *	output
	)			`[protected, virtual]`

Read a structured part from the geometry file and create a vtkStructuredGrid output. Return 0 if EOF reached.

int vtkEnSightGoldBinaryReader::CreateRectilinearGridOutput	(	int	partId,
		char	line[256],
		const char *	name,
		vtkMultiBlockDataSet *	output
	)			`[protected]`

Read a structured part from the geometry file and create a vtkRectilinearGrid output. Return 0 if EOF reached.

int vtkEnSightGoldBinaryReader::CreateImageDataOutput	(	int	partId,
		char	line[80],
		const char *	name,
		vtkMultiBlockDataSet *	output
	)			`[protected]`

Read a structured part from the geometry file and create a vtkImageData output. Return 0 if EOF reached.

int vtkEnSightGoldBinaryReader::ReadLine ( char result[80] ) [protected]

Internal function to read in a line up to 80 characters. Returns zero if there was an error.

int vtkEnSightGoldBinaryReader::ReadInt ( int * result ) [protected]

Internal function to read in a single integer. Returns zero if there was an error.

int vtkEnSightGoldBinaryReader::ReadPartId ( int * result ) [protected]

Internal function to read in a single integer. Returns zero if there was an error.

int vtkEnSightGoldBinaryReader::ReadIntArray	(	int *	result,
		int	numInts
	)			`[protected]`

Internal function to read in an integer array. Returns zero if there was an error.

int vtkEnSightGoldBinaryReader::ReadFloatArray	(	float *	result,
		int	numFloats
	)			`[protected]`

Internal function to read in a float array. Returns zero if there was an error.

int vtkEnSightGoldBinaryReader::CountTimeSteps ( ) [protected]

Counts the number of timesteps in the geometry file This function assumes the file is already open and returns the number of timesteps remaining in the file The file will be closed after calling this method

int vtkEnSightGoldBinaryReader::SkipTimeStep ( ) [protected]
