vtkExtractSelectedIds Class Reference

#include <vtkExtractSelectedIds.h>

Inheritance diagram for vtkExtractSelectedIds:

[legend]

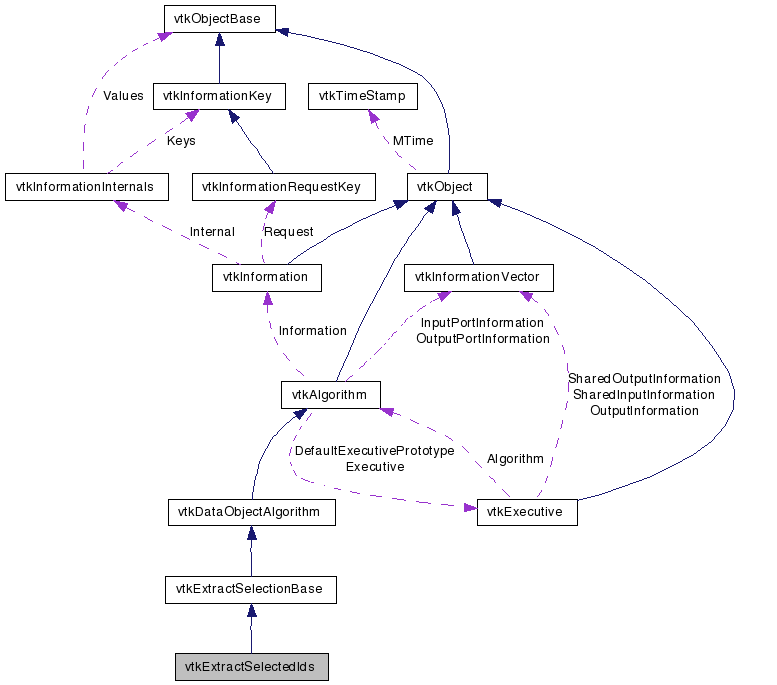

Collaboration diagram for vtkExtractSelectedIds:

[legend]

List of all members.

---

Detailed Description

extract a list of cells from a dataset

vtkExtractSelectedIds extracts a set of cells and points from within a vtkDataSet. The set of ids to extract are listed within a vtkSelection. This filter adds a scalar array called vtkOriginalCellIds that says what input cell produced each output cell. This is an example of a Pedigree ID which helps to trace back results. Depending on whether the selection has GLOBALIDS, VALUES or INDICES, the selection will use the contents of the array named in the GLOBALIDS DataSetAttribute, and arbitrary array, or the position (tuple id or number) within the cell or point array.

See also:

vtkSelection vtkExtractSelection

Definition at line 37 of file vtkExtractSelectedIds.h.

Public Types
typedef vtkExtractSelectionBase	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static vtkExtractSelectedIds *	New ()
static int	IsTypeOf (const char *type)
static vtkExtractSelectedIds *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkExtractSelectedIds ()
	~vtkExtractSelectedIds ()
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int	ExtractCells (vtkSelection *sel, vtkDataSet *input, vtkDataSet *output)
int	ExtractPoints (vtkSelection *sel, vtkDataSet *input, vtkDataSet *output)

---

Member Typedef Documentation

typedef vtkExtractSelectionBase vtkExtractSelectedIds::Superclass

Reimplemented from vtkExtractSelectionBase.

Definition at line 41 of file vtkExtractSelectedIds.h.

---

Constructor & Destructor Documentation

vtkExtractSelectedIds::vtkExtractSelectedIds

(

)

[protected]

vtkExtractSelectedIds::~vtkExtractSelectedIds

(

)

[protected]

---

Member Function Documentation

static vtkExtractSelectedIds* vtkExtractSelectedIds::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObjectAlgorithm.

virtual const char* vtkExtractSelectedIds::GetClassName

(

)

[virtual]

Reimplemented from vtkExtractSelectionBase.

static int vtkExtractSelectedIds::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExtractSelectionBase.

virtual int vtkExtractSelectedIds::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExtractSelectionBase.

static vtkExtractSelectedIds* vtkExtractSelectedIds::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkExtractSelectionBase.

void vtkExtractSelectedIds::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkExtractSelectionBase.

virtual int vtkExtractSelectedIds::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

Reimplemented from vtkDataObjectAlgorithm.

int vtkExtractSelectedIds::ExtractCells	(	vtkSelection *	sel,
		vtkDataSet *	input,
		vtkDataSet *	output
	)			[protected]

int vtkExtractSelectedIds::ExtractPoints	(	vtkSelection *	sel,
		vtkDataSet *	input,
		vtkDataSet *	output
	)			[protected]

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkExtractSelectedIds.h
