vtkExtractSelectionBase Class Reference

#include <vtkExtractSelectionBase.h>

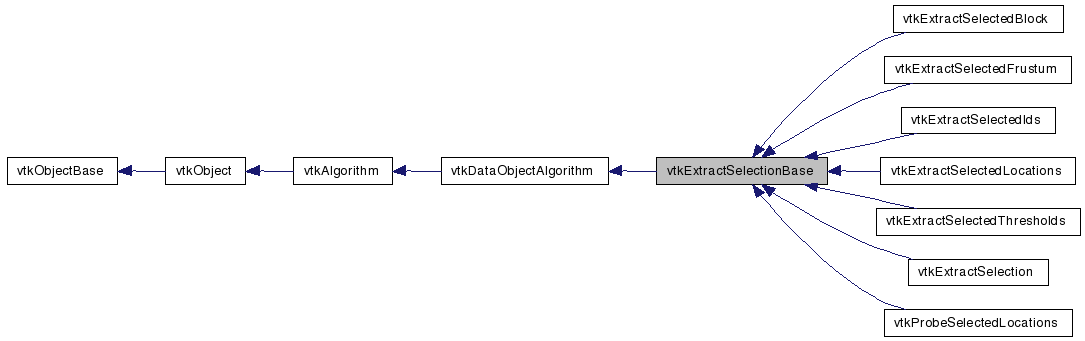

Inheritance diagram for vtkExtractSelectionBase:

Inheritance graph
[legend]

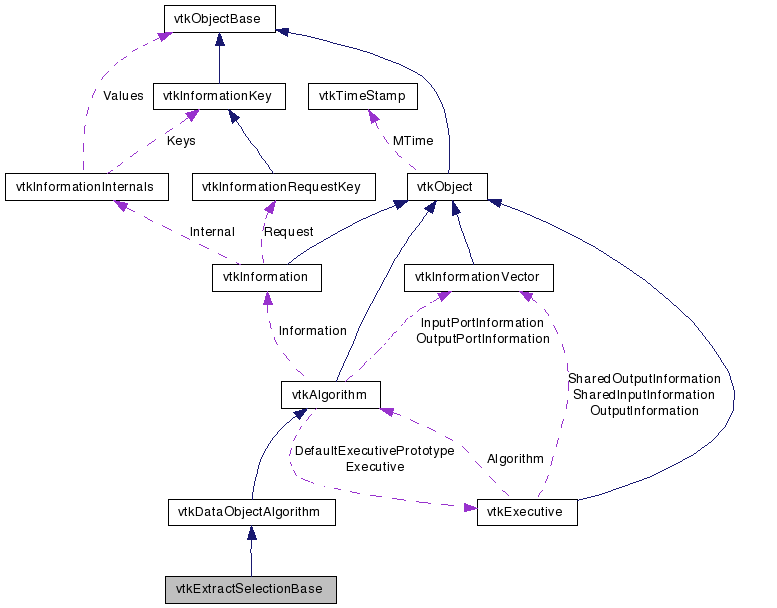

Collaboration diagram for vtkExtractSelectionBase:

Collaboration graph
[legend]

List of all members.


Detailed Description

abstract base class for all extract selection filters.

vtkExtractSelectionBase is an abstract base class for all extract selection filters. It defines some properties common to all extract selection filters.

Definition at line 28 of file vtkExtractSelectionBase.h.


Public Types

typedef vtkDataObjectAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetSelectionConnection (vtkAlgorithmOutput *algOutput)
virtual void SetPreserveTopology (int)
virtual int GetPreserveTopology ()
virtual void PreserveTopologyOn ()
virtual void PreserveTopologyOff ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkExtractSelectionBaseSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkExtractSelectionBase ()
 ~vtkExtractSelectionBase ()
virtual int FillInputPortInformation (int port, vtkInformation *info)
virtual int RequestDataObject (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)

Protected Attributes

int PreserveTopology

Member Typedef Documentation


Constructor & Destructor Documentation

vtkExtractSelectionBase::vtkExtractSelectionBase (  )  [protected]

vtkExtractSelectionBase::~vtkExtractSelectionBase (  )  [protected]


Member Function Documentation

virtual const char* vtkExtractSelectionBase::GetClassName (  )  [virtual]

static int vtkExtractSelectionBase::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObjectAlgorithm.

Reimplemented in vtkExtractSelectedBlock, vtkExtractSelectedFrustum, vtkExtractSelectedIds, vtkExtractSelectedLocations, vtkExtractSelectedThresholds, vtkExtractSelection, and vtkProbeSelectedLocations.

virtual int vtkExtractSelectionBase::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObjectAlgorithm.

Reimplemented in vtkExtractSelectedBlock, vtkExtractSelectedFrustum, vtkExtractSelectedIds, vtkExtractSelectedLocations, vtkExtractSelectedThresholds, vtkExtractSelection, and vtkProbeSelectedLocations.

static vtkExtractSelectionBase* vtkExtractSelectionBase::SafeDownCast ( vtkObject o  )  [static]

void vtkExtractSelectionBase::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObjectAlgorithm.

Reimplemented in vtkExtractSelectedBlock, vtkExtractSelectedFrustum, vtkExtractSelectedIds, vtkExtractSelectedLocations, vtkExtractSelectedThresholds, vtkExtractSelection, and vtkProbeSelectedLocations.

void vtkExtractSelectionBase::SetSelectionConnection ( vtkAlgorithmOutput algOutput  )  [inline]

Convenience method to specify the selection connection (2nd input port)

Definition at line 37 of file vtkExtractSelectionBase.h.

virtual void vtkExtractSelectionBase::SetPreserveTopology ( int   )  [virtual]

This flag tells the extraction filter not to convert the selected output into an unstructured grid, but instead to produce a vtkInsidedness array and add it to the input dataset. Default value is false(0).

virtual int vtkExtractSelectionBase::GetPreserveTopology (  )  [virtual]

This flag tells the extraction filter not to convert the selected output into an unstructured grid, but instead to produce a vtkInsidedness array and add it to the input dataset. Default value is false(0).

virtual void vtkExtractSelectionBase::PreserveTopologyOn (  )  [virtual]

This flag tells the extraction filter not to convert the selected output into an unstructured grid, but instead to produce a vtkInsidedness array and add it to the input dataset. Default value is false(0).

virtual void vtkExtractSelectionBase::PreserveTopologyOff (  )  [virtual]

This flag tells the extraction filter not to convert the selected output into an unstructured grid, but instead to produce a vtkInsidedness array and add it to the input dataset. Default value is false(0).

virtual int vtkExtractSelectionBase::RequestDataObject ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

Sets up empty output dataset

Reimplemented from vtkDataObjectAlgorithm.

Reimplemented in vtkExtractSelectedBlock, vtkExtractSelectedFrustum, vtkExtractSelection, and vtkProbeSelectedLocations.

virtual int vtkExtractSelectionBase::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkDataObjectAlgorithm.

Reimplemented in vtkExtractSelectedBlock, and vtkExtractSelection.


Member Data Documentation

Definition at line 67 of file vtkExtractSelectionBase.h.


The documentation for this class was generated from the following file:
