vtkExtractSelectedLocations Class Reference

#include <vtkExtractSelectedLocations.h>

Inheritance diagram for vtkExtractSelectedLocations:

Inheritance graph
[legend]

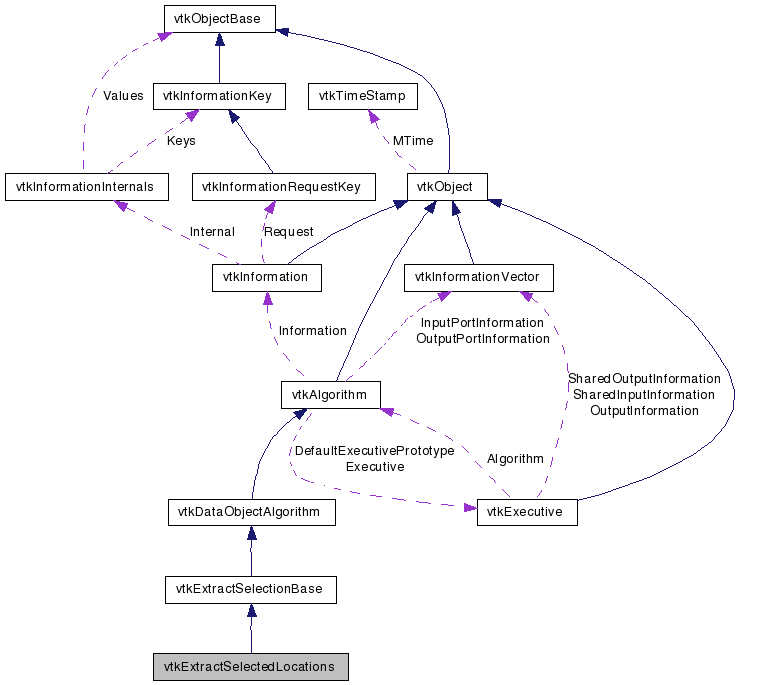

Collaboration diagram for vtkExtractSelectedLocations:

Collaboration graph
[legend]

List of all members.


Detailed Description

extract cells within a dataset that contain the locations listen in the vtkSelection.

vtkExtractSelectedLocations extracts all cells whose volume contain at least one point listed in the LOCATIONS content of the vtkSelection. This filter adds a scalar array called vtkOriginalCellIds that says what input cell produced each output cell. This is an example of a Pedigree ID which helps to trace back results.

See also:
vtkSelection vtkExtractSelection

Definition at line 35 of file vtkExtractSelectedLocations.h.


Public Types

typedef vtkExtractSelectionBase Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Static Public Member Functions

static
vtkExtractSelectedLocations
New ()
static int IsTypeOf (const char *type)
static
vtkExtractSelectedLocations
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkExtractSelectedLocations ()
 ~vtkExtractSelectedLocations ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int ExtractCells (vtkSelection *sel, vtkDataSet *input, vtkDataSet *output)
int ExtractPoints (vtkSelection *sel, vtkDataSet *input, vtkDataSet *output)

Member Typedef Documentation

Reimplemented from vtkExtractSelectionBase.

Definition at line 39 of file vtkExtractSelectedLocations.h.


Constructor & Destructor Documentation

vtkExtractSelectedLocations::vtkExtractSelectedLocations (  )  [protected]

vtkExtractSelectedLocations::~vtkExtractSelectedLocations (  )  [protected]


Member Function Documentation

static vtkExtractSelectedLocations* vtkExtractSelectedLocations::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObjectAlgorithm.

virtual const char* vtkExtractSelectedLocations::GetClassName (  )  [virtual]

Reimplemented from vtkExtractSelectionBase.

static int vtkExtractSelectedLocations::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExtractSelectionBase.

virtual int vtkExtractSelectedLocations::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExtractSelectionBase.

static vtkExtractSelectedLocations* vtkExtractSelectedLocations::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkExtractSelectionBase.

void vtkExtractSelectedLocations::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkExtractSelectionBase.

int vtkExtractSelectedLocations::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkDataObjectAlgorithm.

int vtkExtractSelectedLocations::ExtractCells ( vtkSelection sel,
vtkDataSet input,
vtkDataSet output
) [protected]

int vtkExtractSelectedLocations::ExtractPoints ( vtkSelection sel,
vtkDataSet input,
vtkDataSet output
) [protected]


The documentation for this class was generated from the following file:
