vtkExtractSelectedThresholds Class Reference

#include <vtkExtractSelectedThresholds.h>

Inheritance diagram for vtkExtractSelectedThresholds:

[legend]

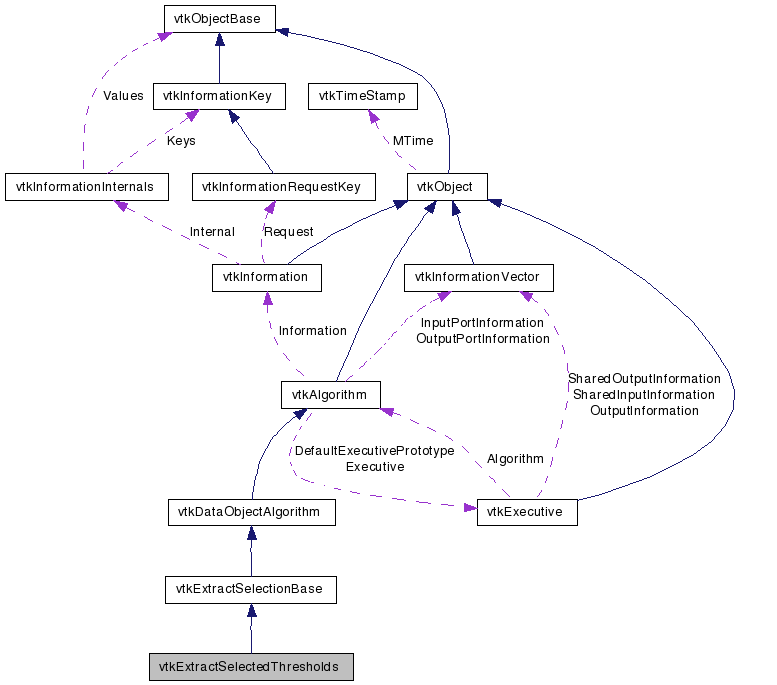

Collaboration diagram for vtkExtractSelectedThresholds:

[legend]

List of all members.

---

Detailed Description

extract a cells or points from a dataset that have values within a set of thresholds.

vtkExtractSelectedThresholds extracts all cells and points with attribute values that lie within a vtkSelection's THRESHOLD contents. The selecion can specify to threshold a particular array within either the point or cell attribute data of the input. This is similar to vtkThreshold but allows mutliple thresholds ranges. This filter adds a scalar array called vtkOriginalCellIds that says what input cell produced each output cell. This is an example of a Pedigree ID which helps to trace back results.

See also:

vtkSelection vtkExtractSelection vtkThreshold

Definition at line 42 of file vtkExtractSelectedThresholds.h.

Public Types
typedef vtkExtractSelectionBase	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkExtractSelectedThresholds *	SafeDownCast (vtkObject *o)
static vtkExtractSelectedThresholds *	New ()
static int	EvaluateValue (vtkDataArray *scalars, vtkIdType id, vtkDoubleArray *lims)
Protected Member Functions
	vtkExtractSelectedThresholds ()
	~vtkExtractSelectedThresholds ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int	ExtractCells (vtkSelection *sel, vtkDataSet *input, vtkDataSet *output, int usePointScalars)
int	ExtractPoints (vtkSelection *sel, vtkDataSet *input, vtkDataSet *output)

---

Member Typedef Documentation

typedef vtkExtractSelectionBase vtkExtractSelectedThresholds::Superclass

Reimplemented from vtkExtractSelectionBase.

Definition at line 45 of file vtkExtractSelectedThresholds.h.

---

Constructor & Destructor Documentation

vtkExtractSelectedThresholds::vtkExtractSelectedThresholds

(

)

[protected]

vtkExtractSelectedThresholds::~vtkExtractSelectedThresholds

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkExtractSelectedThresholds::GetClassName

(

)

[virtual]

Reimplemented from vtkExtractSelectionBase.

static int vtkExtractSelectedThresholds::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExtractSelectionBase.

virtual int vtkExtractSelectedThresholds::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExtractSelectionBase.

static vtkExtractSelectedThresholds* vtkExtractSelectedThresholds::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkExtractSelectionBase.

void vtkExtractSelectedThresholds::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkExtractSelectionBase.

static vtkExtractSelectedThresholds* vtkExtractSelectedThresholds::New

(

)

[static]

Constructor

Reimplemented from vtkDataObjectAlgorithm.

static int vtkExtractSelectedThresholds::EvaluateValue	(	vtkDataArray *	scalars,
		vtkIdType	id,
		vtkDoubleArray *	lims
	)			[static]

Function for determining whether a value in a data array passes the threshold test(s) provided in lims.

int vtkExtractSelectedThresholds::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

Reimplemented from vtkDataObjectAlgorithm.

int vtkExtractSelectedThresholds::ExtractCells	(	vtkSelection *	sel,
		vtkDataSet *	input,
		vtkDataSet *	output,
		int	usePointScalars
	)			[protected]

int vtkExtractSelectedThresholds::ExtractPoints	(	vtkSelection *	sel,
		vtkDataSet *	input,
		vtkDataSet *	output
	)			[protected]

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkExtractSelectedThresholds.h
