vtkImagePadFilter Class Reference

#include <vtkImagePadFilter.h>

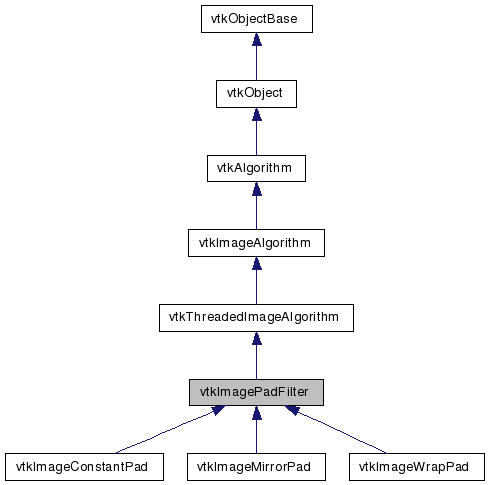

Inheritance diagram for vtkImagePadFilter:

Inheritance graph
[legend]

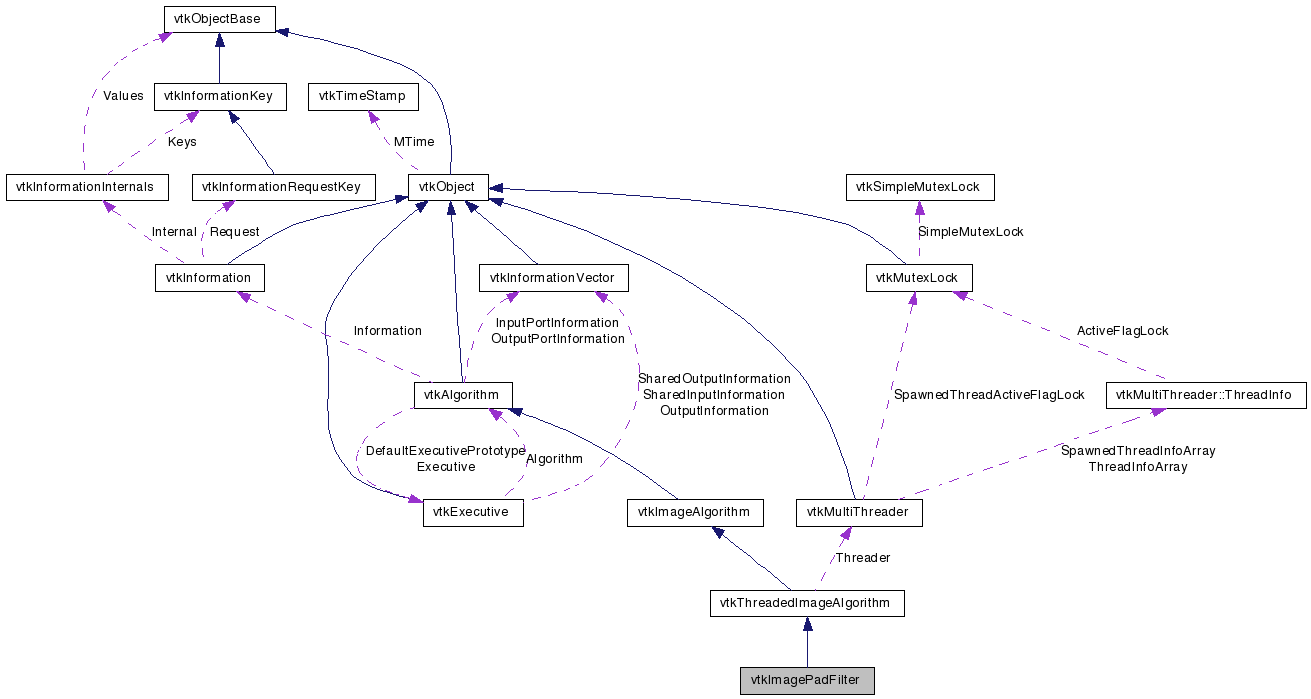

Collaboration diagram for vtkImagePadFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Super class for filters that fill in extra pixels.

vtkImagePadFilter Changes the image extent of an image. If the image extent is larger than the input image extent, the extra pixels are filled by an algorithm determined by the subclass. The image extent of the output has to be specified.

Definition at line 29 of file vtkImagePadFilter.h.


Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetOutputWholeExtent (int extent[6])
void SetOutputWholeExtent (int minX, int maxX, int minY, int maxY, int minZ, int maxZ)
void GetOutputWholeExtent (int extent[6])
int * GetOutputWholeExtent ()
virtual void SetOutputNumberOfScalarComponents (int)
virtual int GetOutputNumberOfScalarComponents ()

Static Public Member Functions

static vtkImagePadFilterNew ()
static int IsTypeOf (const char *type)
static vtkImagePadFilterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImagePadFilter ()
 ~vtkImagePadFilter ()
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual void ComputeInputUpdateExtent (int inExt[6], int outExt[6], int wExt[6])

Protected Attributes

int OutputWholeExtent [6]
int OutputNumberOfScalarComponents

Member Typedef Documentation

Reimplemented from vtkThreadedImageAlgorithm.

Reimplemented in vtkImageConstantPad, vtkImageMirrorPad, and vtkImageWrapPad.

Definition at line 33 of file vtkImagePadFilter.h.


Constructor & Destructor Documentation

vtkImagePadFilter::vtkImagePadFilter (  )  [protected]

vtkImagePadFilter::~vtkImagePadFilter (  )  [inline, protected]

Definition at line 53 of file vtkImagePadFilter.h.


Member Function Documentation

static vtkImagePadFilter* vtkImagePadFilter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkImageConstantPad, vtkImageMirrorPad, and vtkImageWrapPad.

virtual const char* vtkImagePadFilter::GetClassName (  )  [virtual]

static int vtkImagePadFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

Reimplemented in vtkImageConstantPad, vtkImageMirrorPad, and vtkImageWrapPad.

virtual int vtkImagePadFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

Reimplemented in vtkImageConstantPad, vtkImageMirrorPad, and vtkImageWrapPad.

static vtkImagePadFilter* vtkImagePadFilter::SafeDownCast ( vtkObject o  )  [static]

void vtkImagePadFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

Reimplemented in vtkImageConstantPad.

void vtkImagePadFilter::SetOutputWholeExtent ( int  extent[6]  )

The image extent of the output has to be set explicitly.

void vtkImagePadFilter::SetOutputWholeExtent ( int  minX,
int  maxX,
int  minY,
int  maxY,
int  minZ,
int  maxZ
)

The image extent of the output has to be set explicitly.

void vtkImagePadFilter::GetOutputWholeExtent ( int  extent[6]  )

The image extent of the output has to be set explicitly.

int* vtkImagePadFilter::GetOutputWholeExtent (  )  [inline]

The image extent of the output has to be set explicitly.

Definition at line 42 of file vtkImagePadFilter.h.

virtual void vtkImagePadFilter::SetOutputNumberOfScalarComponents ( int   )  [virtual]

Set/Get the number of output scalar components.

virtual int vtkImagePadFilter::GetOutputNumberOfScalarComponents (  )  [virtual]

Set/Get the number of output scalar components.

virtual int vtkImagePadFilter::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual int vtkImagePadFilter::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual void vtkImagePadFilter::ComputeInputUpdateExtent ( int  inExt[6],
int  outExt[6],
int  wExt[6]
) [protected, virtual]

Reimplemented in vtkImageMirrorPad, and vtkImageWrapPad.


Member Data Documentation

Definition at line 53 of file vtkImagePadFilter.h.

Definition at line 56 of file vtkImagePadFilter.h.


The documentation for this class was generated from the following file:
