vtkThreadedImageAlgorithm Class Reference

#include <vtkThreadedImageAlgorithm.h>

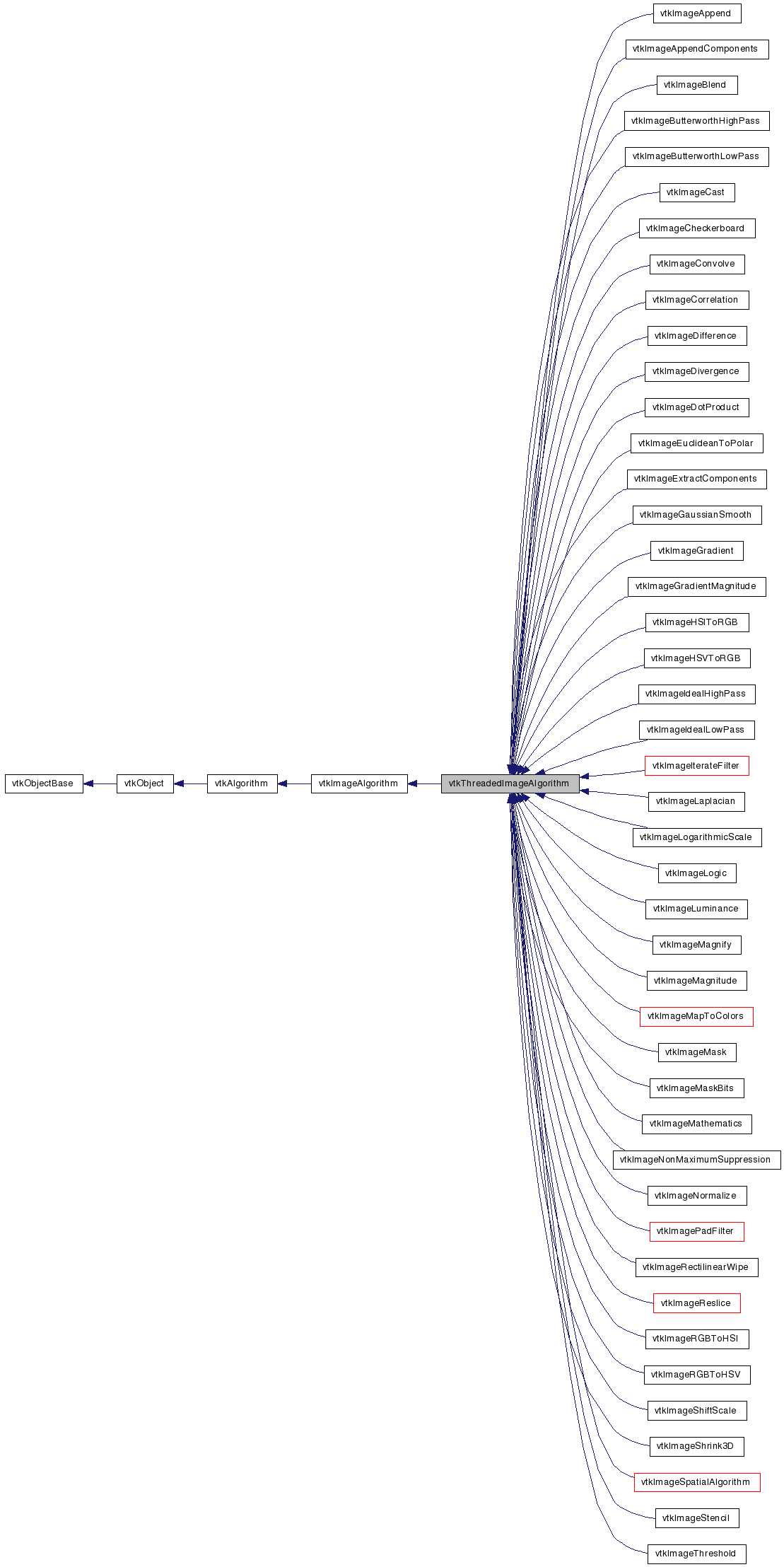

Inheritance diagram for vtkThreadedImageAlgorithm:

[legend]

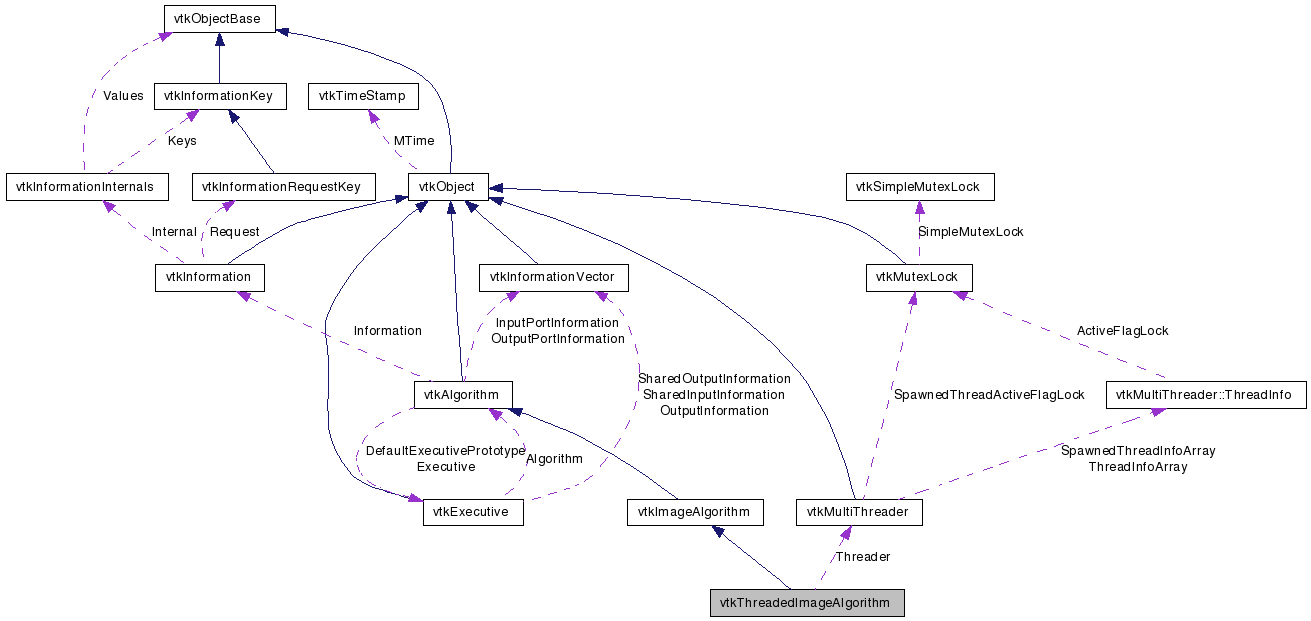

Collaboration diagram for vtkThreadedImageAlgorithm:

[legend]

List of all members.

Detailed Description

Generic filter that has one input..

vtkThreadedImageAlgorithm is a filter superclass that hides much of the pipeline complexity. It handles breaking the pipeline execution into smaller extents so that the vtkImageData limits are observed. It also provides support for multithreading. If you don't need any of this functionality, consider using vtkSimpleImageToImageAlgorithm instead.

See also:: vtkSimpleImageToImageAlgorithm

Definition at line 35 of file vtkThreadedImageAlgorithm.h.


Public Types
typedef vtkImageAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	ThreadedExecute (vtkImageData inData, vtkImageData outData, int extent[6], int threadId)

virtual void	ThreadedRequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector, vtkImageData *inData, vtkImageData outData, int extent[6], int threadId)

virtual void	SetNumberOfThreads (int)
virtual int	GetNumberOfThreads ()

virtual int	SplitExtent (int splitExt[6], int startExt[6], int num, int total)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkThreadedImageAlgorithm *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkThreadedImageAlgorithm ()
	~vtkThreadedImageAlgorithm ()

virtual int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
Protected Attributes
vtkMultiThreader *	Threader
int	NumberOfThreads

Member Typedef Documentation

typedef vtkImageAlgorithm vtkThreadedImageAlgorithm::Superclass

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, vtkImageWeightedSum, and vtkImageWrapPad.

Definition at line 38 of file vtkThreadedImageAlgorithm.h.

Constructor & Destructor Documentation

vtkThreadedImageAlgorithm::vtkThreadedImageAlgorithm ( ) [protected]

vtkThreadedImageAlgorithm::~vtkThreadedImageAlgorithm ( ) [protected]

Member Function Documentation

virtual const char* vtkThreadedImageAlgorithm::GetClassName ( ) [virtual]

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, vtkImageWeightedSum, and vtkImageWrapPad.

static int vtkThreadedImageAlgorithm::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, vtkImageWeightedSum, and vtkImageWrapPad.

virtual int vtkThreadedImageAlgorithm::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, vtkImageWeightedSum, and vtkImageWrapPad.

static vtkThreadedImageAlgorithm* vtkThreadedImageAlgorithm::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, vtkImageWeightedSum, and vtkImageWrapPad.

void vtkThreadedImageAlgorithm::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFlip, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageMagnify, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageNonMaximumSuppression, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, and vtkImageWeightedSum.

virtual void vtkThreadedImageAlgorithm::ThreadedRequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector,
		vtkImageData ***	inData,
		vtkImageData **	outData,
		int	extent[6],
		int	threadId
	)			`[virtual]`

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCheckerboard, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDifference, vtkImageDilateErode3D, vtkImageDotProduct, vtkImageGaussianSmooth, vtkImageGradient, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageLaplacian, vtkImageLogic, vtkImageMagnify, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageReslice, vtkImageShiftScale, vtkImageShrink3D, vtkImageSobel2D, vtkImageSobel3D, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, vtkImageWeightedSum, and vtkImageWrapPad.

virtual void vtkThreadedImageAlgorithm::ThreadedExecute	(	vtkImageData *	inData,
		vtkImageData *	outData,
		int	extent[6],
		int	threadId
	)			`[virtual]`

Reimplemented in vtkImageCast, vtkImageDivergence, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFourierCenter, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageLogarithmicScale, vtkImageLuminance, vtkImageMagnitude, vtkImageMaskBits, vtkImageNormalize, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, and vtkImageSkeleton2D.

virtual void vtkThreadedImageAlgorithm::SetNumberOfThreads ( int ) [virtual]

Get/Set the number of threads to create when rendering

virtual int vtkThreadedImageAlgorithm::GetNumberOfThreads ( ) [virtual]

Get/Set the number of threads to create when rendering

virtual int vtkThreadedImageAlgorithm::SplitExtent	(	int	splitExt[6],
		int	startExt[6],
		int	num,
		int	total
	)			`[virtual]`

Putting this here until I merge graphics and imaging streaming.

Reimplemented in vtkImageEuclideanDistance, vtkImageFFT, and vtkImageRFFT.

virtual int vtkThreadedImageAlgorithm::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
