vtkPDataSetWriter Class Reference

#include <vtkPDataSetWriter.h>

Inheritance diagram for vtkPDataSetWriter:

[legend]

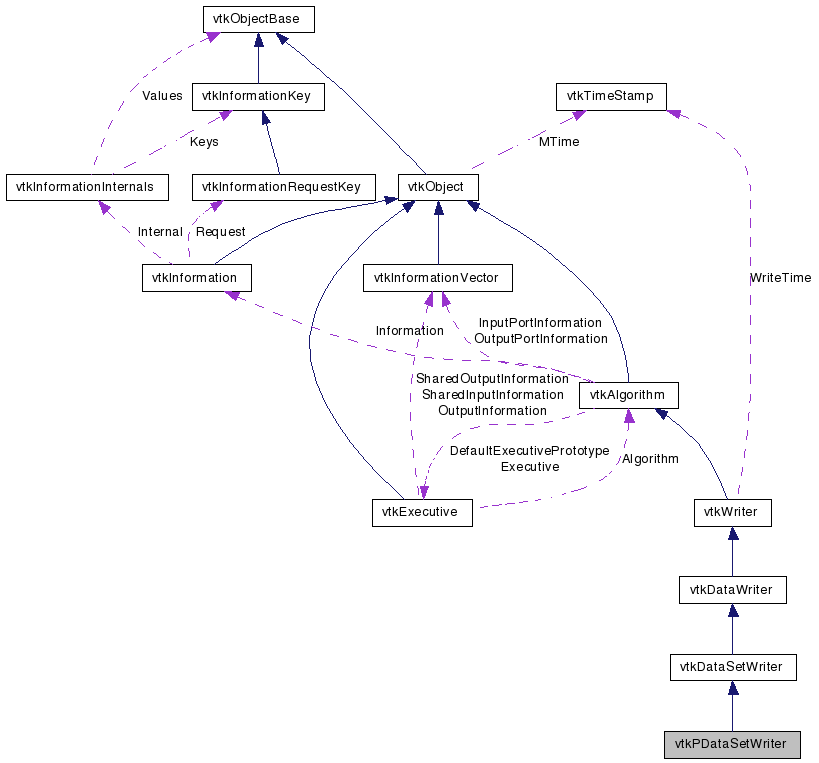

Collaboration diagram for vtkPDataSetWriter:

[legend]

List of all members.

Detailed Description

Manages writing pieces of a data set.

vtkPDataSetWriter will write a piece of a file, and will also create a metadata file that lists all of the files in a data set.

Tests:: vtkPDataSetWriter (Tests)

Definition at line 34 of file vtkPDataSetWriter.h.


Public Types
typedef vtkDataSetWriter	Superclass
Public Member Functions
void	PrintSelf (ostream &os, vtkIndent indent)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual int	Write ()

void	SetNumberOfPieces (int num)
virtual int	GetNumberOfPieces ()

virtual void	SetGhostLevel (int)
virtual int	GetGhostLevel ()

virtual void	SetStartPiece (int)
virtual int	GetStartPiece ()
virtual void	SetEndPiece (int)
virtual int	GetEndPiece ()

virtual void	SetFilePattern (const char *)
virtual char *	GetFilePattern ()

virtual void	SetUseRelativeFileNames (int)
virtual int	GetUseRelativeFileNames ()
virtual void	UseRelativeFileNamesOn ()
virtual void	UseRelativeFileNamesOff ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkPDataSetWriter *	SafeDownCast (vtkObject *o)
static vtkPDataSetWriter *	New ()
Protected Member Functions
	vtkPDataSetWriter ()
	~vtkPDataSetWriter ()
ostream *	OpenFile ()
int	WriteUnstructuredMetaData (vtkDataSet input, char root, char str, ostream fptr)
int	WriteImageMetaData (vtkImageData input, char root, char str, ostream fptr)
int	WriteRectilinearGridMetaData (vtkRectilinearGrid input, char root, char str, ostream fptr)
int	WriteStructuredGridMetaData (vtkStructuredGrid input, char root, char str, ostream fptr)
void	DeleteFiles ()
Protected Attributes
int	StartPiece
int	EndPiece
int	NumberOfPieces
int	GhostLevel
int	UseRelativeFileNames
char *	FilePattern

Member Typedef Documentation

typedef vtkDataSetWriter vtkPDataSetWriter::Superclass

Reimplemented from vtkDataSetWriter.

Definition at line 38 of file vtkPDataSetWriter.h.

Constructor & Destructor Documentation

vtkPDataSetWriter::vtkPDataSetWriter ( ) [protected]

vtkPDataSetWriter::~vtkPDataSetWriter ( ) [protected]

Member Function Documentation

void vtkPDataSetWriter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetWriter.

virtual const char* vtkPDataSetWriter::GetClassName ( ) [virtual]

Reimplemented from vtkDataSetWriter.

static int vtkPDataSetWriter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetWriter.

virtual int vtkPDataSetWriter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetWriter.

static vtkPDataSetWriter* vtkPDataSetWriter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataSetWriter.

static vtkPDataSetWriter* vtkPDataSetWriter::New ( ) [static]

Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates.

Reimplemented from vtkDataSetWriter.

virtual int vtkPDataSetWriter::Write ( ) [virtual]

Write the pvtk file and cooresponding vtk files.

Reimplemented from vtkWriter.

void vtkPDataSetWriter::SetNumberOfPieces ( int num )

This is how many pieces the whole data set will be divided into.

virtual int vtkPDataSetWriter::GetNumberOfPieces ( ) [virtual]

This is how many pieces the whole data set will be divided into.

virtual void vtkPDataSetWriter::SetGhostLevel ( int ) [virtual]

Extra ghost cells will be written out to each piece file if this value is larger than 0.

virtual int vtkPDataSetWriter::GetGhostLevel ( ) [virtual]

Extra ghost cells will be written out to each piece file if this value is larger than 0.

virtual void vtkPDataSetWriter::SetStartPiece ( int ) [virtual]

This is the range of pieces that that this writer is responsible for writing. All pieces must be written by some process. The process that writes piece 0 also writes the pvtk file that lists all the piece file names.

virtual int vtkPDataSetWriter::GetStartPiece ( ) [virtual]

This is the range of pieces that that this writer is responsible for writing. All pieces must be written by some process. The process that writes piece 0 also writes the pvtk file that lists all the piece file names.

virtual void vtkPDataSetWriter::SetEndPiece ( int ) [virtual]

This is the range of pieces that that this writer is responsible for writing. All pieces must be written by some process. The process that writes piece 0 also writes the pvtk file that lists all the piece file names.

virtual int vtkPDataSetWriter::GetEndPiece ( ) [virtual]

This is the range of pieces that that this writer is responsible for writing. All pieces must be written by some process. The process that writes piece 0 also writes the pvtk file that lists all the piece file names.

virtual void vtkPDataSetWriter::SetFilePattern ( const char * ) [virtual]

This file pattern uses the file name and piece number to contruct a file name for the piece file.

virtual char* vtkPDataSetWriter::GetFilePattern ( ) [virtual]

This file pattern uses the file name and piece number to contruct a file name for the piece file.

virtual void vtkPDataSetWriter::SetUseRelativeFileNames ( int ) [virtual]

This flag determines whether to use absolute paths for the piece files. By default the pieces are put in the main directory, and the piece file names in the meta data pvtk file are relative to this directory. This should make moving the whole lot to another directory, an easier task.

virtual int vtkPDataSetWriter::GetUseRelativeFileNames ( ) [virtual]

This flag determines whether to use absolute paths for the piece files. By default the pieces are put in the main directory, and the piece file names in the meta data pvtk file are relative to this directory. This should make moving the whole lot to another directory, an easier task.

virtual void vtkPDataSetWriter::UseRelativeFileNamesOn ( ) [virtual]

This flag determines whether to use absolute paths for the piece files. By default the pieces are put in the main directory, and the piece file names in the meta data pvtk file are relative to this directory. This should make moving the whole lot to another directory, an easier task.

virtual void vtkPDataSetWriter::UseRelativeFileNamesOff ( ) [virtual]

This flag determines whether to use absolute paths for the piece files. By default the pieces are put in the main directory, and the piece file names in the meta data pvtk file are relative to this directory. This should make moving the whole lot to another directory, an easier task.

ostream* vtkPDataSetWriter::OpenFile ( ) [protected]
