vtkPOutlineCornerFilter Class Reference

#include <vtkPOutlineCornerFilter.h>

Inheritance diagram for vtkPOutlineCornerFilter:

Inheritance graph
[legend]

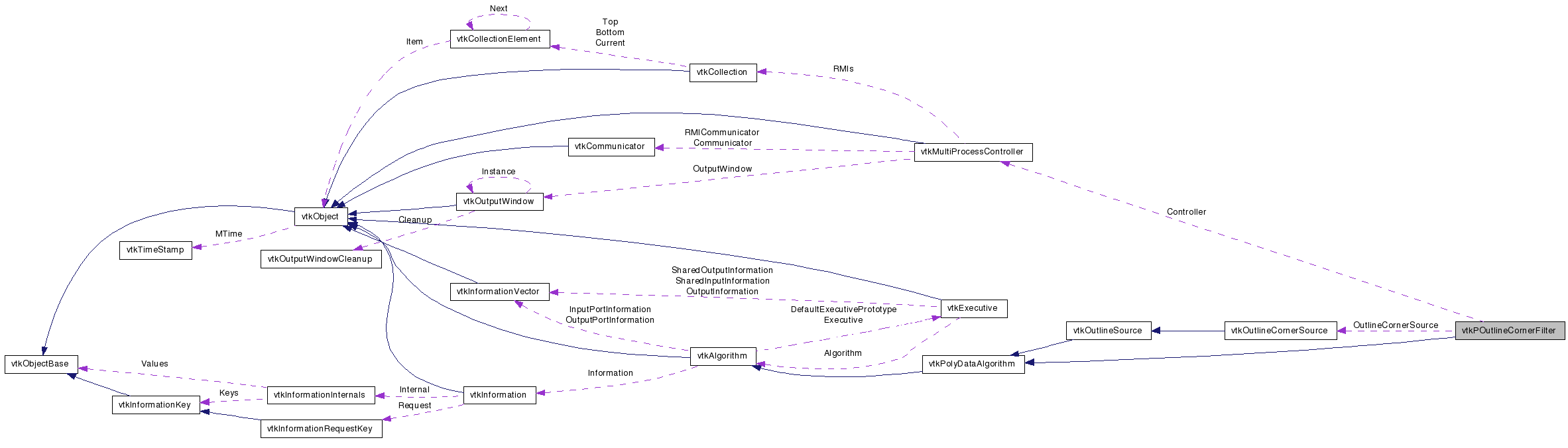

Collaboration diagram for vtkPOutlineCornerFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

create wireframe outline corners for arbitrary data set

vtkPOutlineCornerFilter works like vtkOutlineCornerFilter, but it looks for data partitions in other processes. It assumes the filter is operated in a data parallel pipeline.

Definition at line 31 of file vtkPOutlineCornerFilter.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetCornerFactor (double)
virtual double GetCornerFactor ()
virtual void SetController (vtkMultiProcessController *)
virtual vtkMultiProcessControllerGetController ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkPOutlineCornerFilterSafeDownCast (vtkObject *o)
static vtkPOutlineCornerFilterNew ()

Protected Member Functions

 vtkPOutlineCornerFilter ()
 ~vtkPOutlineCornerFilter ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

vtkMultiProcessControllerController
vtkOutlineCornerSourceOutlineCornerSource
double CornerFactor

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 34 of file vtkPOutlineCornerFilter.h.


Constructor & Destructor Documentation

vtkPOutlineCornerFilter::vtkPOutlineCornerFilter (  )  [protected]

vtkPOutlineCornerFilter::~vtkPOutlineCornerFilter (  )  [protected]


Member Function Documentation

virtual const char* vtkPOutlineCornerFilter::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkPOutlineCornerFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkPOutlineCornerFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkPOutlineCornerFilter* vtkPOutlineCornerFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkPOutlineCornerFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkPOutlineCornerFilter* vtkPOutlineCornerFilter::New (  )  [static]

Construct outline corner filter with default corner factor = 0.2

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkPOutlineCornerFilter::SetCornerFactor ( double   )  [virtual]

Set/Get the factor that controls the relative size of the corners to the length of the corresponding bounds

virtual double vtkPOutlineCornerFilter::GetCornerFactor (  )  [virtual]

Set/Get the factor that controls the relative size of the corners to the length of the corresponding bounds

virtual void vtkPOutlineCornerFilter::SetController ( vtkMultiProcessController  )  [virtual]

Set and get the controller.

virtual vtkMultiProcessController* vtkPOutlineCornerFilter::GetController (  )  [virtual]

Set and get the controller.

virtual int vtkPOutlineCornerFilter::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkPOutlineCornerFilter::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkPOutlineCornerFilter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

Definition at line 57 of file vtkPOutlineCornerFilter.h.

Definition at line 58 of file vtkPOutlineCornerFilter.h.

Definition at line 63 of file vtkPOutlineCornerFilter.h.


The documentation for this class was generated from the following file:
