vtkXMLPImageDataReader Class Reference

#include <vtkXMLPImageDataReader.h>

Inheritance diagram for vtkXMLPImageDataReader:

[legend]

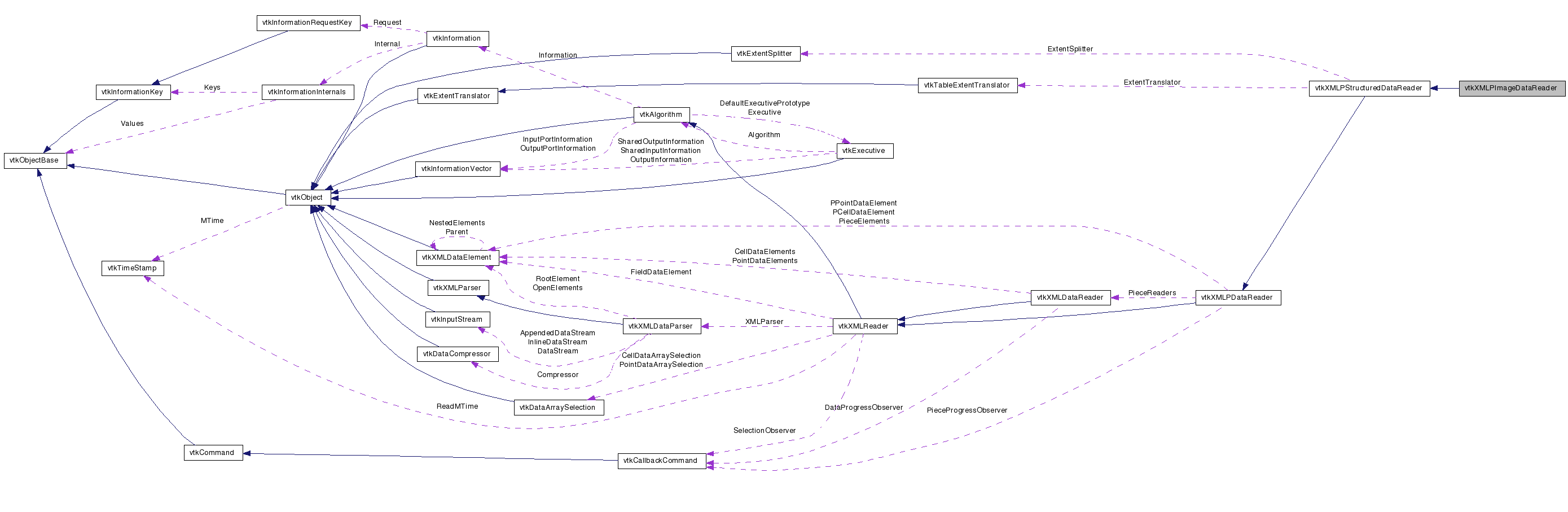

Collaboration diagram for vtkXMLPImageDataReader:

[legend]

List of all members.

---

Detailed Description

Read PVTK XML ImageData files.

vtkXMLPImageDataReader reads the PVTK XML ImageData file format. This reads the parallel format's summary file and then uses vtkXMLImageDataReader to read data from the individual ImageData piece files. Streaming is supported. The standard extension for this reader's file format is "pvti".

See also:

vtkXMLImageDataReader

Definition at line 35 of file vtkXMLPImageDataReader.h.

Public Types
typedef vtkXMLPStructuredDataReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	CopyOutputInformation (vtkInformation *outInfo, int port)
void	SetOutput (vtkImageData *output)
vtkImageData *	GetOutput ()
vtkImageData *	GetOutput (int idx)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkXMLPImageDataReader *	SafeDownCast (vtkObject *o)
static vtkXMLPImageDataReader *	New ()
Protected Member Functions
	vtkXMLPImageDataReader ()
	~vtkXMLPImageDataReader ()
vtkImageData *	GetPieceInput (int index)
const char *	GetDataSetName ()
void	SetOutputExtent (int *extent)
void	GetPieceInputExtent (int index, int *extent)
int	ReadPrimaryElement (vtkXMLDataElement *ePrimary)
void	SetupOutputInformation (vtkInformation *outInfo)
vtkXMLDataReader *	CreatePieceReader ()
virtual int	FillOutputPortInformation (int, vtkInformation *)
Protected Attributes
double	Origin [3]
double	Spacing [3]

---

Member Typedef Documentation

typedef vtkXMLPStructuredDataReader vtkXMLPImageDataReader::Superclass

Reimplemented from vtkXMLPStructuredDataReader.

Definition at line 38 of file vtkXMLPImageDataReader.h.

---

Constructor & Destructor Documentation

vtkXMLPImageDataReader::vtkXMLPImageDataReader

(

)

[protected]

vtkXMLPImageDataReader::~vtkXMLPImageDataReader

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkXMLPImageDataReader::GetClassName

(

)

[virtual]

Reimplemented from vtkXMLPStructuredDataReader.

static int vtkXMLPImageDataReader::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPStructuredDataReader.

virtual int vtkXMLPImageDataReader::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPStructuredDataReader.

static vtkXMLPImageDataReader* vtkXMLPImageDataReader::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkXMLPStructuredDataReader.

void vtkXMLPImageDataReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLPStructuredDataReader.

static vtkXMLPImageDataReader* vtkXMLPImageDataReader::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

void vtkXMLPImageDataReader::SetOutput

(

vtkImageData *

output

)

Get/Set the reader's output.

vtkImageData* vtkXMLPImageDataReader::GetOutput

(

)

Get/Set the reader's output.

vtkImageData* vtkXMLPImageDataReader::GetOutput

(

int

idx

)

Get/Set the reader's output.

virtual void vtkXMLPImageDataReader::CopyOutputInformation	(	vtkInformation *	outInfo,
		int	port
	)			[virtual]

Reimplemented from vtkXMLPStructuredDataReader.

vtkImageData* vtkXMLPImageDataReader::GetPieceInput

(

int

index

)

[protected]

const char* vtkXMLPImageDataReader::GetDataSetName

(

)

[protected, virtual]

Implements vtkXMLReader.

void vtkXMLPImageDataReader::SetOutputExtent

(

int *

extent

)

[protected, virtual]

Implements vtkXMLPStructuredDataReader.

void vtkXMLPImageDataReader::GetPieceInputExtent	(	int	index,
		int *	extent
	)			[protected, virtual]

Implements vtkXMLPStructuredDataReader.

int vtkXMLPImageDataReader::ReadPrimaryElement

(

vtkXMLDataElement *

ePrimary

)

[protected, virtual]

Reimplemented from vtkXMLPStructuredDataReader.

void vtkXMLPImageDataReader::SetupOutputInformation

(

vtkInformation *

outInfo

)

[protected, virtual]

Reimplemented from vtkXMLPDataReader.

vtkXMLDataReader* vtkXMLPImageDataReader::CreatePieceReader

(

)

[protected, virtual]

Implements vtkXMLPDataReader.

virtual int vtkXMLPImageDataReader::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

---

Member Data Documentation

double vtkXMLPImageDataReader::Origin[3] [protected]

Definition at line 57 of file vtkXMLPImageDataReader.h.

double vtkXMLPImageDataReader::Spacing[3] [protected]

Definition at line 58 of file vtkXMLPImageDataReader.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkXMLPImageDataReader.h
