vtkXMLReader Class Reference

#include <vtkXMLReader.h>

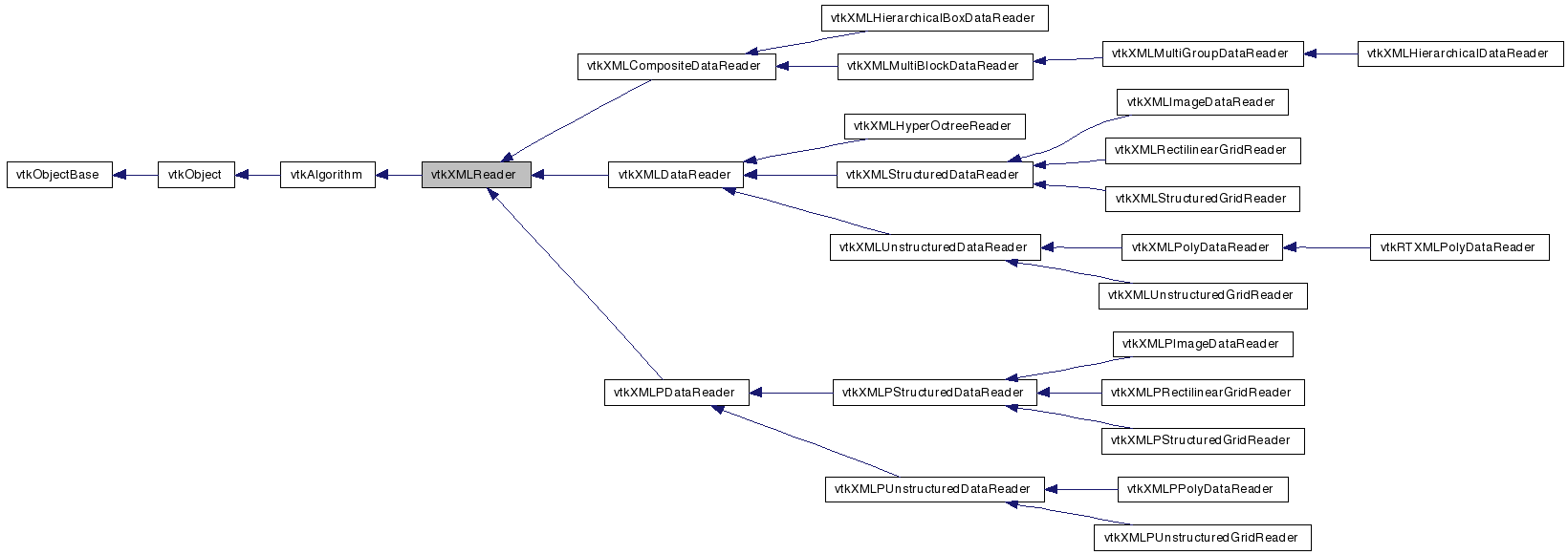

Inheritance diagram for vtkXMLReader:

[legend]

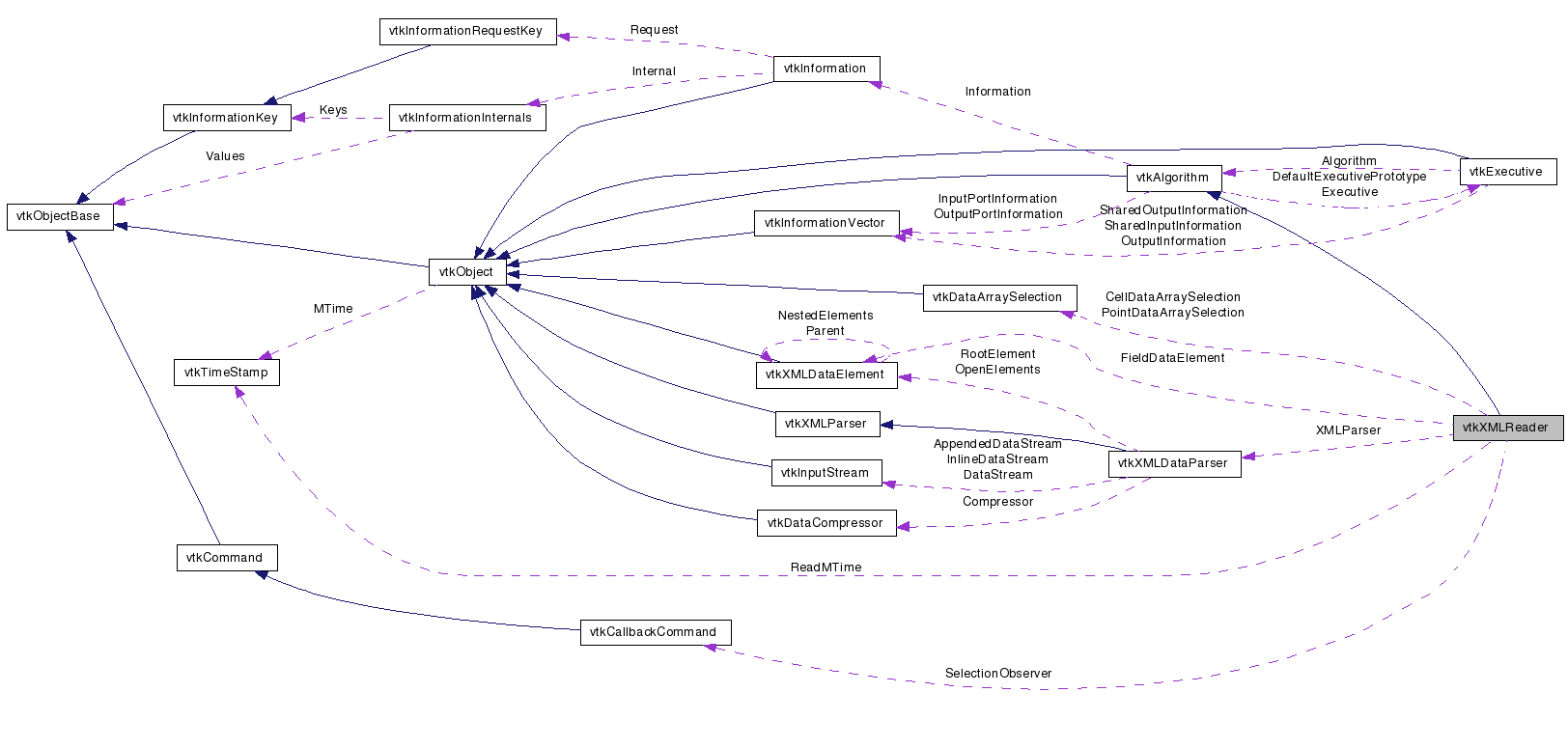

Collaboration diagram for vtkXMLReader:

[legend]

List of all members.

Detailed Description

Superclass for VTK's XML format readers.

vtkXMLReader uses vtkXMLDataParser to parse a VTK XML input file. Concrete subclasses then traverse the parsed file structure and extract data.

Definition at line 37 of file vtkXMLReader.h.


Public Types
typedef vtkAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	CanReadFile (const char *name)
virtual void	CopyOutputInformation (vtkInformation *vtkNotUsed(outInfo), int vtkNotUsed(port))
virtual int	GetNumberOfTimeSteps ()

virtual void	SetFileName (const char *)
virtual char *	GetFileName ()

vtkDataSet *	GetOutputAsDataSet ()
vtkDataSet *	GetOutputAsDataSet (int index)

virtual vtkDataArraySelection *	GetPointDataArraySelection ()
virtual vtkDataArraySelection *	GetCellDataArraySelection ()

int	GetNumberOfPointArrays ()
int	GetNumberOfCellArrays ()

const char *	GetPointArrayName (int index)
const char *	GetCellArrayName (int index)

int	GetPointArrayStatus (const char *name)
int	GetCellArrayStatus (const char *name)
void	SetPointArrayStatus (const char *name, int status)
void	SetCellArrayStatus (const char *name, int status)

virtual void	SetTimeStep (int)
virtual int	GetTimeStep ()

virtual int *	GetTimeStepRange ()
virtual void	GetTimeStepRange (int &, int &)
virtual void	GetTimeStepRange (int[2])
virtual void	SetTimeStepRange (int, int)
void	SetTimeStepRange (int[2])
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkXMLReader *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkXMLReader ()
	~vtkXMLReader ()
virtual int	ReadXMLInformation ()
virtual void	ReadXMLData ()
virtual const char *	GetDataSetName ()=0
virtual int	CanReadFileVersion (int major, int minor)
virtual void	SetupEmptyOutput ()=0
virtual void	SetupOutputInformation (vtkInformation *vtkNotUsed(outInfo))
virtual void	SetupUpdateExtentInformation (vtkInformation *vtkNotUsed(outInfo))
virtual void	SetupOutputData ()
virtual int	ReadPrimaryElement (vtkXMLDataElement *ePrimary)
int	ReadVTKFile (vtkXMLDataElement *eVTKFile)
vtkAbstractArray *	CreateArray (vtkXMLDataElement *da)
virtual int	OpenVTKFile ()
virtual void	CloseVTKFile ()
virtual void	CreateXMLParser ()
virtual void	DestroyXMLParser ()
void	SetupCompressor (const char *type)
int	CanReadFileVersionString (const char *version)
virtual int	GetFileMajorVersion ()
virtual int	GetFileMinorVersion ()
int	IntersectExtents (int extent1, int extent2, int *result)
int	Min (int a, int b)
int	Max (int a, int b)
void	ComputePointDimensions (int extent, int dimensions)
void	ComputePointIncrements (int extent, vtkIdType increments)
void	ComputeCellDimensions (int extent, int dimensions)
void	ComputeCellIncrements (int extent, vtkIdType increments)
vtkIdType	GetStartTuple (int extent, vtkIdType increments, int i, int j, int k)
void	ReadAttributeIndices (vtkXMLDataElement eDSA, vtkDataSetAttributes dsa)
char **	CreateStringArray (int numStrings)
void	DestroyStringArray (int numStrings, char **strings)
void	SetDataArraySelections (vtkXMLDataElement eDSA, vtkDataArraySelection sel)
int	SetFieldDataInfo (vtkXMLDataElement eDSA, int association, int numTuples, vtkInformationVector (&infoVector))
int	PointDataArrayIsEnabled (vtkXMLDataElement *ePDA)
int	CellDataArrayIsEnabled (vtkXMLDataElement *eCDA)
virtual void	GetProgressRange (float *range)
virtual void	SetProgressRange (float *range, int curStep, int numSteps)
virtual void	SetProgressRange (float range, int curStep, float fractions)
virtual void	UpdateProgressDiscrete (float progress)
virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
virtual int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
virtual int	RequestDataObject (vtkInformation vtkNotUsed(request), vtkInformationVector vtkNotUsed(inputVector), vtkInformationVector vtkNotUsed(outputVector))
virtual int	RequestInformation (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
virtual int	RequestUpdateExtentInformation (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
void	SetNumberOfTimeSteps (int num)
Static Protected Member Functions
static void	SelectionModifiedCallback (vtkObject caller, unsigned long eid, void clientdata, void *calldata)
static int	IsTimeStepInArray (int timestep, int *timesteps, int length)
Protected Attributes
vtkXMLDataParser *	XMLParser
vtkXMLDataElement *	FieldDataElement
char *	FileName
istream *	Stream
vtkDataArraySelection *	PointDataArraySelection
vtkDataArraySelection *	CellDataArraySelection
vtkCallbackCommand *	SelectionObserver
int	InformationError
int	DataError
int	CurrentOutput
float	ProgressRange [2]
vtkTimeStamp	ReadMTime
int	ReadError
int	AxesEmpty [3]
int	TimeStep
int	CurrentTimeStep
int	NumberOfTimeSteps
int *	TimeSteps
int	TimeStepRange [2]

Member Typedef Documentation

Constructor & Destructor Documentation

vtkXMLReader::vtkXMLReader ( ) [protected]

vtkXMLReader::~vtkXMLReader ( ) [protected]

Member Function Documentation

virtual const char* vtkXMLReader::GetClassName ( ) [virtual]

static int vtkXMLReader::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkRTXMLPolyDataReader, vtkXMLCompositeDataReader, vtkXMLDataReader, vtkXMLHierarchicalBoxDataReader, vtkXMLHierarchicalDataReader, vtkXMLHyperOctreeReader, vtkXMLImageDataReader, vtkXMLMultiBlockDataReader, vtkXMLMultiGroupDataReader, vtkXMLPDataReader, vtkXMLPImageDataReader, vtkXMLPolyDataReader, vtkXMLPPolyDataReader, vtkXMLPRectilinearGridReader, vtkXMLPStructuredDataReader, vtkXMLPStructuredGridReader, vtkXMLPUnstructuredDataReader, vtkXMLPUnstructuredGridReader, vtkXMLRectilinearGridReader, vtkXMLStructuredDataReader, vtkXMLStructuredGridReader, vtkXMLUnstructuredDataReader, and vtkXMLUnstructuredGridReader.

virtual int vtkXMLReader::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkRTXMLPolyDataReader, vtkXMLCompositeDataReader, vtkXMLDataReader, vtkXMLHierarchicalBoxDataReader, vtkXMLHierarchicalDataReader, vtkXMLHyperOctreeReader, vtkXMLImageDataReader, vtkXMLMultiBlockDataReader, vtkXMLMultiGroupDataReader, vtkXMLPDataReader, vtkXMLPImageDataReader, vtkXMLPolyDataReader, vtkXMLPPolyDataReader, vtkXMLPRectilinearGridReader, vtkXMLPStructuredDataReader, vtkXMLPStructuredGridReader, vtkXMLPUnstructuredDataReader, vtkXMLPUnstructuredGridReader, vtkXMLRectilinearGridReader, vtkXMLStructuredDataReader, vtkXMLStructuredGridReader, vtkXMLUnstructuredDataReader, and vtkXMLUnstructuredGridReader.

static vtkXMLReader* vtkXMLReader::SafeDownCast ( vtkObject * o ) [static]

void vtkXMLReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkRTXMLPolyDataReader, vtkXMLCompositeDataReader, vtkXMLDataReader, vtkXMLHierarchicalBoxDataReader, vtkXMLHierarchicalDataReader, vtkXMLHyperOctreeReader, vtkXMLImageDataReader, vtkXMLMultiBlockDataReader, vtkXMLMultiGroupDataReader, vtkXMLPDataReader, vtkXMLPImageDataReader, vtkXMLPolyDataReader, vtkXMLPPolyDataReader, vtkXMLPRectilinearGridReader, vtkXMLPStructuredDataReader, vtkXMLPStructuredGridReader, vtkXMLPUnstructuredDataReader, vtkXMLPUnstructuredGridReader, vtkXMLRectilinearGridReader, vtkXMLStructuredDataReader, vtkXMLStructuredGridReader, vtkXMLUnstructuredDataReader, and vtkXMLUnstructuredGridReader.

virtual void vtkXMLReader::SetFileName ( const char * ) [virtual]

Get/Set the name of the input file.

virtual char* vtkXMLReader::GetFileName ( ) [virtual]

Get/Set the name of the input file.

virtual int vtkXMLReader::CanReadFile ( const char * name ) [virtual]

Test whether the file with the given name can be read by this reader.

vtkDataSet* vtkXMLReader::GetOutputAsDataSet ( )

Get the output as a vtkDataSet pointer.

vtkDataSet* vtkXMLReader::GetOutputAsDataSet ( int index )

Get the output as a vtkDataSet pointer.

virtual vtkDataArraySelection* vtkXMLReader::GetPointDataArraySelection ( ) [virtual]

Get the data array selection tables used to configure which data arrays are loaded by the reader.

virtual vtkDataArraySelection* vtkXMLReader::GetCellDataArraySelection ( ) [virtual]

Get the data array selection tables used to configure which data arrays are loaded by the reader.

int vtkXMLReader::GetNumberOfPointArrays ( )

Get the number of point or cell arrays available in the input.

int vtkXMLReader::GetNumberOfCellArrays ( )

Get the number of point or cell arrays available in the input.

const char* vtkXMLReader::GetPointArrayName ( int index )

Get the name of the point or cell array with the given index in the input.

const char* vtkXMLReader::GetCellArrayName ( int index )

Get the name of the point or cell array with the given index in the input.

int vtkXMLReader::GetPointArrayStatus ( const char * name )

Get/Set whether the point or cell array with the given name is to be read.

int vtkXMLReader::GetCellArrayStatus ( const char * name )

Get/Set whether the point or cell array with the given name is to be read.

void vtkXMLReader::SetPointArrayStatus	(	const char *	name,
		int	status
	)

Get/Set whether the point or cell array with the given name is to be read.

void vtkXMLReader::SetCellArrayStatus	(	const char *	name,
		int	status
	)

Get/Set whether the point or cell array with the given name is to be read.

virtual void vtkXMLReader::CopyOutputInformation	(	vtkInformation *	vtkNotUsedoutInfo,
		int	vtkNotUsedport
	)			`[inline, virtual]`

Definition at line 89 of file vtkXMLReader.h.

virtual void vtkXMLReader::SetTimeStep ( int ) [virtual]

Which TimeStep to read.

virtual int vtkXMLReader::GetTimeStep ( ) [virtual]

Which TimeStep to read.

virtual int vtkXMLReader::GetNumberOfTimeSteps ( ) [virtual]

virtual int* vtkXMLReader::GetTimeStepRange ( ) [virtual]

Which TimeStepRange to read

virtual void vtkXMLReader::GetTimeStepRange	(	int &	,
		int &
	)			`[virtual]`

Which TimeStepRange to read

virtual void vtkXMLReader::GetTimeStepRange ( int [2] ) [virtual]

Which TimeStepRange to read

virtual void vtkXMLReader::SetTimeStepRange	(	int	,
		int
	)			`[virtual]`

Which TimeStepRange to read

void vtkXMLReader::SetTimeStepRange ( int [2] )

Which TimeStepRange to read

virtual int vtkXMLReader::ReadXMLInformation ( ) [protected, virtual]

Reimplemented in vtkXMLPDataReader.

virtual void vtkXMLReader::ReadXMLData ( ) [protected, virtual]

Reimplemented in vtkXMLCompositeDataReader, vtkXMLDataReader, vtkXMLHyperOctreeReader, vtkXMLPStructuredDataReader, vtkXMLPUnstructuredDataReader, vtkXMLStructuredDataReader, and vtkXMLUnstructuredDataReader.

virtual const char* vtkXMLReader::GetDataSetName ( ) [protected, pure virtual]

Implemented in vtkXMLCompositeDataReader, vtkXMLHierarchicalBoxDataReader, vtkXMLHierarchicalDataReader, vtkXMLHyperOctreeReader, vtkXMLImageDataReader, vtkXMLMultiBlockDataReader, vtkXMLMultiGroupDataReader, vtkXMLPImageDataReader, vtkXMLPolyDataReader, vtkXMLPPolyDataReader, vtkXMLPRectilinearGridReader, vtkXMLPStructuredGridReader, vtkXMLPUnstructuredGridReader, vtkXMLRectilinearGridReader, vtkXMLStructuredGridReader, and vtkXMLUnstructuredGridReader.

virtual int vtkXMLReader::CanReadFileVersion	(	int	major,
		int	minor
	)			`[protected, virtual]`

virtual void vtkXMLReader::SetupEmptyOutput ( ) [protected, pure virtual]

Implemented in vtkXMLCompositeDataReader, vtkXMLHyperOctreeReader, vtkXMLPStructuredDataReader, vtkXMLPUnstructuredDataReader, vtkXMLStructuredDataReader, and vtkXMLUnstructuredDataReader.

virtual void vtkXMLReader::SetupOutputInformation ( vtkInformation * vtkNotUsedoutInfo ) [inline, protected, virtual]

Definition at line 125 of file vtkXMLReader.h.

virtual void vtkXMLReader::SetupUpdateExtentInformation ( vtkInformation * vtkNotUsedoutInfo ) [inline, protected, virtual]

Definition at line 129 of file vtkXMLReader.h.

virtual void vtkXMLReader::SetupOutputData ( ) [protected, virtual]

Reimplemented in vtkXMLDataReader, vtkXMLPDataReader, vtkXMLPolyDataReader, vtkXMLPPolyDataReader, vtkXMLPRectilinearGridReader, vtkXMLPStructuredDataReader, vtkXMLPStructuredGridReader, vtkXMLPUnstructuredDataReader, vtkXMLPUnstructuredGridReader, vtkXMLRectilinearGridReader, vtkXMLStructuredGridReader, vtkXMLUnstructuredDataReader, and vtkXMLUnstructuredGridReader.

virtual int vtkXMLReader::ReadPrimaryElement ( vtkXMLDataElement * ePrimary ) [protected, virtual]

Reimplemented in vtkXMLCompositeDataReader, vtkXMLDataReader, vtkXMLImageDataReader, vtkXMLPDataReader, vtkXMLPImageDataReader, vtkXMLPRectilinearGridReader, vtkXMLPStructuredDataReader, vtkXMLPStructuredGridReader, vtkXMLPUnstructuredDataReader, and vtkXMLStructuredDataReader.

int vtkXMLReader::ReadVTKFile ( vtkXMLDataElement * eVTKFile ) [protected]

vtkAbstractArray* vtkXMLReader::CreateArray ( vtkXMLDataElement * da ) [protected]

virtual int vtkXMLReader::OpenVTKFile ( ) [protected, virtual]

virtual void vtkXMLReader::CloseVTKFile ( ) [protected, virtual]

virtual void vtkXMLReader::CreateXMLParser ( ) [protected, virtual]

Reimplemented in vtkXMLDataReader.

virtual void vtkXMLReader::DestroyXMLParser ( ) [protected, virtual]

Reimplemented in vtkXMLDataReader.

void vtkXMLReader::SetupCompressor ( const char * type ) [protected]

int vtkXMLReader::CanReadFileVersionString ( const char * version ) [protected]

virtual int vtkXMLReader::GetFileMajorVersion ( ) [protected, virtual]

virtual int vtkXMLReader::GetFileMinorVersion ( ) [protected, virtual]

int vtkXMLReader::IntersectExtents	(	int *	extent1,
		int *	extent2,
		int *	result
	)			`[protected]`

int vtkXMLReader::Min	(	int	a,
		int	b
	)			`[protected]`

int vtkXMLReader::Max	(	int	a,
		int	b
	)			`[protected]`

void vtkXMLReader::ComputePointDimensions	(	int *	extent,
		int *	dimensions
	)			`[protected]`

void vtkXMLReader::ComputePointIncrements	(	int *	extent,
		vtkIdType *	increments
	)			`[protected]`

void vtkXMLReader::ComputeCellDimensions	(	int *	extent,
		int *	dimensions
	)			`[protected]`

void vtkXMLReader::ComputeCellIncrements	(	int *	extent,
		vtkIdType *	increments
	)			`[protected]`

vtkIdType vtkXMLReader::GetStartTuple	(	int *	extent,
		vtkIdType *	increments,
		int	i,
		int	j,
		int	k
	)			`[protected]`

void vtkXMLReader::ReadAttributeIndices	(	vtkXMLDataElement *	eDSA,
		vtkDataSetAttributes *	dsa
	)			`[protected]`

char** vtkXMLReader::CreateStringArray ( int numStrings ) [protected]

void vtkXMLReader::DestroyStringArray	(	int	numStrings,
		char **	strings
	)			`[protected]`

void vtkXMLReader::SetDataArraySelections	(	vtkXMLDataElement *	eDSA,
		vtkDataArraySelection *	sel
	)			`[protected]`

int vtkXMLReader::SetFieldDataInfo	(	vtkXMLDataElement *	eDSA,
		int	association,
		int	numTuples,
		vtkInformationVector *&	infoVector
	)			`[protected]`

int vtkXMLReader::PointDataArrayIsEnabled ( vtkXMLDataElement * ePDA ) [protected]

int vtkXMLReader::CellDataArrayIsEnabled ( vtkXMLDataElement * eCDA ) [protected]

static void vtkXMLReader::SelectionModifiedCallback	(	vtkObject *	caller,
		unsigned long	eid,
		void *	clientdata,
		void *	calldata
	)			`[static, protected]`

virtual void vtkXMLReader::GetProgressRange ( float * range ) [protected, virtual]

virtual void vtkXMLReader::SetProgressRange	(	float *	range,
		int	curStep,
		int	numSteps
	)			`[protected, virtual]`

virtual void vtkXMLReader::SetProgressRange	(	float *	range,
		int	curStep,
		float *	fractions
	)			`[protected, virtual]`

virtual void vtkXMLReader::UpdateProgressDiscrete ( float progress ) [protected, virtual]

virtual int vtkXMLReader::ProcessRequest	(	vtkInformation *	request,
		vtkInformationVector **	inInfo,
		vtkInformationVector *	outInfo
	)			`[protected, virtual]`

Upstream/Downstream requests form the generalized interface through which executives invoke a algorithm's functionality. Upstream requests correspond to information flow from the algorithm's outputs to its inputs. Downstream requests correspond to information flow from the algorithm's inputs to its outputs. A downstream request is defined by the contents of the request information object. The input to the request is stored in the input information vector passed to ProcessRequest. The results of an downstream request are stored in the output information vector passed to ProcessRequest. An upstream request is defined by the contents of the request information object. The input to the request is stored in the output information vector passed to ProcessRequest. The results of an upstream request are stored in the input information vector passed to ProcessRequest. It returns the boolean status of the pipeline (false means failure).

Reimplemented from vtkAlgorithm.

virtual int vtkXMLReader::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`

virtual int vtkXMLReader::RequestDataObject	(	vtkInformation *	vtkNotUsedrequest,
		vtkInformationVector **	vtkNotUsedinputVector,
		vtkInformationVector *	vtkNotUsedoutputVector
	)			`[inline, protected, virtual]`

Definition at line 236 of file vtkXMLReader.h.

virtual int vtkXMLReader::RequestInformation	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`

Reimplemented in vtkXMLCompositeDataReader.

virtual int vtkXMLReader::RequestUpdateExtentInformation	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
