vtkXMLStructuredDataWriter Class Reference

#include <vtkXMLStructuredDataWriter.h>

Inheritance diagram for vtkXMLStructuredDataWriter:

Inheritance graph
[legend]

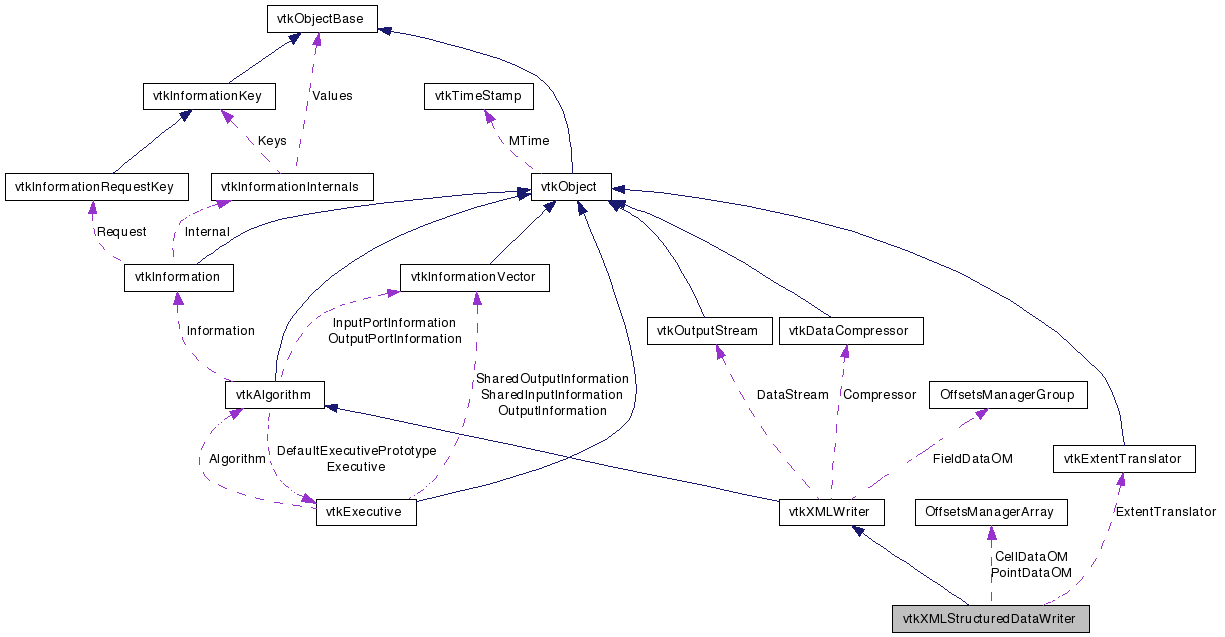

Collaboration diagram for vtkXMLStructuredDataWriter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Superclass for VTK XML structured data writers.

vtkXMLStructuredDataWriter provides VTK XML writing functionality that is common among all the structured data formats.

Definition at line 32 of file vtkXMLStructuredDataWriter.h.


Public Types

typedef vtkXMLWriter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetNumberOfPieces (int)
virtual int GetNumberOfPieces ()
virtual void SetWriteExtent (int, int, int, int, int, int)
virtual void SetWriteExtent (int[6])
virtual int * GetWriteExtent ()
virtual void GetWriteExtent (int &, int &, int &, int &, int &, int &)
virtual void GetWriteExtent (int[6])
virtual void SetExtentTranslator (vtkExtentTranslator *)
virtual vtkExtentTranslatorGetExtentTranslator ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkXMLStructuredDataWriterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkXMLStructuredDataWriter ()
 ~vtkXMLStructuredDataWriter ()
virtual void WritePrimaryElementAttributes (ostream &os, vtkIndent indent)
virtual void WriteAppendedPiece (int index, vtkIndent indent)
virtual void WriteAppendedPieceData (int index)
virtual void WriteInlinePiece (vtkIndent indent)
virtual void GetInputExtent (int *extent)=0
virtual int WriteHeader ()
virtual int WriteAPiece ()
virtual int WriteFooter ()
virtual void AllocatePositionArrays ()
virtual void DeletePositionArrays ()
void SetupExtentTranslator ()
vtkAbstractArrayCreateExactExtent (vtkAbstractArray *array, int *inExtent, int *outExtent, int isPoint)
virtual int WriteInlineMode (vtkIndent indent)
vtkIdType GetStartTuple (int *extent, vtkIdType *increments, int i, int j, int k)
void CalculatePieceFractions (float *fractions)
virtual vtkAbstractArrayCreateArrayForPoints (vtkAbstractArray *inArray)
virtual vtkAbstractArrayCreateArrayForCells (vtkAbstractArray *inArray)
void SetInputUpdateExtent (int piece)
int ProcessRequest (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
virtual void SetInternalWriteExtent (int, int, int, int, int, int)
virtual void SetInternalWriteExtent (int[6])

Protected Attributes

int WriteExtent [6]
int InternalWriteExtent [6]
int NumberOfPieces
vtkExtentTranslatorExtentTranslator
float * ProgressFractions
int CurrentPiece
OffsetsManagerArrayPointDataOM
OffsetsManagerArrayCellDataOM

Member Typedef Documentation

Reimplemented from vtkXMLWriter.

Reimplemented in vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, and vtkXMLStructuredGridWriter.

Definition at line 35 of file vtkXMLStructuredDataWriter.h.


Constructor & Destructor Documentation

vtkXMLStructuredDataWriter::vtkXMLStructuredDataWriter (  )  [protected]

vtkXMLStructuredDataWriter::~vtkXMLStructuredDataWriter (  )  [protected]


Member Function Documentation

virtual const char* vtkXMLStructuredDataWriter::GetClassName (  )  [virtual]

static int vtkXMLStructuredDataWriter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLWriter.

Reimplemented in vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, and vtkXMLStructuredGridWriter.

virtual int vtkXMLStructuredDataWriter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLWriter.

Reimplemented in vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, and vtkXMLStructuredGridWriter.

static vtkXMLStructuredDataWriter* vtkXMLStructuredDataWriter::SafeDownCast ( vtkObject o  )  [static]

void vtkXMLStructuredDataWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLWriter.

Reimplemented in vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, and vtkXMLStructuredGridWriter.

virtual void vtkXMLStructuredDataWriter::SetNumberOfPieces ( int   )  [virtual]

Get/Set the number of pieces used to stream the image through the pipeline while writing to the file.

virtual int vtkXMLStructuredDataWriter::GetNumberOfPieces (  )  [virtual]

Get/Set the number of pieces used to stream the image through the pipeline while writing to the file.

virtual void vtkXMLStructuredDataWriter::SetWriteExtent ( int  ,
int  ,
int  ,
int  ,
int  ,
int
) [virtual]

Get/Set the extent of the input that should be treated as the WholeExtent in the output file. The default is the WholeExtent of the input.

virtual void vtkXMLStructuredDataWriter::SetWriteExtent ( int  [6]  )  [virtual]

Get/Set the extent of the input that should be treated as the WholeExtent in the output file. The default is the WholeExtent of the input.

virtual int* vtkXMLStructuredDataWriter::GetWriteExtent (  )  [virtual]

Get/Set the extent of the input that should be treated as the WholeExtent in the output file. The default is the WholeExtent of the input.

virtual void vtkXMLStructuredDataWriter::GetWriteExtent ( int &  ,
int &  ,
int &  ,
int &  ,
int &  ,
int &
) [virtual]

Get/Set the extent of the input that should be treated as the WholeExtent in the output file. The default is the WholeExtent of the input.

virtual void vtkXMLStructuredDataWriter::GetWriteExtent ( int  [6]  )  [virtual]

Get/Set the extent of the input that should be treated as the WholeExtent in the output file. The default is the WholeExtent of the input.

virtual void vtkXMLStructuredDataWriter::SetExtentTranslator ( vtkExtentTranslator  )  [virtual]

Get/Set the extent translator used for streaming.

virtual vtkExtentTranslator* vtkXMLStructuredDataWriter::GetExtentTranslator (  )  [virtual]

Get/Set the extent translator used for streaming.

virtual void vtkXMLStructuredDataWriter::WritePrimaryElementAttributes ( ostream &  os,
vtkIndent  indent
) [protected, virtual]

Reimplemented from vtkXMLWriter.

Reimplemented in vtkXMLImageDataWriter.

virtual void vtkXMLStructuredDataWriter::WriteAppendedPiece ( int  index,
vtkIndent  indent
) [protected, virtual]

virtual void vtkXMLStructuredDataWriter::WriteAppendedPieceData ( int  index  )  [protected, virtual]

virtual void vtkXMLStructuredDataWriter::WriteInlinePiece ( vtkIndent  indent  )  [protected, virtual]

virtual void vtkXMLStructuredDataWriter::GetInputExtent ( int *  extent  )  [protected, pure virtual]

virtual int vtkXMLStructuredDataWriter::WriteHeader (  )  [protected, virtual]

virtual int vtkXMLStructuredDataWriter::WriteAPiece (  )  [protected, virtual]

virtual int vtkXMLStructuredDataWriter::WriteFooter (  )  [protected, virtual]

virtual void vtkXMLStructuredDataWriter::AllocatePositionArrays (  )  [protected, virtual]

virtual void vtkXMLStructuredDataWriter::DeletePositionArrays (  )  [protected, virtual]

void vtkXMLStructuredDataWriter::SetupExtentTranslator (  )  [protected]

vtkAbstractArray* vtkXMLStructuredDataWriter::CreateExactExtent ( vtkAbstractArray array,
int *  inExtent,
int *  outExtent,
int  isPoint
) [protected]

virtual int vtkXMLStructuredDataWriter::WriteInlineMode ( vtkIndent  indent  )  [protected, virtual]

vtkIdType vtkXMLStructuredDataWriter::GetStartTuple ( int *  extent,
vtkIdType increments,
int  i,
int  j,
int  k
) [protected]

void vtkXMLStructuredDataWriter::CalculatePieceFractions ( float *  fractions  )  [protected]

virtual vtkAbstractArray* vtkXMLStructuredDataWriter::CreateArrayForPoints ( vtkAbstractArray inArray  )  [protected, virtual]

Reimplemented from vtkXMLWriter.

virtual vtkAbstractArray* vtkXMLStructuredDataWriter::CreateArrayForCells ( vtkAbstractArray inArray  )  [protected, virtual]

Reimplemented from vtkXMLWriter.

void vtkXMLStructuredDataWriter::SetInputUpdateExtent ( int  piece  )  [protected]

int vtkXMLStructuredDataWriter::ProcessRequest ( vtkInformation request,
vtkInformationVector **  inInfo,
vtkInformationVector outInfo
) [protected, virtual]

Upstream/Downstream requests form the generalized interface through which executives invoke a algorithm's functionality. Upstream requests correspond to information flow from the algorithm's outputs to its inputs. Downstream requests correspond to information flow from the algorithm's inputs to its outputs. A downstream request is defined by the contents of the request information object. The input to the request is stored in the input information vector passed to ProcessRequest. The results of an downstream request are stored in the output information vector passed to ProcessRequest. An upstream request is defined by the contents of the request information object. The input to the request is stored in the output information vector passed to ProcessRequest. The results of an upstream request are stored in the input information vector passed to ProcessRequest. It returns the boolean status of the pipeline (false means failure).

Reimplemented from vtkXMLWriter.

virtual void vtkXMLStructuredDataWriter::SetInternalWriteExtent ( int  ,
int  ,
int  ,
int  ,
int  ,
int
) [protected, virtual]

virtual void vtkXMLStructuredDataWriter::SetInternalWriteExtent ( int  [6]  )  [protected, virtual]


Member Data Documentation

Definition at line 94 of file vtkXMLStructuredDataWriter.h.

Definition at line 100 of file vtkXMLStructuredDataWriter.h.

Definition at line 103 of file vtkXMLStructuredDataWriter.h.

Definition at line 106 of file vtkXMLStructuredDataWriter.h.

Definition at line 108 of file vtkXMLStructuredDataWriter.h.

Definition at line 110 of file vtkXMLStructuredDataWriter.h.

Definition at line 114 of file vtkXMLStructuredDataWriter.h.

Definition at line 115 of file vtkXMLStructuredDataWriter.h.


The documentation for this class was generated from the following file:
