vtkXMLStructuredGridWriter Class Reference

#include <vtkXMLStructuredGridWriter.h>

Inheritance diagram for vtkXMLStructuredGridWriter:

Inheritance graph

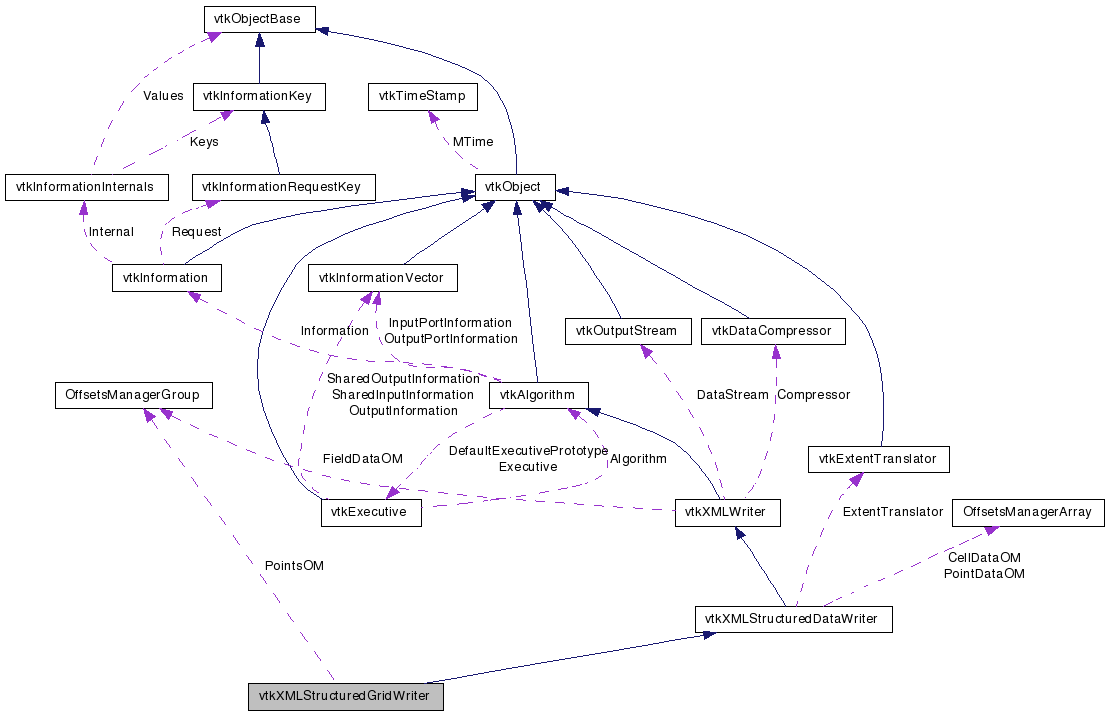

Collaboration diagram for vtkXMLStructuredGridWriter:

Collaboration graph

List of all members.

Detailed Description

Write VTK XML StructuredGrid files.

vtkXMLStructuredGridWriter writes the VTK XML StructuredGrid file format. One structured grid input can be written into one file in any number of streamed pieces. The standard extension for this writer's file format is "vts". This writer is also used to write a single piece of the parallel file format.

See also:
vtkXMLStructuredGridWriter (Tests)

Definition at line 38 of file vtkXMLStructuredGridWriter.h.

Public Types

typedef vtkXMLStructuredDataWriter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
const char * GetDefaultFileExtension ()
vtkStructuredGridGetInput ()

Static Public Member Functions

static vtkXMLStructuredGridWriterNew ()
static int IsTypeOf (const char *type)
static vtkXMLStructuredGridWriterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkXMLStructuredGridWriter ()
 ~vtkXMLStructuredGridWriter ()
virtual int FillInputPortInformation (int port, vtkInformation *info)
void WriteAppendedPiece (int index, vtkIndent indent)
void WriteAppendedPieceData (int index)
void WriteInlinePiece (vtkIndent indent)
void GetInputExtent (int *extent)
const char * GetDataSetName ()
void CalculateSuperclassFraction (float *fractions)
virtual void AllocatePositionArrays ()
virtual void DeletePositionArrays ()

Protected Attributes


Member Typedef Documentation

Reimplemented from vtkXMLStructuredDataWriter.

Definition at line 42 of file vtkXMLStructuredGridWriter.h.

Constructor & Destructor Documentation

vtkXMLStructuredGridWriter::vtkXMLStructuredGridWriter (  )  [protected]

vtkXMLStructuredGridWriter::~vtkXMLStructuredGridWriter (  )  [protected]

Member Function Documentation

static vtkXMLStructuredGridWriter* vtkXMLStructuredGridWriter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkXMLStructuredGridWriter::GetClassName (  )  [virtual]

Reimplemented from vtkXMLStructuredDataWriter.

static int vtkXMLStructuredGridWriter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLStructuredDataWriter.

virtual int vtkXMLStructuredGridWriter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLStructuredDataWriter.

static vtkXMLStructuredGridWriter* vtkXMLStructuredGridWriter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLStructuredGridWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLStructuredDataWriter.

vtkStructuredGrid* vtkXMLStructuredGridWriter::GetInput (  )

Get/Set the writer's input.

Reimplemented from vtkXMLWriter.

const char* vtkXMLStructuredGridWriter::GetDefaultFileExtension (  )  [virtual]

Get the default file extension for files written by this writer.

Implements vtkXMLWriter.

virtual int vtkXMLStructuredGridWriter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

void vtkXMLStructuredGridWriter::WriteAppendedPiece ( int  index,
vtkIndent  indent
) [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLStructuredGridWriter::WriteAppendedPieceData ( int  index  )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLStructuredGridWriter::WriteInlinePiece ( vtkIndent  indent  )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLStructuredGridWriter::GetInputExtent ( int *  extent  )  [protected, virtual]

const char* vtkXMLStructuredGridWriter::GetDataSetName (  )  [protected, virtual]

Implements vtkXMLWriter.

void vtkXMLStructuredGridWriter::CalculateSuperclassFraction ( float *  fractions  )  [protected]

virtual void vtkXMLStructuredGridWriter::AllocatePositionArrays (  )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

virtual void vtkXMLStructuredGridWriter::DeletePositionArrays (  )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

Member Data Documentation

Definition at line 71 of file vtkXMLStructuredGridWriter.h.

The documentation for this class was generated from the following file:
