vtkAxesActor Class Reference

#include <vtkAxesActor.h>

Inheritance diagram for vtkAxesActor:

[legend]

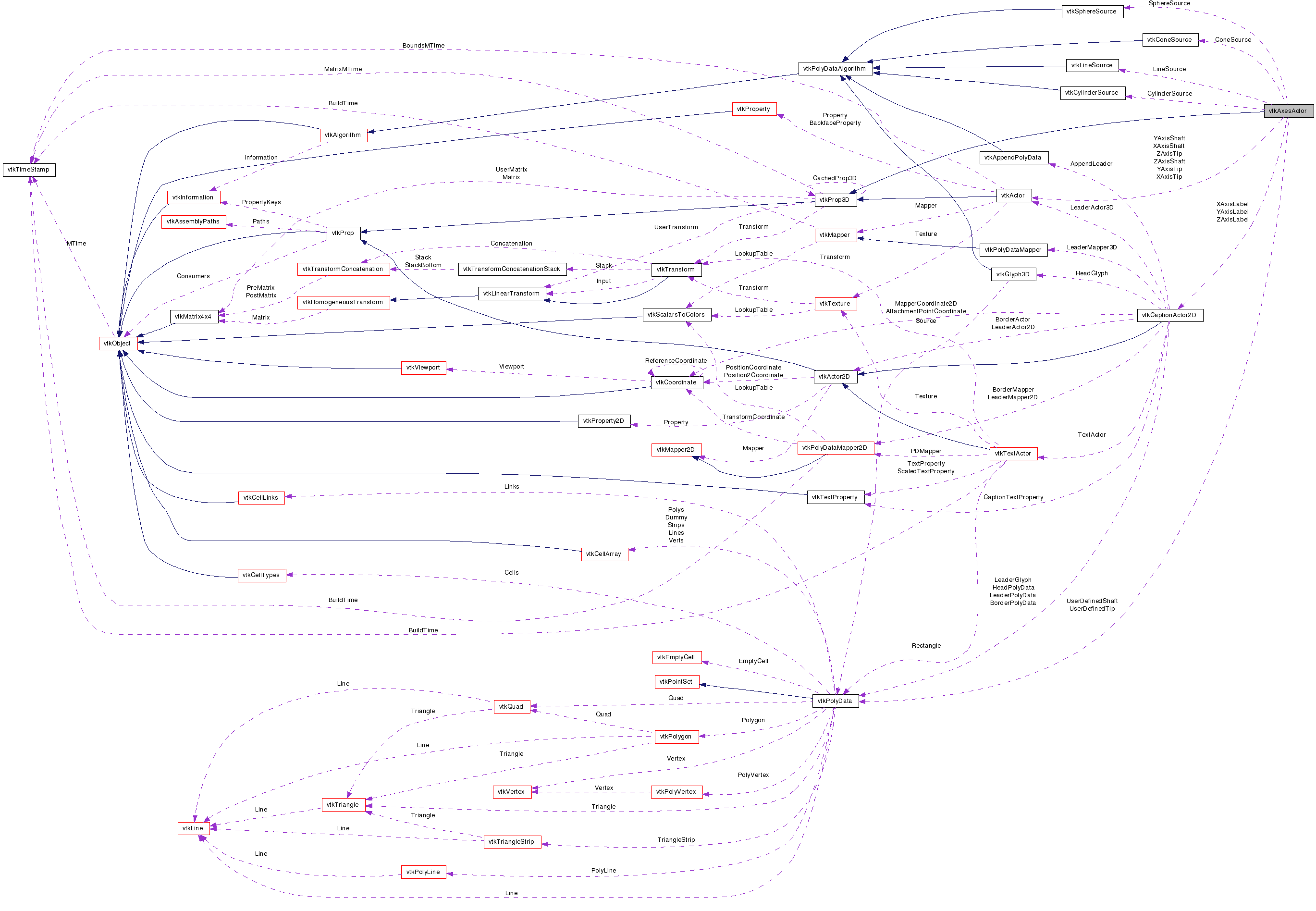

Collaboration diagram for vtkAxesActor:

[legend]

List of all members.

Detailed Description

a 3D axes representation

vtkAxesActor is a hybrid 2D/3D actor used to represent 3D axes in a scene. The user can define the geometry to use for the shaft or the tip, and the user can set the text for the three axes. The text will appear to follow the camera since it is implemented by means of vtkCaptionActor2D. All of the functionality of the underlying vtkCaptionActor2D objects are accessable so that, for instance, the font attributes of the axes text can be manipulated through vtkTextProperty. Since this class inherits from vtkProp3D, one can apply a user transform to the underlying geometry and the positioning of the labels. For example, a rotation transform could be used to generate a left-handed axes representation.

Thanks:: Thanks to Goodwin Lawlor for posting a tcl script which featured the use of vtkCaptionActor2D to implement the text labels. This class is based on Paraview's vtkPVAxesActor.

Warning:: vtkAxesActor is primarily intended for use with vtkOrientationMarkerWidget. The bounds of this actor are calculated as though the geometry of the axes were symmetric: that is, although only positive axes are visible, bounds are calculated as though negative axes are present too. This is done intentionally to implement functionality of the camera update mechanism in vtkOrientationMarkerWidget.

See also:: vtkAnnotatedCubeActor vtkOrientationMarkerWidget vtkCaptionActor2D vtkTextProperty

Tests:: vtkAxesActor (Tests)

Definition at line 66 of file vtkAxesActor.h.


Public Types
enum	{ CYLINDER_SHAFT, LINE_SHAFT, USER_DEFINED_SHAFT }
enum	{ CONE_TIP, SPHERE_TIP, USER_DEFINED_TIP }
typedef vtkProp3D	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	GetActors (vtkPropCollection *)
virtual int	HasTranslucentPolygonalGeometry ()
void	ShallowCopy (vtkProp *prop)
void	ReleaseGraphicsResources (vtkWindow *)
unsigned long int	GetMTime ()
virtual unsigned long	GetRedrawMTime ()

virtual int	RenderOpaqueGeometry (vtkViewport *viewport)
virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *viewport)
virtual int	RenderOverlay (vtkViewport *viewport)

void	GetBounds (double bounds[6])
double *	GetBounds ()

void	SetTotalLength (double v[3])
void	SetTotalLength (double x, double y, double z)
virtual double *	GetTotalLength ()
virtual void	GetTotalLength (double data[3])

void	SetNormalizedShaftLength (double v[3])
void	SetNormalizedShaftLength (double x, double y, double z)
virtual double *	GetNormalizedShaftLength ()
virtual void	GetNormalizedShaftLength (double data[3])

void	SetNormalizedTipLength (double v[3])
void	SetNormalizedTipLength (double x, double y, double z)
virtual double *	GetNormalizedTipLength ()
virtual void	GetNormalizedTipLength (double data[3])

void	SetNormalizedLabelPosition (double v[3])
void	SetNormalizedLabelPosition (double x, double y, double z)
virtual double *	GetNormalizedLabelPosition ()
virtual void	GetNormalizedLabelPosition (double data[3])

virtual void	SetConeResolution (int)
virtual int	GetConeResolution ()
virtual void	SetSphereResolution (int)
virtual int	GetSphereResolution ()
virtual void	SetCylinderResolution (int)
virtual int	GetCylinderResolution ()

virtual void	SetConeRadius (double)
virtual double	GetConeRadius ()
virtual void	SetSphereRadius (double)
virtual double	GetSphereRadius ()
virtual void	SetCylinderRadius (double)
virtual double	GetCylinderRadius ()

void	SetShaftType (int type)
void	SetShaftTypeToCylinder ()
void	SetShaftTypeToLine ()
void	SetShaftTypeToUserDefined ()
virtual int	GetShaftType ()

void	SetTipType (int type)
void	SetTipTypeToCone ()
void	SetTipTypeToSphere ()
void	SetTipTypeToUserDefined ()
virtual int	GetTipType ()

void	SetUserDefinedTip (vtkPolyData *)
virtual vtkPolyData *	GetUserDefinedTip ()

void	SetUserDefinedShaft (vtkPolyData *)
virtual vtkPolyData *	GetUserDefinedShaft ()

vtkProperty *	GetXAxisTipProperty ()
vtkProperty *	GetYAxisTipProperty ()
vtkProperty *	GetZAxisTipProperty ()

vtkProperty *	GetXAxisShaftProperty ()
vtkProperty *	GetYAxisShaftProperty ()
vtkProperty *	GetZAxisShaftProperty ()

vtkCaptionActor2D *	GetXAxisCaptionActor2D ()
vtkCaptionActor2D *	GetYAxisCaptionActor2D ()
vtkCaptionActor2D *	GetZAxisCaptionActor2D ()

virtual void	SetXAxisLabelText (const char *)
virtual char *	GetXAxisLabelText ()
virtual void	SetYAxisLabelText (const char *)
virtual char *	GetYAxisLabelText ()
virtual void	SetZAxisLabelText (const char *)
virtual char *	GetZAxisLabelText ()

virtual void	SetAxisLabels (int)
virtual int	GetAxisLabels ()
virtual void	AxisLabelsOn ()
virtual void	AxisLabelsOff ()
Static Public Member Functions
static vtkAxesActor *	New ()
static int	IsTypeOf (const char *type)
static vtkAxesActor *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkAxesActor ()
	~vtkAxesActor ()
void	UpdateProps ()
Protected Attributes
vtkCylinderSource *	CylinderSource
vtkLineSource *	LineSource
vtkConeSource *	ConeSource
vtkSphereSource *	SphereSource
vtkActor *	XAxisShaft
vtkActor *	YAxisShaft
vtkActor *	ZAxisShaft
vtkActor *	XAxisTip
vtkActor *	YAxisTip
vtkActor *	ZAxisTip
double	TotalLength [3]
double	NormalizedShaftLength [3]
double	NormalizedTipLength [3]
double	NormalizedLabelPosition [3]
int	ShaftType
int	TipType
vtkPolyData *	UserDefinedTip
vtkPolyData *	UserDefinedShaft
char *	XAxisLabelText
char *	YAxisLabelText
char *	ZAxisLabelText
vtkCaptionActor2D *	XAxisLabel
vtkCaptionActor2D *	YAxisLabel
vtkCaptionActor2D *	ZAxisLabel
int	AxisLabels
int	ConeResolution
int	SphereResolution
int	CylinderResolution
double	ConeRadius
double	SphereRadius
double	CylinderRadius

Member Typedef Documentation

typedef vtkProp3D vtkAxesActor::Superclass

Reimplemented from vtkProp3D.

Definition at line 70 of file vtkAxesActor.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

CYLINDER_SHAFT
LINE_SHAFT
USER_DEFINED_SHAFT

Definition at line 247 of file vtkAxesActor.h.

anonymous enum

Enumerator:

CONE_TIP
SPHERE_TIP
USER_DEFINED_TIP

Definition at line 254 of file vtkAxesActor.h.

Constructor & Destructor Documentation

vtkAxesActor::vtkAxesActor ( ) [protected]

vtkAxesActor::~vtkAxesActor ( ) [protected]

Member Function Documentation

static vtkAxesActor* vtkAxesActor::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkAxesActor::GetClassName ( ) [virtual]

Reimplemented from vtkProp3D.

static int vtkAxesActor::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkProp3D.

virtual int vtkAxesActor::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkProp3D.

static vtkAxesActor* vtkAxesActor::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkProp3D.

void vtkAxesActor::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkProp3D.

virtual void vtkAxesActor::GetActors ( vtkPropCollection * ) [virtual]

For some exporters and other other operations we must be able to collect all the actors or volumes. These methods are used in that process.

Reimplemented from vtkProp.

virtual int vtkAxesActor::RenderOpaqueGeometry ( vtkViewport * viewport ) [virtual]

Support the standard render methods.

Reimplemented from vtkProp.

virtual int vtkAxesActor::RenderTranslucentPolygonalGeometry ( vtkViewport * viewport ) [virtual]

Support the standard render methods.

Reimplemented from vtkProp.

virtual int vtkAxesActor::RenderOverlay ( vtkViewport * viewport ) [virtual]

Support the standard render methods.

Reimplemented from vtkProp.

virtual int vtkAxesActor::HasTranslucentPolygonalGeometry ( ) [virtual]

Does this prop have some translucent polygonal geometry?

Reimplemented from vtkProp.

void vtkAxesActor::ShallowCopy ( vtkProp * prop ) [virtual]

Shallow copy of an axes actor. Overloads the virtual vtkProp method.

Reimplemented from vtkProp3D.

void vtkAxesActor::ReleaseGraphicsResources ( vtkWindow * ) [virtual]

Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkProp.

void vtkAxesActor::GetBounds ( double bounds[6] )

Get the bounds for this Actor as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). (The method GetBounds(double bounds[6]) is available from the superclass.)

Reimplemented from vtkProp3D.

double* vtkAxesActor::GetBounds ( ) [virtual]

Get the bounds for this Actor as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). (The method GetBounds(double bounds[6]) is available from the superclass.)

Implements vtkProp3D.

unsigned long int vtkAxesActor::GetMTime ( ) [virtual]

Get the actors mtime plus consider its properties and texture if set.

Reimplemented from vtkProp3D.

virtual unsigned long vtkAxesActor::GetRedrawMTime ( ) [virtual]

Return the mtime of anything that would cause the rendered image to appear differently. Usually this involves checking the mtime of the prop plus anything else it depends on such as properties, textures etc.

Reimplemented from vtkProp.

void vtkAxesActor::SetTotalLength ( double v[3] ) [inline]

Set the total length of the axes in 3 dimensions.

Definition at line 115 of file vtkAxesActor.h.

void vtkAxesActor::SetTotalLength	(	double	x,
		double	y,
		double	z
	)

Set the total length of the axes in 3 dimensions.

virtual double* vtkAxesActor::GetTotalLength ( ) [virtual]

Set the total length of the axes in 3 dimensions.

virtual void vtkAxesActor::GetTotalLength ( double data[3] ) [virtual]

Set the total length of the axes in 3 dimensions.

void vtkAxesActor::SetNormalizedShaftLength ( double v[3] ) [inline]

Set the normalized (0-1) length of the shaft.

Definition at line 123 of file vtkAxesActor.h.

void vtkAxesActor::SetNormalizedShaftLength	(	double	x,
		double	y,
		double	z
	)

Set the normalized (0-1) length of the shaft.

virtual double* vtkAxesActor::GetNormalizedShaftLength ( ) [virtual]

Set the normalized (0-1) length of the shaft.

virtual void vtkAxesActor::GetNormalizedShaftLength ( double data[3] ) [virtual]

Set the normalized (0-1) length of the shaft.

void vtkAxesActor::SetNormalizedTipLength ( double v[3] ) [inline]

Set the normalized (0-1) length of the tip. Normally, this would be 1 - the normalized length of the shaft.

Definition at line 132 of file vtkAxesActor.h.

void vtkAxesActor::SetNormalizedTipLength	(	double	x,
		double	y,
		double	z
	)

Set the normalized (0-1) length of the tip. Normally, this would be 1 - the normalized length of the shaft.

virtual double* vtkAxesActor::GetNormalizedTipLength ( ) [virtual]

Set the normalized (0-1) length of the tip. Normally, this would be 1 - the normalized length of the shaft.

virtual void vtkAxesActor::GetNormalizedTipLength ( double data[3] ) [virtual]

Set the normalized (0-1) length of the tip. Normally, this would be 1 - the normalized length of the shaft.

void vtkAxesActor::SetNormalizedLabelPosition ( double v[3] ) [inline]

Set the normalized (0-1) position of the label along the length of the shaft. A value > 1 is permissible.

Definition at line 141 of file vtkAxesActor.h.

void vtkAxesActor::SetNormalizedLabelPosition	(	double	x,
		double	y,
		double	z
	)

Set the normalized (0-1) position of the label along the length of the shaft. A value > 1 is permissible.

virtual double* vtkAxesActor::GetNormalizedLabelPosition ( ) [virtual]

Set the normalized (0-1) position of the label along the length of the shaft. A value > 1 is permissible.

virtual void vtkAxesActor::GetNormalizedLabelPosition ( double data[3] ) [virtual]

Set the normalized (0-1) position of the label along the length of the shaft. A value > 1 is permissible.

virtual void vtkAxesActor::SetConeResolution ( int ) [virtual]

Set/get the resolution of the pieces of the axes actor.

virtual int vtkAxesActor::GetConeResolution ( ) [virtual]

Set/get the resolution of the pieces of the axes actor.

virtual void vtkAxesActor::SetSphereResolution ( int ) [virtual]

Set/get the resolution of the pieces of the axes actor.

virtual int vtkAxesActor::GetSphereResolution ( ) [virtual]

Set/get the resolution of the pieces of the axes actor.

virtual void vtkAxesActor::SetCylinderResolution ( int ) [virtual]

Set/get the resolution of the pieces of the axes actor.

virtual int vtkAxesActor::GetCylinderResolution ( ) [virtual]

Set/get the resolution of the pieces of the axes actor.

virtual void vtkAxesActor::SetConeRadius ( double ) [virtual]
