vtkBridgeCell Class Reference

#include <vtkBridgeCell.h>

Inheritance diagram for vtkBridgeCell:

Inheritance graph
[legend]

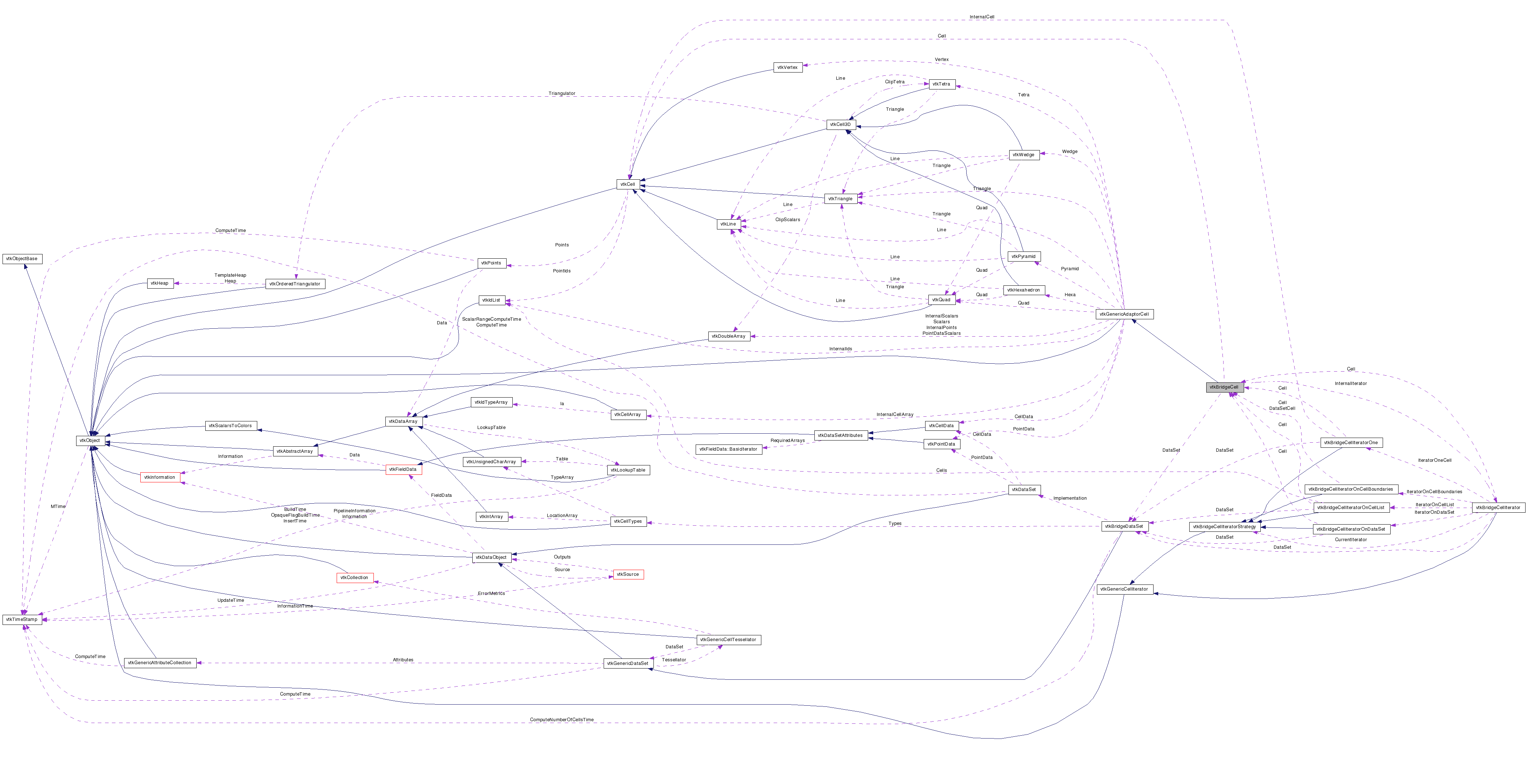

Collaboration diagram for vtkBridgeCell:

Collaboration graph
[legend]

List of all members.

Detailed Description

Implementation of vtkGenericAdaptorCell.

It is just an example that show how to implement the Generic. It is also used for testing and evaluating the Generic.

See also:
vtkGenericAdaptorCell, vtkBridgeDataSet
Tests:
vtkBridgeCell (Tests)

Definition at line 37 of file vtkBridgeCell.h.


Public Types

typedef vtkGenericAdaptorCell Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual vtkIdType GetId ()
virtual int IsInDataSet ()
virtual int GetType ()
virtual int GetDimension ()
virtual int GetGeometryOrder ()
int IsGeometryLinear ()
virtual int GetAttributeOrder (vtkGenericAttribute *a)
int IsAttributeLinear (vtkGenericAttribute *a)
virtual int IsPrimary ()
virtual int GetNumberOfPoints ()
virtual int GetNumberOfBoundaries (int dim=-1)
virtual int GetNumberOfDOFNodes ()
virtual void GetPointIterator (vtkGenericPointIterator *it)
virtual vtkGenericCellIterator * NewCellIterator ()
virtual void GetBounds (double bounds[6])
virtual double * GetBounds ()
virtual double GetLength2 ()
virtual int GetParametricCenter (double pcoords[3])
virtual double GetParametricDistance (double pcoords[3])
void DeepCopy (vtkBridgeCell *other)
virtual void GetBoundaryIterator (vtkGenericCellIterator *boundaries, int dim=-1)
virtual int CountNeighbors (vtkGenericAdaptorCell *boundary)
void CountEdgeNeighbors (int *sharing)
virtual void GetNeighbors (vtkGenericAdaptorCell *boundary, vtkGenericCellIterator *neighbors)
virtual int FindClosestBoundary (int subId, double pcoords[3], vtkGenericCellIterator *&boundary)
virtual int EvaluatePosition (double x[3], double *closestPoint, int &subId, double pcoords[3], double &dist2)
virtual void EvaluateLocation (int subId, double pcoords[3], double x[3])
virtual void InterpolateTuple (vtkGenericAttribute *a, double pcoords[3], double *val)
virtual void InterpolateTuple (vtkGenericAttributeCollection *c, double pcoords[3], double *val)
virtual int IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)
virtual void Derivatives (int subId, double pcoords[3], vtkGenericAttribute *attribute, double *derivs)
virtual double * GetParametricCoords ()
virtual int IsFaceOnBoundary (vtkIdType faceId)
virtual int IsOnBoundary ()
virtual void GetPointIds (vtkIdType *id)
int * GetFaceArray (int faceId)
int GetNumberOfVerticesOnFace (int faceId)
int * GetEdgeArray (int edgeId)
void Init (vtkBridgeDataSet *ds, vtkIdType cellid)
void InitWithCell (vtkCell *c, vtkIdType id)

Static Public Member Functions

static vtkBridgeCell * New ()
static int IsTypeOf (const char *type)
static vtkBridgeCell * SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkBridgeCell ()
virtual ~vtkBridgeCell ()
void AllocateWeights ()
void InterpolationFunctions (double pcoords[3], double *weights)

Protected Attributes

vtkCell * Cell
vtkBridgeDataSet * DataSet
vtkIdType Id
int BoolIsInDataSet
vtkBridgeCellIterator * InternalIterator
double * Weights
int WeightsCapacity

Friends

class vtkBridgeDataSet
class vtkBridgeAttribute
class vtkBridgeCellIterator
class vtkBridgeCellIteratorOnDataSet
class vtkBridgeCellIteratorOne
class vtkBridgeCellIteratorOnCellBoundaries
class vtkBridgePointIteratorOnCell

Member Typedef Documentation

typedef vtkGenericAdaptorCell vtkBridgeCell::Superclass

Reimplemented from vtkGenericAdaptorCell.

Definition at line 41 of file vtkBridgeCell.h.

Constructor & Destructor Documentation

vtkBridgeCell::vtkBridgeCell (  )  [protected]

virtual vtkBridgeCell::~vtkBridgeCell (  )  [protected, virtual]

Member Function Documentation

static vtkBridgeCell* vtkBridgeCell::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkBridgeCell::GetClassName (  )  [virtual]

Reimplemented from vtkGenericAdaptorCell.

static int vtkBridgeCell::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGenericAdaptorCell.

virtual int vtkBridgeCell::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGenericAdaptorCell.

static vtkBridgeCell* vtkBridgeCell::SafeDownCast ( vtkObject *  o  )  [static]

Reimplemented from vtkGenericAdaptorCell.

void vtkBridgeCell::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkGenericAdaptorCell.

virtual vtkIdType vtkBridgeCell::GetId (  )  [virtual]

Unique identification number of the cell over the whole data set. This unique key may not be contiguous.

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::IsInDataSet (  )  [virtual]

Does `this' a cell of a dataset? (otherwise, it is a boundary cell)

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::GetType (  )  [virtual]

Type of the current cell.

Postcondition:
(result==VTK_HIGHER_ORDER_EDGE)|| (result==VTK_HIGHER_ORDER_TRIANGLE)|| (result==VTK_HIGHER_ORDER_TETRAHEDRON)

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::GetDimension (  )  [virtual]

Topological dimension of the current cell.

Postcondition:
valid_result: result>=0 && result<=3

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::GetGeometryOrder (  )  [virtual]

Interpolation order of the geometry.

Postcondition:
positive_result: result>=0

Implements vtkGenericAdaptorCell.

int vtkBridgeCell::IsGeometryLinear (  )

Does the cell have no higher-order interpolation for geometry?

Postcondition:
definition: result==(GetGeometryOrder()==1)

Reimplemented from vtkGenericAdaptorCell.

virtual int vtkBridgeCell::GetAttributeOrder ( vtkGenericAttribute *  a  )  [virtual]

Interpolation order of attribute `a' on the cell (may differ by cell).

Precondition:
a_exists: a!=0
Postcondition:
positive_result: result>=0

Implements vtkGenericAdaptorCell.

int vtkBridgeCell::IsAttributeLinear ( vtkGenericAttribute *  a  )

Does the attribute `a' have no higher-order interpolation for the cell?

Precondition:
a_exists: a!=0
Postcondition:
definition: result==(GetAttributeOrder()==1)

Reimplemented from vtkGenericAdaptorCell.

virtual int vtkBridgeCell::IsPrimary (  )  [virtual]

Is the cell primary (i.e. not composite) ?

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::GetNumberOfPoints (  )  [virtual]

Number of points that compose the cell.

Postcondition:
positive_result: result>=0

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::GetNumberOfBoundaries ( int  dim = -1  )  [virtual]

Return the number of boundaries of dimension `dim' (or all dimensions greater than 0 and less than GetDimension() if -1) of the cell. When dim is -1, the number of vertices is not included in the count because vertices are a special case: a vertex will have at most a single field value associated with it; DOF nodes may have an arbitrary number of field values associated with them.

Precondition:
valid_dim_range: (dim==-1) || ((dim>=0)&&(dim<GetDimension()))
Postcondition:
positive_result: result>=0

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::GetNumberOfDOFNodes (  )  [virtual]

Accumulated number of DOF nodes of the current cell. A DOF node is a component of cell with a given topological dimension. e.g.: a triangle has 4 DOF: 1 face and 3 edges. An hexahedron has 19 DOF: 1 region, 6 faces, and 12 edges. The number of vertices is not included in the count because vertices are a special case: a vertex will have at most a single field value associated with it; DOF nodes may have an arbitrary number of field values associated with them.

Postcondition:
valid_result: result==GetNumberOfBoundaries(-1)+1

Implements vtkGenericAdaptorCell.

virtual void vtkBridgeCell::GetPointIterator ( vtkGenericPointIterator *  it  )  [virtual]

Return the points of cell into `it'.

Precondition:
it_exists: it!=0

Implements vtkGenericAdaptorCell.

virtual vtkGenericCellIterator* vtkBridgeCell::NewCellIterator (  )  [virtual]

Create an empty cell iterator.

Postcondition:
result_exists: result!=0

Implements vtkGenericAdaptorCell.

virtual void vtkBridgeCell::GetBoundaryIterator ( vtkGenericCellIterator *  boundaries,
int  dim = -1
) [virtual]

Return in `boundaries' the cells of dimension `dim' (or all dimensions less than GetDimension() if -1) that are part of the boundary of the cell.

Precondition:
valid_dim_range: (dim==-1) || ((dim>=0)&&(dim<GetDimension()))

boundaries_exist: boundaries!=0

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::CountNeighbors ( vtkGenericAdaptorCell *  boundary  )  [virtual]

Number of cells (dimension>boundary->GetDimension()) of the dataset that share the boundary `boundary' of `this'. `this' IS NOT INCLUDED.

Precondition:
boundary_exists: boundary!=0

real_boundary: !boundary->IsInDataSet()

cell_of_the_dataset: IsInDataSet()

boundary: HasBoundary(boundary)

Postcondition:
positive_result: result>=0

Implements vtkGenericAdaptorCell.

void vtkBridgeCell::CountEdgeNeighbors ( int *  sharing  )  [virtual]

Number of cells (dimension>boundary->GetDimension()) of the dataset that share the boundary `boundary' of `this'. `this' IS NOT INCLUDED.

Precondition:
boundary_exists: boundary!=0

real_boundary: !boundary->IsInDataSet()

cell_of_the_dataset: IsInDataSet()

boundary: HasBoundary(boundary)

Postcondition:
positive_result: result>=0

Implements vtkGenericAdaptorCell.

virtual void vtkBridgeCell::GetNeighbors ( vtkGenericAdaptorCell *  boundary,
vtkGenericCellIterator *  neighbors
) [virtual]

Put into `neighbors' the cells (dimension>boundary->GetDimension()) of the dataset that share the boundary `boundary' of `this'. `this' IS NOT INCLUDED.

Precondition:
boundary_exists: boundary!=0

real_boundary: !boundary->IsInDataSet()

cell_of_the_dataset: IsInDataSet()

boundary: HasBoundary(boundary)

neighbors_exist: neighbors!=0

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::FindClosestBoundary ( int  subId,
double  pcoords[3],
vtkGenericCellIterator *&  boundary
) [virtual]

Compute the closest boundary of the current sub-cell `subId' for point `pcoord' (in parametric coordinates) in `boundary', and return whether the point is inside the cell or not. `boundary' is of dimension GetDimension()-1.

Precondition:
positive_subId: subId>=0

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::EvaluatePosition ( double  x[3],
double *  closestPoint,
int &  subId,
double  pcoords[3],
double &  dist2
) [virtual]

Is `x' inside the current cell? It also evaluate parametric coordinates `pcoords', sub-cell id `subId' (0 means primary cell), distance squared to the sub-cell in `dist2' and closest corner point `closestPoint'. `dist2' and `closestPoint' are not evaluated if `closestPoint'==0. If a numerical error occurred, -1 is returned and all other results should be ignored.

Postcondition:
valid_result: result==-1 || result==0 || result==1

positive_distance: result!=-1 implies (closestPoint!=0 implies dist2>=0)

Implements vtkGenericAdaptorCell.

virtual void vtkBridgeCell::EvaluateLocation ( int  subId,
double  pcoords[3],
double  x[3]
) [virtual]

Determine global coordinates `x' from sub-cell `subId' and parametric coordinates `pcoords' in the cell.

Precondition:
positive_subId: subId>=0

clamped_pcoords: (0<=pcoords[0])&&(pcoords[0]<=1)&&(0<=pcoords[1]) &&(pcoords[1]<=1)&&(0<=pcoords[2])&&(pcoords[2]<=1)

Implements vtkGenericAdaptorCell.

virtual void vtkBridgeCell::InterpolateTuple ( vtkGenericAttribute *  a,
double  pcoords[3],
double *  val
) [virtual]

Interpolate the attribute `a' at local position `pcoords' of the cell into `val'.

Precondition:
a_exists: a!=0

a_is_point_centered: a->GetCentering()==vtkPointCentered

clamped_point: pcoords[0]>=0 && pcoords[0]<=1 && pcoords[1]>=0 && pcoords[1]<=1 && pcoords[2]>=0 && pcoords[2]<=1

val_exists: val!=0

valid_size: sizeof(val)==a->GetNumberOfComponents()

Implements vtkGenericAdaptorCell.

virtual void vtkBridgeCell::InterpolateTuple ( vtkGenericAttributeCollection *  c,
double  pcoords[3],
double *  val
) [virtual]

Interpolate the whole collection of attributes `c' at local position `pcoords' of the cell into `val'. Only point centered attributes are taken into account.

Precondition:
c_exists: c!=0

clamped_point: pcoords[0]>=0 && pcoords[0]<=1 && pcoords[1]>=0 && pcoords[1]<=1 && pcoords[2]>=0 && pcoords[2]<=1

val_exists: val!=0

valid_size: sizeof(val)==c->GetNumberOfPointCenteredComponents()

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::IntersectWithLine ( double  p1[3],
double  p2[3],
double  tol,
double &  t,
double  x[3],
double  pcoords[3],
int &  subId
) [virtual]

Is there an intersection between the current cell and the ray (`p1',`p2') according to a tolerance `tol'? If true, `x' is the global intersection, `t' is the parametric coordinate for the line, `pcoords' are the parametric coordinates for cell. `subId' is the sub-cell where the intersection occurs.

Precondition:
positive_tolerance: tol>0

Implements vtkGenericAdaptorCell.

virtual void vtkBridgeCell::Derivatives ( int  subId,
double  pcoords[3],
vtkGenericAttribute *  attribute,
double *  derivs
) [virtual]

Compute derivatives `derivs' of the attribute `attribute' (from its values at the corner points of the cell) given sub-cell `subId' (0 means primary cell) and parametric coordinates `pcoords'. Derivatives are in the x-y-z coordinate directions for each data value.

Precondition:
positive_subId: subId>=0

clamped_pcoords: (0<=pcoords[0])&&(pcoords[0]<=1)&&(0<=pcoords[1]) &&(pcoords[1]<=1)&&(0<=pcoords[2])%%(pcoords[2]<=1)

attribute_exists: attribute!=0

derivs_exists: derivs!=0

valid_size: sizeof(derivs)>=attribute->GetNumberOfComponents()*3

Implements vtkGenericAdaptorCell.

virtual void vtkBridgeCell::GetBounds ( double  bounds[6]  )  [virtual]

Compute the bounding box of the current cell in `bounds' in global coordinates. THREAD SAFE

Implements vtkGenericAdaptorCell.

virtual double* vtkBridgeCell::GetBounds (  )  [virtual]

Return the bounding box of the current cell in global coordinates. NOT THREAD SAFE

Postcondition:
result_exists: result!=0

valid_size: sizeof(result)>=6

Reimplemented from vtkGenericAdaptorCell.

virtual double vtkBridgeCell::GetLength2 (  )  [virtual]

Bounding box diagonal squared of the current cell.

Postcondition:
positive_result: result>=0

Reimplemented from vtkGenericAdaptorCell.

virtual int vtkBridgeCell::GetParametricCenter ( double  pcoords[3]  )  [virtual]

Center of the current cell in parametric coordinates `pcoords'. If the current cell is a composite, the return value is the sub-cell id that the center is in.

Postcondition:
valid_result: (result>=0) && (IsPrimary() implies result==0)

Implements vtkGenericAdaptorCell.

virtual double vtkBridgeCell::GetParametricDistance ( double  pcoords[3]  )  [virtual]

Distance of the parametric coordinate `pcoords' to the current cell. If inside the cell, a distance of zero is returned. This is used during picking to get the correct cell picked. (The tolerance will occasionally allow cells to be picked who are not really intersected "inside" the cell.)

Postcondition:
positive_result: result>=0

Implements vtkGenericAdaptorCell.

virtual double* vtkBridgeCell::GetParametricCoords (  )  [virtual]

Return a contiguous array of parametric coordinates of the points defining the current cell. In other words, (px,py,pz, px,py,pz, etc..) The coordinates are ordered consistent with the definition of the point ordering for the cell. Note that 3D parametric coordinates are returned no matter what the topological dimension of the cell. It includes the DOF nodes.

Postcondition:
valid_result_exists: ((IsPrimary()) && (result!=0)) || ((!IsPrimary()) && (result==0)) result!=0 implies sizeof(result)==GetNumberOfPoints()

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::IsFaceOnBoundary ( vtkIdType  faceId  )  [virtual]

Return a contiguous array of parametric coordinates of the points defining the current cell. In other words, (px,py,pz, px,py,pz, etc..) The coordinates are ordered consistent with the definition of the point ordering for the cell. Note that 3D parametric coordinates are returned no matter what the topological dimension of the cell. It includes the DOF nodes.

Postcondition:
valid_result_exists: ((IsPrimary()) && (result!=0)) || ((!IsPrimary()) && (result==0)) result!=0 implies sizeof(result)==GetNumberOfPoints()

Implements vtkGenericAdaptorCell.

virtual int vtkBridgeCell::IsOnBoundary (  )  [virtual]

Return a contiguous array of parametric coordinates of the points defining the current cell. In other words, (px,py,pz, px,py,pz, etc..) The coordinates are ordered consistent with the definition of the point ordering for the cell. Note that 3D parametric coordinates are returned no matter what the topological dimension of the cell. It includes the DOF nodes.

Postcondition:
valid_result_exists: ((IsPrimary()) && (result!=0)) || ((!IsPrimary()) && (result==0)) result!=0 implies sizeof(result)==GetNumberOfPoints()

Implements vtkGenericAdaptorCell.

virtual void vtkBridgeCell::GetPointIds ( vtkIdType *  id  )  [virtual]

Put into `id' the list of ids the point of the cell.

Precondition:
id_exists: id!=0

valid_size: sizeof(id)==GetNumberOfPoints();

Implements vtkGenericAdaptorCell.

int* vtkBridgeCell::GetFaceArray ( int  faceId  )  [virtual]

Return the ids of the vertices defining face `faceId'.

Precondition:
is_3d: this->GetDimension()==3

valid_faceId_range: faceId>=0 && faceId<this->GetNumberOfBoundaries(2)

Postcondition:
result_exists: result!=0

valid_size: sizeof(result)>=GetNumberOfVerticesOnFace(faceId)

Implements vtkGenericAdaptorCell.

int vtkBridgeCell::GetNumberOfVerticesOnFace ( int  faceId  )  [virtual]

Return the number of vertices defining face `faceId'

Precondition:
is_3d: this->GetDimension()==3

valid_faceId_range: faceId>=0 && faceId<this->GetNumberOfBoundaries(2)

Postcondition:
positive_result: && result>0

Implements vtkGenericAdaptorCell.

int* vtkBridgeCell::GetEdgeArray ( int  edgeId  )  [virtual]

Return the ids of the vertices defining edge `edgeId'.

Precondition:
valid_dimension: this->GetDimension()>=2

valid_edgeId_range: edgeId>=0 && edgeId<this->GetNumberOfBoundaries(1)

Postcondition:
result_exists: result!=0

valid_size: sizeof(result)==2

Implements vtkGenericAdaptorCell.

void vtkBridgeCell::Init ( vtkBridgeDataSet *  ds,
vtkIdType  cellid
)

Used internally for the Bridge. Initialize the cell from a dataset `ds' and `cellid'.

Precondition:
ds_exists: ds!=0

valid_cellid: (cellid>=0) && (cellid<ds->GetNumberOfCells())

void vtkBridgeCell::InitWithCell ( vtkCell *  c,
vtkIdType  id
)

Used internally for the Bridge. Initialize the cell from a cell `c' and an `id'.

Precondition:
c_exists: c!=0

void vtkBridgeCell::DeepCopy ( vtkBridgeCell *  other  )

Recursive copy of `other' into `this'.

Precondition:
other_exists: other!=0

other_differ: this!=other

void vtkBridgeCell::AllocateWeights (  )  [protected]

Allocate an array for the weights, only if it does not exist yet or if the capacity is too small.

void vtkBridgeCell::InterpolationFunctions ( double  pcoords[3],
double *  weights
) [protected]

Compute the weights for parametric coordinates `pcoords'.

Friends And Related Function Documentation

friend class vtkBridgeDataSet [friend]

Definition at line 430 of file vtkBridgeCell.h.

friend class vtkBridgeAttribute [friend]

Definition at line 431 of file vtkBridgeCell.h.

friend class vtkBridgeCellIterator [friend]

Definition at line 432 of file vtkBridgeCell.h.

friend class vtkBridgeCellIteratorOnDataSet [friend]

Definition at line 433 of file vtkBridgeCell.h.

friend class vtkBridgeCellIteratorOne [friend]

Definition at line 434 of file vtkBridgeCell.h.

friend class vtkBridgeCellIteratorOnCellBoundaries [friend]

Definition at line 435 of file vtkBridgeCell.h.

friend class vtkBridgePointIteratorOnCell [friend]

Definition at line 436 of file vtkBridgeCell.h.

Member Data Documentation

vtkCell* vtkBridgeCell::Cell [protected]

Definition at line 438 of file vtkBridgeCell.h.

vtkBridgeDataSet* vtkBridgeCell::DataSet [protected]

Definition at line 439 of file vtkBridgeCell.h.

vtkIdType vtkBridgeCell::Id [protected]

Definition at line 440 of file vtkBridgeCell.h.

int vtkBridgeCell::BoolIsInDataSet [protected]

Definition at line 441 of file vtkBridgeCell.h.

vtkBridgeCellIterator* vtkBridgeCell::InternalIterator [protected]

Definition at line 442 of file vtkBridgeCell.h.

double* vtkBridgeCell::Weights [protected]

Definition at line 444 of file vtkBridgeCell.h.

int vtkBridgeCell::WeightsCapacity [protected]

Definition at line 445 of file vtkBridgeCell.h.

The documentation for this class was generated from the following file:
Generated on Wed Jun 3 18:54:55 2009 for VTK by  doxygen 1.5.6
