vtkBridgeCellIteratorOne Class Reference

#include <vtkBridgeCellIteratorOne.h>

Inheritance diagram for vtkBridgeCellIteratorOne:

Inheritance graph
[legend]

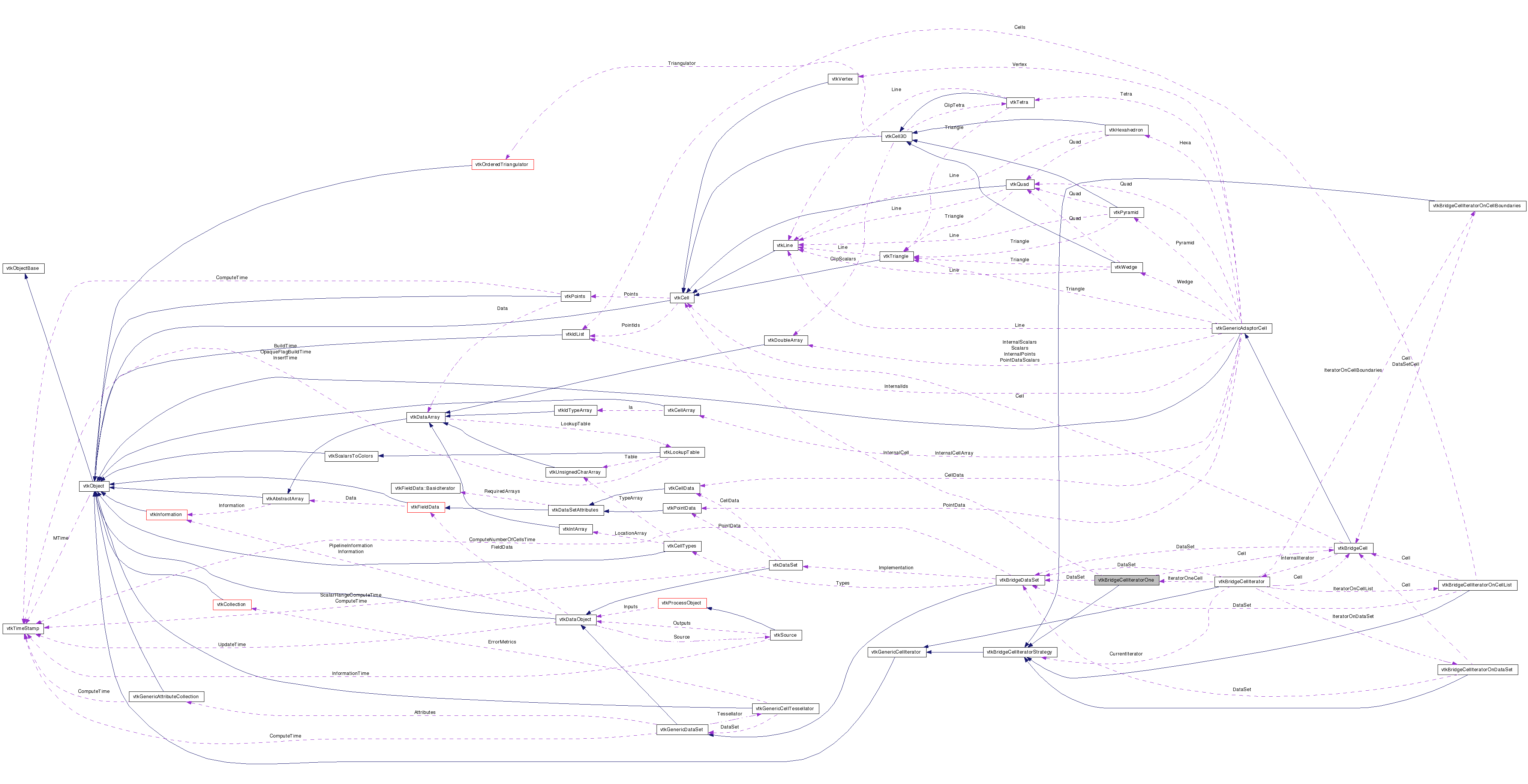

Collaboration diagram for vtkBridgeCellIteratorOne:

Collaboration graph
[legend]

List of all members.


Detailed Description

Iterate over one cell only of a dataset.

See also:
vtkBridgeCellIterator, vtkBridgeDataSet, vtkBridgeCellIteratorStrategy
Tests:
vtkBridgeCellIteratorOne (Tests)

Definition at line 36 of file vtkBridgeCellIteratorOne.h.


Public Types

typedef
vtkBridgeCellIteratorStrategy
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Begin ()
int IsAtEnd ()
void GetCell (vtkGenericAdaptorCell *c)
vtkGenericAdaptorCellGetCell ()
void Next ()
void InitWithOneCell (vtkBridgeCell *c)
void InitWithOneCell (vtkBridgeDataSet *ds, vtkIdType cellid)
void InitWithPoints (vtkPoints *coords, vtkIdList *pts, int dim, vtkIdType cellid)

Static Public Member Functions

static vtkBridgeCellIteratorOneNew ()
static int IsTypeOf (const char *type)
static vtkBridgeCellIteratorOneSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkBridgeCellIteratorOne ()
virtual ~vtkBridgeCellIteratorOne ()

Protected Attributes

int cIsAtEnd
vtkBridgeDataSetDataSet
vtkIdType Id
vtkBridgeCellCell
vtkCellInternalCell

Member Typedef Documentation

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

Definition at line 41 of file vtkBridgeCellIteratorOne.h.


Constructor & Destructor Documentation

vtkBridgeCellIteratorOne::vtkBridgeCellIteratorOne (  )  [protected]

virtual vtkBridgeCellIteratorOne::~vtkBridgeCellIteratorOne (  )  [protected, virtual]


Member Function Documentation

static vtkBridgeCellIteratorOne* vtkBridgeCellIteratorOne::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkBridgeCellIteratorOne::GetClassName (  )  [virtual]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

static int vtkBridgeCellIteratorOne::IsTypeOf ( const char *  type  )  [static]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

virtual int vtkBridgeCellIteratorOne::IsA ( const char *  type  )  [virtual]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

static vtkBridgeCellIteratorOne* vtkBridgeCellIteratorOne::SafeDownCast ( vtkObject o  )  [static]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

void vtkBridgeCellIteratorOne::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

void vtkBridgeCellIteratorOne::Begin (  )  [virtual]

Move iterator to first position if any (loop initialization).

Implements vtkGenericCellIterator.

int vtkBridgeCellIteratorOne::IsAtEnd (  )  [virtual]

Is there no cell at iterator position? (exit condition).

Implements vtkGenericCellIterator.

void vtkBridgeCellIteratorOne::GetCell ( vtkGenericAdaptorCell c  )  [virtual]

Cell at current position

Precondition:
not_at_end: !IsAtEnd()

c_exists: c!=0 THREAD SAFE

Implements vtkGenericCellIterator.

vtkGenericAdaptorCell* vtkBridgeCellIteratorOne::GetCell (  )  [virtual]

Cell at current position. NOT THREAD SAFE

Precondition:
not_at_end: !IsAtEnd()
Postcondition:
result_exits: result!=0

Implements vtkGenericCellIterator.

void vtkBridgeCellIteratorOne::Next (  )  [virtual]

Move iterator to next position. (loop progression).

Precondition:
not_at_end: !IsAtEnd()

Implements vtkGenericCellIterator.

void vtkBridgeCellIteratorOne::InitWithOneCell ( vtkBridgeDataSet ds,
vtkIdType  cellid
)

Used internally by vtkBridgeDataSet. Iterate on one cell `id' of `ds'.

Precondition:
ds_exists: ds!=0

valid_id: (id>=0)&&(id<=ds->GetNumberOfCells())

void vtkBridgeCellIteratorOne::InitWithOneCell ( vtkBridgeCell c  )

Used internally by vtkBridgeCell. Iterate on one cell `c'.

Precondition:
c_exists: c!=0

void vtkBridgeCellIteratorOne::InitWithPoints ( vtkPoints coords,
vtkIdList pts,
int  dim,
vtkIdType  cellid
)

Used internally by vtkBridgeCell. Iterate on a boundary cell (defined by its points `pts' with coordinates `coords', dimension `dim' and unique id `cellid') of a cell.

Precondition:
coords_exist: coords!=0

pts_exist: pts!=0

valid_dim: dim>=0 && dim<=2

valid_points: pts->GetNumberOfIds()>dim


Member Data Documentation

Definition at line 90 of file vtkBridgeCellIteratorOne.h.

Definition at line 91 of file vtkBridgeCellIteratorOne.h.

Definition at line 92 of file vtkBridgeCellIteratorOne.h.

Definition at line 93 of file vtkBridgeCellIteratorOne.h.

Definition at line 94 of file vtkBridgeCellIteratorOne.h.


The documentation for this class was generated from the following file:
