vtkCachingInterpolatedVelocityField Class Reference

#include <vtkCachingInterpolatedVelocityField.h>

Inheritance diagram for vtkCachingInterpolatedVelocityField:

Inheritance graph
[legend]

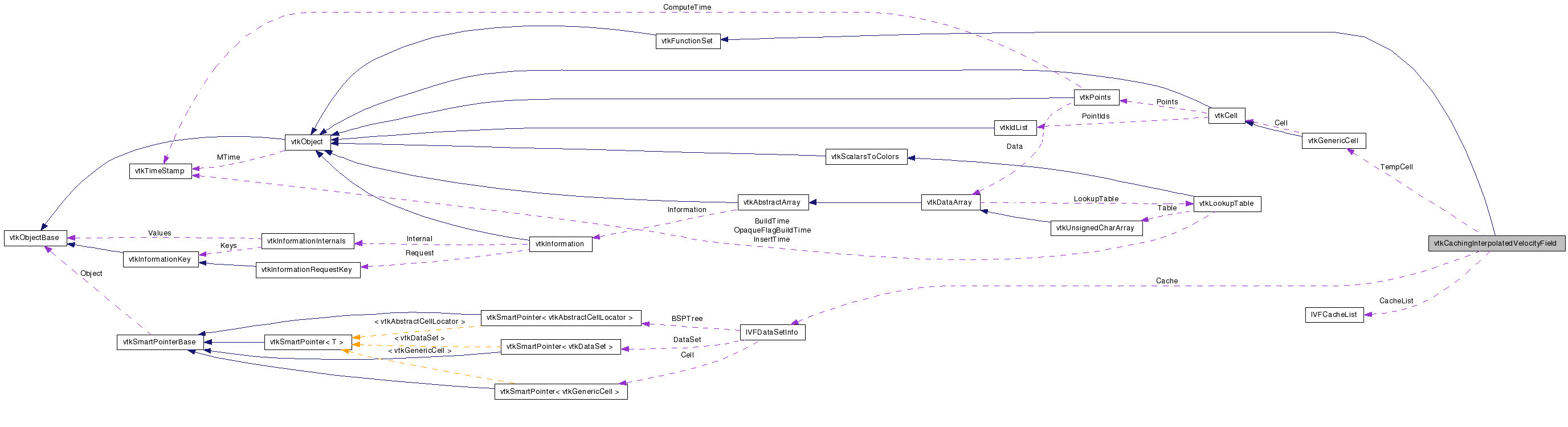

Collaboration diagram for vtkCachingInterpolatedVelocityField:

Collaboration graph
[legend]

List of all members.


Detailed Description

Interface for obtaining interpolated velocity values.

vtkCachingInterpolatedVelocityField acts as a continuous velocity field by performing cell interpolation on the underlying vtkDataSet. This is a concrete sub-class of vtkFunctionSet with NumberOfIndependentVariables = 4 (x,y,z,t) and NumberOfFunctions = 3 (u,v,w). Normally, every time an evaluation is performed, the cell which contains the point (x,y,z) has to be found by calling FindCell. This is a computationally expensive operation. In certain cases, the cell search can be avoided or shortened by providing a guess for the cell id. For example, in streamline integration, the next evaluation is usually in the same or a neighbour cell. For this reason, vtkCachingInterpolatedVelocityField stores the last cell id. If caching is turned on, it uses this id as the starting point.

Warning:
vtkCachingInterpolatedVelocityField is not thread safe. A new instance should be created by each thread.
See also:
vtkFunctionSet vtkStreamer
Todo:
Need to clean up style to match vtk/Kitware standards. Please help.

Definition at line 64 of file vtkCachingInterpolatedVelocityField.h.


Public Types

typedef vtkFunctionSet Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetDataSet (int I, vtkDataSet *dataset, bool staticdataset, vtkAbstractCellLocator *locator)
void SetLastCellInfo (vtkIdType c, int datasetindex)
void ClearLastCellInfo ()
virtual int FunctionValues (double *x, double *f)
virtual int InsideTest (double *x)
virtual char * GetVectorsSelection ()
void SelectVectors (const char *fieldName)
int GetLastWeights (double *w)
int GetLastLocalCoordinates (double pcoords[3])
virtual int GetCellCacheHit ()
virtual int GetDataSetCacheHit ()
virtual int GetCacheMiss ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static
vtkCachingInterpolatedVelocityField
SafeDownCast (vtkObject *o)
static
vtkCachingInterpolatedVelocityField
New ()

Protected Member Functions

 vtkCachingInterpolatedVelocityField ()
 ~vtkCachingInterpolatedVelocityField ()
virtual void SetVectorsSelection (const char *)
int FunctionValues (IVFDataSetInfo *cache, double *x, double *f)
int InsideTest (IVFDataSetInfo *cache, double *x)
void FastCompute (IVFDataSetInfo *cache, double f[3])
bool InterpolatePoint (vtkPointData *outPD, vtkIdType outIndex)
vtkGenericCellGetLastCell ()

Protected Attributes

vtkGenericCellTempCell
int CellCacheHit
int DataSetCacheHit
int CacheMiss
int LastCacheIndex
int LastCellId
IVFDataSetInfoCache
IVFCacheList CacheList
char * VectorsSelection
vtkstd::vector< double > Weights

Friends

class vtkTemporalInterpolatedVelocityField

Member Typedef Documentation

Reimplemented from vtkFunctionSet.

Definition at line 67 of file vtkCachingInterpolatedVelocityField.h.


Constructor & Destructor Documentation

vtkCachingInterpolatedVelocityField::vtkCachingInterpolatedVelocityField (  )  [protected]

vtkCachingInterpolatedVelocityField::~vtkCachingInterpolatedVelocityField (  )  [protected]


Member Function Documentation

virtual const char* vtkCachingInterpolatedVelocityField::GetClassName (  )  [virtual]

Reimplemented from vtkFunctionSet.

static int vtkCachingInterpolatedVelocityField::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkFunctionSet.

virtual int vtkCachingInterpolatedVelocityField::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkFunctionSet.

static vtkCachingInterpolatedVelocityField* vtkCachingInterpolatedVelocityField::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkFunctionSet.

virtual void vtkCachingInterpolatedVelocityField::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkFunctionSet.

static vtkCachingInterpolatedVelocityField* vtkCachingInterpolatedVelocityField::New (  )  [static]

Construct a vtkCachingInterpolatedVelocityField with no initial data set. LastCellId is set to -1.

Reimplemented from vtkObject.

virtual int vtkCachingInterpolatedVelocityField::FunctionValues ( double *  x,
double *  f
) [virtual]

Evaluate the velocity field, f={u,v,w}, at {x, y, z}. returns 1 if valid, 0 if test failed

Implements vtkFunctionSet.

virtual int vtkCachingInterpolatedVelocityField::InsideTest ( double *  x  )  [virtual]

Evaluate the velocity field, f={u,v,w}, at {x, y, z}. returns 1 if valid, 0 if test failed

virtual void vtkCachingInterpolatedVelocityField::SetDataSet ( int  I,
vtkDataSet dataset,
bool  staticdataset,
vtkAbstractCellLocator locator
) [virtual]

Add a dataset used by the interpolation function evaluation.

virtual char* vtkCachingInterpolatedVelocityField::GetVectorsSelection (  )  [virtual]

If you want to work with an arbitrary vector array, then set its name here. By default this in NULL and the filter will use the active vector array.

void vtkCachingInterpolatedVelocityField::SelectVectors ( const char *  fieldName  )  [inline]

If you want to work with an arbitrary vector array, then set its name here. By default this in NULL and the filter will use the active vector array.

Definition at line 89 of file vtkCachingInterpolatedVelocityField.h.

void vtkCachingInterpolatedVelocityField::SetLastCellInfo ( vtkIdType  c,
int  datasetindex
)

Return the cell id cached from last evaluation.

void vtkCachingInterpolatedVelocityField::ClearLastCellInfo (  )

Set the last cell id to -1 so that the next search does not start from the previous cell

int vtkCachingInterpolatedVelocityField::GetLastWeights ( double *  w  )

Returns the interpolation weights/pcoords cached from last evaluation if the cached cell is valid (returns 1). Otherwise, it does not change w and returns 0.

int vtkCachingInterpolatedVelocityField::GetLastLocalCoordinates ( double  pcoords[3]  )

Returns the interpolation weights/pcoords cached from last evaluation if the cached cell is valid (returns 1). Otherwise, it does not change w and returns 0.

virtual int vtkCachingInterpolatedVelocityField::GetCellCacheHit (  )  [virtual]

Caching statistics.

virtual int vtkCachingInterpolatedVelocityField::GetDataSetCacheHit (  )  [virtual]

Caching statistics.

virtual int vtkCachingInterpolatedVelocityField::GetCacheMiss (  )  [virtual]

Caching statistics.

virtual void vtkCachingInterpolatedVelocityField::SetVectorsSelection ( const char *   )  [protected, virtual]

int vtkCachingInterpolatedVelocityField::FunctionValues ( IVFDataSetInfo cache,
double *  x,
double *  f
) [protected]

int vtkCachingInterpolatedVelocityField::InsideTest ( IVFDataSetInfo cache,
double *  x
) [protected]

void vtkCachingInterpolatedVelocityField::FastCompute ( IVFDataSetInfo cache,
double  f[3]
) [protected]

If all weights have been computed (parametric coords etc all valid) then we can quickly interpolate a scalar/vector using the known weights and the generic cell which has been stored. This function is primarily reserved for use by vtkTemporalInterpolatedVelocityField

bool vtkCachingInterpolatedVelocityField::InterpolatePoint ( vtkPointData outPD,
vtkIdType  outIndex
) [protected]

If all weights have been computed (parametric coords etc all valid) then we can quickly interpolate a scalar/vector using the known weights and the generic cell which has been stored. This function is primarily reserved for use by vtkTemporalInterpolatedVelocityField

vtkGenericCell* vtkCachingInterpolatedVelocityField::GetLastCell (  )  [protected]

If all weights have been computed (parametric coords etc all valid) then we can quickly interpolate a scalar/vector using the known weights and the generic cell which has been stored. This function is primarily reserved for use by vtkTemporalInterpolatedVelocityField


Friends And Related Function Documentation

friend class vtkTemporalInterpolatedVelocityField [friend]

Definition at line 140 of file vtkCachingInterpolatedVelocityField.h.


Member Data Documentation

Definition at line 119 of file vtkCachingInterpolatedVelocityField.h.

Definition at line 120 of file vtkCachingInterpolatedVelocityField.h.

Definition at line 121 of file vtkCachingInterpolatedVelocityField.h.

Definition at line 122 of file vtkCachingInterpolatedVelocityField.h.

Definition at line 123 of file vtkCachingInterpolatedVelocityField.h.

Definition at line 124 of file vtkCachingInterpolatedVelocityField.h.

Definition at line 125 of file vtkCachingInterpolatedVelocityField.h.

Definition at line 126 of file vtkCachingInterpolatedVelocityField.h.

Definition at line 127 of file vtkCachingInterpolatedVelocityField.h.

vtkstd::vector<double> vtkCachingInterpolatedVelocityField::Weights [protected]

Definition at line 129 of file vtkCachingInterpolatedVelocityField.h.


The documentation for this class was generated from the following file:
