vtkDataArray Class Reference

#include <vtkDataArray.h>

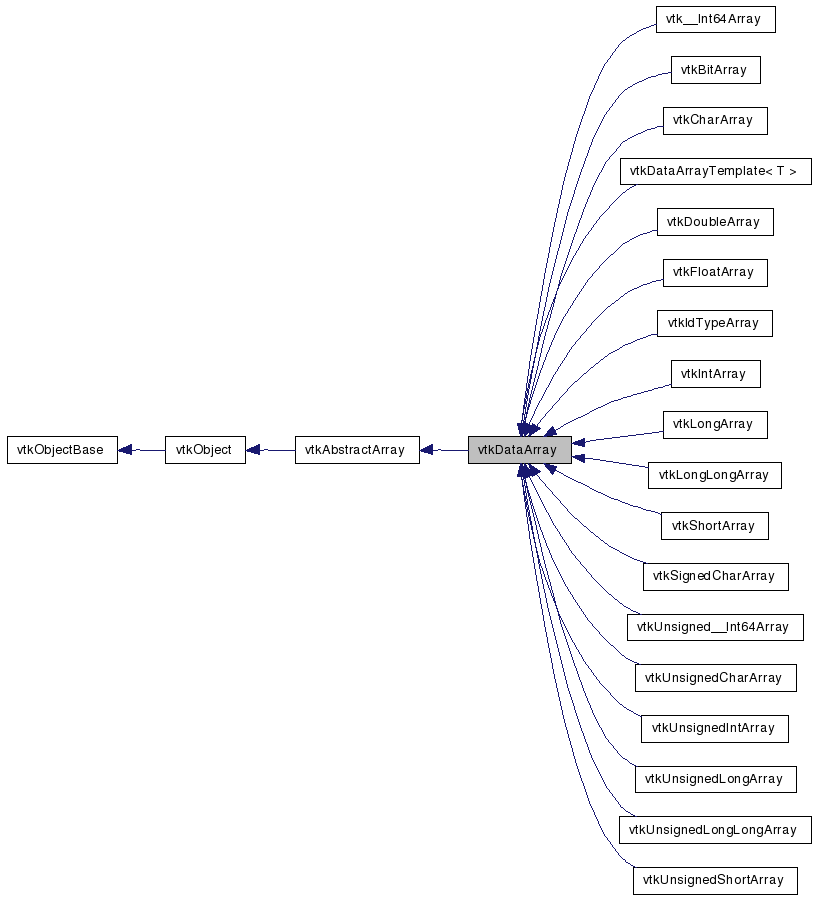

Inheritance diagram for vtkDataArray:

[legend]

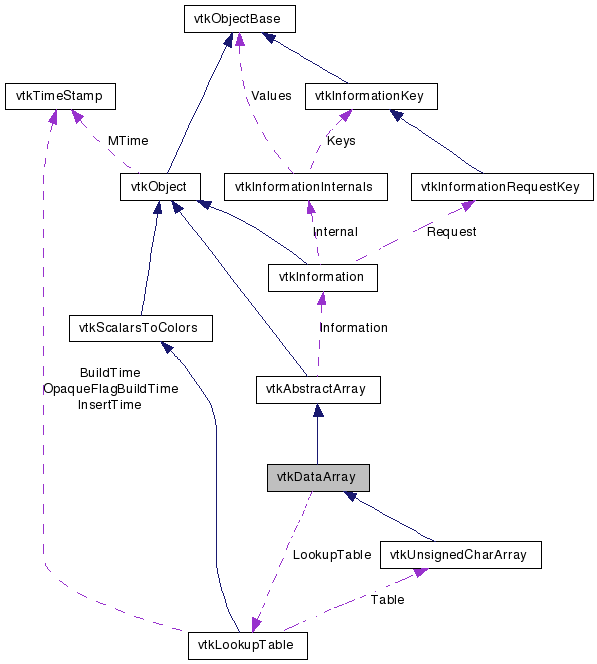

Collaboration diagram for vtkDataArray:

[legend]

List of all members.

Detailed Description

abstract superclass for arrays of numeric data

vtkDataArray is an abstract superclass for data array objects containing numeric data. It extends the API defined in vtkAbstractArray. vtkDataArray is an abstract superclass for data array objects. This class defines an API that all array objects must support. Note that the concrete subclasses of this class represent data in native form (char, int, etc.) and often have specialized more efficient methods for operating on this data (for example, getting pointers to data or getting/inserting data in native form). Subclasses of vtkDataArray are assumed to contain data whose components are meaningful when cast to and from double.

See also:: vtkBitArray vtkCharArray vtkUnsignedCharArray vtkShortArray vtkUnsignedShortArray vtkIntArray vtkUnsignedIntArray vtkLongArray vtkUnsignedLongArray vtkDoubleArray vtkDoubleArray

Tests:: vtkDataArray (Tests)

Definition at line 50 of file vtkDataArray.h.


void	GetRange (double range[2], int comp)
double *	GetRange (int comp)
double *	GetRange ()
void	GetRange (double range[2])
void	GetDataTypeRange (double range[2])
double	GetDataTypeMin ()
double	GetDataTypeMax ()
static void	GetDataTypeRange (int type, double range[2])
static double	GetDataTypeMin (int type)
static double	GetDataTypeMax (int type)
Public Types
typedef vtkAbstractArray	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetTuple (vtkIdType i, vtkIdType j, vtkAbstractArray *source)=0
virtual void	InsertTuple (vtkIdType i, vtkIdType j, vtkAbstractArray *source)=0
virtual vtkIdType	InsertNextTuple (vtkIdType j, vtkAbstractArray *source)=0
virtual void	GetTuples (vtkIdList ptIds, vtkAbstractArray output)
virtual void	GetTuples (vtkIdType p1, vtkIdType p2, vtkAbstractArray *output)
virtual double *	GetTuple (vtkIdType i)=0
virtual void	GetTuple (vtkIdType i, double *tuple)=0
virtual double	GetComponent (vtkIdType i, int j)
virtual void	SetComponent (vtkIdType i, int j, double c)
virtual void	InsertComponent (vtkIdType i, int j, double c)
virtual void	FillComponent (int j, double c)
virtual void *	WriteVoidPointer (vtkIdType id, vtkIdType number)=0
virtual unsigned long	GetActualMemorySize ()
void	CreateDefaultLookupTable ()
virtual double	GetMaxNorm ()
virtual int	CopyInformation (vtkInformation *infoFrom, int deep=1)

virtual int	IsNumeric ()

virtual int	GetElementComponentSize ()

virtual void	InterpolateTuple (vtkIdType i, vtkIdList ptIndices, vtkAbstractArray source, double *weights)

virtual void	InterpolateTuple (vtkIdType i, vtkIdType id1, vtkAbstractArray source1, vtkIdType id2, vtkAbstractArray source2, double t)

double	GetTuple1 (vtkIdType i)
double *	GetTuple2 (vtkIdType i)
double *	GetTuple3 (vtkIdType i)
double *	GetTuple4 (vtkIdType i)
double *	GetTuple9 (vtkIdType i)

virtual void	SetTuple (vtkIdType i, const float *tuple)=0
virtual void	SetTuple (vtkIdType i, const double *tuple)=0

void	SetTuple1 (vtkIdType i, double value)
void	SetTuple2 (vtkIdType i, double val0, double val1)
void	SetTuple3 (vtkIdType i, double val0, double val1, double val2)
void	SetTuple4 (vtkIdType i, double val0, double val1, double val2, double val3)
void	SetTuple9 (vtkIdType i, double val0, double val1, double val2, double val3, double val4, double val5, double val6, double val7, double val8)

virtual void	InsertTuple (vtkIdType i, const float *tuple)=0
virtual void	InsertTuple (vtkIdType i, const double *tuple)=0

void	InsertTuple1 (vtkIdType i, double value)
void	InsertTuple2 (vtkIdType i, double val0, double val1)
void	InsertTuple3 (vtkIdType i, double val0, double val1, double val2)
void	InsertTuple4 (vtkIdType i, double val0, double val1, double val2, double val3)
void	InsertTuple9 (vtkIdType i, double val0, double val1, double val2, double val3, double val4, double val5, double val6, double val7, double val8)

virtual vtkIdType	InsertNextTuple (const float *tuple)=0
virtual vtkIdType	InsertNextTuple (const double *tuple)=0

void	InsertNextTuple1 (double value)
void	InsertNextTuple2 (double val0, double val1)
void	InsertNextTuple3 (double val0, double val1, double val2)
void	InsertNextTuple4 (double val0, double val1, double val2, double val3)
void	InsertNextTuple9 (double val0, double val1, double val2, double val3, double val4, double val5, double val6, double val7, double val8)

virtual void	RemoveTuple (vtkIdType id)=0
virtual void	RemoveFirstTuple ()=0
virtual void	RemoveLastTuple ()=0

virtual void	GetData (vtkIdType tupleMin, vtkIdType tupleMax, int compMin, int compMax, vtkDoubleArray *data)

virtual void	DeepCopy (vtkAbstractArray *aa)
virtual void	DeepCopy (vtkDataArray *da)

virtual void	CopyComponent (int j, vtkDataArray *from, int fromComponent)

void	SetLookupTable (vtkLookupTable *lut)
virtual vtkLookupTable *	GetLookupTable ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkDataArray *	SafeDownCast (vtkObject *o)
static vtkDataArray *	CreateDataArray (int dataType)

static vtkInformationInformationVectorKey *	PER_COMPONENT ()
static vtkInformationDoubleVectorKey *	COMPONENT_RANGE ()
static vtkInformationDoubleVectorKey *	L2_NORM_RANGE ()
Protected Member Functions
	vtkDataArray (vtkIdType numComp=1)
	~vtkDataArray ()

virtual void	ComputeRange (int comp)
virtual void	ComputeScalarRange (int comp)
virtual void	ComputeVectorRange ()
Protected Attributes
vtkLookupTable *	LookupTable
double	Range [2]

Member Typedef Documentation

typedef vtkAbstractArray vtkDataArray::Superclass

Reimplemented from vtkAbstractArray.

Reimplemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDataArrayTemplate< T >, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

Definition at line 53 of file vtkDataArray.h.

Constructor & Destructor Documentation

vtkDataArray::vtkDataArray ( vtkIdType numComp = 1 ) [protected]

vtkDataArray::~vtkDataArray ( ) [protected]

Member Function Documentation

virtual const char* vtkDataArray::GetClassName ( ) [virtual]

Reimplemented from vtkAbstractArray.

Reimplemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

static int vtkDataArray::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractArray.

Reimplemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

virtual int vtkDataArray::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractArray.

Reimplemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

static vtkDataArray* vtkDataArray::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkAbstractArray.

Reimplemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

void vtkDataArray::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAbstractArray.

Reimplemented in vtk__Int64Array, vtkBitArray, vtkCharArray, vtkDataArrayTemplate< T >, vtkDoubleArray, vtkFloatArray, vtkIdTypeArray, vtkIntArray, vtkLongArray, vtkLongLongArray, vtkShortArray, vtkSignedCharArray, vtkUnsigned__Int64Array, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedLongLongArray, and vtkUnsignedShortArray.

virtual int vtkDataArray::IsNumeric ( ) [inline, virtual]

This method is here to make backward compatibility easier. It must return true if and only if an array contains numeric data. All vtkDataArray subclasses contain numeric data, hence this method always returns 1(true).

Implements vtkAbstractArray.

Definition at line 61 of file vtkDataArray.h.

virtual int vtkDataArray::GetElementComponentSize ( ) [inline, virtual]

Return the size, in bytes, of the lowest-level element of an array. For vtkDataArray and subclasses this is the size of the data type.

Implements vtkAbstractArray.

Definition at line 68 of file vtkDataArray.h.

virtual void vtkDataArray::SetTuple	(	vtkIdType	i,
		vtkIdType	j,
		vtkAbstractArray *	source
	)			`[pure virtual]`

Set the tuple at the ith location using the jth tuple in the source array. This method assumes that the two arrays have the same type and structure. Note that range checking and memory allocation is not performed; use in conjunction with SetNumberOfTuples() to allocate space.

Implements vtkAbstractArray.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::InsertTuple	(	vtkIdType	i,
		vtkIdType	j,
		vtkAbstractArray *	source
	)			`[pure virtual]`

Insert the jth tuple in the source array, at ith location in this array. Note that memory allocation is performed as necessary to hold the data. This pure virtual function is redeclared here to avoid declaration hidden warnings.

Implements vtkAbstractArray.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual vtkIdType vtkDataArray::InsertNextTuple	(	vtkIdType	j,
		vtkAbstractArray *	source
	)			`[pure virtual]`

Insert the jth tuple in the source array, at the end in this array. Note that memory allocation is performed as necessary to hold the data. Returns the location at which the data was inserted. This pure virtual function is redeclared here to avoid declaration hidden warnings.

Implements vtkAbstractArray.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::GetTuples	(	vtkIdList *	ptIds,
		vtkAbstractArray *	output
	)			`[virtual]`

Given a list of point ids, return an array of tuples. You must insure that the output array has been previously allocated with enough space to hold the data.

Reimplemented from vtkAbstractArray.

virtual void vtkDataArray::GetTuples	(	vtkIdType	p1,
		vtkIdType	p2,
		vtkAbstractArray *	output
	)			`[virtual]`

Get the tuples for the range of points ids specified (i.e., p1->p2 inclusive). You must insure that the output array has been previously allocated with enough space to hold the data.

Reimplemented from vtkAbstractArray.

virtual void vtkDataArray::InterpolateTuple	(	vtkIdType	i,
		vtkIdList *	ptIndices,
		vtkAbstractArray *	source,
		double *	weights
	)			`[virtual]`

Set the ith tuple in this array as the interpolated tuple value, given the ptIndices in the source array and associated interpolation weights. This method assumes that the two arrays are of the same type and strcuture.

Implements vtkAbstractArray.

virtual void vtkDataArray::InterpolateTuple	(	vtkIdType	i,
		vtkIdType	id1,
		vtkAbstractArray *	source1,
		vtkIdType	id2,
		vtkAbstractArray *	source2,
		double	t
	)			`[virtual]`

Insert the ith tuple in this array as interpolated from the two values, p1 and p2, and an interpolation factor, t. The interpolation factor ranges from (0,1), with t=0 located at p1. This method assumes that the three arrays are of the same type. p1 is value at index id1 in source1, while, p2 is value at index id2 in source2.

Implements vtkAbstractArray.

virtual double* vtkDataArray::GetTuple ( vtkIdType i ) [pure virtual]

Get the data tuple at ith location. Return it as a pointer to an array. Note: this method is not thread-safe, and the pointer is only valid as long as another method invocation to a vtk object is not performed.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::GetTuple	(	vtkIdType	i,
		double *	tuple
	)			`[pure virtual]`

Get the data tuple at ith location by filling in a user-provided array, Make sure that your array is large enough to hold the NumberOfComponents amount of data being returned.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

double vtkDataArray::GetTuple1 ( vtkIdType i )

These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

double* vtkDataArray::GetTuple2 ( vtkIdType i )

These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

double* vtkDataArray::GetTuple3 ( vtkIdType i )

These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

double* vtkDataArray::GetTuple4 ( vtkIdType i )

These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

double* vtkDataArray::GetTuple9 ( vtkIdType i )

These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

virtual void vtkDataArray::SetTuple	(	vtkIdType	i,
		const float *	tuple
	)			`[pure virtual]`

Set the data tuple at ith location. Note that range checking or memory allocation is not performed; use this method in conjunction with SetNumberOfTuples() to allocate space.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::SetTuple	(	vtkIdType	i,
		const double *	tuple
	)			`[pure virtual]`

Set the data tuple at ith location. Note that range checking or memory allocation is not performed; use this method in conjunction with SetNumberOfTuples() to allocate space.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

void vtkDataArray::SetTuple1	(	vtkIdType	i,
		double	value
	)

These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::SetTuple2	(	vtkIdType	i,
		double	val0,
		double	val1
	)

These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::SetTuple3	(	vtkIdType	i,
		double	val0,
		double	val1,
		double	val2
	)

These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::SetTuple4	(	vtkIdType	i,
		double	val0,
		double	val1,
		double	val2,
		double	val3
	)

These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::SetTuple9	(	vtkIdType	i,
		double	val0,
		double	val1,
		double	val2,
		double	val3,
		double	val4,
		double	val5,
		double	val6,
		double	val7,
		double	val8
	)

These methods are included as convenience for the wrappers. GetTuple() and SetTuple() which return/take arrays can not be used from wrapped languages. These methods can be used instead.

virtual void vtkDataArray::InsertTuple	(	vtkIdType	i,
		const float *	tuple
	)			`[pure virtual]`

Insert the data tuple at ith location. Note that memory allocation is performed as necessary to hold the data.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::InsertTuple	(	vtkIdType	i,
		const double *	tuple
	)			`[pure virtual]`

Insert the data tuple at ith location. Note that memory allocation is performed as necessary to hold the data.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

void vtkDataArray::InsertTuple1	(	vtkIdType	i,
		double	value
	)

These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertTuple2	(	vtkIdType	i,
		double	val0,
		double	val1
	)

These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertTuple3	(	vtkIdType	i,
		double	val0,
		double	val1,
		double	val2
	)

These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertTuple4	(	vtkIdType	i,
		double	val0,
		double	val1,
		double	val2,
		double	val3
	)

These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertTuple9	(	vtkIdType	i,
		double	val0,
		double	val1,
		double	val2,
		double	val3,
		double	val4,
		double	val5,
		double	val6,
		double	val7,
		double	val8
	)

These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

virtual vtkIdType vtkDataArray::InsertNextTuple ( const float * tuple ) [pure virtual]

Insert the data tuple at the end of the array and return the location at which the data was inserted. Memory is allocated as necessary to hold the data.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual vtkIdType vtkDataArray::InsertNextTuple ( const double * tuple ) [pure virtual]

Insert the data tuple at the end of the array and return the location at which the data was inserted. Memory is allocated as necessary to hold the data.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

void vtkDataArray::InsertNextTuple1 ( double value )

These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertNextTuple2	(	double	val0,
		double	val1
	)

These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertNextTuple3	(	double	val0,
		double	val1,
		double	val2
	)

These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertNextTuple4	(	double	val0,
		double	val1,
		double	val2,
		double	val3
	)

These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

void vtkDataArray::InsertNextTuple9	(	double	val0,
		double	val1,
		double	val2,
		double	val3,
		double	val4,
		double	val5,
		double	val6,
		double	val7,
		double	val8
	)

These methods are included as convenience for the wrappers. InsertTuple() which takes arrays can not be used from wrapped languages. These methods can be used instead.

virtual void vtkDataArray::RemoveTuple ( vtkIdType id ) [pure virtual]

These methods remove tuples from the data array. They shift data and resize array, so the data array is still valid after this operation. Note, this operation is fairly slow.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::RemoveFirstTuple ( ) [pure virtual]

These methods remove tuples from the data array. They shift data and resize array, so the data array is still valid after this operation. Note, this operation is fairly slow.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::RemoveLastTuple ( ) [pure virtual]

These methods remove tuples from the data array. They shift data and resize array, so the data array is still valid after this operation. Note, this operation is fairly slow.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual double vtkDataArray::GetComponent	(	vtkIdType	i,
		int	j
	)			`[virtual]`

Return the data component at the ith tuple and jth component location. Note that i is less than NumberOfTuples and j is less than NumberOfComponents.

Reimplemented in vtkDataArrayTemplate< T >.

virtual void vtkDataArray::SetComponent	(	vtkIdType	i,
		int	j,
		double	c
	)			`[virtual]`

Set the data component at the ith tuple and jth component location. Note that i is less than NumberOfTuples and j is less than NumberOfComponents. Make sure enough memory has been allocated (use SetNumberOfTuples() and SetNumberOfComponents()).

Reimplemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::InsertComponent	(	vtkIdType	i,
		int	j,
		double	c
	)			`[virtual]`

Insert the data component at ith tuple and jth component location. Note that memory allocation is performed as necessary to hold the data.

Reimplemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::GetData	(	vtkIdType	tupleMin,
		vtkIdType	tupleMax,
		int	compMin,
		int	compMax,
		vtkDoubleArray *	data
	)			`[virtual]`

Get the data as a double array in the range (tupleMin,tupleMax) and (compMin, compMax). The resulting double array consists of all data in the tuple range specified and only the component range specified. This process typically requires casting the data from native form into doubleing point values. This method is provided as a convenience for data exchange, and is not very fast.

virtual void vtkDataArray::DeepCopy ( vtkAbstractArray * aa ) [virtual]

Deep copy of data. Copies data from different data arrays even if they are different types (using doubleing-point exchange).

Reimplemented from vtkAbstractArray.

Reimplemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::DeepCopy ( vtkDataArray * da ) [virtual]

Deep copy of data. Copies data from different data arrays even if they are different types (using doubleing-point exchange).

Reimplemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual void vtkDataArray::FillComponent	(	int	j,
		double	c
	)			`[virtual]`

Fill a component of a data array with a specified value. This method sets the specified component to specified value for all tuples in the data array. This methods can be used to initialize or reinitialize a single component of a multi-component array.

virtual void vtkDataArray::CopyComponent	(	int	j,
		vtkDataArray *	from,
		int	fromComponent
	)			`[virtual]`

Copy a component from one data array into a component on this data array. This method copies the specified component ("fromComponent") from the specified data array ("from") to the specified component ("j") over all the tuples in this data array. This method can be used to extract a component (column) from one data array and paste that data into a component on this data array.

virtual void* vtkDataArray::WriteVoidPointer	(	vtkIdType	id,
		vtkIdType	number
	)			`[pure virtual]`

Get the address of a particular data index. Make sure data is allocated for the number of items requested. Set MaxId according to the number of data values requested.

Implemented in vtkBitArray, and vtkDataArrayTemplate< T >.

virtual unsigned long vtkDataArray::GetActualMemorySize ( ) [virtual]

Return the memory in kilobytes consumed by this data array. Used to support streaming and reading/writing data. The value returned is guaranteed to be greater than or equal to the memory required to actually represent the data represented by this object. The information returned is valid only after the pipeline has been updated.

Implements vtkAbstractArray.

void vtkDataArray::CreateDefaultLookupTable ( )

Create default lookup table. Generally used to create one when none is available.

void vtkDataArray::SetLookupTable ( vtkLookupTable * lut )

Set/get the lookup table associated with this scalar data, if any.

virtual vtkLookupTable* vtkDataArray::GetLookupTable ( ) [virtual]

Set/get the lookup table associated with this scalar data, if any.

void vtkDataArray::GetRange	(	double	range[2],
		int	comp
	)			`[inline]`

Return the range of the array values for the given component. Range is copied into the array provided. If comp is equal to -1, it returns the range of the magnitude (if the number of components is equal to 1 it still returns the range of component 0).

Definition at line 298 of file vtkDataArray.h.

double* vtkDataArray::GetRange ( int comp ) [inline]

Return the range of the array values for the given component. Range is copied into the array provided. If comp is equal to -1, it returns the range of the magnitude (if the number of components is equal to 1 it still returns the range of component 0).

Definition at line 303 of file vtkDataArray.h.

double* vtkDataArray::GetRange ( ) [inline]

Return the range of the array values for the given component. Range is copied into the array provided. If comp is equal to -1, it returns the range of the magnitude (if the number of components is equal to 1 it still returns the range of component 0).

Definition at line 311 of file vtkDataArray.h.

void vtkDataArray::GetRange ( double range[2] ) [inline]

Return the range of the array values for the given component. Range is copied into the array provided. If comp is equal to -1, it returns the range of the magnitude (if the number of components is equal to 1 it still returns the range of component 0).

Definition at line 316 of file vtkDataArray.h.

void vtkDataArray::GetDataTypeRange ( double range[2] )

Return the range of the array values for the given component. Range is copied into the array provided. If comp is equal to -1, it returns the range of the magnitude (if the number of components is equal to 1 it still returns the range of component 0).

double vtkDataArray::GetDataTypeMin ( )

Return the range of the array values for the given component. Range is copied into the array provided. If comp is equal to -1, it returns the range of the magnitude (if the number of components is equal to 1 it still returns the range of component 0).

double vtkDataArray::GetDataTypeMax ( )

Return the range of the array values for the given component. Range is copied into the array provided. If comp is equal to -1, it returns the range of the magnitude (if the number of components is equal to 1 it still returns the range of component 0).

static void vtkDataArray::GetDataTypeRange	(	int	type,
		double	range[2]
	)			`[static]`

Return the range of the array values for the given component. Range is copied into the array provided. If comp is equal to -1, it returns the range of the magnitude (if the number of components is equal to 1 it still returns the range of component 0).

static double vtkDataArray::GetDataTypeMin ( int type ) [static]

Return the range of the array values for the given component. Range is copied into the array provided. If comp is equal to -1, it returns the range of the magnitude (if the number of components is equal to 1 it still returns the range of component 0).

static double vtkDataArray::GetDataTypeMax ( int type ) [static]

Return the range of the array values for the given component. Range is copied into the array provided. If comp is equal to -1, it returns the range of the magnitude (if the number of components is equal to 1 it still returns the range of component 0).

virtual double vtkDataArray::GetMaxNorm ( ) [virtual]

Return the maximum norm for the tuples. Note that the max. is computed everytime GetMaxNorm is called.

static vtkDataArray* vtkDataArray::CreateDataArray ( int dataType ) [static]

Creates an array for dataType where dataType is one of VTK_BIT, VTK_CHAR, VTK_SIGNED_CHAR, VTK_UNSIGNED_CHAR, VTK_SHORT, VTK_UNSIGNED_SHORT, VTK_INT, VTK_UNSIGNED_INT, VTK_LONG, VTK_UNSIGNED_LONG, VTK_DOUBLE, VTK_DOUBLE, VTK_ID_TYPE. Note that the data array returned has be deleted by the user.

static vtkInformationInformationVectorKey* vtkDataArray::PER_COMPONENT ( ) [static]

This key is used to hold a vector of COMPONENT_RANGE keys -- one for each component of the array. You may add additional per-component key-value pairs to information objects in this vector. However if you do so, you must be sure to either (1) set COMPONENT_RANGE to { VTK_DOUBLE_MAX, VTK_DOUBLE_MIN } or (2) call ComputeRange( component ) before modifying the information object. Otherwise it is possible for modifications to the array to take place without the bounds on the component being updated since the modification time of the vtkInformation object is used to determine when the COMPONENT_RANGE values are out of date.

static vtkInformationDoubleVectorKey* vtkDataArray::COMPONENT_RANGE ( ) [static]

This key is used to hold a vector of COMPONENT_RANGE keys -- one for each component of the array. You may add additional per-component key-value pairs to information objects in this vector. However if you do so, you must be sure to either (1) set COMPONENT_RANGE to { VTK_DOUBLE_MAX, VTK_DOUBLE_MIN } or (2) call ComputeRange( component ) before modifying the information object. Otherwise it is possible for modifications to the array to take place without the bounds on the component being updated since the modification time of the vtkInformation object is used to determine when the COMPONENT_RANGE values are out of date.

static vtkInformationDoubleVectorKey* vtkDataArray::L2_NORM_RANGE ( ) [static]

This key is used to hold a vector of COMPONENT_RANGE keys -- one for each component of the array. You may add additional per-component key-value pairs to information objects in this vector. However if you do so, you must be sure to either (1) set COMPONENT_RANGE to { VTK_DOUBLE_MAX, VTK_DOUBLE_MIN } or (2) call ComputeRange( component ) before modifying the information object. Otherwise it is possible for modifications to the array to take place without the bounds on the component being updated since the modification time of the vtkInformation object is used to determine when the COMPONENT_RANGE values are out of date.

virtual int vtkDataArray::CopyInformation	(	vtkInformation *	infoFrom,
		int	deep = `1`
	)			`[virtual]`

Copy information instance. Arrays use information objects in a variety of ways. It is important to have flexibility in this regard because certain keys should not be coppied, while others must be. NOTE: Up to the implmeneter to make sure that keys not inteneded to be coppied are excluded here.

Reimplemented from vtkAbstractArray.

virtual void vtkDataArray::ComputeRange ( int comp ) [protected, virtual]

Compute the range for a specific component. If comp is set -1 then L2 norm is computed on all components. Call ClearRange to force a recomputation if it is needed.

virtual void vtkDataArray::ComputeScalarRange ( int comp ) [protected, virtual]

Compute the range for a specific component. If comp is set -1 then L2 norm is computed on all components. Call ClearRange to force a recomputation if it is needed.

Reimplemented in vtkDataArrayTemplate< T >.

virtual void vtkDataArray::ComputeVectorRange ( ) [protected, virtual]

Compute the range for a specific component. If comp is set -1 then L2 norm is computed on all components. Call ClearRange to force a recomputation if it is needed.

Reimplemented in vtkDataArrayTemplate< T >.
