vtkFloatArray Class Reference

#include <vtkFloatArray.h>

Inheritance diagram for vtkFloatArray:

Inheritance graph
[legend]

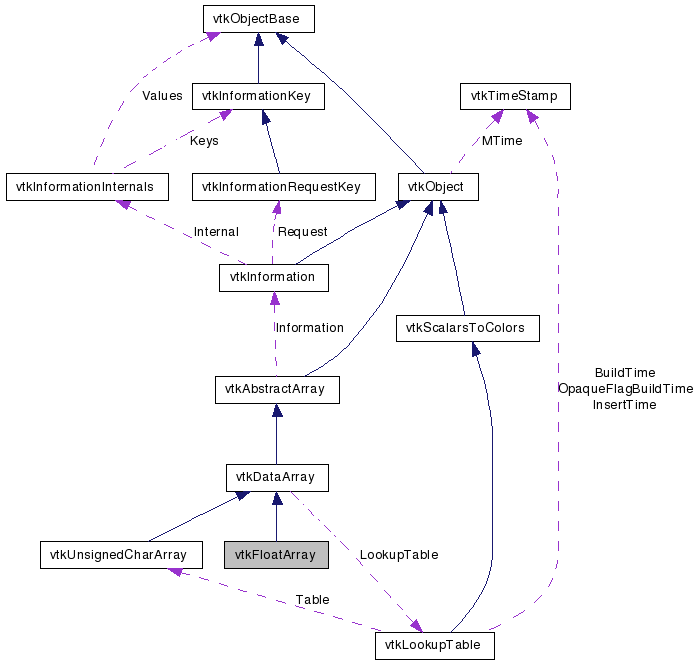

Collaboration diagram for vtkFloatArray:

Collaboration graph
[legend]

List of all members.


Detailed Description

dynamic, self-adjusting array of float

vtkFloatArray is an array of values of type float. It provides methods for insertion and retrieval of values and will automatically resize itself to hold new data.

Tests:
vtkFloatArray (Tests)

Definition at line 39 of file vtkFloatArray.h.


Public Types

typedef vtkDataArray Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int GetDataType ()
void GetTupleValue (vtkIdType i, float *tuple)
void SetTupleValue (vtkIdType i, const float *tuple)
void InsertTupleValue (vtkIdType i, const float *tuple)
vtkIdType InsertNextTupleValue (const float *tuple)
float GetValue (vtkIdType id)
void SetValue (vtkIdType id, float value)
void SetNumberOfValues (vtkIdType number)
void InsertValue (vtkIdType id, float f)
vtkIdType InsertNextValue (float f)
float * WritePointer (vtkIdType id, vtkIdType number)
float * GetPointer (vtkIdType id)
void SetArray (float *array, vtkIdType size, int save)
void SetArray (float *array, vtkIdType size, int save, int deleteMethod)

Static Public Member Functions

static vtkFloatArrayNew ()
static int IsTypeOf (const char *type)
static vtkFloatArraySafeDownCast (vtkObject *o)

Protected Member Functions

 vtkFloatArray (vtkIdType numComp=1)
 ~vtkFloatArray ()

Member Typedef Documentation

Reimplemented from vtkDataArray.

Definition at line 44 of file vtkFloatArray.h.


Constructor & Destructor Documentation

vtkFloatArray::vtkFloatArray ( vtkIdType  numComp = 1  )  [protected]

vtkFloatArray::~vtkFloatArray (  )  [protected]


Member Function Documentation

static vtkFloatArray* vtkFloatArray::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkFloatArray::GetClassName (  )  [virtual]

Reimplemented from vtkDataArray.

static int vtkFloatArray::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataArray.

virtual int vtkFloatArray::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataArray.

static vtkFloatArray* vtkFloatArray::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataArray.

void vtkFloatArray::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataArray.

int vtkFloatArray::GetDataType (  )  [inline, virtual]

Get the data type.

Implements vtkAbstractArray.

Definition at line 49 of file vtkFloatArray.h.

void vtkFloatArray::GetTupleValue ( vtkIdType  i,
float *  tuple
) [inline]

Copy the tuple value into a user-provided array.

Definition at line 55 of file vtkFloatArray.h.

void vtkFloatArray::SetTupleValue ( vtkIdType  i,
const float *  tuple
) [inline]

Set the tuple value at the ith location in the array.

Definition at line 61 of file vtkFloatArray.h.

void vtkFloatArray::InsertTupleValue ( vtkIdType  i,
const float *  tuple
) [inline]

Insert (memory allocation performed) the tuple into the ith location in the array.

Definition at line 68 of file vtkFloatArray.h.

vtkIdType vtkFloatArray::InsertNextTupleValue ( const float *  tuple  )  [inline]

Insert (memory allocation performed) the tuple onto the end of the array.

Definition at line 75 of file vtkFloatArray.h.

float vtkFloatArray::GetValue ( vtkIdType  id  )  [inline]

Get the data at a particular index.

Definition at line 81 of file vtkFloatArray.h.

void vtkFloatArray::SetValue ( vtkIdType  id,
float  value
) [inline]

Set the data at a particular index. Does not do range checking. Make sure you use the method SetNumberOfValues() before inserting data.

Definition at line 88 of file vtkFloatArray.h.

void vtkFloatArray::SetNumberOfValues ( vtkIdType  number  )  [inline]

Specify the number of values for this object to hold. Does an allocation as well as setting the MaxId ivar. Used in conjunction with SetValue() method for fast insertion.

Definition at line 96 of file vtkFloatArray.h.

void vtkFloatArray::InsertValue ( vtkIdType  id,
float  f
) [inline]

Insert data at a specified position in the array.

Definition at line 102 of file vtkFloatArray.h.

vtkIdType vtkFloatArray::InsertNextValue ( float  f  )  [inline]

Insert data at the end of the array. Return its location in the array.

Definition at line 109 of file vtkFloatArray.h.

float* vtkFloatArray::WritePointer ( vtkIdType  id,
vtkIdType  number
) [inline]

Get the address of a particular data index. Make sure data is allocated for the number of items requested. Set MaxId according to the number of data values requested.

Definition at line 117 of file vtkFloatArray.h.

float* vtkFloatArray::GetPointer ( vtkIdType  id  )  [inline]

Get the address of a particular data index. Performs no checks to verify that the memory has been allocated etc.

Definition at line 124 of file vtkFloatArray.h.

void vtkFloatArray::SetArray ( float *  array,
vtkIdType  size,
int  save
) [inline]

This method lets the user specify data to be held by the array. The array argument is a pointer to the data. size is the size of the array supplied by the user. Set save to 1 to keep the class from deleting the array when it cleans up or reallocates memory. The class uses the actual array provided; it does not copy the data from the suppled array.

Definition at line 135 of file vtkFloatArray.h.

void vtkFloatArray::SetArray ( float *  array,
vtkIdType  size,
int  save,
int  deleteMethod
) [inline]

This method lets the user specify data to be held by the array. The array argument is a pointer to the data. size is the size of the array supplied by the user. Set save to 1 to keep the class from deleting the array when it cleans up or reallocates memory. The class uses the actual array provided; it does not copy the data from the suppled array.

Definition at line 137 of file vtkFloatArray.h.


The documentation for this class was generated from the following file:
