vtkDelimitedTextReader Class Reference

#include <vtkDelimitedTextReader.h>

Inheritance diagram for vtkDelimitedTextReader:

[legend]

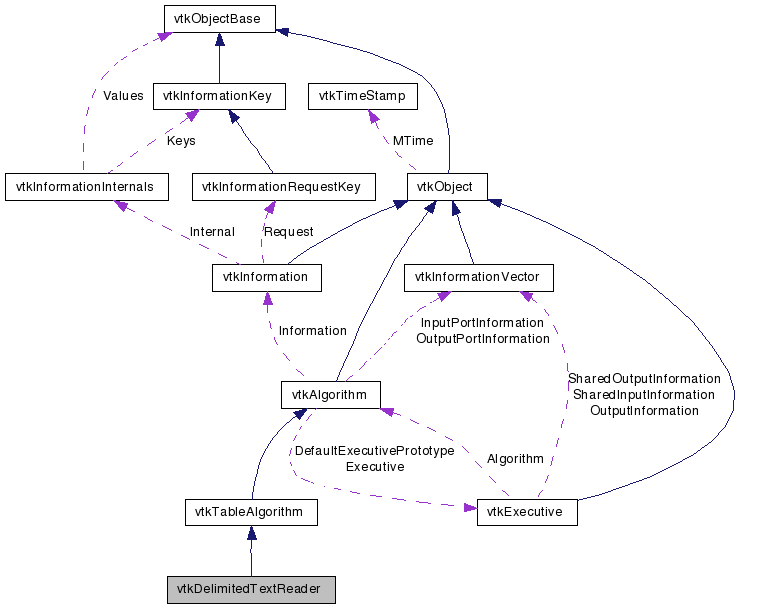

Collaboration diagram for vtkDelimitedTextReader:

[legend]

List of all members.

Detailed Description

reader for pulling in flat text files

vtkDelimitedTextReader is an interface for pulling in data from a flat, delimited text file (delimiter can be any character).

This class emits ProgressEvent for every 100 lines it reads.

Thanks:: Thanks to Andy Wilson and Brian Wylie from Sandia National Laboratories for implementing this class.

Warning:: This reader assumes that the first line in the file (whether that's headers or the first document) contains at least as many fields as any other line in the file.

Events:: vtkCommand::ProgressEvent

Tests:: vtkDelimitedTextReader (Tests)

Definition at line 57 of file vtkDelimitedTextReader.h.


Public Types
typedef vtkTableAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual char *	GetFileName ()
virtual void	SetFileName (const char *)

virtual void	SetFieldDelimiterCharacters (const char *)
virtual char *	GetFieldDelimiterCharacters ()

virtual char	GetStringDelimiter ()
virtual void	SetStringDelimiter (char)

virtual void	SetUseStringDelimiter (bool)
virtual bool	GetUseStringDelimiter ()
virtual void	UseStringDelimiterOn ()
virtual void	UseStringDelimiterOff ()

virtual bool	GetHaveHeaders ()
virtual void	SetHaveHeaders (bool)

virtual void	SetMergeConsecutiveDelimiters (bool)
virtual bool	GetMergeConsecutiveDelimiters ()
virtual void	MergeConsecutiveDelimitersOn ()
virtual void	MergeConsecutiveDelimitersOff ()

virtual int	GetMaxRecords ()
virtual void	SetMaxRecords (int)

virtual void	SetDetectNumericColumns (bool)
virtual bool	GetDetectNumericColumns ()
virtual void	DetectNumericColumnsOn ()
virtual void	DetectNumericColumnsOff ()
Static Public Member Functions
static vtkDelimitedTextReader *	New ()
static int	IsTypeOf (const char *type)
static vtkDelimitedTextReader *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkDelimitedTextReader ()
	~vtkDelimitedTextReader ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
void	OpenFile ()
Protected Attributes
vtkDelimitedTextReaderInternals *	Internals
char *	FileName
char *	FieldDelimiterCharacters
char	StringDelimiter
bool	UseStringDelimiter
bool	HaveHeaders
bool	MergeConsecutiveDelimiters
char *	ReadBuffer
int	MaxRecords
bool	DetectNumericColumns

Member Typedef Documentation

typedef vtkTableAlgorithm vtkDelimitedTextReader::Superclass

Reimplemented from vtkTableAlgorithm.

Definition at line 61 of file vtkDelimitedTextReader.h.

Constructor & Destructor Documentation

vtkDelimitedTextReader::vtkDelimitedTextReader ( ) [protected]

vtkDelimitedTextReader::~vtkDelimitedTextReader ( ) [protected]

Member Function Documentation

static vtkDelimitedTextReader* vtkDelimitedTextReader::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkTableAlgorithm.

virtual const char* vtkDelimitedTextReader::GetClassName ( ) [virtual]

Reimplemented from vtkTableAlgorithm.

static int vtkDelimitedTextReader::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkTableAlgorithm.

virtual int vtkDelimitedTextReader::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkTableAlgorithm.

static vtkDelimitedTextReader* vtkDelimitedTextReader::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkTableAlgorithm.

void vtkDelimitedTextReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkTableAlgorithm.

virtual char* vtkDelimitedTextReader::GetFileName ( ) [virtual]

virtual void vtkDelimitedTextReader::SetFileName ( const char * ) [virtual]

virtual void vtkDelimitedTextReader::SetFieldDelimiterCharacters ( const char * ) [virtual]

Get/set the characters that will be used to separate fields. For example, set this to "," for a comma-separated value file. Set it to ".:;" for a file where columns can be separated by a period, colon or semicolon. The order of the characters in the string does not matter. Defaults to a comma.

virtual char* vtkDelimitedTextReader::GetFieldDelimiterCharacters ( ) [virtual]

Get/set the characters that will be used to separate fields. For example, set this to "," for a comma-separated value file. Set it to ".:;" for a file where columns can be separated by a period, colon or semicolon. The order of the characters in the string does not matter. Defaults to a comma.

virtual char vtkDelimitedTextReader::GetStringDelimiter ( ) [virtual]

Get/set the character that will begin and end strings. Microsoft Excel, for example, will export the following format: "First Field","Second Field","Field, With, Commas","Fourth Field" The third field has a comma in it. By using a string delimiter, this will be correctly read. The delimiter defaults to '"'.

virtual void vtkDelimitedTextReader::SetStringDelimiter ( char ) [virtual]

Get/set the character that will begin and end strings. Microsoft Excel, for example, will export the following format: "First Field","Second Field","Field, With, Commas","Fourth Field" The third field has a comma in it. By using a string delimiter, this will be correctly read. The delimiter defaults to '"'.

virtual void vtkDelimitedTextReader::SetUseStringDelimiter ( bool ) [virtual]

Set/get whether to use the string delimiter. Defaults to on.

virtual bool vtkDelimitedTextReader::GetUseStringDelimiter ( ) [virtual]

Set/get whether to use the string delimiter. Defaults to on.

virtual void vtkDelimitedTextReader::UseStringDelimiterOn ( ) [virtual]

Set/get whether to use the string delimiter. Defaults to on.

virtual void vtkDelimitedTextReader::UseStringDelimiterOff ( ) [virtual]

Set/get whether to use the string delimiter. Defaults to on.

virtual bool vtkDelimitedTextReader::GetHaveHeaders ( ) [virtual]

Set/get whether to treat the first line of the file as headers.

virtual void vtkDelimitedTextReader::SetHaveHeaders ( bool ) [virtual]

Set/get whether to treat the first line of the file as headers.

virtual void vtkDelimitedTextReader::SetMergeConsecutiveDelimiters ( bool ) [virtual]

Set/get whether to merge successive delimiters. Use this if (for example) your fields are separated by spaces but you don't know exactly how many.

virtual bool vtkDelimitedTextReader::GetMergeConsecutiveDelimiters ( ) [virtual]

Set/get whether to merge successive delimiters. Use this if (for example) your fields are separated by spaces but you don't know exactly how many.

virtual void vtkDelimitedTextReader::MergeConsecutiveDelimitersOn ( ) [virtual]

Set/get whether to merge successive delimiters. Use this if (for example) your fields are separated by spaces but you don't know exactly how many.

virtual void vtkDelimitedTextReader::MergeConsecutiveDelimitersOff ( ) [virtual]

Set/get whether to merge successive delimiters. Use this if (for example) your fields are separated by spaces but you don't know exactly how many.

virtual int vtkDelimitedTextReader::GetMaxRecords ( ) [virtual]

Set/get the maximum number of records to read from the file (zero = unlimited)

virtual void vtkDelimitedTextReader::SetMaxRecords ( int ) [virtual]

Set/get the maximum number of records to read from the file (zero = unlimited)

virtual void vtkDelimitedTextReader::SetDetectNumericColumns ( bool ) [virtual]

When set to true, the reader will detect numeric columns and create vtkDoubleArray or vtkIntArray for those instead of vtkStringArray. Default is off.

virtual bool vtkDelimitedTextReader::GetDetectNumericColumns ( ) [virtual]

When set to true, the reader will detect numeric columns and create vtkDoubleArray or vtkIntArray for those instead of vtkStringArray. Default is off.

virtual void vtkDelimitedTextReader::DetectNumericColumnsOn ( ) [virtual]

When set to true, the reader will detect numeric columns and create vtkDoubleArray or vtkIntArray for those instead of vtkStringArray. Default is off.

virtual void vtkDelimitedTextReader::DetectNumericColumnsOff ( ) [virtual]

When set to true, the reader will detect numeric columns and create vtkDoubleArray or vtkIntArray for those instead of vtkStringArray. Default is off.

int vtkDelimitedTextReader::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
