vtkStringArray Class Reference

#include <vtkStringArray.h>

Inheritance diagram for vtkStringArray:

Inheritance graph
[legend]

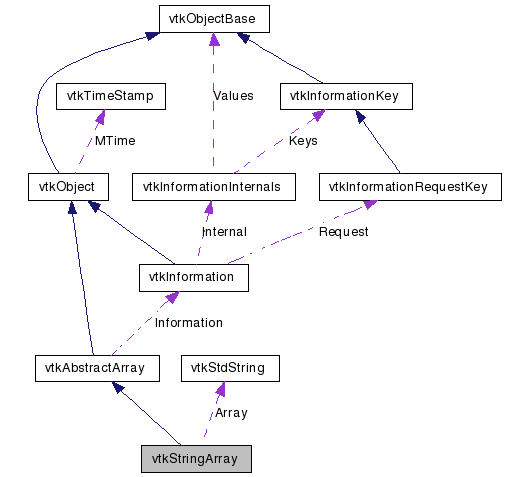

Collaboration diagram for vtkStringArray:

Collaboration graph
[legend]

List of all members.


Detailed Description

Subclass of vtkAbstractArray that holds vtkStdStrings.

Date
2009-03-12 16:21:41
Revision
1.10

Points and cells may sometimes have associated data that are stored as strings, e.g. many information visualization projects. This class provides a reasonably clean way to store and access those.

Warning:
Wrapping support for the Set/Get/Insert methods is a little strange. The Tcl/Python/Java wrappers treat vtkStdString as const char * right now instead of dealing with native strings. This is why there are two versions of every Set method: one (which you should use in C++ code) taking a vtkStdString argument and one (used by the wrapper) taking a const char * argument.

If you'd like to look into modifying the wrappers to handle this properly, go right ahead...

Thanks:
Andy Wilson (atwilso@sandia.gov) wrote this class.
Tests:
vtkStringArray (Tests)

Definition at line 56 of file vtkStringArray.h.


Public Types

typedef vtkAbstractArray Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int IsNumeric ()
void Initialize ()
int GetDataTypeSize ()
void Squeeze ()
int Resize (vtkIdType numTuples)
virtual void SetTuple (vtkIdType i, vtkIdType j, vtkAbstractArray *source)
virtual void InsertTuple (vtkIdType i, vtkIdType j, vtkAbstractArray *source)
virtual vtkIdType InsertNextTuple (vtkIdType j, vtkAbstractArray *source)
virtual void GetTuples (vtkIdList *ptIds, vtkAbstractArray *output)
virtual void GetTuples (vtkIdType p1, vtkIdType p2, vtkAbstractArray *output)
int Allocate (vtkIdType sz, vtkIdType ext=1000)
vtkStdStringGetValue (vtkIdType id)
void SetValue (vtkIdType id, const char *value)
void SetNumberOfValues (vtkIdType number)
vtkIdType GetNumberOfValues ()
int GetNumberOfElementComponents ()
int GetElementComponentSize ()
void InsertValue (vtkIdType id, vtkStdString f)
void InsertVariantValue (vtkIdType idx, vtkVariant value)
void InsertValue (vtkIdType id, const char *val)
vtkIdType InsertNextValue (vtkStdString f)
vtkIdType InsertNextValue (const char *f)
vtkStdStringWritePointer (vtkIdType id, vtkIdType number)
void DeepCopy (vtkAbstractArray *aa)
unsigned long GetActualMemorySize ()
virtual vtkArrayIteratorNewIterator ()
virtual vtkIdType GetDataSize ()
virtual void DataChanged ()
virtual void DataElementChanged (vtkIdType id)
virtual void ClearLookup ()
int GetDataType ()
virtual void InterpolateTuple (vtkIdType i, vtkIdList *ptIndices, vtkAbstractArray *source, double *weights)
virtual void InterpolateTuple (vtkIdType i, vtkIdType id1, vtkAbstractArray *source1, vtkIdType id2, vtkAbstractArray *source2, double t)
void SetValue (vtkIdType id, vtkStdString value)
virtual void SetNumberOfTuples (vtkIdType number)
vtkStdStringGetPointer (vtkIdType id)
void * GetVoidPointer (vtkIdType id)
void SetArray (vtkStdString *array, vtkIdType size, int save)
virtual void SetVoidArray (void *array, vtkIdType size, int save)
virtual vtkIdType LookupValue (vtkVariant value)
virtual void LookupValue (vtkVariant value, vtkIdList *ids)
vtkIdType LookupValue (vtkStdString value)
void LookupValue (vtkStdString value, vtkIdList *ids)
vtkIdType LookupValue (const char *value)
void LookupValue (const char *value, vtkIdList *ids)

Static Public Member Functions

static vtkStringArrayNew ()
static int IsTypeOf (const char *type)
static vtkStringArraySafeDownCast (vtkObject *o)

Protected Member Functions

 vtkStringArray (vtkIdType numComp=1)
 ~vtkStringArray ()
vtkStdStringResizeAndExtend (vtkIdType sz)

Protected Attributes

vtkStdStringArray
int SaveUserArray

Member Typedef Documentation

Reimplemented from vtkAbstractArray.

Definition at line 60 of file vtkStringArray.h.


Constructor & Destructor Documentation

vtkStringArray::vtkStringArray ( vtkIdType  numComp = 1  )  [protected]

vtkStringArray::~vtkStringArray (  )  [protected]


Member Function Documentation

static vtkStringArray* vtkStringArray::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkStringArray::GetClassName (  )  [virtual]

Reimplemented from vtkAbstractArray.

static int vtkStringArray::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractArray.

virtual int vtkStringArray::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractArray.

static vtkStringArray* vtkStringArray::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkAbstractArray.

void vtkStringArray::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAbstractArray.

int vtkStringArray::GetDataType (  )  [inline, virtual]

Get the data type.

Implements vtkAbstractArray.

Definition at line 71 of file vtkStringArray.h.

int vtkStringArray::IsNumeric (  )  [inline, virtual]

This method is here to make backward compatibility easier. It must return true if and only if an array contains numeric data.

Implements vtkAbstractArray.

Definition at line 75 of file vtkStringArray.h.

void vtkStringArray::Initialize (  )  [virtual]

Release storage and reset array to initial state.

Implements vtkAbstractArray.

int vtkStringArray::GetDataTypeSize (  )  [virtual]

Return the size of the data type. WARNING: This may not mean what you expect with strings. It will return sizeof(vtkstd::string) and not take into account the data included in any particular string.

Implements vtkAbstractArray.

void vtkStringArray::Squeeze (  )  [inline, virtual]

Free any unnecessary memory. Resize object to just fit data requirement. Reclaims extra memory.

Implements vtkAbstractArray.

Definition at line 87 of file vtkStringArray.h.

int vtkStringArray::Resize ( vtkIdType  numTuples  )  [virtual]

Resize the array while conserving the data.

Implements vtkAbstractArray.

virtual void vtkStringArray::SetTuple ( vtkIdType  i,
vtkIdType  j,
vtkAbstractArray source
) [virtual]

Set the tuple at the ith location using the jth tuple in the source array. This method assumes that the two arrays have the same type and structure. Note that range checking and memory allocation is not performed; use in conjunction with SetNumberOfTuples() to allocate space.

Implements vtkAbstractArray.

virtual void vtkStringArray::InsertTuple ( vtkIdType  i,
vtkIdType  j,
vtkAbstractArray source
) [virtual]

Insert the jth tuple in the source array, at ith location in this array. Note that memory allocation is performed as necessary to hold the data.

Implements vtkAbstractArray.

virtual vtkIdType vtkStringArray::InsertNextTuple ( vtkIdType  j,
vtkAbstractArray source
) [virtual]

Insert the jth tuple in the source array, at the end in this array. Note that memory allocation is performed as necessary to hold the data. Returns the location at which the data was inserted.

Implements vtkAbstractArray.

virtual void vtkStringArray::InterpolateTuple ( vtkIdType  i,
vtkIdList ptIndices,
vtkAbstractArray source,
double *  weights
) [virtual]

Set the ith tuple in this array as the interpolated tuple value, given the ptIndices in the source array and associated interpolation weights. This method assumes that the two arrays are of the same type and strcuture.

Implements vtkAbstractArray.

virtual void vtkStringArray::InterpolateTuple ( vtkIdType  i,
vtkIdType  id1,
vtkAbstractArray source1,
vtkIdType  id2,
vtkAbstractArray source2,
double  t
) [virtual]

Insert the ith tuple in this array as interpolated from the two values, p1 and p2, and an interpolation factor, t. The interpolation factor ranges from (0,1), with t=0 located at p1. This method assumes that the three arrays are of the same type. p1 is value at index id1 in source1, while, p2 is value at index id2 in source2.

Implements vtkAbstractArray.

virtual void vtkStringArray::GetTuples ( vtkIdList ptIds,
vtkAbstractArray output
) [virtual]

Given a list of indices, return an array of values. You must insure that the output array has been previously allocated with enough space to hold the data and that the types match sufficiently to allow conversion (if necessary).

Reimplemented from vtkAbstractArray.

virtual void vtkStringArray::GetTuples ( vtkIdType  p1,
vtkIdType  p2,
vtkAbstractArray output
) [virtual]

Get the values for the range of indices specified (i.e., p1->p2 inclusive). You must insure that the output array has been previously allocated with enough space to hold the data and that the type of the output array is compatible with the type of this array.

Reimplemented from vtkAbstractArray.

int vtkStringArray::Allocate ( vtkIdType  sz,
vtkIdType  ext = 1000
) [virtual]

Allocate memory for this array. Delete old storage only if necessary. Note that ext is no longer used.

Implements vtkAbstractArray.

vtkStdString& vtkStringArray::GetValue ( vtkIdType  id  )

Get the data at a particular index.

void vtkStringArray::SetValue ( vtkIdType  id,
vtkStdString  value
) [inline]

Set the data at a particular index. Does not do range checking. Make sure you use the method SetNumberOfValues() before inserting data. BTX

Definition at line 152 of file vtkStringArray.h.

void vtkStringArray::SetValue ( vtkIdType  id,
const char *  value
)

virtual void vtkStringArray::SetNumberOfTuples ( vtkIdType  number  )  [inline, virtual]

Set the number of tuples (a component group) in the array. Note that this may allocate space depending on the number of components.

Implements vtkAbstractArray.

Definition at line 161 of file vtkStringArray.h.

void vtkStringArray::SetNumberOfValues ( vtkIdType  number  )

Specify the number of values for this object to hold. Does an allocation as well as setting the MaxId ivar. Used in conjunction with SetValue() method for fast insertion.

vtkIdType vtkStringArray::GetNumberOfValues (  )  [inline]

Definition at line 170 of file vtkStringArray.h.

int vtkStringArray::GetNumberOfElementComponents (  )  [inline]

Definition at line 172 of file vtkStringArray.h.

int vtkStringArray::GetElementComponentSize (  )  [inline, virtual]

Return the size, in bytes, of the lowest-level element of an array. For vtkDataArray and subclasses this is the size of the data type. For vtkStringArray, this is sizeof(vtkStdString::value_type), which winds up being sizeof(char).

Implements vtkAbstractArray.

Definition at line 173 of file vtkStringArray.h.

void vtkStringArray::InsertValue ( vtkIdType  id,
vtkStdString  f
)

Insert data at a specified position in the array. BTX

void vtkStringArray::InsertVariantValue ( vtkIdType  idx,
vtkVariant  value
) [virtual]

Insert a value into the array from a variant.

Implements vtkAbstractArray.

void vtkStringArray::InsertValue ( vtkIdType  id,
const char *  val
)

vtkIdType vtkStringArray::InsertNextValue ( vtkStdString  f  )

Insert data at the end of the array. Return its location in the array. BTX

vtkIdType vtkStringArray::InsertNextValue ( const char *  f  )

vtkStdString* vtkStringArray::WritePointer ( vtkIdType  id,
vtkIdType  number
)

Get the address of a particular data index. Make sure data is allocated for the number of items requested. Set MaxId according to the number of data values requested.

vtkStdString* vtkStringArray::GetPointer ( vtkIdType  id  )  [inline]

Get the address of a particular data index. Performs no checks to verify that the memory has been allocated etc.

Definition at line 200 of file vtkStringArray.h.

void* vtkStringArray::GetVoidPointer ( vtkIdType  id  )  [inline, virtual]

Get the address of a particular data index. Performs no checks to verify that the memory has been allocated etc.

Implements vtkAbstractArray.

Definition at line 201 of file vtkStringArray.h.

void vtkStringArray::DeepCopy ( vtkAbstractArray aa  )  [virtual]

Deep copy of another string array. Will complain and change nothing if the array passed in is not a vtkStringArray.

Reimplemented from vtkAbstractArray.

void vtkStringArray::SetArray ( vtkStdString array,
vtkIdType  size,
int  save
)

This method lets the user specify data to be held by the array. The array argument is a pointer to the data. size is the size of the array supplied by the user. Set save to 1 to keep the class from deleting the array when it cleans up or reallocates memory. The class uses the actual array provided; it does not copy the data from the suppled array. If save is 0, then this class is free to delete the array when it cleans up or reallocates. In that case, it is required that the array was allocated using the C++ new operator (and not malloc).

virtual void vtkStringArray::SetVoidArray ( void *  array,
vtkIdType  size,
int  save
) [inline, virtual]

This method lets the user specify data to be held by the array. The array argument is a pointer to the data. size is the size of the array supplied by the user. Set save to 1 to keep the class from deleting the array when it cleans up or reallocates memory. The class uses the actual array provided; it does not copy the data from the suppled array. If save is 0, then this class is free to delete the array when it cleans up or reallocates. In that case, it is required that the array was allocated using the C++ new operator (and not malloc).

Definition at line 222 of file vtkStringArray.h.

unsigned long vtkStringArray::GetActualMemorySize (  )  [virtual]

Return the memory in kilobytes consumed by this data array. Used to support streaming and reading/writing data. The value returned is guaranteed to be greater than or equal to the memory required to actually represent the data represented by this object. The information returned is valid only after the pipeline has been updated. This function takes into account the size of the contents of the strings as well as the string containers themselves.

Implements vtkAbstractArray.

virtual vtkArrayIterator* vtkStringArray::NewIterator (  )  [virtual]

Returns a vtkArrayIteratorTemplate<vtkStdString>.

Implements vtkAbstractArray.

virtual vtkIdType vtkStringArray::GetDataSize (  )  [virtual]

Returns the size of the data in DataTypeSize units. Thus, the number of bytes for the data can be computed by GetDataSize() * GetDataTypeSize(). The size computation includes the string termination character for each string.

Reimplemented from vtkAbstractArray.

virtual vtkIdType vtkStringArray::LookupValue ( vtkVariant  value  )  [virtual]

Return the indices where a specific value appears.

Implements vtkAbstractArray.

virtual void vtkStringArray::LookupValue ( vtkVariant  value,
vtkIdList ids
) [virtual]

Return the indices where a specific value appears.

Implements vtkAbstractArray.

vtkIdType vtkStringArray::LookupValue ( vtkStdString  value  )

Return the indices where a specific value appears.

void vtkStringArray::LookupValue ( vtkStdString  value,
vtkIdList ids
)

Return the indices where a specific value appears.

vtkIdType vtkStringArray::LookupValue ( const char *  value  )

Return the indices where a specific value appears.

void vtkStringArray::LookupValue ( const char *  value,
vtkIdList ids
)

Return the indices where a specific value appears.

virtual void vtkStringArray::DataChanged (  )  [virtual]

Tell the array explicitly that the data has changed. This is only necessary to call when you modify the array contents without using the array's API (i.e. you retrieve a pointer to the data and modify the array contents). You need to call this so that the fast lookup will know to rebuild itself. Otherwise, the lookup functions will give incorrect results.

Implements vtkAbstractArray.

virtual void vtkStringArray::DataElementChanged ( vtkIdType  id  )  [virtual]

Tell the array explicitly that a single data element has changed. Like DataChanged(), then is only necessary when you modify the array contents without using the array's API.

virtual void vtkStringArray::ClearLookup (  )  [virtual]

Delete the associated fast lookup data structure on this array, if it exists. The lookup will be rebuilt on the next call to a lookup function.

Implements vtkAbstractArray.

vtkStdString* vtkStringArray::ResizeAndExtend ( vtkIdType  sz  )  [protected]


Member Data Documentation

Definition at line 279 of file vtkStringArray.h.

Definition at line 282 of file vtkStringArray.h.


The documentation for this class was generated from the following file:

Generated on Wed Jun 3 19:36:49 2009 for VTK by  doxygen 1.5.6
