vtkExecutive Class Reference

#include <vtkExecutive.h>

Inheritance diagram for vtkExecutive:

Inheritance graph
[legend]

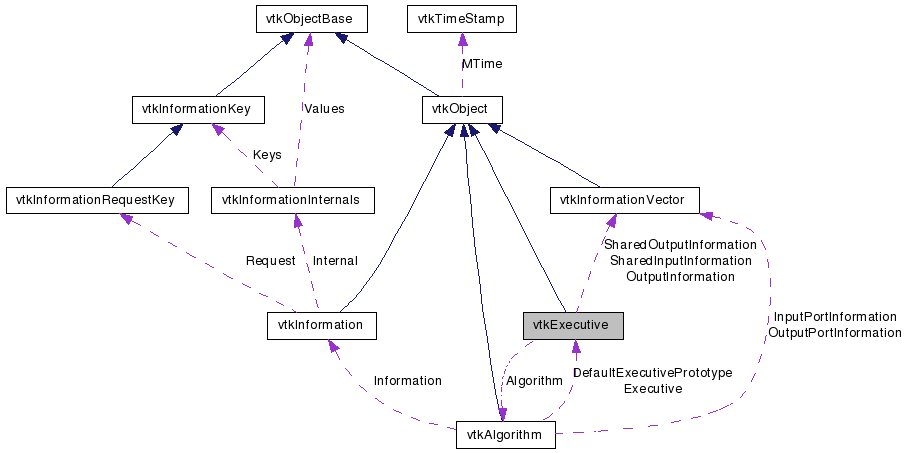

Collaboration diagram for vtkExecutive:

Collaboration graph
[legend]

List of all members.


Detailed Description

Superclass for all pipeline executives in VTK.

vtkExecutive is the superclass for all pipeline executives in VTK. A VTK executive is responsible for controlling one instance of vtkAlgorithm. A pipeline consists of one or more executives that control data flow. Every reader, source, writer, or data processing algorithm in the pipeline is implemented in an instance of vtkAlgorithm.

Tests:
vtkExecutive (Tests)

Definition at line 47 of file vtkExecutive.h.

enum  { RequestUpstream, RequestDownstream }
enum  { BeforeForward, AfterForward }
static vtkInformationIntegerKeyALGORITHM_BEFORE_FORWARD ()
static vtkInformationIntegerKeyALGORITHM_AFTER_FORWARD ()
static vtkInformationIntegerKeyALGORITHM_DIRECTION ()
static vtkInformationIntegerKeyFORWARD_DIRECTION ()
static vtkInformationKeyVectorKeyKEYS_TO_COPY ()

Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkAlgorithmGetAlgorithm ()
int GetNumberOfInputConnections (int port)
virtual vtkInformationGetOutputInformation (int port)
vtkInformationVectorGetOutputInformation ()
vtkInformationGetInputInformation (int port, int connection)
vtkInformationVectorGetInputInformation (int port)
vtkInformationVector ** GetInputInformation ()
vtkExecutiveGetInputExecutive (int port, int connection)
virtual vtkAlgorithmOutputGetProducerPort (vtkDataObject *)
virtual int ProcessRequest (vtkInformation *request, vtkInformationVector **inInfo, vtkInformationVector *outInfo)
virtual int ComputePipelineMTime (vtkInformation *request, vtkInformationVector **inInfoVec, vtkInformationVector *outInfoVec, int requestFromOutputPort, unsigned long *mtime)
virtual int Update ()
virtual int Update (int port)
int GetNumberOfInputPorts ()
int GetNumberOfOutputPorts ()
virtual vtkDataObjectGetOutputData (int port)
virtual void SetOutputData (int port, vtkDataObject *, vtkInformation *info)
virtual void SetOutputData (int port, vtkDataObject *)
virtual vtkDataObjectGetInputData (int port, int connection)
virtual vtkDataObjectGetInputData (int port, int connection, vtkInformationVector **inInfoVec)
void SetSharedInputInformation (vtkInformationVector **inInfoVec)
void SetSharedOutputInformation (vtkInformationVector *outInfoVec)
virtual void Register (vtkObjectBase *o)
virtual void UnRegister (vtkObjectBase *o)
virtual int CallAlgorithm (vtkInformation *request, int direction, vtkInformationVector **inInfo, vtkInformationVector *outInfo)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkExecutiveSafeDownCast (vtkObject *o)
static
vtkInformationExecutivePortKey
PRODUCER ()
static
vtkInformationExecutivePortVectorKey
CONSUMERS ()
static vtkInformationIntegerKeyFROM_OUTPUT_PORT ()

Protected Member Functions

 vtkExecutive ()
 ~vtkExecutive ()
int InputPortIndexInRange (int port, const char *action)
int OutputPortIndexInRange (int port, const char *action)
int CheckAlgorithm (const char *method, vtkInformation *request)
virtual int ForwardDownstream (vtkInformation *request)
virtual int ForwardUpstream (vtkInformation *request)
virtual void CopyDefaultInformation (vtkInformation *request, int direction, vtkInformationVector **inInfo, vtkInformationVector *outInfo)
virtual void ResetPipelineInformation (int port, vtkInformation *)=0
virtual int UpdateDataObject ()=0
virtual void ReportReferences (vtkGarbageCollector *)
virtual void SetAlgorithm (vtkAlgorithm *algorithm)

Protected Attributes

vtkAlgorithmAlgorithm
int InAlgorithm
vtkInformationVector ** SharedInputInformation
vtkInformationVectorSharedOutputInformation

Friends

class vtkAlgorithmToExecutiveFriendship

Member Typedef Documentation


Member Enumeration Documentation

anonymous enum

Keys to program vtkExecutive::ProcessRequest with the default behavior for unknown requests.

Enumerator:
RequestUpstream
RequestDownstream

Definition at line 172 of file vtkExecutive.h.

anonymous enum

Keys to program vtkExecutive::ProcessRequest with the default behavior for unknown requests.

Enumerator:
BeforeForward
AfterForward

Definition at line 173 of file vtkExecutive.h.


Constructor & Destructor Documentation

vtkExecutive::vtkExecutive (  )  [protected]

vtkExecutive::~vtkExecutive (  )  [protected]


Member Function Documentation

virtual const char* vtkExecutive::GetClassName (  )  [virtual]

static int vtkExecutive::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkCompositeDataPipeline, vtkDemandDrivenPipeline, vtkStreamingDemandDrivenPipeline, and vtkImageImportExecutive.

virtual int vtkExecutive::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkCompositeDataPipeline, vtkDemandDrivenPipeline, vtkStreamingDemandDrivenPipeline, and vtkImageImportExecutive.

static vtkExecutive* vtkExecutive::SafeDownCast ( vtkObject o  )  [static]

void vtkExecutive::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkCompositeDataPipeline, vtkDemandDrivenPipeline, and vtkStreamingDemandDrivenPipeline.

vtkAlgorithm* vtkExecutive::GetAlgorithm (  )

Get the algorithm to which this executive has been assigned.

virtual int vtkExecutive::ProcessRequest ( vtkInformation request,
vtkInformationVector **  inInfo,
vtkInformationVector outInfo
) [virtual]

Generalized interface for asking the executive to fullfill pipeline requests.

Reimplemented in vtkCompositeDataPipeline, vtkDemandDrivenPipeline, vtkStreamingDemandDrivenPipeline, and vtkImageImportExecutive.

virtual int vtkExecutive::ComputePipelineMTime ( vtkInformation request,
vtkInformationVector **  inInfoVec,
vtkInformationVector outInfoVec,
int  requestFromOutputPort,
unsigned long *  mtime
) [virtual]

A special version of ProcessRequest meant specifically for the pipeline modified time request. This is an optimization since the request is called so often and it travels the full length of the pipeline. We augment the signature with method arguments containing the common information, specifically the output port through which the request was made and the resulting modified time. Note that unlike ProcessRequest the request information object may be NULL for this method. It also does not contain a request identifcation key because the request is known from the method name.

Reimplemented in vtkDemandDrivenPipeline.

virtual int vtkExecutive::Update (  )  [virtual]

Bring the algorithm's outputs up-to-date. Returns 1 for success and 0 for failure.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkDemandDrivenPipeline, and vtkStreamingDemandDrivenPipeline.

virtual int vtkExecutive::Update ( int  port  )  [virtual]

Bring the algorithm's outputs up-to-date. Returns 1 for success and 0 for failure.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkDemandDrivenPipeline, and vtkStreamingDemandDrivenPipeline.

int vtkExecutive::GetNumberOfInputPorts (  )

Get the number of input/output ports for the algorithm associated with this executive. Returns 0 if no algorithm is set.

int vtkExecutive::GetNumberOfOutputPorts (  )

Get the number of input/output ports for the algorithm associated with this executive. Returns 0 if no algorithm is set.

int vtkExecutive::GetNumberOfInputConnections ( int  port  )

Get the number of input connections on the given port.

virtual vtkInformation* vtkExecutive::GetOutputInformation ( int  port  )  [virtual]

Get the pipeline information object for the given output port.

vtkInformationVector* vtkExecutive::GetOutputInformation (  )

Get the pipeline information object for all output ports.

vtkInformation* vtkExecutive::GetInputInformation ( int  port,
int  connection
)

Get the pipeline information for the given input connection.

vtkInformationVector* vtkExecutive::GetInputInformation ( int  port  )

Get the pipeline information vectors for the given input port.

vtkInformationVector** vtkExecutive::GetInputInformation (  )

Get the pipeline information vectors for all inputs

vtkExecutive* vtkExecutive::GetInputExecutive ( int  port,
int  connection
)

Get the executive managing the given input connection.

virtual vtkDataObject* vtkExecutive::GetOutputData ( int  port  )  [virtual]

Get/Set the data object for an output port of the algorithm.

virtual void vtkExecutive::SetOutputData ( int  port,
vtkDataObject ,
vtkInformation info
) [virtual]

Get/Set the data object for an output port of the algorithm.

virtual void vtkExecutive::SetOutputData ( int  port,
vtkDataObject
) [virtual]

Get/Set the data object for an output port of the algorithm.

virtual vtkDataObject* vtkExecutive::GetInputData ( int  port,
int  connection
) [virtual]

Get the data object for an input port of the algorithm.

virtual vtkDataObject* vtkExecutive::GetInputData ( int  port,
int  connection,
vtkInformationVector **  inInfoVec
) [virtual]

Get the data object for an input port of the algorithm.

virtual vtkAlgorithmOutput* vtkExecutive::GetProducerPort ( vtkDataObject  )  [virtual]

Get the output port that produces the given data object.

void vtkExecutive::SetSharedInputInformation ( vtkInformationVector **  inInfoVec  )

Set a pointer to an outside instance of input or output information vectors. No references are held to the given vectors, and setting this does not change the executive object modification time. This is a preliminary interface to use in implementing filters with internal pipelines, and may change without notice when a future interface is created.

void vtkExecutive::SetSharedOutputInformation ( vtkInformationVector outInfoVec  )

Set a pointer to an outside instance of input or output information vectors. No references are held to the given vectors, and setting this does not change the executive object modification time. This is a preliminary interface to use in implementing filters with internal pipelines, and may change without notice when a future interface is created.

virtual void vtkExecutive::Register ( vtkObjectBase o  )  [virtual]

Participate in garbage collection.

Reimplemented from vtkObjectBase.

virtual void vtkExecutive::UnRegister ( vtkObjectBase o  )  [virtual]

Participate in garbage collection.

Reimplemented from vtkObjectBase.

static vtkInformationExecutivePortKey* vtkExecutive::PRODUCER (  )  [static]

Information key to store the executive/port number producing an information object.

static vtkInformationExecutivePortVectorKey* vtkExecutive::CONSUMERS (  )  [static]

Information key to store the executive/port number pairs consuming an information object.

static vtkInformationIntegerKey* vtkExecutive::FROM_OUTPUT_PORT (  )  [static]

Information key to store the output port number from which a request is made.

static vtkInformationIntegerKey* vtkExecutive::ALGORITHM_BEFORE_FORWARD (  )  [static]

Keys to program vtkExecutive::ProcessRequest with the default behavior for unknown requests.

static vtkInformationIntegerKey* vtkExecutive::ALGORITHM_AFTER_FORWARD (  )  [static]

Keys to program vtkExecutive::ProcessRequest with the default behavior for unknown requests.

static vtkInformationIntegerKey* vtkExecutive::ALGORITHM_DIRECTION (  )  [static]

Keys to program vtkExecutive::ProcessRequest with the default behavior for unknown requests.

static vtkInformationIntegerKey* vtkExecutive::FORWARD_DIRECTION (  )  [static]

Keys to program vtkExecutive::ProcessRequest with the default behavior for unknown requests.

static vtkInformationKeyVectorKey* vtkExecutive::KEYS_TO_COPY (  )  [static]

Keys to program vtkExecutive::ProcessRequest with the default behavior for unknown requests.

virtual int vtkExecutive::CallAlgorithm ( vtkInformation request,
int  direction,
vtkInformationVector **  inInfo,
vtkInformationVector outInfo
) [virtual]

An API to CallAlgorithm that allows you to pass in the info objects to be used

int vtkExecutive::InputPortIndexInRange ( int  port,
const char *  action
) [protected]

int vtkExecutive::OutputPortIndexInRange ( int  port,
const char *  action
) [protected]

int vtkExecutive::CheckAlgorithm ( const char *  method,
vtkInformation request
) [protected]

virtual int vtkExecutive::ForwardDownstream ( vtkInformation request  )  [protected, virtual]

virtual int vtkExecutive::ForwardUpstream ( vtkInformation request  )  [protected, virtual]

Reimplemented in vtkCompositeDataPipeline.

virtual void vtkExecutive::CopyDefaultInformation ( vtkInformation request,
int  direction,
vtkInformationVector **  inInfo,
vtkInformationVector outInfo
) [protected, virtual]

virtual void vtkExecutive::ResetPipelineInformation ( int  port,
vtkInformation
) [protected, pure virtual]

virtual int vtkExecutive::UpdateDataObject (  )  [protected, pure virtual]

Implemented in vtkDemandDrivenPipeline.

virtual void vtkExecutive::ReportReferences ( vtkGarbageCollector  )  [protected, virtual]

Reimplemented from vtkObjectBase.

virtual void vtkExecutive::SetAlgorithm ( vtkAlgorithm algorithm  )  [protected, virtual]


Friends And Related Function Documentation

friend class vtkAlgorithmToExecutiveFriendship [friend]

Definition at line 241 of file vtkExecutive.h.


Member Data Documentation

Definition at line 222 of file vtkExecutive.h.

int vtkExecutive::InAlgorithm [protected]

Definition at line 225 of file vtkExecutive.h.

Definition at line 230 of file vtkExecutive.h.

Definition at line 231 of file vtkExecutive.h.


The documentation for this class was generated from the following file:

Generated on Wed Jun 3 19:01:28 2009 for VTK by  doxygen 1.5.6
