vtkExodusIIWriter Class Reference

#include <vtkExodusIIWriter.h>

Inheritance diagram for vtkExodusIIWriter:

Inheritance graph
[legend]

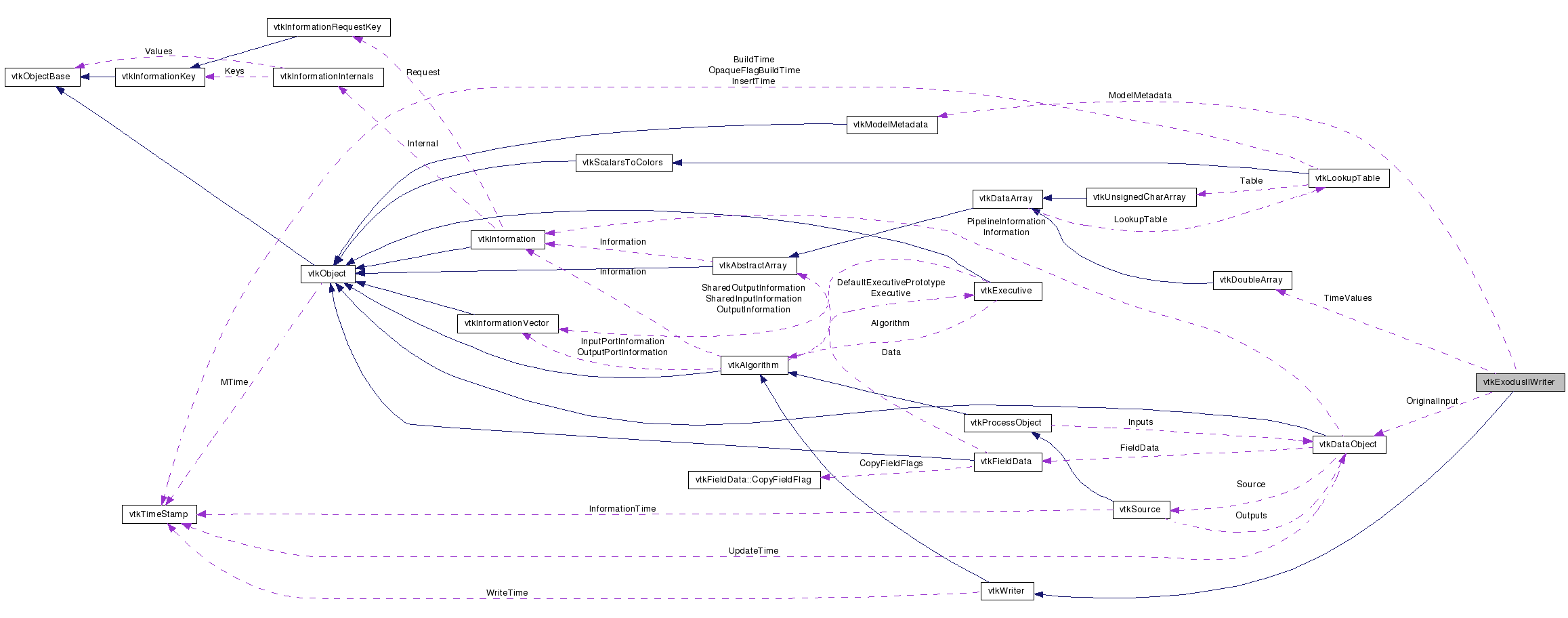

Collaboration diagram for vtkExodusIIWriter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Write Exodus II files.

This is a vtkWriter that writes it's vtkUnstructuredGrid input out to an Exodus II file. Go to http://endo.sandia.gov/SEACAS/ for more information about the Exodus II format.

Exodus files contain much information that is not captured in a vtkUnstructuredGrid, such as time steps, information lines, node sets, and side sets. This information can be stored in a vtkModelMetadata object.

The vtkExodusReader and vtkPExodusReader can create a vtkModelMetadata object and embed it in a vtkUnstructuredGrid in a series of field arrays. This writer searches for these field arrays and will use the metadata contained in them when creating the new Exodus II file.

You can also explicitly give the vtkExodusIIWriter a vtkModelMetadata object to use when writing the file.

In the absence of the information provided by vtkModelMetadata, if this writer is not part of a parallel application, we will use reasonable defaults for all the values in the output Exodus file. If you don't provide a block ID element array, we'll create a block for each cell type that appears in the unstructured grid.

However if this writer is part of a parallel application (hence writing out a distributed Exodus file), then we need at the very least a list of all the block IDs that appear in the file. And we need the element array of block IDs for the input unstructured grid.

In the absense of a vtkModelMetadata object, you can also provide time step information which we will include in the output Exodus file.

Warning:
If the input floating point field arrays and point locations are all floats or all doubles, this class will operate more efficiently. Mixing floats and doubles will slow you down, because Exodus II requires that we write only floats or only doubles.

We use the terms "point" and "node" interchangeably. Also, we use the terms "element" and "cell" interchangeably.

Tests:
vtkExodusIIWriter (Tests)

Definition at line 85 of file vtkExodusIIWriter.h.


Public Types

typedef vtkWriter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetModelMetadata (vtkModelMetadata *)
virtual vtkModelMetadataGetModelMetadata ()
virtual void SetFileName (const char *)
virtual char * GetFileName ()
virtual void SetStoreDoubles (int)
virtual int GetStoreDoubles ()
virtual void SetGhostLevel (int)
virtual int GetGhostLevel ()
virtual void SetWriteOutBlockIdArray (int)
virtual int GetWriteOutBlockIdArray ()
virtual void WriteOutBlockIdArrayOn ()
virtual void WriteOutBlockIdArrayOff ()
virtual void SetWriteOutGlobalNodeIdArray (int)
virtual int GetWriteOutGlobalNodeIdArray ()
virtual void WriteOutGlobalNodeIdArrayOn ()
virtual void WriteOutGlobalNodeIdArrayOff ()
virtual void SetWriteOutGlobalElementIdArray (int)
virtual int GetWriteOutGlobalElementIdArray ()
virtual void WriteOutGlobalElementIdArrayOn ()
virtual void WriteOutGlobalElementIdArrayOff ()
virtual void SetWriteAllTimeSteps (int)
virtual int GetWriteAllTimeSteps ()
virtual void WriteAllTimeStepsOn ()
virtual void WriteAllTimeStepsOff ()
virtual void SetBlockIdArrayName (const char *)
virtual char * GetBlockIdArrayName ()

Static Public Member Functions

static vtkExodusIIWriterNew ()
static int IsTypeOf (const char *type)
static vtkExodusIIWriterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkExodusIIWriter ()
 ~vtkExodusIIWriter ()
int BlockVariableTruthValue (int blockIdx, int varIdx)
char * StrDupWithNew (const char *s)
void StringUppercase (vtkstd::string &str)
int ProcessRequest (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
int RequestInformation (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
int FillInputPortInformation (int port, vtkInformation *info)
int RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
void WriteData ()
int FlattenHierarchy (vtkDataObject *input, bool &changed)
int CreateNewExodusFile ()
void CloseExodusFile ()
int IsDouble ()
void RemoveGhostCells ()
int CheckParameters ()
int CheckInputArrays ()
int ConstructBlockInfoMap ()
int ConstructVariableInfoMaps ()
int ParseMetadata ()
int CreateDefaultMetadata ()
char * GetCellTypeName (int t)
int CreateBlockIdMetadata (vtkModelMetadata *em)
int CreateBlockVariableMetadata (vtkModelMetadata *em)
char ** FlattenOutVariableNames (int nScalarArrays, const vtkstd::map< vtkstd::string, VariableInfo > &variableMap)
vtkstd::string CreateNameForScalarArray (const char *root, int component, int numComponents)
vtkIdType GetNodeLocalId (vtkIdType id)
vtkIdType GetElementLocalId (vtkIdType id)
int WriteInitializationParameters ()
int WriteQARecords ()
int WriteInformationRecords ()
int WritePoints ()
int WriteCoordinateNames ()
int WriteGlobalPointIds ()
int WriteBlockInformation ()
int WriteGlobalElementIds ()
int WriteVariableArrayNames ()
int WriteNodeSetInformation ()
int WriteSideSetInformation ()
int WriteProperties ()
int WriteNextTimeStep ()
void ExtractCellData (const char *name, int comp, vtkDataArray *buffer)
int WriteCellData (int timestep, vtkDataArray *buffer)
void ExtractPointData (const char *name, int comp, vtkDataArray *buffer)
int WritePointData (int timestep, vtkDataArray *buffer)

Protected Attributes

vtkModelMetadataModelMetadata
char * BlockIdArrayName
char * FileName
int fid
int NumberOfProcesses
int MyRank
int PassDoubles
int StoreDoubles
int GhostLevel
int WriteOutBlockIdArray
int WriteOutGlobalNodeIdArray
int WriteOutGlobalElementIdArray
int WriteAllTimeSteps
int NumberOfTimeSteps
vtkDoubleArrayTimeValues
int CurrentTimeIndex
int FileTimeOffset
vtkDataObjectOriginalInput
vtkstd::vector
< vtkSmartPointer
< vtkUnstructuredGrid > >
FlattenedInput
vtkstd::vector
< vtkSmartPointer
< vtkUnstructuredGrid > >
NewFlattenedInput
vtkstd::vector< vtkIntArray * > BlockIdList
vtkstd::map< int, BlockBlockInfoMap
int NumCells
int NumPoints
int MaxId
vtkstd::vector< vtkIdType * > GlobalElementIdList
vtkstd::vector< vtkIdType * > GlobalNodeIdList
int AtLeastOneGlobalElementIdList
int AtLeastOneGlobalNodeIdList
vtkstd::map< vtkstd::string,
VariableInfo
BlockVariableMap
vtkstd::map< vtkstd::string,
VariableInfo
NodeVariableMap
int NumberOfScalarElementArrays
int NumberOfScalarNodeArrays
vtkstd::vector< vtkstd::vector
< int > >
CellToElementOffset
int * BlockElementVariableTruthTable
int AllVariablesDefinedInAllBlocks
vtkstd::map< vtkIdType,
vtkIdType > *
LocalNodeIdMap
vtkstd::map< vtkIdType,
vtkIdType > *
LocalElementIdMap

Classes

struct  Block
struct  VariableInfo

Member Typedef Documentation

Reimplemented from vtkWriter.

Definition at line 89 of file vtkExodusIIWriter.h.


Constructor & Destructor Documentation

vtkExodusIIWriter::vtkExodusIIWriter (  )  [protected]

vtkExodusIIWriter::~vtkExodusIIWriter (  )  [protected]


Member Function Documentation

static vtkExodusIIWriter* vtkExodusIIWriter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkExodusIIWriter::GetClassName (  )  [virtual]

Reimplemented from vtkWriter.

static int vtkExodusIIWriter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkWriter.

virtual int vtkExodusIIWriter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkWriter.

static vtkExodusIIWriter* vtkExodusIIWriter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkWriter.

void vtkExodusIIWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkWriter.

void vtkExodusIIWriter::SetModelMetadata ( vtkModelMetadata  )

Specify the vtkModelMetadata object which contains the Exodus file model information (metadata) absent in the vtkUnstructuredGrid. If you have this object, you don't need to set any other values before writing. (Just the FileName and the Input.) Note that the vtkExodusReader can create and attach a vtkModelMetadata object to it's output. If this has happened, the ExodusIIWriter will find it and use it.

virtual vtkModelMetadata* vtkExodusIIWriter::GetModelMetadata (  )  [virtual]

virtual void vtkExodusIIWriter::SetFileName ( const char *   )  [virtual]

Name for the output file. If writing in parallel, the number of processes and the process rank will be appended to the name, so each process is writing out a separate file. If not set, this class will make up a file name.

virtual char* vtkExodusIIWriter::GetFileName (  )  [virtual]

virtual void vtkExodusIIWriter::SetStoreDoubles ( int   )  [virtual]

If StoreDoubles is ON, the floating point fields in the Exodus file will be double precision fields. The default is determined by the max precision of the input. If the field data appears to be doubles, then StoreDoubles will be ON, otherwise StoreDoubles will be OFF.

virtual int vtkExodusIIWriter::GetStoreDoubles (  )  [virtual]

virtual void vtkExodusIIWriter::SetGhostLevel ( int   )  [virtual]

We never write out ghost cells. This variable is here to satisfy the behavior of ParaView on invoking a parallel writer.

virtual int vtkExodusIIWriter::GetGhostLevel (  )  [virtual]

virtual void vtkExodusIIWriter::SetWriteOutBlockIdArray ( int   )  [virtual]

By default, the integer array containing the global Block Ids of the cells is not included when the new Exodus II file is written out. If you do want to include this array, set WriteOutBlockIdArray to ON.

virtual int vtkExodusIIWriter::GetWriteOutBlockIdArray (  )  [virtual]

virtual void vtkExodusIIWriter::WriteOutBlockIdArrayOn (  )  [virtual]

virtual void vtkExodusIIWriter::WriteOutBlockIdArrayOff (  )  [virtual]

virtual void vtkExodusIIWriter::SetWriteOutGlobalNodeIdArray ( int   )  [virtual]

By default, the integer array containing the global Node Ids is not included when the new Exodus II file is written out. If you do want to include this array, set WriteOutGlobalNodeIdArray to ON.

virtual int vtkExodusIIWriter::GetWriteOutGlobalNodeIdArray (  )  [virtual]

virtual void vtkExodusIIWriter::WriteOutGlobalNodeIdArrayOn (  )  [virtual]

virtual void vtkExodusIIWriter::WriteOutGlobalNodeIdArrayOff (  )  [virtual]

virtual void vtkExodusIIWriter::SetWriteOutGlobalElementIdArray ( int   )  [virtual]

By default, the integer array containing the global Element Ids is not included when the new Exodus II file is written out. If you do want to include this array, set WriteOutGlobalElementIdArray to ON.

virtual int vtkExodusIIWriter::GetWriteOutGlobalElementIdArray (  )  [virtual]

virtual void vtkExodusIIWriter::WriteOutGlobalElementIdArrayOn (  )  [virtual]

virtual void vtkExodusIIWriter::WriteOutGlobalElementIdArrayOff (  )  [virtual]

virtual void vtkExodusIIWriter::SetWriteAllTimeSteps ( int   )  [virtual]

When WriteAllTimeSteps is turned ON, the writer is executed once for each timestep available from the reader.

virtual int vtkExodusIIWriter::GetWriteAllTimeSteps (  )  [virtual]

virtual void vtkExodusIIWriter::WriteAllTimeStepsOn (  )  [virtual]

virtual void vtkExodusIIWriter::WriteAllTimeStepsOff (  )  [virtual]

virtual void vtkExodusIIWriter::SetBlockIdArrayName ( const char *   )  [virtual]

virtual char* vtkExodusIIWriter::GetBlockIdArrayName (  )  [virtual]

int vtkExodusIIWriter::BlockVariableTruthValue ( int  blockIdx,
int  varIdx
) [protected]

char* vtkExodusIIWriter::StrDupWithNew ( const char *  s  )  [protected]

void vtkExodusIIWriter::StringUppercase ( vtkstd::string &  str  )  [protected]

int vtkExodusIIWriter::ProcessRequest ( vtkInformation request,
vtkInformationVector **  inInfo,
vtkInformationVector outInfo
) [protected, virtual]

Upstream/Downstream requests form the generalized interface through which executives invoke a algorithm's functionality. Upstream requests correspond to information flow from the algorithm's outputs to its inputs. Downstream requests correspond to information flow from the algorithm's inputs to its outputs. A downstream request is defined by the contents of the request information object. The input to the request is stored in the input information vector passed to ProcessRequest. The results of an downstream request are stored in the output information vector passed to ProcessRequest. An upstream request is defined by the contents of the request information object. The input to the request is stored in the output information vector passed to ProcessRequest. The results of an upstream request are stored in the input information vector passed to ProcessRequest. It returns the boolean status of the pipeline (false means failure).

Reimplemented from vtkWriter.

int vtkExodusIIWriter::RequestInformation ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected]

int vtkExodusIIWriter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

int vtkExodusIIWriter::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

Reimplemented from vtkWriter.

void vtkExodusIIWriter::WriteData (  )  [protected, virtual]

Implements vtkWriter.

int vtkExodusIIWriter::FlattenHierarchy ( vtkDataObject input,
bool &  changed
) [protected]

int vtkExodusIIWriter::CreateNewExodusFile (  )  [protected]

void vtkExodusIIWriter::CloseExodusFile (  )  [protected]

int vtkExodusIIWriter::IsDouble (  )  [protected]

void vtkExodusIIWriter::RemoveGhostCells (  )  [protected]

int vtkExodusIIWriter::CheckParameters (  )  [protected]

int vtkExodusIIWriter::CheckInputArrays (  )  [protected]

int vtkExodusIIWriter::ConstructBlockInfoMap (  )  [protected]

int vtkExodusIIWriter::ConstructVariableInfoMaps (  )  [protected]

int vtkExodusIIWriter::ParseMetadata (  )  [protected]

int vtkExodusIIWriter::CreateDefaultMetadata (  )  [protected]

char* vtkExodusIIWriter::GetCellTypeName ( int  t  )  [protected]

int vtkExodusIIWriter::CreateBlockIdMetadata ( vtkModelMetadata em  )  [protected]

int vtkExodusIIWriter::CreateBlockVariableMetadata ( vtkModelMetadata em  )  [protected]

char** vtkExodusIIWriter::FlattenOutVariableNames ( int  nScalarArrays,
const vtkstd::map< vtkstd::string, VariableInfo > &  variableMap
) [protected]

vtkstd::string vtkExodusIIWriter::CreateNameForScalarArray ( const char *  root,
int  component,
int  numComponents
) [protected]

vtkIdType vtkExodusIIWriter::GetNodeLocalId ( vtkIdType  id  )  [protected]

vtkIdType vtkExodusIIWriter::GetElementLocalId ( vtkIdType  id  )  [protected]

int vtkExodusIIWriter::WriteInitializationParameters (  )  [protected]

int vtkExodusIIWriter::WriteQARecords (  )  [protected]

int vtkExodusIIWriter::WriteInformationRecords (  )  [protected]

int vtkExodusIIWriter::WritePoints (  )  [protected]

int vtkExodusIIWriter::WriteCoordinateNames (  )  [protected]

int vtkExodusIIWriter::WriteGlobalPointIds (  )  [protected]

int vtkExodusIIWriter::WriteBlockInformation (  )  [protected]

int vtkExodusIIWriter::WriteGlobalElementIds (  )  [protected]

int vtkExodusIIWriter::WriteVariableArrayNames (  )  [protected]

int vtkExodusIIWriter::WriteNodeSetInformation (  )  [protected]

int vtkExodusIIWriter::WriteSideSetInformation (  )  [protected]

int vtkExodusIIWriter::WriteProperties (  )  [protected]

int vtkExodusIIWriter::WriteNextTimeStep (  )  [protected]

void vtkExodusIIWriter::ExtractCellData ( const char *  name,
int  comp,
vtkDataArray buffer
) [protected]

int vtkExodusIIWriter::WriteCellData ( int  timestep,
vtkDataArray buffer
) [protected]

void vtkExodusIIWriter::ExtractPointData ( const char *  name,
int  comp,
vtkDataArray buffer
) [protected]

int vtkExodusIIWriter::WritePointData ( int  timestep,
vtkDataArray buffer
) [protected]


Member Data Documentation

Definition at line 164 of file vtkExodusIIWriter.h.

Definition at line 166 of file vtkExodusIIWriter.h.

char* vtkExodusIIWriter::FileName [protected]

Definition at line 168 of file vtkExodusIIWriter.h.

int vtkExodusIIWriter::fid [protected]

Definition at line 169 of file vtkExodusIIWriter.h.

Definition at line 171 of file vtkExodusIIWriter.h.

int vtkExodusIIWriter::MyRank [protected]

Definition at line 172 of file vtkExodusIIWriter.h.

Definition at line 174 of file vtkExodusIIWriter.h.

Definition at line 176 of file vtkExodusIIWriter.h.

Definition at line 177 of file vtkExodusIIWriter.h.

Definition at line 178 of file vtkExodusIIWriter.h.

Definition at line 179 of file vtkExodusIIWriter.h.

Definition at line 180 of file vtkExodusIIWriter.h.

Definition at line 181 of file vtkExodusIIWriter.h.

Definition at line 182 of file vtkExodusIIWriter.h.

Definition at line 184 of file vtkExodusIIWriter.h.

Definition at line 185 of file vtkExodusIIWriter.h.

Definition at line 186 of file vtkExodusIIWriter.h.

Definition at line 189 of file vtkExodusIIWriter.h.

Definition at line 190 of file vtkExodusIIWriter.h.

Definition at line 191 of file vtkExodusIIWriter.h.

vtkstd::vector< vtkIntArray* > vtkExodusIIWriter::BlockIdList [protected]

Definition at line 193 of file vtkExodusIIWriter.h.

vtkstd::map<int, Block> vtkExodusIIWriter::BlockInfoMap [protected]

Definition at line 208 of file vtkExodusIIWriter.h.

int vtkExodusIIWriter::NumCells [protected]

Definition at line 209 of file vtkExodusIIWriter.h.

Definition at line 209 of file vtkExodusIIWriter.h.

int vtkExodusIIWriter::MaxId [protected]

Definition at line 209 of file vtkExodusIIWriter.h.

vtkstd::vector<vtkIdType*> vtkExodusIIWriter::GlobalElementIdList [protected]

Definition at line 211 of file vtkExodusIIWriter.h.

vtkstd::vector<vtkIdType*> vtkExodusIIWriter::GlobalNodeIdList [protected]

Definition at line 212 of file vtkExodusIIWriter.h.

Definition at line 214 of file vtkExodusIIWriter.h.

Definition at line 215 of file vtkExodusIIWriter.h.

vtkstd::map<vtkstd::string, VariableInfo> vtkExodusIIWriter::BlockVariableMap [protected]

Definition at line 225 of file vtkExodusIIWriter.h.

vtkstd::map<vtkstd::string, VariableInfo> vtkExodusIIWriter::NodeVariableMap [protected]

Definition at line 226 of file vtkExodusIIWriter.h.

Definition at line 227 of file vtkExodusIIWriter.h.

Definition at line 228 of file vtkExodusIIWriter.h.

vtkstd::vector< vtkstd::vector<int> > vtkExodusIIWriter::CellToElementOffset [protected]

Definition at line 232 of file vtkExodusIIWriter.h.

Definition at line 237 of file vtkExodusIIWriter.h.

Definition at line 238 of file vtkExodusIIWriter.h.

Definition at line 289 of file vtkExodusIIWriter.h.

Definition at line 290 of file vtkExodusIIWriter.h.


The documentation for this class was generated from the following file:

Generated on Wed Jun 3 19:02:03 2009 for VTK by  doxygen 1.5.6
