vtkExtractBlock Class Reference

#include <vtkExtractBlock.h>

Inheritance diagram for vtkExtractBlock:

Inheritance graph
[legend]

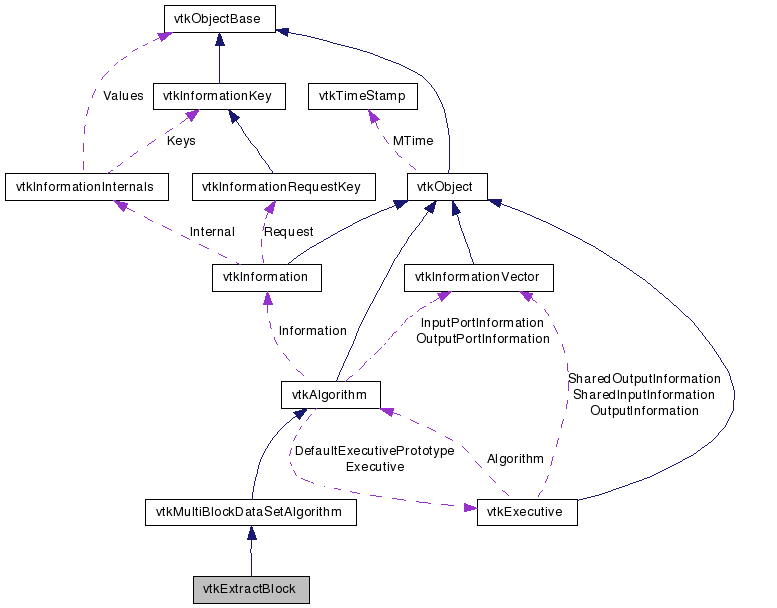

Collaboration diagram for vtkExtractBlock:

Collaboration graph
[legend]

List of all members.


Detailed Description

extracts blocks from a multiblock dataset.

vtkExtractBlock is a filter that extracts blocks from a multiblock dataset. Each node in the multi-block tree is identified by an index. The index can be obtained by performing a preorder traversal of the tree (including empty nodes). eg. A(B (D, E), C(F, G)). Inorder traversal yields: A, B, D, E, C, F, G Index of A is 0, while index of C is 4.

Tests:
vtkExtractBlock (Tests)

Definition at line 37 of file vtkExtractBlock.h.


Public Types

typedef
vtkMultiBlockDataSetAlgorithm
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void AddIndex (unsigned int index)
void RemoveIndex (unsigned int index)
void RemoveAllIndices ()
virtual void SetPruneOutput (int)
virtual int GetPruneOutput ()
virtual void PruneOutputOn ()
virtual void PruneOutputOff ()

Static Public Member Functions

static vtkExtractBlockNew ()
static int IsTypeOf (const char *type)
static vtkExtractBlockSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkExtractBlock ()
 ~vtkExtractBlock ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
 Implementation of the algorithm.
void CopySubTree (vtkCompositeDataIterator *loc, vtkMultiBlockDataSet *output, vtkMultiBlockDataSet *input)
 Extract subtree.
bool Prune (vtkMultiBlockDataSet *mblock)
bool Prune (vtkMultiPieceDataSet *mblock)
bool Prune (vtkDataObject *mblock)

Static Protected Member Functions

static vtkInformationIntegerKeyDONT_PRUNE ()

Protected Attributes

int PruneOutput

Member Typedef Documentation

Reimplemented from vtkMultiBlockDataSetAlgorithm.

Definition at line 41 of file vtkExtractBlock.h.


Constructor & Destructor Documentation

vtkExtractBlock::vtkExtractBlock (  )  [protected]

vtkExtractBlock::~vtkExtractBlock (  )  [protected]


Member Function Documentation

static vtkExtractBlock* vtkExtractBlock::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

virtual const char* vtkExtractBlock::GetClassName (  )  [virtual]

Reimplemented from vtkMultiBlockDataSetAlgorithm.

static int vtkExtractBlock::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

virtual int vtkExtractBlock::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

static vtkExtractBlock* vtkExtractBlock::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkMultiBlockDataSetAlgorithm.

void vtkExtractBlock::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

void vtkExtractBlock::AddIndex ( unsigned int  index  )

Select the block indices to extract. Each node in the multi-block tree is identified by an index. The index can be obtained by performing a preorder traversal of the tree (including empty nodes). eg. A(B (D, E), C(F, G)). Inorder traversal yields: A, B, D, E, C, F, G Index of A is 0, while index of C is 4.

void vtkExtractBlock::RemoveIndex ( unsigned int  index  )

Select the block indices to extract. Each node in the multi-block tree is identified by an index. The index can be obtained by performing a preorder traversal of the tree (including empty nodes). eg. A(B (D, E), C(F, G)). Inorder traversal yields: A, B, D, E, C, F, G Index of A is 0, while index of C is 4.

void vtkExtractBlock::RemoveAllIndices (  )

Select the block indices to extract. Each node in the multi-block tree is identified by an index. The index can be obtained by performing a preorder traversal of the tree (including empty nodes). eg. A(B (D, E), C(F, G)). Inorder traversal yields: A, B, D, E, C, F, G Index of A is 0, while index of C is 4.

virtual void vtkExtractBlock::SetPruneOutput ( int   )  [virtual]

When set, the output mutliblock dataset will be pruned to remove empty nodes. On by default.

virtual int vtkExtractBlock::GetPruneOutput (  )  [virtual]

When set, the output mutliblock dataset will be pruned to remove empty nodes. On by default.

virtual void vtkExtractBlock::PruneOutputOn (  )  [virtual]

When set, the output mutliblock dataset will be pruned to remove empty nodes. On by default.

virtual void vtkExtractBlock::PruneOutputOff (  )  [virtual]

When set, the output mutliblock dataset will be pruned to remove empty nodes. On by default.

static vtkInformationIntegerKey* vtkExtractBlock::DONT_PRUNE (  )  [static, protected]

Internal key, used to avoid pruning of a branch.

virtual int vtkExtractBlock::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Implementation of the algorithm.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

void vtkExtractBlock::CopySubTree ( vtkCompositeDataIterator loc,
vtkMultiBlockDataSet output,
vtkMultiBlockDataSet input
) [protected]

Extract subtree.

bool vtkExtractBlock::Prune ( vtkMultiBlockDataSet mblock  )  [protected]

bool vtkExtractBlock::Prune ( vtkMultiPieceDataSet mblock  )  [protected]

bool vtkExtractBlock::Prune ( vtkDataObject mblock  )  [protected]


Member Data Documentation

Definition at line 84 of file vtkExtractBlock.h.


The documentation for this class was generated from the following file:
