vtkGraphMapper Class Reference

#include <vtkGraphMapper.h>

Inheritance diagram for vtkGraphMapper:

[legend]

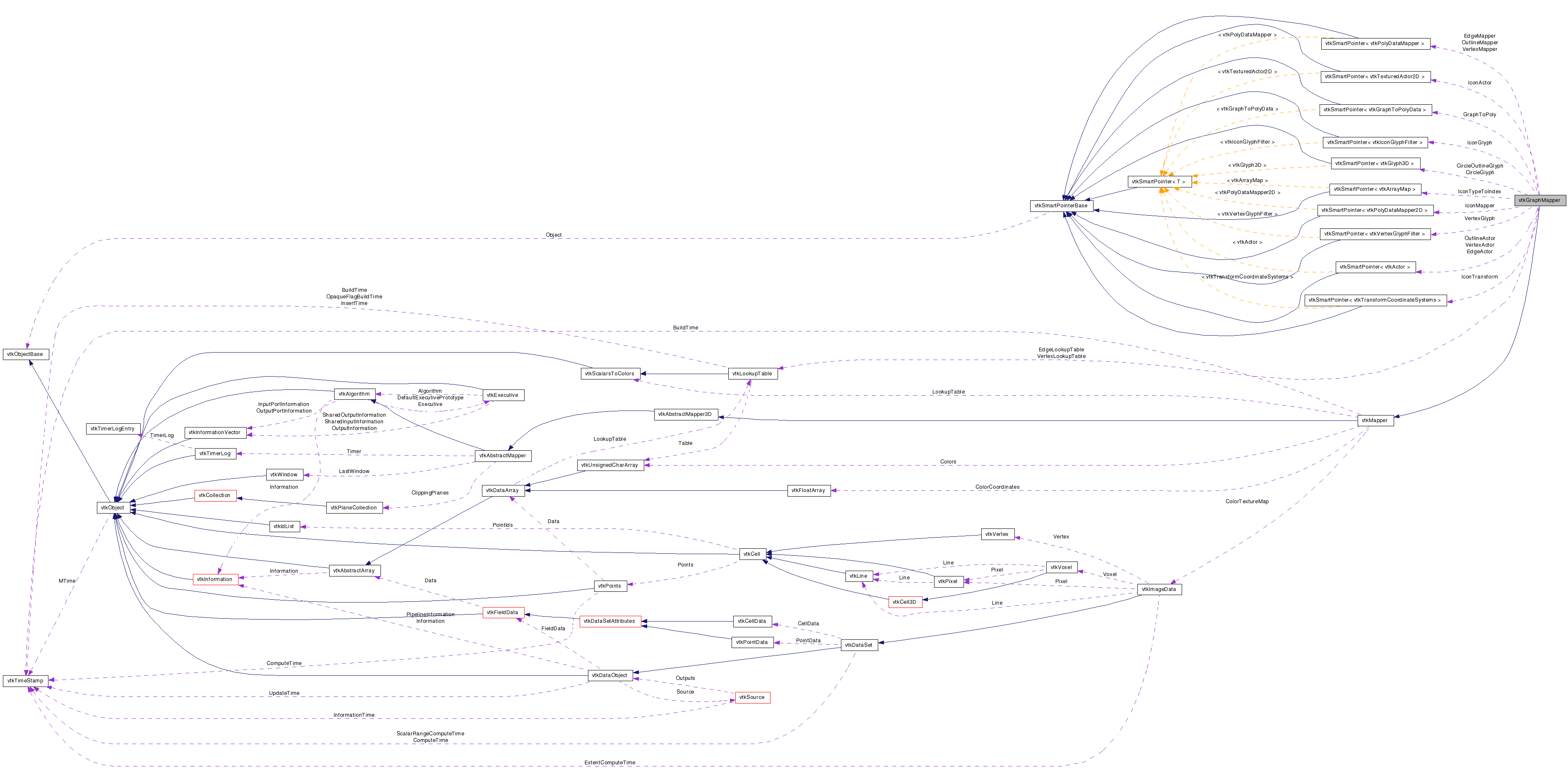

Collaboration diagram for vtkGraphMapper:

[legend]

List of all members.

Detailed Description

map vtkGraph and derived classes to graphics primitives

vtkGraphMapper is a mapper to map vtkGraph (and all derived classes) to graphics primitives.

Tests:: vtkGraphMapper (Tests)

Definition at line 60 of file vtkGraphMapper.h.


char *	VertexColorArrayNameInternal
char *	EdgeColorArrayNameInternal
virtual char *	GetVertexColorArrayNameInternal ()
virtual void	SetVertexColorArrayNameInternal (const char *)
virtual char *	GetEdgeColorArrayNameInternal ()
virtual void	SetEdgeColorArrayNameInternal (const char *)
Public Types
typedef vtkMapper	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Render (vtkRenderer ren, vtkActor act)
void	AddIconType (char *type, int index)
void	ClearIconTypes ()
void	SetIconAlignment (int alignment)
virtual void	ApplyViewTheme (vtkViewTheme *theme)
void	ReleaseGraphicsResources (vtkWindow *)
unsigned long	GetMTime ()

void	SetVertexColorArrayName (const char *name)
const char *	GetVertexColorArrayName ()

void	SetColorVertices (bool vis)
bool	GetColorVertices ()
void	ColorVerticesOn ()
void	ColorVerticesOff ()

void	SetScaledGlyphs (bool arg)
virtual bool	GetScaledGlyphs ()
virtual void	ScaledGlyphsOn ()
virtual void	ScaledGlyphsOff ()

virtual void	SetScalingArrayName (const char *)
virtual char *	GetScalingArrayName ()

void	SetEdgeVisibility (bool vis)
bool	GetEdgeVisibility ()
virtual void	EdgeVisibilityOn ()
virtual void	EdgeVisibilityOff ()

void	SetEdgeColorArrayName (const char *name)
const char *	GetEdgeColorArrayName ()

void	SetColorEdges (bool vis)
bool	GetColorEdges ()
void	ColorEdgesOn ()
void	ColorEdgesOff ()

virtual void	SetEnabledEdgesArrayName (const char *)
virtual char *	GetEnabledEdgesArrayName ()

virtual void	SetEnableEdgesByArray (int)
virtual int	GetEnableEdgesByArray ()
virtual void	EnableEdgesByArrayOn ()
virtual void	EnableEdgesByArrayOff ()

virtual void	SetEnabledVerticesArrayName (const char *)
virtual char *	GetEnabledVerticesArrayName ()

virtual void	SetEnableVerticesByArray (int)
virtual int	GetEnableVerticesByArray ()
virtual void	EnableVerticesByArrayOn ()
virtual void	EnableVerticesByArrayOff ()

void	SetIconArrayName (const char *name)
const char *	GetIconArrayName ()

void	SetIconSize (int *size)
int *	GetIconSize ()

vtkTexture *	GetIconTexture ()
void	SetIconTexture (vtkTexture *texture)

void	SetIconVisibility (bool vis)
bool	GetIconVisibility ()
virtual void	IconVisibilityOn ()
virtual void	IconVisibilityOff ()

virtual float	GetVertexPointSize ()
void	SetVertexPointSize (float size)

virtual float	GetEdgeLineWidth ()
void	SetEdgeLineWidth (float width)

void	SetInput (vtkGraph *input)
vtkGraph *	GetInput ()

virtual double *	GetBounds ()
virtual void	GetBounds (double *bounds)

virtual vtkLookupTable *	GetEdgeLookupTable ()
virtual vtkLookupTable *	GetVertexLookupTable ()
Static Public Member Functions
static vtkGraphMapper *	New ()
static int	IsTypeOf (const char *type)
static vtkGraphMapper *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkGraphMapper ()
	~vtkGraphMapper ()
virtual char *	GetIconArrayNameInternal ()
virtual void	SetIconArrayNameInternal (const char *)
virtual void	ReportReferences (vtkGarbageCollector *)
virtual int	FillInputPortInformation (int port, vtkInformation *info)
Protected Attributes
char *	EnabledEdgesArrayName
char *	EnabledVerticesArrayName
int	EnableEdgesByArray
int	EnableVerticesByArray
char *	IconArrayNameInternal
vtkSmartPointer< vtkGlyph3D >	CircleGlyph
vtkSmartPointer< vtkGlyph3D >	CircleOutlineGlyph
vtkSmartPointer < vtkGraphToPolyData >	GraphToPoly
vtkSmartPointer < vtkVertexGlyphFilter >	VertexGlyph
vtkSmartPointer < vtkIconGlyphFilter >	IconGlyph
vtkSmartPointer< vtkArrayMap >	IconTypeToIndex
vtkSmartPointer < vtkTransformCoordinateSystems >	IconTransform
vtkSmartPointer < vtkPolyDataMapper >	EdgeMapper
vtkSmartPointer < vtkPolyDataMapper >	VertexMapper
vtkSmartPointer < vtkPolyDataMapper >	OutlineMapper
vtkSmartPointer < vtkPolyDataMapper2D >	IconMapper
vtkSmartPointer< vtkActor >	EdgeActor
vtkSmartPointer< vtkActor >	VertexActor
vtkSmartPointer< vtkActor >	OutlineActor
vtkSmartPointer < vtkTexturedActor2D >	IconActor
vtkLookupTable *	EdgeLookupTable
vtkLookupTable *	VertexLookupTable

Member Typedef Documentation

typedef vtkMapper vtkGraphMapper::Superclass

Reimplemented from vtkMapper.

Definition at line 64 of file vtkGraphMapper.h.

Constructor & Destructor Documentation

vtkGraphMapper::vtkGraphMapper ( ) [protected]

vtkGraphMapper::~vtkGraphMapper ( ) [protected]

Member Function Documentation

static vtkGraphMapper* vtkGraphMapper::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkGraphMapper::GetClassName ( ) [virtual]

Reimplemented from vtkMapper.

static int vtkGraphMapper::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMapper.

virtual int vtkGraphMapper::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMapper.

static vtkGraphMapper* vtkGraphMapper::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkMapper.

void vtkGraphMapper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMapper.

void vtkGraphMapper::Render	(	vtkRenderer *	ren,
		vtkActor *	a
	)			`[virtual]`

Method initiates the mapping process. Generally sent by the actor as each frame is rendered.

Implements vtkMapper.

void vtkGraphMapper::SetVertexColorArrayName ( const char * name )

The array to use for coloring vertices. Default is "color".

const char* vtkGraphMapper::GetVertexColorArrayName ( )

The array to use for coloring vertices. Default is "color".

void vtkGraphMapper::SetColorVertices ( bool vis )

Whether to color vertices. Default is off.

bool vtkGraphMapper::GetColorVertices ( )

Whether to color vertices. Default is off.

void vtkGraphMapper::ColorVerticesOn ( )

Whether to color vertices. Default is off.

void vtkGraphMapper::ColorVerticesOff ( )

Whether to color vertices. Default is off.

void vtkGraphMapper::SetScaledGlyphs ( bool arg )

Whether scaled glyphs are on or not. Default is off. By default this mapper uses vertex glyphs that do not scale. If you turn this option on you will get circles at each vertex and they will scale as you zoom in/out.

virtual bool vtkGraphMapper::GetScaledGlyphs ( ) [virtual]

Whether scaled glyphs are on or not. Default is off. By default this mapper uses vertex glyphs that do not scale. If you turn this option on you will get circles at each vertex and they will scale as you zoom in/out.

virtual void vtkGraphMapper::ScaledGlyphsOn ( ) [virtual]

Whether scaled glyphs are on or not. Default is off. By default this mapper uses vertex glyphs that do not scale. If you turn this option on you will get circles at each vertex and they will scale as you zoom in/out.

virtual void vtkGraphMapper::ScaledGlyphsOff ( ) [virtual]

Whether scaled glyphs are on or not. Default is off. By default this mapper uses vertex glyphs that do not scale. If you turn this option on you will get circles at each vertex and they will scale as you zoom in/out.

virtual void vtkGraphMapper::SetScalingArrayName ( const char * ) [virtual]

Glyph scaling array name. Default is "scale"

virtual char* vtkGraphMapper::GetScalingArrayName ( ) [virtual]

Glyph scaling array name. Default is "scale"

void vtkGraphMapper::SetEdgeVisibility ( bool vis )

Whether to show edges or not. Default is on.

bool vtkGraphMapper::GetEdgeVisibility ( )

Whether to show edges or not. Default is on.

virtual void vtkGraphMapper::EdgeVisibilityOn ( ) [virtual]

Whether to show edges or not. Default is on.

virtual void vtkGraphMapper::EdgeVisibilityOff ( ) [virtual]

Whether to show edges or not. Default is on.

void vtkGraphMapper::SetEdgeColorArrayName ( const char * name )

The array to use for coloring edges. Default is "color".

const char* vtkGraphMapper::GetEdgeColorArrayName ( )

The array to use for coloring edges. Default is "color".

void vtkGraphMapper::SetColorEdges ( bool vis )

Whether to color edges. Default is off.

bool vtkGraphMapper::GetColorEdges ( )

Whether to color edges. Default is off.

void vtkGraphMapper::ColorEdgesOn ( )

Whether to color edges. Default is off.

void vtkGraphMapper::ColorEdgesOff ( )

Whether to color edges. Default is off.

virtual void vtkGraphMapper::SetEnabledEdgesArrayName ( const char * ) [virtual]

The array to use for coloring edges. Default is "color".

virtual char* vtkGraphMapper::GetEnabledEdgesArrayName ( ) [virtual]

The array to use for coloring edges. Default is "color".

virtual void vtkGraphMapper::SetEnableEdgesByArray ( int ) [virtual]

Whether to enable/disable edges using array values. Default is off.

virtual int vtkGraphMapper::GetEnableEdgesByArray ( ) [virtual]

Whether to enable/disable edges using array values. Default is off.

virtual void vtkGraphMapper::EnableEdgesByArrayOn ( ) [virtual]

Whether to enable/disable edges using array values. Default is off.

virtual void vtkGraphMapper::EnableEdgesByArrayOff ( ) [virtual]

Whether to enable/disable edges using array values. Default is off.

virtual void vtkGraphMapper::SetEnabledVerticesArrayName ( const char * ) [virtual]

The array to use for coloring edges. Default is "color".

virtual char* vtkGraphMapper::GetEnabledVerticesArrayName ( ) [virtual]

The array to use for coloring edges. Default is "color".

virtual void vtkGraphMapper::SetEnableVerticesByArray ( int ) [virtual]

Whether to enable/disable vertices using array values. Default is off.

virtual int vtkGraphMapper::GetEnableVerticesByArray ( ) [virtual]

Whether to enable/disable vertices using array values. Default is off.

virtual void vtkGraphMapper::EnableVerticesByArrayOn ( ) [virtual]

Whether to enable/disable vertices using array values. Default is off.

virtual void vtkGraphMapper::EnableVerticesByArrayOff ( ) [virtual]

Whether to enable/disable vertices using array values. Default is off.

void vtkGraphMapper::SetIconArrayName ( const char * name )

The array to use for assigning icons.

const char* vtkGraphMapper::GetIconArrayName ( )

The array to use for assigning icons.

void vtkGraphMapper::AddIconType	(	char *	type,
		int	index
	)

Associate the icon at index "index" in the vtkTexture to all vertices containing "type" as a value in the vertex attribute array specified by IconArrayName.

void vtkGraphMapper::ClearIconTypes ( )

Clear all icon mappings.

void vtkGraphMapper::SetIconSize ( int * size )

Specify the Width and Height, in pixels, of an icon in the icon sheet.

int* vtkGraphMapper::GetIconSize ( )

Specify the Width and Height, in pixels, of an icon in the icon sheet.

void vtkGraphMapper::SetIconAlignment ( int alignment )

Specify where the icons should be placed in relation to the vertex. See vtkIconGlyphFilter.h for possible values.

vtkTexture* vtkGraphMapper::GetIconTexture ( )

The texture containing the icon sheet.

void vtkGraphMapper::SetIconTexture ( vtkTexture * texture )

The texture containing the icon sheet.

void vtkGraphMapper::SetIconVisibility ( bool vis )

Whether to show icons. Default is off.

bool vtkGraphMapper::GetIconVisibility ( )

Whether to show icons. Default is off.

virtual void vtkGraphMapper::IconVisibilityOn ( ) [virtual]

Whether to show icons. Default is off.

virtual void vtkGraphMapper::IconVisibilityOff ( ) [virtual]

Whether to show icons. Default is off.

virtual float vtkGraphMapper::GetVertexPointSize ( ) [virtual]

Get/Set the vertex point size

void vtkGraphMapper::SetVertexPointSize ( float size )

Get/Set the vertex point size

virtual float vtkGraphMapper::GetEdgeLineWidth ( ) [virtual]

Get/Set the edge line width

void vtkGraphMapper::SetEdgeLineWidth ( float width )

Get/Set the edge line width

virtual void vtkGraphMapper::ApplyViewTheme ( vtkViewTheme * theme ) [virtual]

Apply the theme to this view.

void vtkGraphMapper::ReleaseGraphicsResources ( vtkWindow * ) [virtual]

Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkMapper.

unsigned long vtkGraphMapper::GetMTime ( ) [virtual]

Get the mtime also considering the lookup table.

Reimplemented from vtkMapper.

void vtkGraphMapper::SetInput ( vtkGraph * input )

Set the Input of this mapper.

vtkGraph* vtkGraphMapper::GetInput ( )

Set the Input of this mapper.

Reimplemented from vtkMapper.

virtual double* vtkGraphMapper::GetBounds ( ) [virtual]

Return bounding box (array of six doubles) of data expressed as (xmin,xmax, ymin,ymax, zmin,zmax).

Reimplemented from vtkMapper.

virtual void vtkGraphMapper::GetBounds ( double * bounds ) [inline, virtual]

Return bounding box (array of six doubles) of data expressed as (xmin,xmax, ymin,ymax, zmin,zmax).

Definition at line 217 of file vtkGraphMapper.h.

virtual vtkLookupTable* vtkGraphMapper::GetEdgeLookupTable ( ) [virtual]

Access to the lookup tables used by the vertex and edge mappers.

virtual vtkLookupTable* vtkGraphMapper::GetVertexLookupTable ( ) [virtual]

Access to the lookup tables used by the vertex and edge mappers.

virtual char* vtkGraphMapper::GetVertexColorArrayNameInternal ( ) [protected, virtual]

Used to store the vertex and edge color array names

virtual void vtkGraphMapper::SetVertexColorArrayNameInternal ( const char * ) [protected, virtual]

Used to store the vertex and edge color array names

virtual char* vtkGraphMapper::GetEdgeColorArrayNameInternal ( ) [protected, virtual]

Used to store the vertex and edge color array names

virtual void vtkGraphMapper::SetEdgeColorArrayNameInternal ( const char * ) [protected, virtual]

Used to store the vertex and edge color array names

virtual char* vtkGraphMapper::GetIconArrayNameInternal ( ) [protected, virtual]

virtual void vtkGraphMapper::SetIconArrayNameInternal ( const char * ) [protected, virtual]

virtual void vtkGraphMapper::ReportReferences ( vtkGarbageCollector * ) [protected, virtual]

Reimplemented from vtkAlgorithm.

virtual int vtkGraphMapper::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.
