vtkGraph Class Reference

#include <vtkGraph.h>

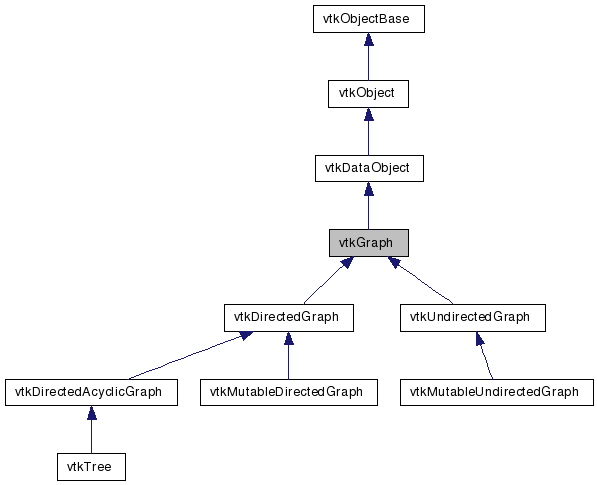

Inheritance diagram for vtkGraph:

Inheritance graph
[legend]

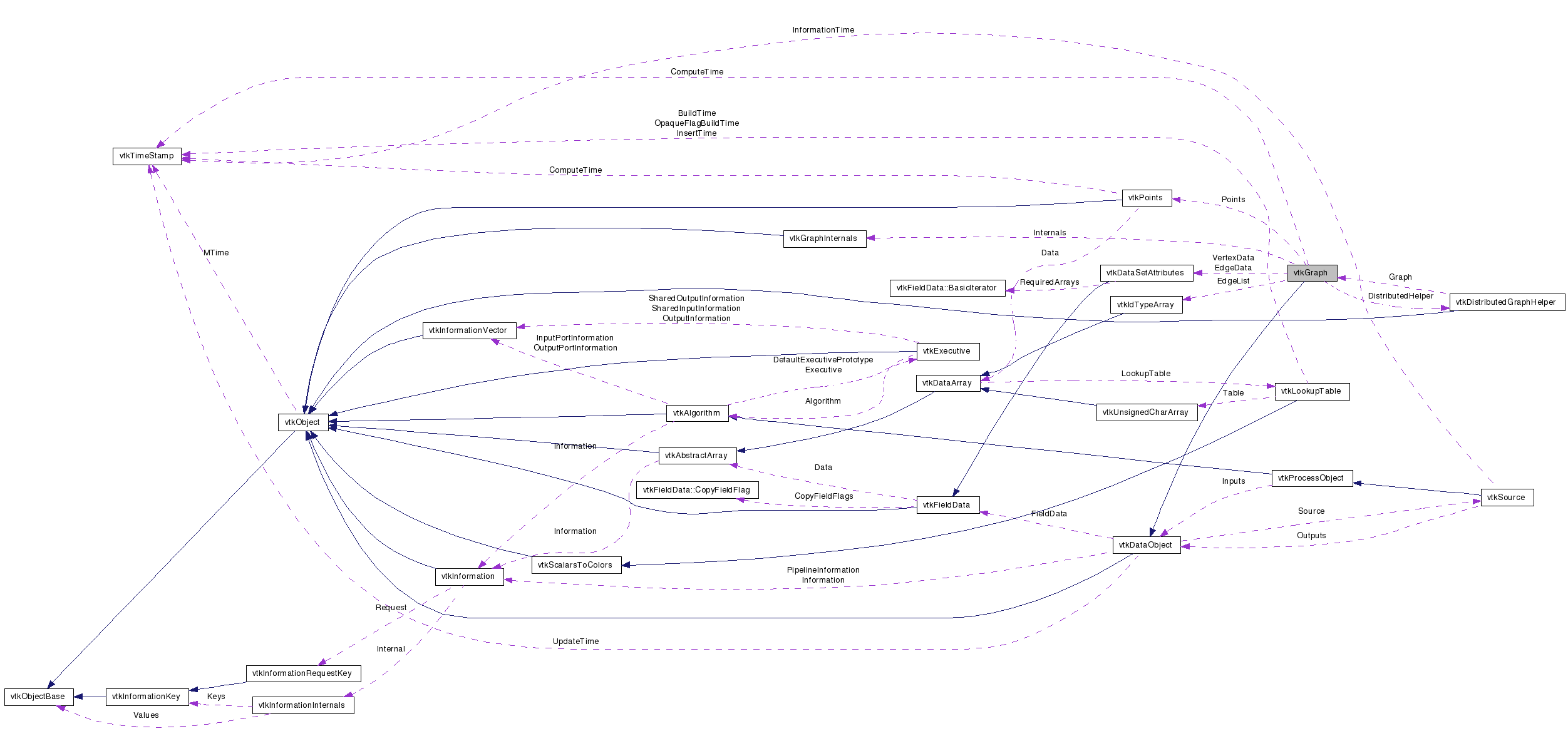

Collaboration diagram for vtkGraph:

Collaboration graph
[legend]

List of all members.


Detailed Description

Base class for graph data types.

vtkGraph is the abstract base class that provides all read-only API for graph data types. A graph consists of a collection of vertices and a collection of edges connecting pairs of vertices. The vtkDirectedGraph subclass represents a graph whose edges have inherent order from source vertex to target vertex, while vtkUndirectedGraph is a graph whose edges have no inherent ordering.

Graph vertices may be traversed in two ways. In the current implementation, all vertices are assigned consecutive ids starting at zero, so they may be traversed in a simple for loop from 0 to graph->GetNumberOfVertices() - 1. You may alternately create a vtkVertexListIterator and call graph->GetVertices(it). it->Next() will return the id of the next vertex, while it->HasNext() indicates whether there are more vertices in the graph. This is the preferred method, since in the future graphs may support filtering or subsetting where the vertex ids may not be contiguous.

Graph edges must be traversed through iterators. To traverse all edges in a graph, create an instance of vtkEdgeListIterator and call graph->GetEdges(it). it->Next() returns lightweight vtkEdgeType structures, which contain the public fields Id, Source and Target. Id is the identifier for the edge, which may be used to look up values in assiciated edge data arrays. Source and Target store the ids of the source and target vertices of the edge. Note that the edge list iterator DOES NOT necessarily iterate over edges in order of ascending id. To traverse edges from wrapper code (Python, Tcl, Java), use it->NextGraphEdge() instead of it->Next(). This will return a heavyweight, wrappable vtkGraphEdge object, which has the same fields as vtkEdgeType accessible through getter methods.

To traverse all edges outgoing from a vertex, create a vtkOutEdgeIterator and call graph->GetOutEdges(v, it). it->Next() returns a lightweight vtkOutEdgeType containing the fields Id and Target. The source of the edge is always the vertex that was passed as an argument to GetOutEdges(). Incoming edges may be similarly traversed with vtkInEdgeIterator, which returns vtkInEdgeType structures with Id and Source fields. Both vtkOutEdgeIterator and vtkInEdgeIterator also provide the wrapper functions NextGraphEdge() which return vtkGraphEdge objects.

An additional iterator, vtkAdjacentVertexIterator can traverse outgoing vertices directly, instead needing to parse through edges. Initialize the iterator by calling graph->GetAdjacentVertices(v, it).

vtkGraph has two instances of vtkDataSetAttributes for associated vertex and edge data. It also has a vtkPoints instance which may store x,y,z locations for each vertex. This is populated by filters such as vtkGraphLayout and vtkAssignCoordinates.

All graph types share the same implementation, so the structure of one may be shared among multiple graphs, even graphs of different types. Structures from vtkUndirectedGraph and vtkMutableUndirectedGraph may be shared directly. Structures from vtkDirectedGraph, vtkMutableDirectedGraph, and vtkTree may be shared directly with the exception that setting a structure to a tree requires that a "is a tree" test passes.

For graph types that are known to be compatible, calling ShallowCopy() or DeepCopy() will work as expected. When the outcome of a conversion is unknown (i.e. setting a graph to a tree), CheckedShallowCopy() and CheckedDeepCopy() exist which are identical to ShallowCopy() and DeepCopy(), except that instead of emitting an error for an incompatible structure, the function returns false. This allows you to programmatically check structure compatibility without causing error messages.

To construct a graph, use vtkMutableDirectedGraph or vtkMutableUndirectedGraph. You may then use CheckedShallowCopy to set the contents of a mutable graph type into one of the non-mutable types vtkDirectedGraph, vtkUndirectedGraph. To construct a tree, use vtkMutableDirectedGraph, with directed edges which point from the parent to the child, then use CheckedShallowCopy to set the structure to a vtkTree.

Warning:
All copy operations implement copy-on-write. The structures are initially shared, but if one of the graphs is modified, the structure is copied so that to the user they function as if they were deep copied. This means that care must be taken if different threads are accessing different graph instances that share the same structure. Race conditions may develop if one thread is modifying the graph at the same time that another graph is copying the structure.
Vertex pedigree IDs:
The vertices in a vtkGraph can be associated with pedigree IDs through GetVertexData()->SetPedigreeIds. In this case, there is a 1-1 mapping between pedigree Ids and vertices. One can query the vertex ID based on the pedigree ID using FindVertex, add new vertices by pedigree ID with AddVertex, and add edges based on the pedigree IDs of the source and target vertices. For example, AddEdge("Here", "There") will find (or add) vertices with pedigree ID "Here" and "There" and then introduce an edge from "Here" to "There".
Vertex pedigree IDs:
To configure the vtkGraph with a pedigree ID mapping, create a vtkDataArray that will store the pedigree IDs and set that array as the pedigree ID array for the vertices via GetVertexData()->SetPedigreeIds().
Distributed graphs:
vtkGraph instances can be distributed across multiple machines, to allow the construction and manipulation of graphs larger than a single machine could handle. A distributed graph will typically be distributed across many different nodes within a cluster, using the Message Passing Interface (MPI) to allow those cluster nodes to communicate.
Distributed graphs:
An empty vtkGraph can be made into a distributed graph by attaching an instance of a vtkDistributedGraphHelper via the SetDistributedGraphHelper() method. To determine whether a graph is distributed or not, call GetDistributedGraphHelper() and check whether the result is non-NULL. For a distributed graph, the number of processors across which the graph is distributed can be retrieved by extracting the value for the DATA_NUMBER_OF_PIECES key in the vtkInformation object (retrieved by GetInformation()) associated with the graph. Similarly, the value corresponding to the DATA_PIECE_NUMBER key of the vtkInformation object describes which piece of the data this graph instance provides.
Distributed graphs:
Distributed graphs behave somewhat differently from non-distributed graphs, and will require special care. In a distributed graph, each of the processors will contain a subset of the vertices in the graph. That subset of vertices can be accessed via the vtkVertexListIterator produced by GetVertices(). GetNumberOfVertices(), therefore, returns the number of vertices stored locally: it does not account for vertices stored on other processors. A vertex (or edge) is identified by both the rank of its owning processor and by its index within that processor, both of which are encoded within the vtkIdType value that describes that vertex (or edge). The owning processor is a value between 0 and P-1, where P is the number of processors across which the vtkGraph has been distributed. The local index will be a value between 0 and GetNumberOfVertices(), for vertices, or GetNumberOfEdges(), for edges, and can be used to access the local parts of distributed data arrays. When given a vtkIdType identifying a vertex, one can determine the owner of the vertex with vtkDistributedGraphHelper::GetVertexOwner() and the local index with vtkDistributedGraphHelper::GetVertexIndex(). With edges, the appropriate methods are vtkDistributedGraphHelper::GetEdgeOwner() and vtkDistributedGraphHelper::GetEdgeIndex(), respectively. To construct a vtkIdType representing either a vertex or edge given only its owner and local index, use vtkDistributedGraphHelper::MakeDistributedId().
Distributed graphs:
The edges in a distributed graph are always stored on the processors that own the vertices named by the edge. For example, given a directed edge (u, v), the edge will be stored in the out-edges list for vertex u on the processor that owns u, and in the in-edges list for vertex v on the processor that owns v. This "row-wise" decomposition of the graph means that, for any vertex that is local to a processor, that processor can look at all of the incoming and outgoing edges of the graph. Processors cannot, however, access the incoming or outgoing edge lists of vertex owned by other processors. Vertices owned by other processors will not be encountered when traversing the vertex list via GetVertices(), but may be encountered by traversing the in- and out-edge lists of local vertices or the edge list.
Distributed graphs:
Distributed graphs can have pedigree IDs for the vertices in the same way that non-distributed graphs can. In this case, the distribution of the vertices in the graph is based on pedigree ID. For example, a vertex with the pedigree ID "Here" might land on processor 0 while a vertex pedigree ID "There" would end up on processor 3. By default, the pedigree IDs themselves are hashed to give a random (and, hopefully, even) distribution of the vertices. However, one can provide a different vertex distribution function by calling vtkDistributedGraphHelper::SetVertexPedigreeIdDistribution. Once a distributed graph has pedigree IDs, the no-argument AddVertex() method can no longer be used. Additionally, once a vertex has a pedigree ID, that pedigree ID should not be changed unless the user can guarantee that the vertex distribution will still map that vertex to the same processor where it already resides.
See also:
vtkDirectedGraph vtkUndirectedGraph vtkMutableDirectedGraph vtkMutableUndirectedGraph vtkTree vtkDistributedGraphHelper
Thanks:
Thanks to Brian Wylie, Timothy Shead, Ken Moreland of Sandia National Laboratories and Douglas Gregor of Indiana University for designing these classes.
Tests:
vtkGraph (Tests)

Definition at line 282 of file vtkGraph.h.

vtkPointsPoints
static double DefaultPoint [3]
vtkIdTypeArrayEdgeList
virtual vtkIdTypeArrayGetEdgeList ()
virtual void SetEdgeList (vtkIdTypeArray *list)

Public Types

typedef vtkDataObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual int GetDataObjectType ()
virtual void Initialize ()
void ComputeBounds ()
unsigned long int GetMTime ()
virtual void GetOutEdges (vtkIdType v, vtkOutEdgeIterator *it)
virtual vtkIdType GetDegree (vtkIdType v)
virtual vtkIdType GetOutDegree (vtkIdType v)
virtual void GetOutEdge (vtkIdType v, vtkIdType index, vtkGraphEdge *e)
virtual void GetInEdges (vtkIdType v, vtkInEdgeIterator *it)
virtual vtkIdType GetInDegree (vtkIdType v)
virtual void GetInEdge (vtkIdType v, vtkIdType index, vtkGraphEdge *e)
virtual void GetAdjacentVertices (vtkIdType v, vtkAdjacentVertexIterator *it)
virtual void GetEdges (vtkEdgeListIterator *it)
virtual vtkIdType GetNumberOfEdges ()
virtual void GetVertices (vtkVertexListIterator *it)
virtual vtkIdType GetNumberOfVertices ()
void SetDistributedGraphHelper (vtkDistributedGraphHelper *helper)
virtual void ShallowCopy (vtkDataObject *obj)
virtual void DeepCopy (vtkDataObject *obj)
virtual void CopyStructure (vtkGraph *g)
virtual bool CheckedShallowCopy (vtkGraph *g)
virtual bool CheckedDeepCopy (vtkGraph *g)
virtual void Squeeze ()
void ReorderOutVertices (vtkIdType v, vtkIdTypeArray *vertices)
bool IsSameStructure (vtkGraph *other)
vtkIdType GetNumberOfEdgePoints (vtkIdType e)
double * GetEdgePoint (vtkIdType e, vtkIdType i)
void ClearEdgePoints (vtkIdType e)
vtkGraphInternalsGetGraphInternals (bool modifying)
virtual vtkDataSetAttributesGetVertexData ()
virtual vtkDataSetAttributesGetEdgeData ()
double * GetPoint (vtkIdType ptId)
void GetPoint (vtkIdType ptId, double x[3])
vtkPointsGetPoints ()
virtual void SetPoints (vtkPoints *points)
double * GetBounds ()
void GetBounds (double bounds[6])
virtual vtkOutEdgeType GetOutEdge (vtkIdType v, vtkIdType index)
virtual vtkInEdgeType GetInEdge (vtkIdType v, vtkIdType index)
vtkDistributedGraphHelperGetDistributedGraphHelper ()
vtkIdType FindVertex (const vtkVariant &pedigreeID)
vtkIdType GetSourceVertex (vtkIdType e)
vtkIdType GetTargetVertex (vtkIdType e)
void SetEdgePoints (vtkIdType e, vtkIdType npts, double *pts)
void GetEdgePoints (vtkIdType e, vtkIdType &npts, double *&pts)
void SetEdgePoint (vtkIdType e, vtkIdType i, double x[3])
void SetEdgePoint (vtkIdType e, vtkIdType i, double x, double y, double z)
void AddEdgePoint (vtkIdType e, double x[3])
void AddEdgePoint (vtkIdType e, double x, double y, double z)
void ShallowCopyEdgePoints (vtkGraph *g)
void DeepCopyEdgePoints (vtkGraph *g)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkGraphSafeDownCast (vtkObject *o)
static vtkGraphGetData (vtkInformation *info)
static vtkGraphGetData (vtkInformationVector *v, int i=0)

Protected Member Functions

 vtkGraph ()
 ~vtkGraph ()
void AddVertexInternal (const vtkVariant &pedigree, vtkIdType *vertex)
virtual bool IsStructureValid (vtkGraph *g)=0
virtual void CopyInternal (vtkGraph *g, bool deep)
void SetInternals (vtkGraphInternals *internals)
void SetEdgePoints (vtkGraphEdgePoints *edgePoints)
void ForceOwnership ()
void BuildEdgeList ()
void AddVertexInternal (vtkVariantArray *propertyArr=0, vtkIdType *vertex=0)
void AddEdgeInternal (vtkIdType u, vtkIdType v, bool directed, vtkVariantArray *propertyArr, vtkEdgeType *edge)
void AddEdgeInternal (const vtkVariant &uPedigree, vtkIdType v, bool directed, vtkVariantArray *propertyArr, vtkEdgeType *edge)
void AddEdgeInternal (vtkIdType u, const vtkVariant &vPedigree, bool directed, vtkVariantArray *propertyArr, vtkEdgeType *edge)
void AddEdgeInternal (const vtkVariant &uPedigree, const vtkVariant &vPedigree, bool directed, vtkVariantArray *propertyArr, vtkEdgeType *edge)
virtual void GetOutEdges (vtkIdType v, const vtkOutEdgeType *&edges, vtkIdType &nedges)
virtual void GetInEdges (vtkIdType v, const vtkInEdgeType *&edges, vtkIdType &nedges)

Protected Attributes

vtkGraphInternalsInternals
vtkDistributedGraphHelperDistributedHelper
vtkGraphEdgePoints * EdgePoints
double Bounds [6]
vtkTimeStamp ComputeTime
vtkDataSetAttributesVertexData
vtkDataSetAttributesEdgeData

Friends

class vtkAdjacentVertexIterator
class vtkEdgeListIterator
class vtkInEdgeIterator
class vtkOutEdgeIterator
class boost::vtk_edge_iterator
class boost::vtk_in_edge_pointer_iterator
class boost::vtk_out_edge_pointer_iterator

Member Typedef Documentation


Constructor & Destructor Documentation

vtkGraph::vtkGraph (  )  [protected]

vtkGraph::~vtkGraph (  )  [protected]


Member Function Documentation

virtual const char* vtkGraph::GetClassName (  )  [virtual]

static int vtkGraph::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObject.

Reimplemented in vtkDirectedAcyclicGraph, vtkDirectedGraph, vtkMutableDirectedGraph, vtkMutableUndirectedGraph, vtkTree, and vtkUndirectedGraph.

virtual int vtkGraph::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObject.

Reimplemented in vtkDirectedAcyclicGraph, vtkDirectedGraph, vtkMutableDirectedGraph, vtkMutableUndirectedGraph, vtkTree, and vtkUndirectedGraph.

static vtkGraph* vtkGraph::SafeDownCast ( vtkObject o  )  [static]

void vtkGraph::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObject.

Reimplemented in vtkDirectedAcyclicGraph, vtkDirectedGraph, vtkMutableDirectedGraph, vtkMutableUndirectedGraph, vtkTree, and vtkUndirectedGraph.

virtual vtkDataSetAttributes* vtkGraph::GetVertexData (  )  [virtual]

Get the vertex or edge data.

virtual vtkDataSetAttributes* vtkGraph::GetEdgeData (  )  [virtual]

Get the vertex or edge data.

virtual int vtkGraph::GetDataObjectType (  )  [inline, virtual]

Return what type of dataset this is.

Reimplemented from vtkDataObject.

Reimplemented in vtkDirectedAcyclicGraph, vtkDirectedGraph, vtkTree, and vtkUndirectedGraph.

Definition at line 295 of file vtkGraph.h.

virtual void vtkGraph::Initialize (  )  [virtual]

Initialize to an empty graph.

Reimplemented from vtkDataObject.

double* vtkGraph::GetPoint ( vtkIdType  ptId  )

These methods return the point (0,0,0) until the points structure is created, when it returns the actual point position. In a distributed graph, only the points for local vertices can be retrieved.

void vtkGraph::GetPoint ( vtkIdType  ptId,
double  x[3]
)

These methods return the point (0,0,0) until the points structure is created, when it returns the actual point position. In a distributed graph, only the points for local vertices can be retrieved.

vtkPoints* vtkGraph::GetPoints (  )

Returns the points array for this graph. If points is not yet constructed, generates and returns a new points array filled with (0,0,0) coordinates. In a distributed graph, only the points for local vertices can be retrieved or modified.

virtual void vtkGraph::SetPoints ( vtkPoints points  )  [virtual]

Returns the points array for this graph. If points is not yet constructed, generates and returns a new points array filled with (0,0,0) coordinates. In a distributed graph, only the points for local vertices can be retrieved or modified.

void vtkGraph::ComputeBounds (  )

Compute the bounds of the graph. In a distributed graph, this computes the bounds around the local part of the graph.

double* vtkGraph::GetBounds (  )

Return a pointer to the geometry bounding box in the form (xmin,xmax, ymin,ymax, zmin,zmax). In a distributed graph, this computes the bounds around the local part of the graph.

void vtkGraph::GetBounds ( double  bounds[6]  )

Return a pointer to the geometry bounding box in the form (xmin,xmax, ymin,ymax, zmin,zmax). In a distributed graph, this computes the bounds around the local part of the graph.

unsigned long int vtkGraph::GetMTime (  )  [virtual]

The modified time of the graph.

Reimplemented from vtkDataObject.

virtual void vtkGraph::GetOutEdges ( vtkIdType  v,
vtkOutEdgeIterator it
) [virtual]

Initializes the out edge iterator to iterate over all outgoing edges of vertex v. For an undirected graph, returns all incident edges. In a distributed graph, the vertex v must be local to this processor.

virtual vtkIdType vtkGraph::GetDegree ( vtkIdType  v  )  [virtual]

The total of all incoming and outgoing vertices for vertex v. For undirected graphs, this is simply the number of edges incident to v. In a distributed graph, the vertex v must be local to this processor.

virtual vtkIdType vtkGraph::GetOutDegree ( vtkIdType  v  )  [virtual]

The number of outgoing edges from vertex v. For undirected graphs, returns the same as GetDegree(). In a distributed graph, the vertex v must be local to this processor.

virtual vtkOutEdgeType vtkGraph::GetOutEdge ( vtkIdType  v,
vtkIdType  index
) [virtual]

Random-access method for retrieving outgoing edges from vertex v.

virtual void vtkGraph::GetOutEdge ( vtkIdType  v,
vtkIdType  index,
vtkGraphEdge e
) [virtual]

Random-access method for retrieving outgoing edges from vertex v. The method fills the vtkGraphEdge instance with the id, source, and target of the edge. This method is provided for wrappers, GetOutEdge(vtkIdType, vtkIdType) is preferred.

virtual void vtkGraph::GetInEdges ( vtkIdType  v,
vtkInEdgeIterator it
) [virtual]

Initializes the in edge iterator to iterate over all incoming edges to vertex v. For an undirected graph, returns all incident edges. In a distributed graph, the vertex v must be local to this processor.

Reimplemented in vtkUndirectedGraph.

virtual vtkIdType vtkGraph::GetInDegree ( vtkIdType  v  )  [virtual]

The number of incoming edges to vertex v. For undirected graphs, returns the same as GetDegree(). In a distributed graph, the vertex v must be local to this processor.

Reimplemented in vtkUndirectedGraph.

virtual vtkInEdgeType vtkGraph::GetInEdge ( vtkIdType  v,
vtkIdType  index
) [virtual]

Random-access method for retrieving incoming edges to vertex v.

Reimplemented in vtkUndirectedGraph.

virtual void vtkGraph::GetInEdge ( vtkIdType  v,
vtkIdType  index,
vtkGraphEdge e
) [virtual]

Random-access method for retrieving incoming edges to vertex v. The method fills the vtkGraphEdge instance with the id, source, and target of the edge. This method is provided for wrappers, GetInEdge(vtkIdType, vtkIdType) is preferred.

Reimplemented in vtkUndirectedGraph.

virtual void vtkGraph::GetAdjacentVertices ( vtkIdType  v,
vtkAdjacentVertexIterator it
) [virtual]

Initializes the adjacent vertex iterator to iterate over all outgoing vertices from vertex v. For an undirected graph, returns all adjacent vertices. In a distributed graph, the vertex v must be local to this processor.

virtual void vtkGraph::GetEdges ( vtkEdgeListIterator it  )  [virtual]

Initializes the edge list iterator to iterate over all edges in the graph. Edges may not be traversed in order of increasing edge id. In a distributed graph, this returns edges that are stored locally.

virtual vtkIdType vtkGraph::GetNumberOfEdges (  )  [virtual]

The number of edges in the graph. In a distributed graph, this returns the number of edges stored locally.

virtual void vtkGraph::GetVertices ( vtkVertexListIterator it  )  [virtual]

Initializes the vertex list iterator to iterate over all vertices in the graph. In a distributed graph, the iterator traverses all local vertices.

virtual vtkIdType vtkGraph::GetNumberOfVertices (  )  [virtual]

The number of vertices in the graph. In a distributed graph, returns the number of local vertices in the graph.

void vtkGraph::SetDistributedGraphHelper ( vtkDistributedGraphHelper helper  )

Sets the distributed graph helper of this graph, turning it into a distributed graph. This operation can only be executed on an empty graph.

vtkDistributedGraphHelper* vtkGraph::GetDistributedGraphHelper (  )

Retrieves the distributed graph helper for this graph

vtkIdType vtkGraph::FindVertex ( const vtkVariant pedigreeID  )

Retrieve the vertex with the given pedigree ID. If successful, returns the ID of the vertex. Otherwise, either the vertex data does not have a pedigree ID array or there is no vertex with the given pedigree ID, so this function returns -1.

virtual void vtkGraph::ShallowCopy ( vtkDataObject obj  )  [virtual]

Shallow copies the data object into this graph. If it is an incompatible graph, reports an error.

Reimplemented from vtkDataObject.

virtual void vtkGraph::DeepCopy ( vtkDataObject obj  )  [virtual]

Deep copies the data object into this graph. If it is an incompatible graph, reports an error.

Reimplemented from vtkDataObject.

virtual void vtkGraph::CopyStructure ( vtkGraph g  )  [virtual]

Does a shallow copy of the topological information, but not the associated attributes.

virtual bool vtkGraph::CheckedShallowCopy ( vtkGraph g  )  [virtual]

Performs the same operation as ShallowCopy(), but instead of reporting an error for an incompatible graph, returns false.

virtual bool vtkGraph::CheckedDeepCopy ( vtkGraph g  )  [virtual]

Performs the same operation as DeepCopy(), but instead of reporting an error for an incompatible graph, returns false.

virtual void vtkGraph::Squeeze (  )  [virtual]

Reclaim unused memory.

static vtkGraph* vtkGraph::GetData ( vtkInformation info  )  [static]

Retrieve a graph from an information vector.

Reimplemented from vtkDataObject.

Reimplemented in vtkDirectedAcyclicGraph, vtkDirectedGraph, vtkTree, and vtkUndirectedGraph.

static vtkGraph* vtkGraph::GetData ( vtkInformationVector v,
int  i = 0
) [static]

Retrieve a graph from an information vector.

Reimplemented from vtkDataObject.

Reimplemented in vtkDirectedAcyclicGraph, vtkDirectedGraph, vtkTree, and vtkUndirectedGraph.

void vtkGraph::ReorderOutVertices ( vtkIdType  v,
vtkIdTypeArray vertices
)

Reorder the outgoing vertices of a vertex. The vertex list must have the same elements as the current out edge list, just in a different order. This method does not change the topology of the graph. In a distributed graph, the vertex v must be local.

bool vtkGraph::IsSameStructure ( vtkGraph other  )

Returns true if both graphs point to the same adjacency structure. Can be used to test the copy-on-write feature of the graph.

vtkIdType vtkGraph::GetSourceVertex ( vtkIdType  e  )

Retrieve the source and target vertices for an edge id. NOTE: The first time this is called, the graph will build a mapping array from edge id to source/target that is the same size as the number of edges in the graph. If you have access to a vtkOutEdgeType, vtkInEdgeType, vtkEdgeType, or vtkGraphEdge, you should directly use these structures to look up the source or target instead of this method.

vtkIdType vtkGraph::GetTargetVertex ( vtkIdType  e  )

Retrieve the source and target vertices for an edge id. NOTE: The first time this is called, the graph will build a mapping array from edge id to source/target that is the same size as the number of edges in the graph. If you have access to a vtkOutEdgeType, vtkInEdgeType, vtkEdgeType, or vtkGraphEdge, you should directly use these structures to look up the source or target instead of this method.

void vtkGraph::SetEdgePoints ( vtkIdType  e,
vtkIdType  npts,
double *  pts
)

Get/Set the internal edge control points associated with each edge. The size of the pts array is 3*npts, and holds the x,y,z location of each edge control point.

void vtkGraph::GetEdgePoints ( vtkIdType  e,
vtkIdType npts,
double *&  pts
)

Get/Set the internal edge control points associated with each edge. The size of the pts array is 3*npts, and holds the x,y,z location of each edge control point.

vtkIdType vtkGraph::GetNumberOfEdgePoints ( vtkIdType  e  )

Get the number of edge points associated with an edge.

double* vtkGraph::GetEdgePoint ( vtkIdType  e,
vtkIdType  i
)

Get the x,y,z location of a point along edge e.

void vtkGraph::ClearEdgePoints ( vtkIdType  e  )

Clear all points associated with an edge.

void vtkGraph::SetEdgePoint ( vtkIdType  e,
vtkIdType  i,
double  x[3]
)

Set an x,y,z location of a point along an edge. This assumes there is already a point at location i, and simply overwrites it.

void vtkGraph::SetEdgePoint ( vtkIdType  e,
vtkIdType  i,
double  x,
double  y,
double  z
) [inline]

Set an x,y,z location of a point along an edge. This assumes there is already a point at location i, and simply overwrites it.

Definition at line 504 of file vtkGraph.h.

void vtkGraph::AddEdgePoint ( vtkIdType  e,
double  x[3]
)

Adds a point to the end of the list of edge points for a certain edge.

void vtkGraph::AddEdgePoint ( vtkIdType  e,
double  x,
double  y,
double  z
) [inline]

Adds a point to the end of the list of edge points for a certain edge.

Definition at line 512 of file vtkGraph.h.

void vtkGraph::ShallowCopyEdgePoints ( vtkGraph g  )

Copy the internal edge point data from another graph into this graph. Both graphs must have the same number of edges.

void vtkGraph::DeepCopyEdgePoints ( vtkGraph g  )

Copy the internal edge point data from another graph into this graph. Both graphs must have the same number of edges.

vtkGraphInternals* vtkGraph::GetGraphInternals ( bool  modifying  )

Returns the internal representation of the graph. If modifying is true, then the returned vtkGraphInternals object will be unique to this vtkGraph object.

void vtkGraph::AddVertexInternal ( vtkVariantArray propertyArr = 0,
vtkIdType vertex = 0
) [protected]

Protected method for adding vertices, optionally with properties, used by mutable subclasses. If vertex is non-null, it will be set to the newly-added (or found) vertex. Note that if propertyArr is non-null and the vertex data contains pedigree IDs, a vertex will only be added if there is no vertex with that pedigree ID.

void vtkGraph::AddVertexInternal ( const vtkVariant pedigree,
vtkIdType vertex
) [protected]

Adds a vertex with the given pedigree ID to the graph. If a vertex with this pedigree ID already exists, no new vertex is added, but the vertex argument is set to the ID of the existing vertex. Otherwise, a new vertex is added and its ID is provided.

void vtkGraph::AddEdgeInternal ( vtkIdType  u,
vtkIdType  v,
bool  directed,
vtkVariantArray propertyArr,
vtkEdgeType edge
) [protected]

Protected method for adding edges of a certain directedness used by mutable subclasses. If propertyArr is non-null, it specifies the properties to be attached to the newly-created edge. If non-null, edge will receive the newly-added edge.

void vtkGraph::AddEdgeInternal ( const vtkVariant uPedigree,
vtkIdType  v,
bool  directed,
vtkVariantArray propertyArr,
vtkEdgeType edge
) [protected]

Protected method for adding edges of a certain directedness used by mutable subclasses. If propertyArr is non-null, it specifies the properties to be attached to the newly-created edge. If non-null, edge will receive the newly-added edge.

void vtkGraph::AddEdgeInternal ( vtkIdType  u,
const vtkVariant vPedigree,
bool  directed,
vtkVariantArray propertyArr,
vtkEdgeType edge
) [protected]

Protected method for adding edges of a certain directedness used by mutable subclasses. If propertyArr is non-null, it specifies the properties to be attached to the newly-created edge. If non-null, edge will receive the newly-added edge.

void vtkGraph::AddEdgeInternal ( const vtkVariant uPedigree,
const vtkVariant vPedigree,
bool  directed,
vtkVariantArray propertyArr,
vtkEdgeType edge
) [protected]

Protected method for adding edges of a certain directedness used by mutable subclasses. If propertyArr is non-null, it specifies the properties to be attached to the newly-created edge. If non-null, edge will receive the newly-added edge.

virtual bool vtkGraph::IsStructureValid ( vtkGraph g  )  [protected, pure virtual]

Subclasses override this method to accept the structure based on their requirements.

Implemented in vtkDirectedAcyclicGraph, vtkDirectedGraph, vtkTree, and vtkUndirectedGraph.

virtual void vtkGraph::CopyInternal ( vtkGraph g,
bool  deep
) [protected, virtual]

Copy internal data structure.

void vtkGraph::SetInternals ( vtkGraphInternals internals  )  [protected]

Private method for setting internals.

void vtkGraph::SetEdgePoints ( vtkGraphEdgePoints *  edgePoints  )  [protected]

Private method for setting edge points.

void vtkGraph::ForceOwnership (  )  [protected]

If this instance does not own its internals, it makes a copy of the internals. This is called before any write operation.

virtual void vtkGraph::GetOutEdges ( vtkIdType  v,
const vtkOutEdgeType *&  edges,
vtkIdType nedges
) [protected, virtual]

Fast access functions for iterators.

virtual void vtkGraph::GetInEdges ( vtkIdType  v,
const vtkInEdgeType *&  edges,
vtkIdType nedges
) [protected, virtual]

Fast access functions for iterators.

Reimplemented in vtkUndirectedGraph.

void vtkGraph::BuildEdgeList (  )  [protected]

Builds a mapping from edge id to source/target vertex id.

virtual vtkIdTypeArray* vtkGraph::GetEdgeList (  )  [protected, virtual]

The optional mapping from edge id to source/target ids.

virtual void vtkGraph::SetEdgeList ( vtkIdTypeArray list  )  [protected, virtual]

The optional mapping from edge id to source/target ids.


Friends And Related Function Documentation

friend class vtkAdjacentVertexIterator [friend]

Friend iterator classes. BTX

Definition at line 603 of file vtkGraph.h.

friend class vtkEdgeListIterator [friend]

Friend iterator classes. BTX

Definition at line 604 of file vtkGraph.h.

friend class vtkInEdgeIterator [friend]

Friend iterator classes. BTX

Definition at line 605 of file vtkGraph.h.

friend class vtkOutEdgeIterator [friend]

Friend iterator classes. BTX

Definition at line 606 of file vtkGraph.h.

friend class boost::vtk_edge_iterator [friend]

Friend iterator classes. BTX

Definition at line 607 of file vtkGraph.h.

friend class boost::vtk_in_edge_pointer_iterator [friend]

Friend iterator classes. BTX

Definition at line 608 of file vtkGraph.h.

friend class boost::vtk_out_edge_pointer_iterator [friend]

Friend iterator classes. BTX

Definition at line 609 of file vtkGraph.h.


Member Data Documentation

The adjacency list internals of this graph.

Definition at line 574 of file vtkGraph.h.

The distributed graph helper. Only non-NULL for distributed graphs.

Definition at line 577 of file vtkGraph.h.

vtkGraphEdgePoints* vtkGraph::EdgePoints [protected]

The structure for holding the edge points.

Definition at line 583 of file vtkGraph.h.

The vertex and edge data.

Definition at line 615 of file vtkGraph.h.

The vertex and edge data.

Definition at line 616 of file vtkGraph.h.

double vtkGraph::Bounds[6] [protected]

(xmin,xmax, ymin,ymax, zmin,zmax) geometric bounds.

Definition at line 620 of file vtkGraph.h.

Time at which bounds were computed.

Definition at line 623 of file vtkGraph.h.

The vertex locations.

Definition at line 627 of file vtkGraph.h.

double vtkGraph::DefaultPoint[3] [static, protected]

The vertex locations.

Definition at line 628 of file vtkGraph.h.

The optional mapping from edge id to source/target ids.

Definition at line 635 of file vtkGraph.h.


The documentation for this class was generated from the following file:

Generated on Wed Jun 3 19:06:11 2009 for VTK by  doxygen 1.5.6
