vtkHyperOctreeDualGridContourFilter Class Reference

#include <vtkHyperOctreeDualGridContourFilter.h>

Inheritance diagram for vtkHyperOctreeDualGridContourFilter:

Inheritance graph
[legend]

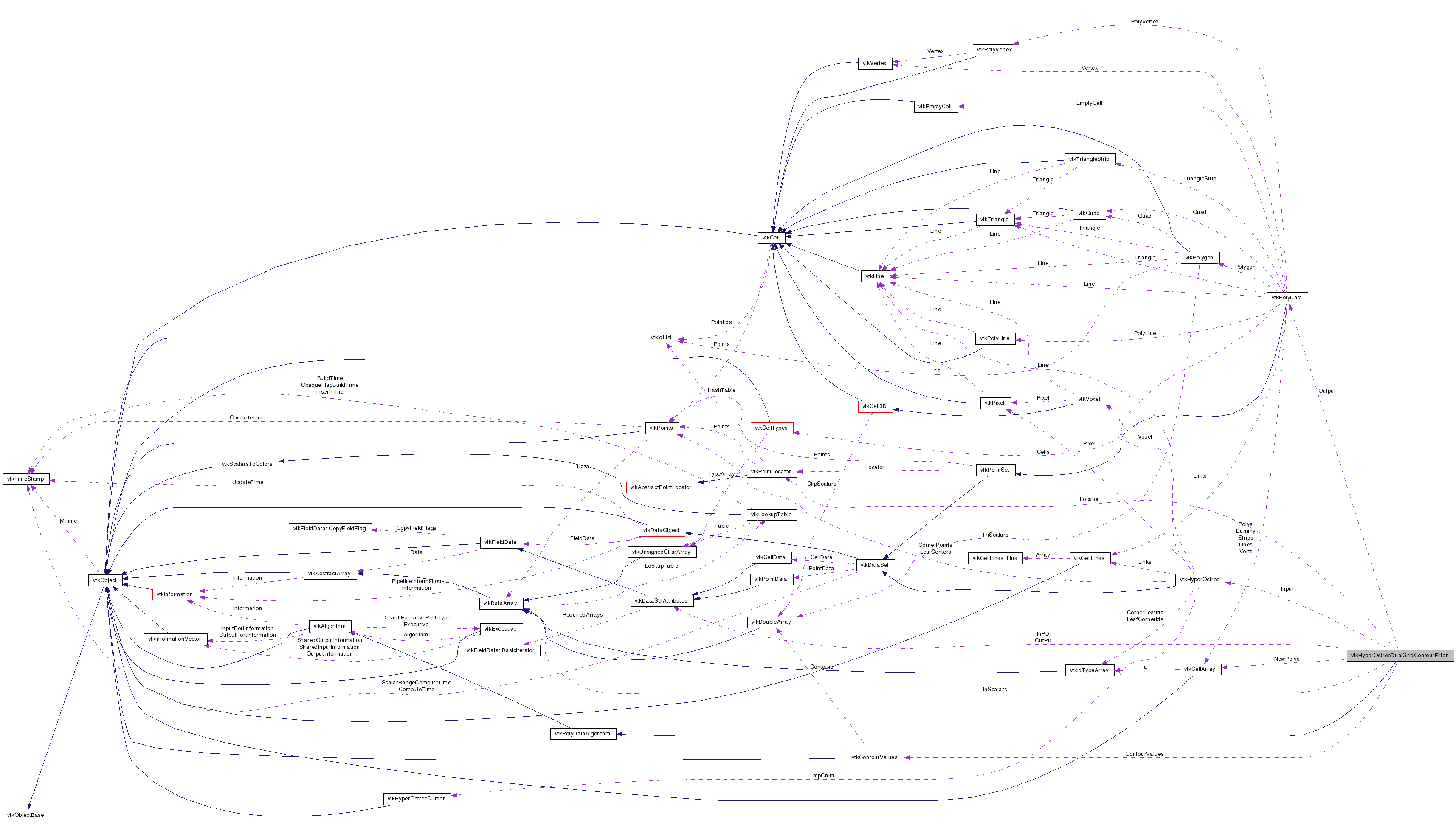

Collaboration diagram for vtkHyperOctreeDualGridContourFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

generate isosurfaces/isolines from scalar values

use of unsigned short to hold level index limits tree depth to 16.

To use this filter you must specify one or more contour values. You can either use the method SetValue() to specify each contour value, or use GenerateValues() to generate a series of evenly spaced contours. It is also possible to accelerate the operation of this filter (at the cost of extra memory) by using a vtkScalarTree. A scalar tree is used to quickly locate cells that contain a contour surface. This is especially effective if multiple contours are being extracted. If you want to use a scalar tree, invoke the method UseScalarTreeOn().

See also:
vtkMarchingContourFilter vtkKitwareContourFilter vtkMarchingCubes vtkSliceCubes vtkDividingCubes vtkMarchingSquares vtkImageMarchingCubes
Tests:
vtkHyperOctreeDualGridContourFilter (Tests)

Definition at line 59 of file vtkHyperOctreeDualGridContourFilter.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
unsigned long GetMTime ()
void CreateDefaultLocator ()
void SetValue (int i, double value)
double GetValue (int i)
double * GetValues ()
void GetValues (double *contourValues)
void SetNumberOfContours (int number)
int GetNumberOfContours ()
void GenerateValues (int numContours, double range[2])
void GenerateValues (int numContours, double rangeStart, double rangeEnd)
void SetLocator (vtkPointLocator *locator)
virtual vtkPointLocatorGetLocator ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static
vtkHyperOctreeDualGridContourFilter
SafeDownCast (vtkObject *o)
static
vtkHyperOctreeDualGridContourFilter
New ()

Protected Member Functions

 vtkHyperOctreeDualGridContourFilter ()
 ~vtkHyperOctreeDualGridContourFilter ()
virtual int RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)
void ContourNode ()
void TraverseNeighborhoodRecursively (vtkHyperOctreeLightWeightCursor *neighborhood, unsigned short *xyzIds)
void EvaluatePoint (vtkHyperOctreeLightWeightCursor *neighborhood, unsigned short *xyzIds)
void ContourNode1D ()
void GenerateTraversalTable ()

Protected Attributes

vtkContourValuesContourValues
vtkPointLocatorLocator
vtkHyperOctreeInput
vtkPolyDataOutput
vtkCellArrayNewPolys
vtkDataSetAttributesInPD
vtkDataSetAttributesOutPD
vtkDataArrayInScalars
double Origin [3]
double Size [3]
unsigned char NeighborhoodTraversalTable [64]

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 62 of file vtkHyperOctreeDualGridContourFilter.h.


Constructor & Destructor Documentation

vtkHyperOctreeDualGridContourFilter::vtkHyperOctreeDualGridContourFilter (  )  [protected]

vtkHyperOctreeDualGridContourFilter::~vtkHyperOctreeDualGridContourFilter (  )  [protected]


Member Function Documentation

virtual const char* vtkHyperOctreeDualGridContourFilter::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkHyperOctreeDualGridContourFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkHyperOctreeDualGridContourFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkHyperOctreeDualGridContourFilter* vtkHyperOctreeDualGridContourFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkHyperOctreeDualGridContourFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkHyperOctreeDualGridContourFilter* vtkHyperOctreeDualGridContourFilter::New (  )  [static]

Construct object with initial range (0,1) and single contour value of 0.0.

Reimplemented from vtkPolyDataAlgorithm.

void vtkHyperOctreeDualGridContourFilter::SetValue ( int  i,
double  value
) [inline]

Methods to set / get contour values.

Set a particular contour value at contour number i. The index i ranges between 0<=i<NumberOfContours.

Definition at line 74 of file vtkHyperOctreeDualGridContourFilter.h.

double vtkHyperOctreeDualGridContourFilter::GetValue ( int  i  )  [inline]

Get the ith contour value.

Definition at line 82 of file vtkHyperOctreeDualGridContourFilter.h.

double* vtkHyperOctreeDualGridContourFilter::GetValues (  )  [inline]

Get a pointer to an array of contour values. There will be GetNumberOfContours() values in the list.

Definition at line 91 of file vtkHyperOctreeDualGridContourFilter.h.

void vtkHyperOctreeDualGridContourFilter::GetValues ( double *  contourValues  )  [inline]

Fill a supplied list with contour values. There will be GetNumberOfContours() values in the list. Make sure you allocate enough memory to hold the list.

Definition at line 101 of file vtkHyperOctreeDualGridContourFilter.h.

void vtkHyperOctreeDualGridContourFilter::SetNumberOfContours ( int  number  )  [inline]

Set the number of contours to place into the list. You only really need to use this method to reduce list size. The method SetValue() will automatically increase list size as needed.

Definition at line 111 of file vtkHyperOctreeDualGridContourFilter.h.

int vtkHyperOctreeDualGridContourFilter::GetNumberOfContours (  )  [inline]

Get the number of contours in the list of contour values.

Definition at line 119 of file vtkHyperOctreeDualGridContourFilter.h.

void vtkHyperOctreeDualGridContourFilter::GenerateValues ( int  numContours,
double  range[2]
) [inline]

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values.

Definition at line 128 of file vtkHyperOctreeDualGridContourFilter.h.

void vtkHyperOctreeDualGridContourFilter::GenerateValues ( int  numContours,
double  rangeStart,
double  rangeEnd
) [inline]

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values.

Definition at line 137 of file vtkHyperOctreeDualGridContourFilter.h.

unsigned long vtkHyperOctreeDualGridContourFilter::GetMTime (  )  [virtual]

Modified GetMTime Because we delegate to vtkContourValues

Reimplemented from vtkObject.

void vtkHyperOctreeDualGridContourFilter::SetLocator ( vtkPointLocator locator  )

Set / get a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

virtual vtkPointLocator* vtkHyperOctreeDualGridContourFilter::GetLocator (  )  [virtual]

Set / get a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

void vtkHyperOctreeDualGridContourFilter::CreateDefaultLocator (  )

Create default locator. Used to create one when none is specified. The locator is used to merge coincident points.

virtual int vtkHyperOctreeDualGridContourFilter::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkHyperOctreeDualGridContourFilter::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkHyperOctreeDualGridContourFilter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.

void vtkHyperOctreeDualGridContourFilter::ContourNode (  )  [protected]

Do the recursive contour of the node pointed by Cursor.

void vtkHyperOctreeDualGridContourFilter::TraverseNeighborhoodRecursively ( vtkHyperOctreeLightWeightCursor neighborhood,
unsigned short *  xyzIds
) [protected]

void vtkHyperOctreeDualGridContourFilter::EvaluatePoint ( vtkHyperOctreeLightWeightCursor neighborhood,
unsigned short *  xyzIds
) [protected]

void vtkHyperOctreeDualGridContourFilter::ContourNode1D (  )  [protected]

void vtkHyperOctreeDualGridContourFilter::GenerateTraversalTable (  )  [protected]


Member Data Documentation

Definition at line 181 of file vtkHyperOctreeDualGridContourFilter.h.

Definition at line 182 of file vtkHyperOctreeDualGridContourFilter.h.

Definition at line 184 of file vtkHyperOctreeDualGridContourFilter.h.

Definition at line 185 of file vtkHyperOctreeDualGridContourFilter.h.

Definition at line 187 of file vtkHyperOctreeDualGridContourFilter.h.

Definition at line 189 of file vtkHyperOctreeDualGridContourFilter.h.

Definition at line 190 of file vtkHyperOctreeDualGridContourFilter.h.

Definition at line 191 of file vtkHyperOctreeDualGridContourFilter.h.

Definition at line 194 of file vtkHyperOctreeDualGridContourFilter.h.

Definition at line 195 of file vtkHyperOctreeDualGridContourFilter.h.

Definition at line 201 of file vtkHyperOctreeDualGridContourFilter.h.


The documentation for this class was generated from the following file:
