vtkHyperOctreeToUniformGridFilter Class Reference

#include <vtkHyperOctreeToUniformGridFilter.h>

Inheritance diagram for vtkHyperOctreeToUniformGridFilter:

[legend]

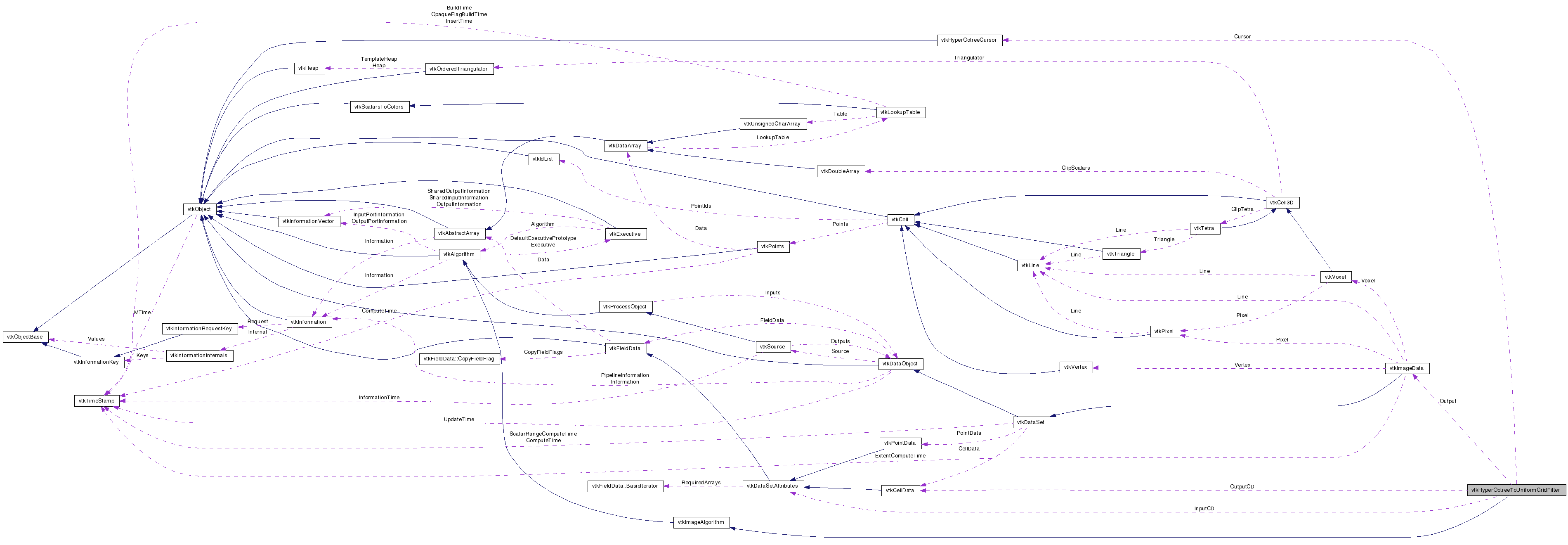

Collaboration diagram for vtkHyperOctreeToUniformGridFilter:

[legend]

List of all members.

Detailed Description

Flat the octree into a uniform grid.

vtkHyperOctreeToUniformGridFilter creates a uniform grid with a resolution based on the number of levels of the hyperoctree. Then, it copies celldata in each cell of the uniform grid that belongs to an actual leaf of the hyperoctree.

See also:: vtkGeometryFilter vtkStructuredGridGeometryFilter.

Tests:: vtkHyperOctreeToUniformGridFilter (Tests)

Definition at line 40 of file vtkHyperOctreeToUniformGridFilter.h.


Public Types
typedef vtkImageAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static vtkHyperOctreeToUniformGridFilter *	New ()
static int	IsTypeOf (const char *type)
static vtkHyperOctreeToUniformGridFilter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkHyperOctreeToUniformGridFilter ()
	~vtkHyperOctreeToUniformGridFilter ()
int	RequestInformation (vtkInformation vtkNotUsed(request), vtkInformationVector inputVector, vtkInformationVector outputVector)
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	FillInputPortInformation (int port, vtkInformation *info)
void	CopyCellData (int cellExtent[6])
Protected Attributes
vtkDataSetAttributes *	InputCD
vtkCellData *	OutputCD
vtkHyperOctreeCursor *	Cursor
int	YExtent
int	ZExtent
vtkImageData *	Output

Member Typedef Documentation

typedef vtkImageAlgorithm vtkHyperOctreeToUniformGridFilter::Superclass

Reimplemented from vtkImageAlgorithm.

Definition at line 44 of file vtkHyperOctreeToUniformGridFilter.h.

Constructor & Destructor Documentation

vtkHyperOctreeToUniformGridFilter::vtkHyperOctreeToUniformGridFilter ( ) [protected]

vtkHyperOctreeToUniformGridFilter::~vtkHyperOctreeToUniformGridFilter ( ) [protected]

Member Function Documentation

static vtkHyperOctreeToUniformGridFilter* vtkHyperOctreeToUniformGridFilter::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkHyperOctreeToUniformGridFilter::GetClassName ( ) [virtual]

Reimplemented from vtkImageAlgorithm.

static int vtkHyperOctreeToUniformGridFilter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

virtual int vtkHyperOctreeToUniformGridFilter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

static vtkHyperOctreeToUniformGridFilter* vtkHyperOctreeToUniformGridFilter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkImageAlgorithm.

void vtkHyperOctreeToUniformGridFilter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

int vtkHyperOctreeToUniformGridFilter::RequestInformation	(	vtkInformation *	vtkNotUsedrequest,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected]`

virtual int vtkHyperOctreeToUniformGridFilter::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`

This is called by the superclass. This is the method you should override.

Reimplemented from vtkImageAlgorithm.

virtual int vtkHyperOctreeToUniformGridFilter::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkImageAlgorithm.

void vtkHyperOctreeToUniformGridFilter::CopyCellData ( int cellExtent[6] ) [protected]
