vtkIdFilter Class Reference

#include <vtkIdFilter.h>

Inheritance diagram for vtkIdFilter:

Inheritance graph
[legend]

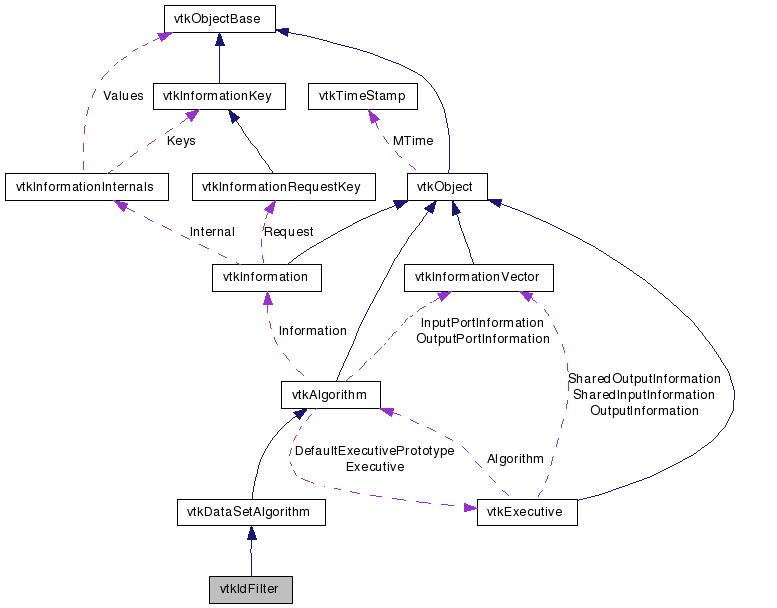

Collaboration diagram for vtkIdFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

generate scalars or field data from point and cell ids

vtkIdFilter is a filter to that generates scalars or field data using cell and point ids. That is, the point attribute data scalars or field data are generated from the point ids, and the cell attribute data scalars or field data are generated from the the cell ids.

Typically this filter is used with vtkLabeledDataMapper (and possibly vtkSelectVisiblePoints) to create labels for points and cells, or labels for the point or cell data scalar values.

Tests:
vtkIdFilter (Tests)

Definition at line 37 of file vtkIdFilter.h.


Public Types

typedef vtkDataSetAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetPointIds (int)
virtual int GetPointIds ()
virtual void PointIdsOn ()
virtual void PointIdsOff ()
virtual void SetCellIds (int)
virtual int GetCellIds ()
virtual void CellIdsOn ()
virtual void CellIdsOff ()
virtual void SetFieldData (int)
virtual int GetFieldData ()
virtual void FieldDataOn ()
virtual void FieldDataOff ()
virtual void SetIdsArrayName (const char *)
virtual char * GetIdsArrayName ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkIdFilterSafeDownCast (vtkObject *o)
static vtkIdFilterNew ()

Protected Member Functions

 vtkIdFilter ()
 ~vtkIdFilter ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

int PointIds
int CellIds
int FieldData
char * IdsArrayName

Member Typedef Documentation

Reimplemented from vtkDataSetAlgorithm.

Definition at line 40 of file vtkIdFilter.h.


Constructor & Destructor Documentation

vtkIdFilter::vtkIdFilter (  )  [protected]

vtkIdFilter::~vtkIdFilter (  )  [protected]


Member Function Documentation

virtual const char* vtkIdFilter::GetClassName (  )  [virtual]

Reimplemented from vtkDataSetAlgorithm.

static int vtkIdFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkIdFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkIdFilter* vtkIdFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataSetAlgorithm.

void vtkIdFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

static vtkIdFilter* vtkIdFilter::New (  )  [static]

Construct object with PointIds and CellIds on; and ids being generated as scalars.

Reimplemented from vtkDataSetAlgorithm.

virtual void vtkIdFilter::SetPointIds ( int   )  [virtual]

Enable/disable the generation of point ids.

virtual int vtkIdFilter::GetPointIds (  )  [virtual]

Enable/disable the generation of point ids.

virtual void vtkIdFilter::PointIdsOn (  )  [virtual]

Enable/disable the generation of point ids.

virtual void vtkIdFilter::PointIdsOff (  )  [virtual]

Enable/disable the generation of point ids.

virtual void vtkIdFilter::SetCellIds ( int   )  [virtual]

Enable/disable the generation of point ids.

virtual int vtkIdFilter::GetCellIds (  )  [virtual]

Enable/disable the generation of point ids.

virtual void vtkIdFilter::CellIdsOn (  )  [virtual]

Enable/disable the generation of point ids.

virtual void vtkIdFilter::CellIdsOff (  )  [virtual]

Enable/disable the generation of point ids.

virtual void vtkIdFilter::SetFieldData ( int   )  [virtual]

Set/Get the flag which controls whether to generate scalar data or field data. If this flag is off, scalar data is generated. Otherwise, field data is generated.

virtual int vtkIdFilter::GetFieldData (  )  [virtual]

Set/Get the flag which controls whether to generate scalar data or field data. If this flag is off, scalar data is generated. Otherwise, field data is generated.

virtual void vtkIdFilter::FieldDataOn (  )  [virtual]

Set/Get the flag which controls whether to generate scalar data or field data. If this flag is off, scalar data is generated. Otherwise, field data is generated.

virtual void vtkIdFilter::FieldDataOff (  )  [virtual]

Set/Get the flag which controls whether to generate scalar data or field data. If this flag is off, scalar data is generated. Otherwise, field data is generated.

virtual void vtkIdFilter::SetIdsArrayName ( const char *   )  [virtual]

Set/Get the name of the Ids array if generated. By default the Ids are named "vtkIdFilter_Ids", but this can be changed with this function.

virtual char* vtkIdFilter::GetIdsArrayName (  )  [virtual]

Set/Get the name of the Ids array if generated. By default the Ids are named "vtkIdFilter_Ids", but this can be changed with this function.

int vtkIdFilter::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.


Member Data Documentation

int vtkIdFilter::PointIds [protected]

Definition at line 84 of file vtkIdFilter.h.

int vtkIdFilter::CellIds [protected]

Definition at line 85 of file vtkIdFilter.h.

int vtkIdFilter::FieldData [protected]

Definition at line 86 of file vtkIdFilter.h.

char* vtkIdFilter::IdsArrayName [protected]

Definition at line 87 of file vtkIdFilter.h.


The documentation for this class was generated from the following file:
