vtkLabeledDataMapper Class Reference

#include <vtkLabeledDataMapper.h>

Inheritance diagram for vtkLabeledDataMapper:

[legend]

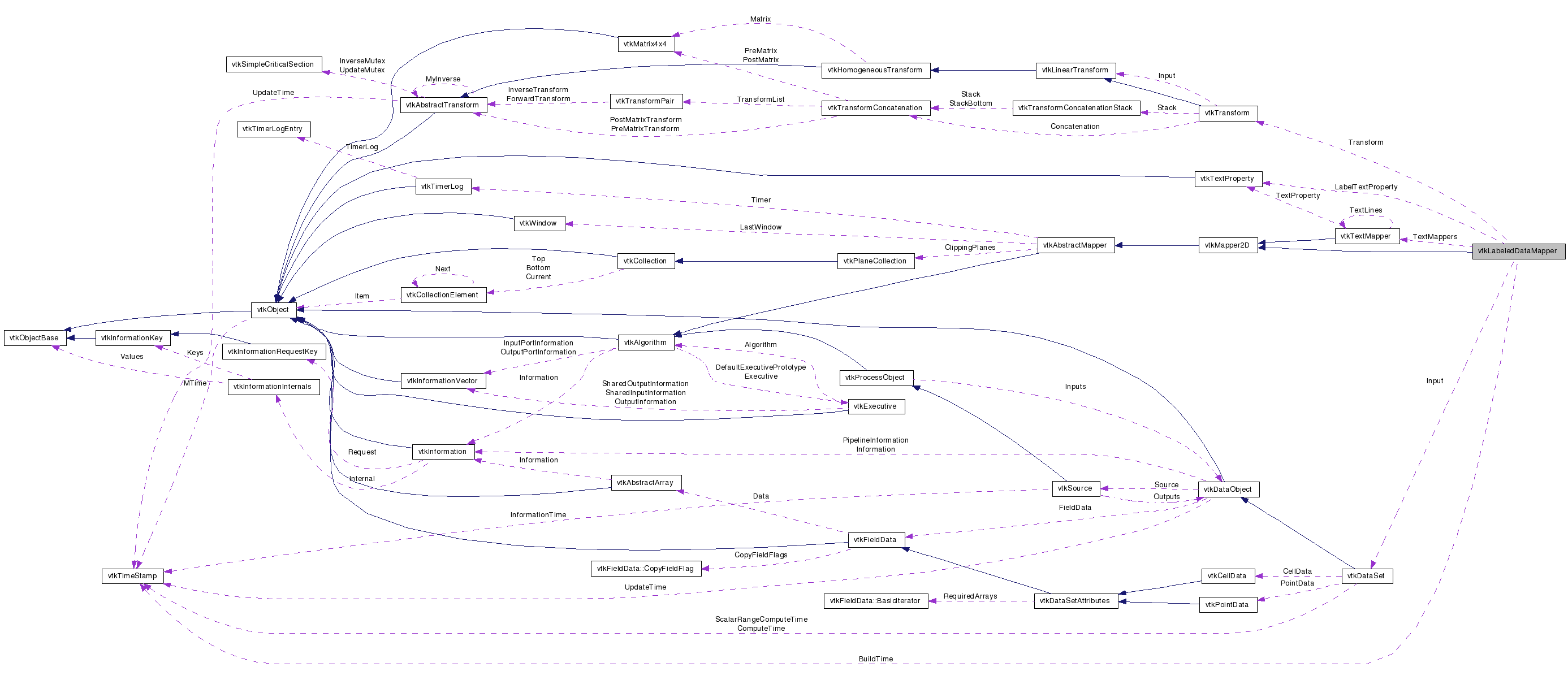

Collaboration diagram for vtkLabeledDataMapper:

[legend]

List of all members.

Detailed Description

draw text labels at dataset points

vtkLabeledDataMapper is a mapper that renders text at dataset points. Various items can be labeled including point ids, scalars, vectors, normals, texture coordinates, tensors, and field data components.

The format with which the label is drawn is specified using a printf style format string. The font attributes of the text can be set through the vtkTextProperty associated to this mapper.

By default, all the components of multi-component data such as vectors, normals, texture coordinates, tensors, and multi-component scalars are labeled. However, you can specify a single component if you prefer. (Note: the label format specifies the format to use for a single component. The label is creating by looping over all components and using the label format to render each component.)

Warning:: Use this filter in combination with vtkSelectVisiblePoints if you want to label only points that are visible. If you want to label cells rather than points, use the filter vtkCellCenters to generate points at the center of the cells. Also, you can use the class vtkIdFilter to generate ids as scalars or field data, which can then be labeled.

See also:: vtkMapper2D vtkActor2D vtkTextMapper vtkTextProperty vtkSelectVisiblePoints vtkIdFilter vtkCellCenters

Tests:: vtkLabeledDataMapper (Tests)

Definition at line 67 of file vtkLabeledDataMapper.h.


Public Types
typedef vtkMapper2D	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetInput (vtkDataObject *)
vtkDataSet *	GetInput ()
virtual void	ReleaseGraphicsResources (vtkWindow *)

virtual void	SetLabelFormat (const char *)
virtual char *	GetLabelFormat ()

virtual void	SetLabeledComponent (int)
virtual int	GetLabeledComponent ()

void	SetFieldDataArray (int arrayIndex)
virtual int	GetFieldDataArray ()

void	SetFieldDataName (const char *arrayName)
virtual char *	GetFieldDataName ()

virtual void	SetLabelMode (int)
virtual int	GetLabelMode ()
void	SetLabelModeToLabelIds ()
void	SetLabelModeToLabelScalars ()
void	SetLabelModeToLabelVectors ()
void	SetLabelModeToLabelNormals ()
void	SetLabelModeToLabelTCoords ()
void	SetLabelModeToLabelTensors ()
void	SetLabelModeToLabelFieldData ()

virtual void	SetLabelTextProperty (vtkTextProperty *p)
virtual vtkTextProperty *	GetLabelTextProperty ()

void	RenderOpaqueGeometry (vtkViewport viewport, vtkActor2D actor)
void	RenderOverlay (vtkViewport viewport, vtkActor2D actor)

virtual vtkTransform *	GetTransform ()
void	SetTransform (vtkTransform *t)
Static Public Member Functions
static vtkLabeledDataMapper *	New ()
static int	IsTypeOf (const char *type)
static vtkLabeledDataMapper *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkLabeledDataMapper ()
	~vtkLabeledDataMapper ()
virtual int	FillInputPortInformation (int, vtkInformation *)
void	AllocateLabels (int numLabels)
void	BuildLabels ()
void	BuildLabelsInternal (vtkDataSet *)
Protected Attributes
vtkDataSet *	Input
vtkTextProperty *	LabelTextProperty
char *	LabelFormat
int	LabelMode
int	LabeledComponent
int	FieldDataArray
char *	FieldDataName
vtkTimeStamp	BuildTime
int	NumberOfLabels
int	NumberOfLabelsAllocated
vtkTextMapper **	TextMappers
double *	LabelPositions
vtkTransform *	Transform

Member Typedef Documentation

typedef vtkMapper2D vtkLabeledDataMapper::Superclass

Reimplemented from vtkMapper2D.

Reimplemented in vtkLabeledTreeMapDataMapper, and vtkDynamic2DLabelMapper.

Definition at line 74 of file vtkLabeledDataMapper.h.

Constructor & Destructor Documentation

vtkLabeledDataMapper::vtkLabeledDataMapper ( ) [protected]

vtkLabeledDataMapper::~vtkLabeledDataMapper ( ) [protected]

Member Function Documentation

static vtkLabeledDataMapper* vtkLabeledDataMapper::New ( ) [static]

Instantiate object with %-#6.3g label format. By default, point ids are labeled.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkLabeledTreeMapDataMapper, and vtkDynamic2DLabelMapper.

virtual const char* vtkLabeledDataMapper::GetClassName ( ) [virtual]

Reimplemented from vtkMapper2D.

Reimplemented in vtkLabeledTreeMapDataMapper, and vtkDynamic2DLabelMapper.

static int vtkLabeledDataMapper::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMapper2D.

Reimplemented in vtkLabeledTreeMapDataMapper, and vtkDynamic2DLabelMapper.

virtual int vtkLabeledDataMapper::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMapper2D.

Reimplemented in vtkLabeledTreeMapDataMapper, and vtkDynamic2DLabelMapper.

static vtkLabeledDataMapper* vtkLabeledDataMapper::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkMapper2D.

Reimplemented in vtkLabeledTreeMapDataMapper, and vtkDynamic2DLabelMapper.

void vtkLabeledDataMapper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMapper2D.

Reimplemented in vtkLabeledTreeMapDataMapper, and vtkDynamic2DLabelMapper.

virtual void vtkLabeledDataMapper::SetLabelFormat ( const char * ) [virtual]

Set/Get the format with which to print the labels. This should be a printf-style format string. By default, the mapper will try to print each component of the tuple using a sane format: d for integers, f for floats, g for doubles, ld for longs, et cetera. If you need a different format, set it here. You can do things like limit the number of significant digits, add prefixes/suffixes, basically anything that printf can do. If you only want to print one component of a vector, see the ivar LabeledComponent.

virtual char* vtkLabeledDataMapper::GetLabelFormat ( ) [virtual]

Set/Get the format with which to print the labels. This should be a printf-style format string. By default, the mapper will try to print each component of the tuple using a sane format: d for integers, f for floats, g for doubles, ld for longs, et cetera. If you need a different format, set it here. You can do things like limit the number of significant digits, add prefixes/suffixes, basically anything that printf can do. If you only want to print one component of a vector, see the ivar LabeledComponent.

virtual void vtkLabeledDataMapper::SetLabeledComponent ( int ) [virtual]

Set/Get the component number to label if the data to print has more than one component. For example, all the components of scalars, vectors, normals, etc. are labeled by default (LabeledComponent=(-1)). However, if this ivar is nonnegative, then only the one component specified is labeled.

virtual int vtkLabeledDataMapper::GetLabeledComponent ( ) [virtual]

Set/Get the component number to label if the data to print has more than one component. For example, all the components of scalars, vectors, normals, etc. are labeled by default (LabeledComponent=(-1)). However, if this ivar is nonnegative, then only the one component specified is labeled.

void vtkLabeledDataMapper::SetFieldDataArray ( int arrayIndex )

Set/Get the field data array to label. This instance variable is only applicable if field data is labeled. This will clear FieldDataName when set.

virtual int vtkLabeledDataMapper::GetFieldDataArray ( ) [virtual]

Set/Get the field data array to label. This instance variable is only applicable if field data is labeled. This will clear FieldDataName when set.

void vtkLabeledDataMapper::SetFieldDataName ( const char * arrayName )

Set/Get the name of the field data array to label. This instance variable is only applicable if field data is labeled. This will override FieldDataArray when set.

virtual char* vtkLabeledDataMapper::GetFieldDataName ( ) [virtual]

Set/Get the name of the field data array to label. This instance variable is only applicable if field data is labeled. This will override FieldDataArray when set.

virtual void vtkLabeledDataMapper::SetInput ( vtkDataObject * ) [virtual]

Set the input dataset to the mapper. This mapper handles any type of data.

vtkDataSet* vtkLabeledDataMapper::GetInput ( )

Use GetInputDataObject() to get the input data object for composite datasets.

virtual void vtkLabeledDataMapper::SetLabelMode ( int ) [virtual]
