vtkImageConstantPad Class Reference

#include <vtkImageConstantPad.h>

Inheritance diagram for vtkImageConstantPad:

Inheritance graph
[legend]

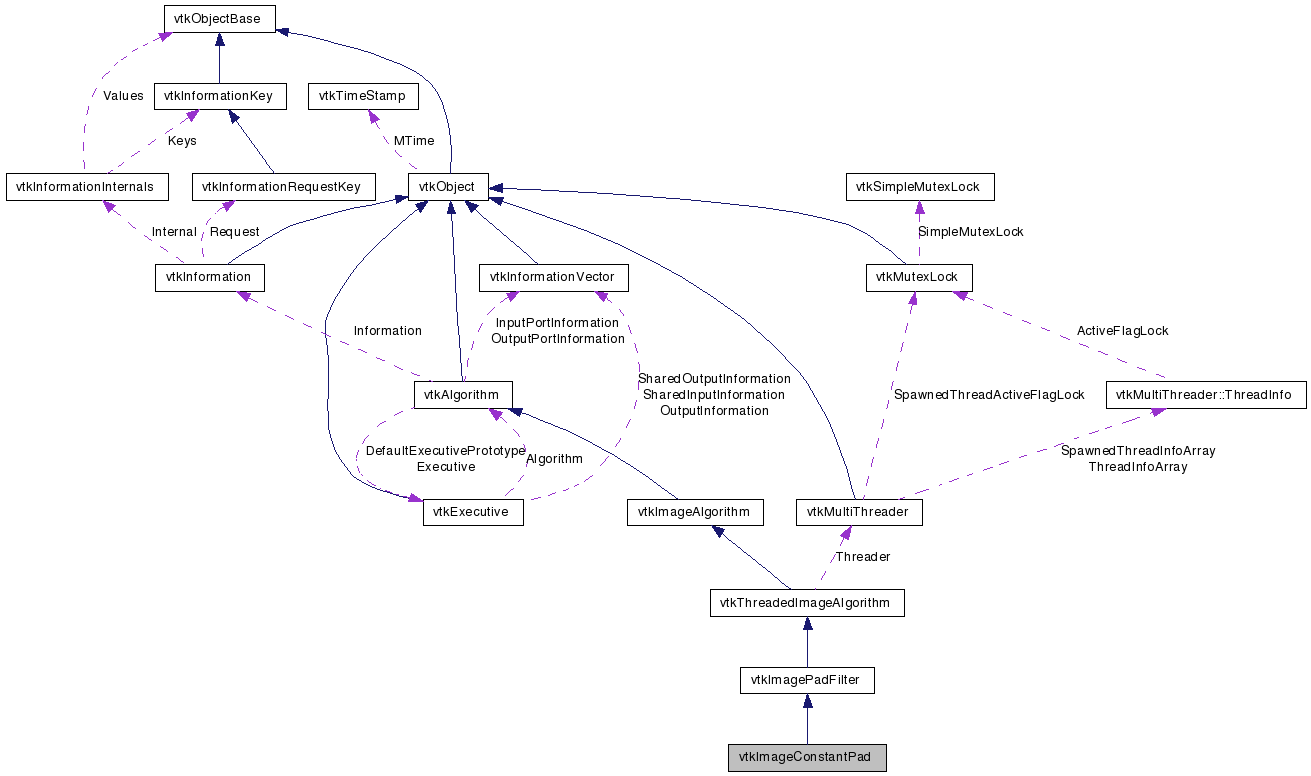

Collaboration diagram for vtkImageConstantPad:

Collaboration graph
[legend]

List of all members.


Detailed Description

Makes image larger by padding with constant.

vtkImageConstantPad changes the image extent of its input. Any pixels outside of the original image extent are filled with a constant value (default is 0.0).

See also:
vtkImageWrapPad vtkImageMirrorPad
Tests:
vtkImageConstantPad (Tests)

Definition at line 35 of file vtkImageConstantPad.h.


Public Types

typedef vtkImagePadFilter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetConstant (double)
virtual double GetConstant ()

Static Public Member Functions

static vtkImageConstantPadNew ()
static int IsTypeOf (const char *type)
static vtkImageConstantPadSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageConstantPad ()
 ~vtkImageConstantPad ()
void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int ext[6], int id)

Protected Attributes

double Constant

Member Typedef Documentation

Reimplemented from vtkImagePadFilter.

Definition at line 39 of file vtkImageConstantPad.h.


Constructor & Destructor Documentation

vtkImageConstantPad::vtkImageConstantPad (  )  [protected]

vtkImageConstantPad::~vtkImageConstantPad (  )  [inline, protected]

Definition at line 52 of file vtkImageConstantPad.h.


Member Function Documentation

static vtkImageConstantPad* vtkImageConstantPad::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkImagePadFilter.

virtual const char* vtkImageConstantPad::GetClassName (  )  [virtual]

Reimplemented from vtkImagePadFilter.

static int vtkImageConstantPad::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImagePadFilter.

virtual int vtkImageConstantPad::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImagePadFilter.

static vtkImageConstantPad* vtkImageConstantPad::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImagePadFilter.

void vtkImageConstantPad::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImagePadFilter.

virtual void vtkImageConstantPad::SetConstant ( double   )  [virtual]

Set/Get the pad value.

virtual double vtkImageConstantPad::GetConstant (  )  [virtual]

Set/Get the pad value.

void vtkImageConstantPad::ThreadedRequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
) [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

double vtkImageConstantPad::Constant [protected]

Definition at line 52 of file vtkImageConstantPad.h.


The documentation for this class was generated from the following file:
