vtkThreadedImageAlgorithm Class Reference

#include <vtkThreadedImageAlgorithm.h>

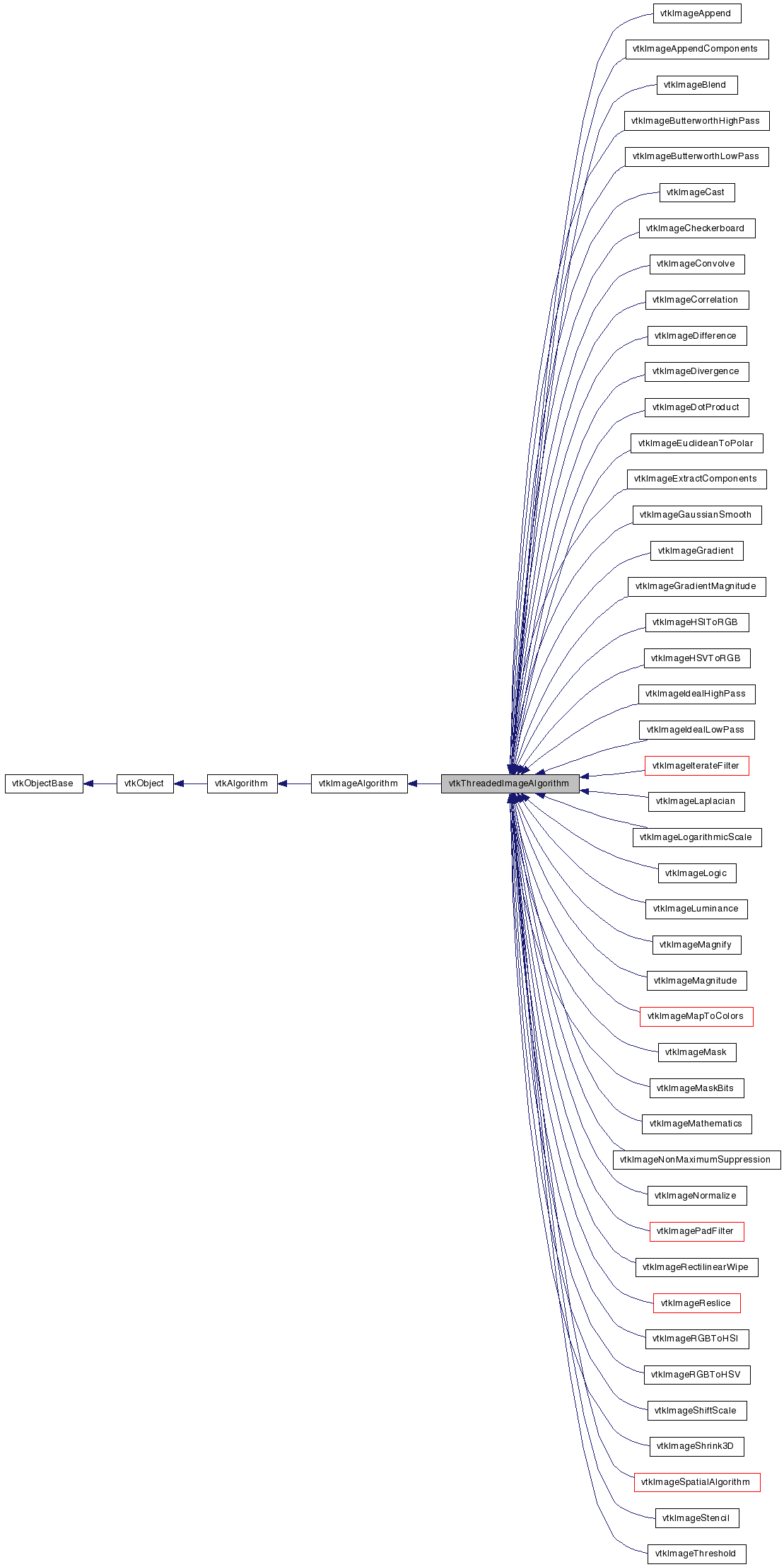

Inheritance diagram for vtkThreadedImageAlgorithm:

Inheritance graph
[legend]

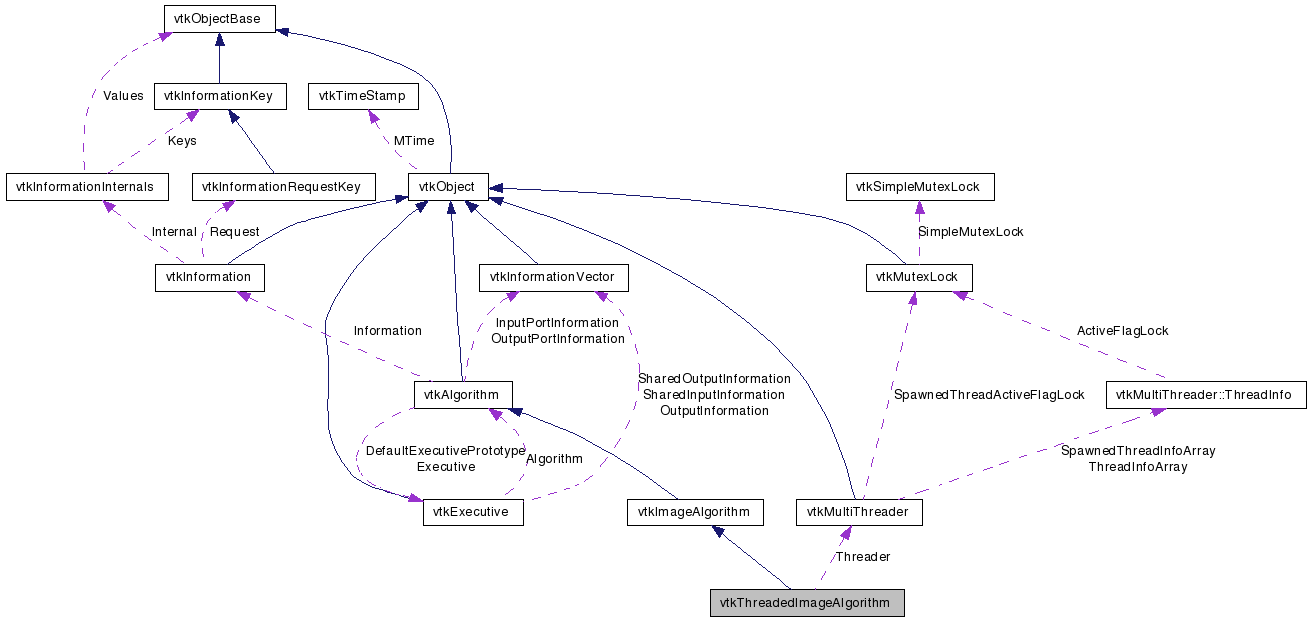

Collaboration diagram for vtkThreadedImageAlgorithm:

Collaboration graph
[legend]

List of all members.


Detailed Description

Generic filter that has one input..

vtkThreadedImageAlgorithm is a filter superclass that hides much of the pipeline complexity. It handles breaking the pipeline execution into smaller extents so that the vtkImageData limits are observed. It also provides support for multithreading. If you don't need any of this functionality, consider using vtkSimpleImageToImageAlgorithm instead.

See also:
vtkSimpleImageToImageAlgorithm

Definition at line 35 of file vtkThreadedImageAlgorithm.h.


Public Types

typedef vtkImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int extent[6], int threadId)
virtual void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int threadId)
virtual void SetNumberOfThreads (int)
virtual int GetNumberOfThreads ()
virtual int SplitExtent (int splitExt[6], int startExt[6], int num, int total)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkThreadedImageAlgorithmSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkThreadedImageAlgorithm ()
 ~vtkThreadedImageAlgorithm ()
virtual int RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)

Protected Attributes

vtkMultiThreaderThreader
int NumberOfThreads

Member Typedef Documentation

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, vtkImageWeightedSum, and vtkImageWrapPad.

Definition at line 38 of file vtkThreadedImageAlgorithm.h.


Constructor & Destructor Documentation

vtkThreadedImageAlgorithm::vtkThreadedImageAlgorithm (  )  [protected]

vtkThreadedImageAlgorithm::~vtkThreadedImageAlgorithm (  )  [protected]


Member Function Documentation

virtual const char* vtkThreadedImageAlgorithm::GetClassName (  )  [virtual]

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, vtkImageWeightedSum, and vtkImageWrapPad.

static int vtkThreadedImageAlgorithm::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, vtkImageWeightedSum, and vtkImageWrapPad.

virtual int vtkThreadedImageAlgorithm::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, vtkImageWeightedSum, and vtkImageWrapPad.

static vtkThreadedImageAlgorithm* vtkThreadedImageAlgorithm::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, vtkImageWeightedSum, and vtkImageWrapPad.

void vtkThreadedImageAlgorithm::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFlip, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageMagnify, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageNonMaximumSuppression, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, and vtkImageWeightedSum.

virtual void vtkThreadedImageAlgorithm::ThreadedRequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
) [virtual]

virtual void vtkThreadedImageAlgorithm::ThreadedExecute ( vtkImageData inData,
vtkImageData outData,
int  extent[6],
int  threadId
) [virtual]

virtual void vtkThreadedImageAlgorithm::SetNumberOfThreads ( int   )  [virtual]

Get/Set the number of threads to create when rendering

virtual int vtkThreadedImageAlgorithm::GetNumberOfThreads (  )  [virtual]

Get/Set the number of threads to create when rendering

virtual int vtkThreadedImageAlgorithm::SplitExtent ( int  splitExt[6],
int  startExt[6],
int  num,
int  total
) [virtual]

Putting this here until I merge graphics and imaging streaming.

Reimplemented in vtkImageEuclideanDistance, vtkImageFFT, and vtkImageRFFT.

virtual int vtkThreadedImageAlgorithm::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]


Member Data Documentation

Definition at line 75 of file vtkThreadedImageAlgorithm.h.

Definition at line 76 of file vtkThreadedImageAlgorithm.h.


The documentation for this class was generated from the following file:
