vtkImageContinuousErode3D Class Reference

#include <vtkImageContinuousErode3D.h>

Inheritance diagram for vtkImageContinuousErode3D:

[legend]

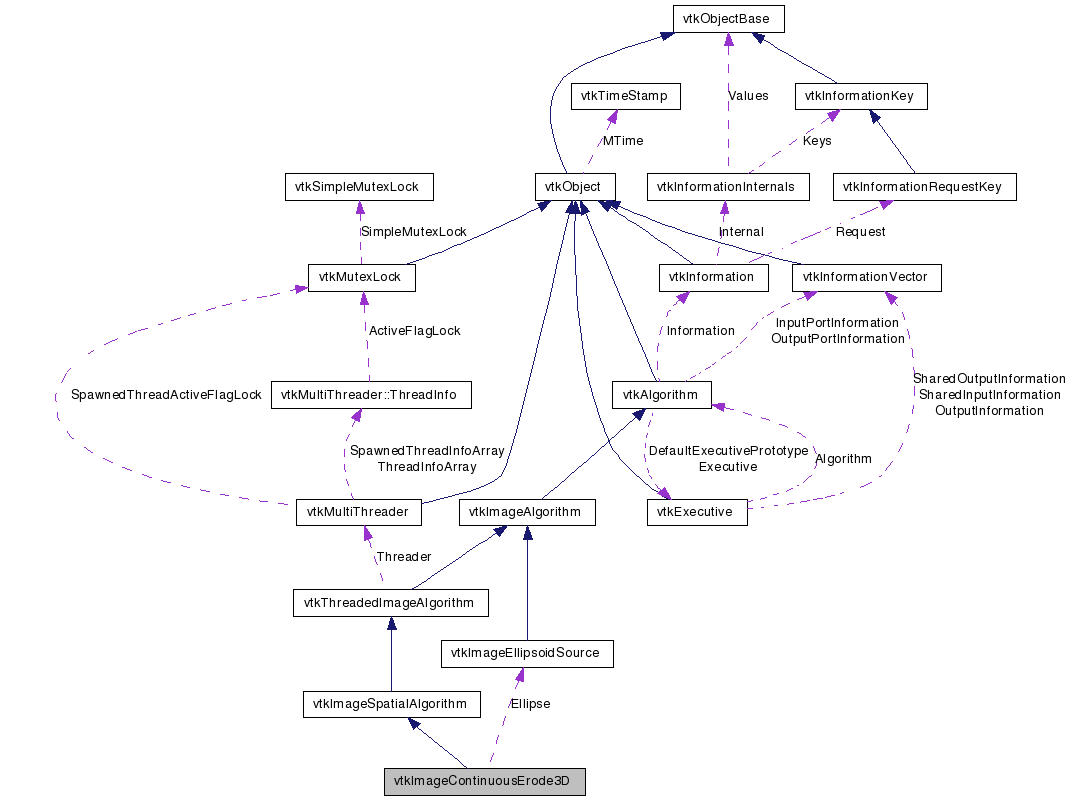

Collaboration diagram for vtkImageContinuousErode3D:

[legend]

List of all members.

---

Detailed Description

Erosion implemented as a minimum.

vtkImageContinuousErode3D replaces a pixel with the minimum over an ellipsoidal neighborhood. If KernelSize of an axis is 1, no processing is done on that axis.

Tests:

vtkImageContinuousErode3D (Tests)

Definition at line 34 of file vtkImageContinuousErode3D.h.

typedef vtkImageSpatialAlgorithm	Superclass
static vtkImageContinuousErode3D *	New ()
static int	IsTypeOf (const char *type)
static vtkImageContinuousErode3D *	SafeDownCast (vtkObject *o)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Public Member Functions
void	SetKernelSize (int size0, int size1, int size2)
Protected Member Functions
	vtkImageContinuousErode3D ()
	~vtkImageContinuousErode3D ()
void	ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int id)
virtual int	RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
Protected Attributes
vtkImageEllipsoidSource *	Ellipse

---

Member Typedef Documentation

typedef vtkImageSpatialAlgorithm vtkImageContinuousErode3D::Superclass

Construct an instance of vtkImageContinuousErode3D filter. By default zero values are eroded.

Reimplemented from vtkImageSpatialAlgorithm.

Definition at line 41 of file vtkImageContinuousErode3D.h.

---

Constructor & Destructor Documentation

vtkImageContinuousErode3D::vtkImageContinuousErode3D

(

)

[protected]

vtkImageContinuousErode3D::~vtkImageContinuousErode3D

(

)

[protected]

---

Member Function Documentation

static vtkImageContinuousErode3D* vtkImageContinuousErode3D::New

(

)

[static]

Construct an instance of vtkImageContinuousErode3D filter. By default zero values are eroded.

Reimplemented from vtkImageSpatialAlgorithm.

virtual const char* vtkImageContinuousErode3D::GetClassName

(

)

[virtual]

Construct an instance of vtkImageContinuousErode3D filter. By default zero values are eroded.

Reimplemented from vtkImageSpatialAlgorithm.

static int vtkImageContinuousErode3D::IsTypeOf

(

const char *

type

)

[static]

Construct an instance of vtkImageContinuousErode3D filter. By default zero values are eroded.

Reimplemented from vtkImageSpatialAlgorithm.

virtual int vtkImageContinuousErode3D::IsA

(

const char *

type

)

[virtual]

Construct an instance of vtkImageContinuousErode3D filter. By default zero values are eroded.

Reimplemented from vtkImageSpatialAlgorithm.

static vtkImageContinuousErode3D* vtkImageContinuousErode3D::SafeDownCast

(

vtkObject *

o

)

[static]

Construct an instance of vtkImageContinuousErode3D filter. By default zero values are eroded.

Reimplemented from vtkImageSpatialAlgorithm.

void vtkImageContinuousErode3D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Construct an instance of vtkImageContinuousErode3D filter. By default zero values are eroded.

Reimplemented from vtkImageSpatialAlgorithm.

void vtkImageContinuousErode3D::SetKernelSize	(	int	size0,
		int	size1,
		int	size2
	)

This method sets the size of the neighborhood. It also sets the default middle of the neighborhood and computes the elliptical foot print.

void vtkImageContinuousErode3D::ThreadedRequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector,
		vtkImageData ***	inData,
		vtkImageData **	outData,
		int	extent[6],
		int	threadId
	)			[protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageContinuousErode3D::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkThreadedImageAlgorithm.

---

Member Data Documentation

vtkImageEllipsoidSource* vtkImageContinuousErode3D::Ellipse [protected]

Definition at line 54 of file vtkImageContinuousErode3D.h.

---

The documentation for this class was generated from the following file:

• dox/Imaging/vtkImageContinuousErode3D.h
