vtkImageDifference Class Reference

#include <vtkImageDifference.h>

Inheritance diagram for vtkImageDifference:

Inheritance graph
[legend]

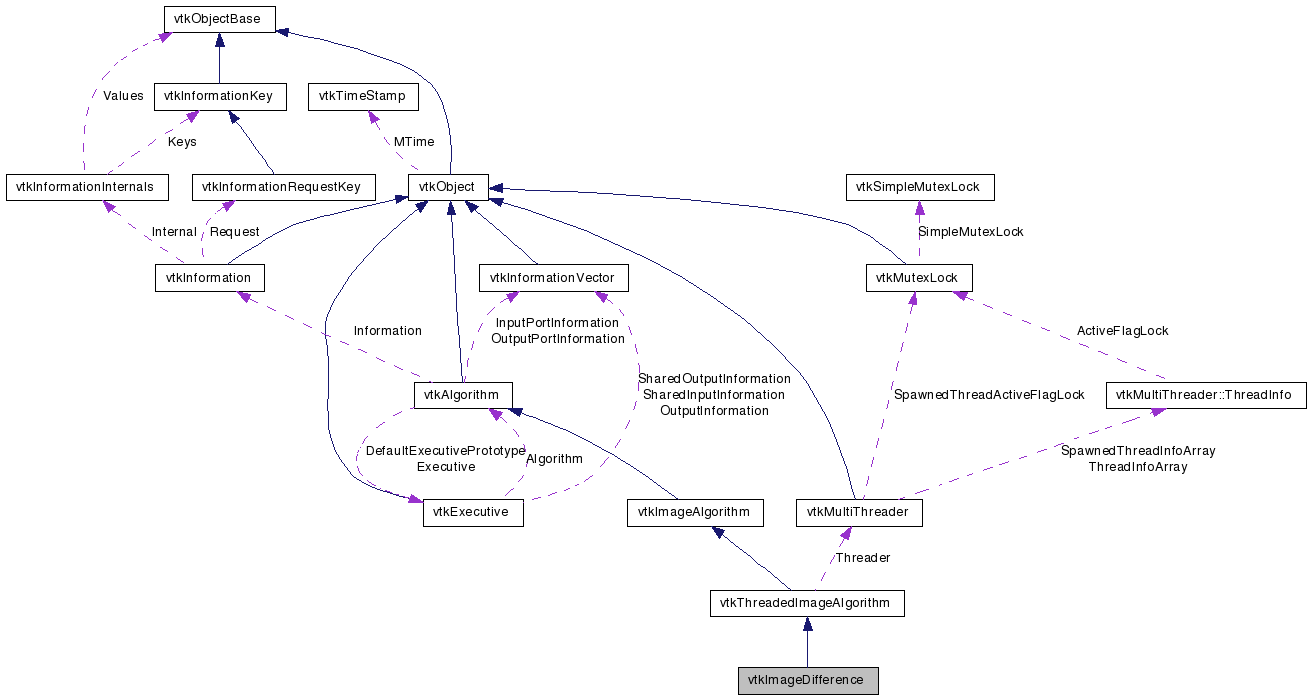

Collaboration diagram for vtkImageDifference:

Collaboration graph
[legend]

List of all members.


Detailed Description

Compares images for regression tests.

vtkImageDifference takes two rgb unsigned char images and compares them. It allows the images to be slightly different. If AllowShift is on, then each pixel can be shifted by one pixel. Threshold is the allowable error for each pixel.

This is not a symetric filter and the difference computed is not symetric when AllowShift is on. Specifically in that case a pixel in SetImage input will be compared to the matching pixel in the input as well as to the input's eight connected neighbors. BUT... the opposite is not true. So for example if a valid image (SetImage) has a single white pixel in it, it will not find a match in the input image if the input image is black (because none of the nine suspect pixels are white). In contrast, if there is a single white pixel in the input image and the valid image (SetImage) is all black it will match with no error because all it has to do is find black pixels and even though the input image has a white pixel, its neighbors are not white.

Tests:
vtkImageDifference (Tests)

Definition at line 44 of file vtkImageDifference.h.


Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetImage (vtkDataObject *image)
vtkImageDataGetImage ()
double GetError (void)
void GetError (double *e)
double GetThresholdedError (void)
void GetThresholdedError (double *e)
virtual void SetThreshold (int)
virtual int GetThreshold ()
virtual void SetAllowShift (int)
virtual int GetAllowShift ()
virtual void AllowShiftOn ()
virtual void AllowShiftOff ()
virtual void SetAveraging (int)
virtual int GetAveraging ()
virtual void AveragingOn ()
virtual void AveragingOff ()

Static Public Member Functions

static vtkImageDifferenceNew ()
static int IsTypeOf (const char *type)
static vtkImageDifferenceSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageDifference ()
 ~vtkImageDifference ()
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int threadId)

Protected Attributes

double ErrorPerThread [VTK_MAX_THREADS]
double ThresholdedErrorPerThread [VTK_MAX_THREADS]
int AllowShift
int Threshold
int Averaging

Member Typedef Documentation

Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 48 of file vtkImageDifference.h.


Constructor & Destructor Documentation

vtkImageDifference::vtkImageDifference (  )  [protected]

vtkImageDifference::~vtkImageDifference (  )  [inline, protected]

Definition at line 100 of file vtkImageDifference.h.


Member Function Documentation

static vtkImageDifference* vtkImageDifference::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageDifference::GetClassName (  )  [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageDifference::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageDifference::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageDifference* vtkImageDifference::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageDifference::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageDifference::SetImage ( vtkDataObject image  )  [inline]

Specify the Image to compare the input to.

Definition at line 53 of file vtkImageDifference.h.

vtkImageData* vtkImageDifference::GetImage (  )

Specify the Image to compare the input to.

double vtkImageDifference::GetError ( void   )

Return the total error in comparing the two images.

void vtkImageDifference::GetError ( double *  e  )  [inline]

Return the total error in comparing the two images.

Definition at line 60 of file vtkImageDifference.h.

double vtkImageDifference::GetThresholdedError ( void   )

Return the total thresholded error in comparing the two images. The thresholded error is the error for a given pixel minus the threshold and clamped at a minimum of zero.

void vtkImageDifference::GetThresholdedError ( double *  e  )  [inline]

Return the total thresholded error in comparing the two images. The thresholded error is the error for a given pixel minus the threshold and clamped at a minimum of zero.

Definition at line 68 of file vtkImageDifference.h.

virtual void vtkImageDifference::SetThreshold ( int   )  [virtual]

Specify a threshold tolerance for pixel differences.

virtual int vtkImageDifference::GetThreshold (  )  [virtual]

Specify a threshold tolerance for pixel differences.

virtual void vtkImageDifference::SetAllowShift ( int   )  [virtual]

Specify whether the comparison will allow a shift of one pixel between the images. If set, then the minimum difference between input images will be used to determine the difference. Otherwise, the difference is computed directly between pixels of identical row/column values.

virtual int vtkImageDifference::GetAllowShift (  )  [virtual]

Specify whether the comparison will allow a shift of one pixel between the images. If set, then the minimum difference between input images will be used to determine the difference. Otherwise, the difference is computed directly between pixels of identical row/column values.

virtual void vtkImageDifference::AllowShiftOn (  )  [virtual]

Specify whether the comparison will allow a shift of one pixel between the images. If set, then the minimum difference between input images will be used to determine the difference. Otherwise, the difference is computed directly between pixels of identical row/column values.

virtual void vtkImageDifference::AllowShiftOff (  )  [virtual]

Specify whether the comparison will allow a shift of one pixel between the images. If set, then the minimum difference between input images will be used to determine the difference. Otherwise, the difference is computed directly between pixels of identical row/column values.

virtual void vtkImageDifference::SetAveraging ( int   )  [virtual]

Specify whether the comparison will include comparison of averaged 3x3 data between the images. For graphics renderings you normally would leave this on. For imaging operations it should be off.

virtual int vtkImageDifference::GetAveraging (  )  [virtual]

Specify whether the comparison will include comparison of averaged 3x3 data between the images. For graphics renderings you normally would leave this on. For imaging operations it should be off.

virtual void vtkImageDifference::AveragingOn (  )  [virtual]

Specify whether the comparison will include comparison of averaged 3x3 data between the images. For graphics renderings you normally would leave this on. For imaging operations it should be off.

virtual void vtkImageDifference::AveragingOff (  )  [virtual]

Specify whether the comparison will include comparison of averaged 3x3 data between the images. For graphics renderings you normally would leave this on. For imaging operations it should be off.

virtual int vtkImageDifference::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageDifference::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual void vtkImageDifference::ThreadedRequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
) [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

double vtkImageDifference::ErrorPerThread[VTK_MAX_THREADS] [protected]

Definition at line 100 of file vtkImageDifference.h.

double vtkImageDifference::ThresholdedErrorPerThread[VTK_MAX_THREADS] [protected]

Definition at line 103 of file vtkImageDifference.h.

Definition at line 104 of file vtkImageDifference.h.

Definition at line 105 of file vtkImageDifference.h.

Definition at line 106 of file vtkImageDifference.h.


The documentation for this class was generated from the following file:
