vtkImageGaussianSmooth Class Reference

#include <vtkImageGaussianSmooth.h>

Inheritance diagram for vtkImageGaussianSmooth:

[legend]

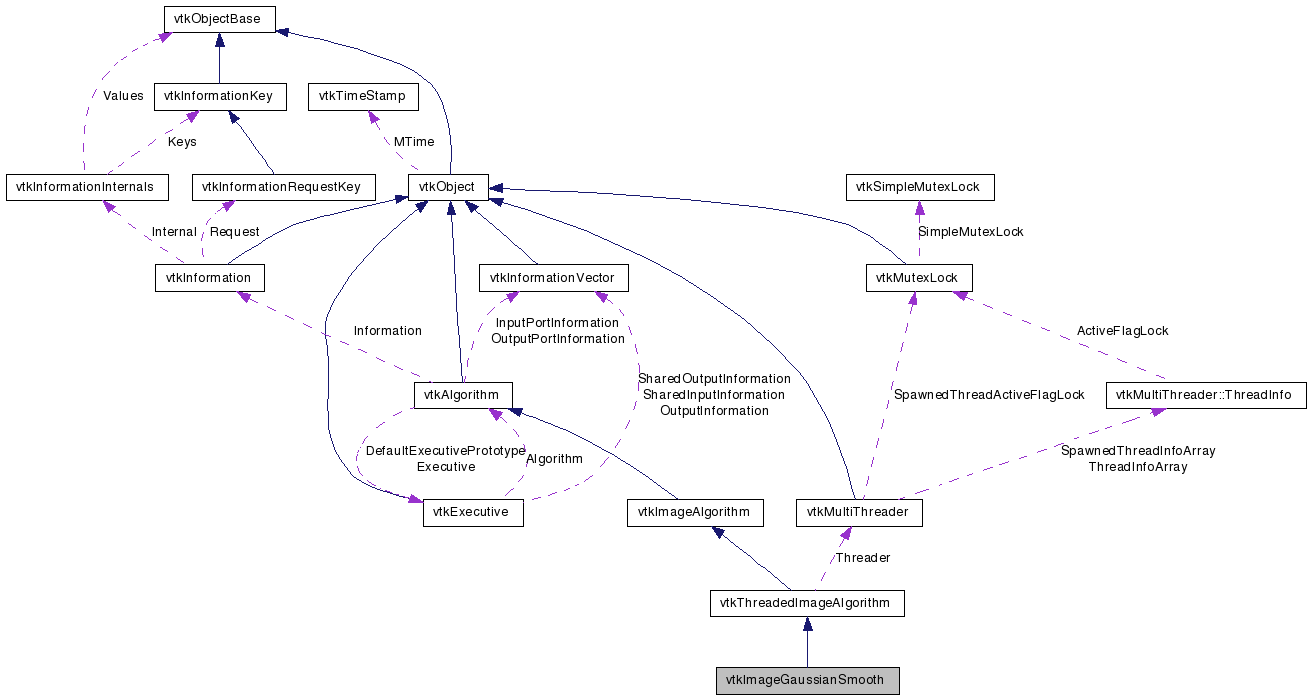

Collaboration diagram for vtkImageGaussianSmooth:

[legend]

List of all members.

Detailed Description

Performs a gaussian convolution.

vtkImageGaussianSmooth implements a convolution of the input image with a gaussian. Supports from one to three dimensional convolutions.

Tests:: vtkImageGaussianSmooth (Tests)

Definition at line 31 of file vtkImageGaussianSmooth.h.


Public Types
typedef vtkThreadedImageAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetStandardDeviations (double, double, double)
virtual void	SetStandardDeviations (double[3])
void	SetStandardDeviation (double std)
void	SetStandardDeviations (double a, double b)
virtual double *	GetStandardDeviations ()
virtual void	GetStandardDeviations (double &, double &, double &)
virtual void	GetStandardDeviations (double[3])

void	SetStandardDeviation (double a, double b)
void	SetStandardDeviation (double a, double b, double c)

virtual void	SetRadiusFactors (double, double, double)
virtual void	SetRadiusFactors (double[3])
void	SetRadiusFactors (double f, double f2)
void	SetRadiusFactor (double f)
virtual double *	GetRadiusFactors ()
virtual void	GetRadiusFactors (double &, double &, double &)
virtual void	GetRadiusFactors (double[3])

virtual void	SetDimensionality (int)
virtual int	GetDimensionality ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkImageGaussianSmooth *	SafeDownCast (vtkObject *o)
static vtkImageGaussianSmooth *	New ()
Protected Member Functions
	vtkImageGaussianSmooth ()
	~vtkImageGaussianSmooth ()
void	ComputeKernel (double *kernel, int min, int max, double std)
virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )
void	InternalRequestUpdateExtent (int , int )
void	ExecuteAxis (int axis, vtkImageData inData, int inExt[6], vtkImageData outData, int outExt[6], int pcycle, int target, int pcount, int total, vtkInformation *inInfo)
void	ThreadedRequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector, vtkImageData *inData, vtkImageData outData, int outExt[6], int id)
Protected Attributes
int	Dimensionality
double	StandardDeviations [3]
double	RadiusFactors [3]

Member Typedef Documentation

typedef vtkThreadedImageAlgorithm vtkImageGaussianSmooth::Superclass

Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 34 of file vtkImageGaussianSmooth.h.

Constructor & Destructor Documentation

vtkImageGaussianSmooth::vtkImageGaussianSmooth ( ) [protected]

vtkImageGaussianSmooth::~vtkImageGaussianSmooth ( ) [protected]

Member Function Documentation

virtual const char* vtkImageGaussianSmooth::GetClassName ( ) [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageGaussianSmooth::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageGaussianSmooth::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageGaussianSmooth* vtkImageGaussianSmooth::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageGaussianSmooth::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageGaussianSmooth* vtkImageGaussianSmooth::New ( ) [static]

Creates an instance of vtkImageGaussianSmooth with the following defaults: Dimensionality 3, StandardDeviations( 2, 2, 2), Radius Factors ( 1.5, 1.5, 1.5)

Reimplemented from vtkAlgorithm.

virtual void vtkImageGaussianSmooth::SetStandardDeviations	(	double	,
		double	,
		double
	)			`[virtual]`
