vtkImageGradientMagnitude Class Reference

#include <vtkImageGradientMagnitude.h>

Inheritance diagram for vtkImageGradientMagnitude:

[legend]

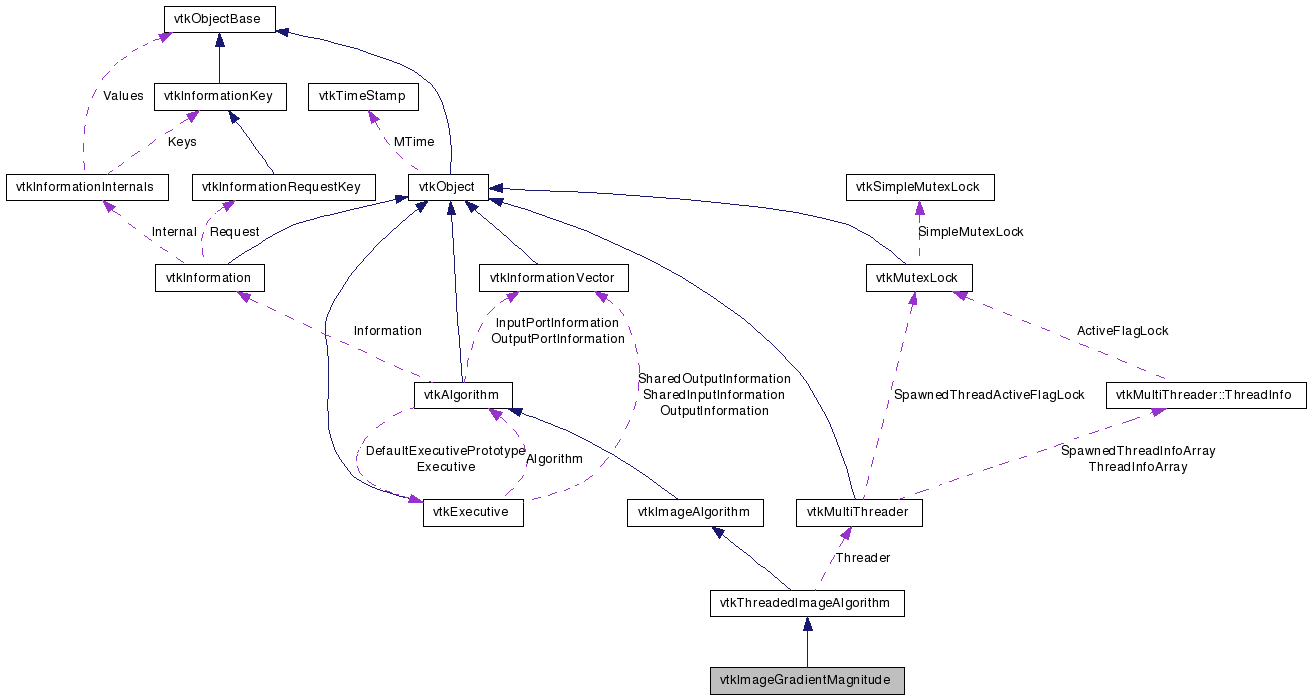

Collaboration diagram for vtkImageGradientMagnitude:

[legend]

List of all members.

---

Detailed Description

Computes magnitude of the gradient.

vtkImageGradientMagnitude computes the gradient magnitude of an image. Setting the dimensionality determines whether the gradient is computed on 2D images, or 3D volumes. The default is two dimensional XY images.

See also:

vtkImageGradient vtkImageMagnitude

Tests:

vtkImageGradientMagnitude (Tests)

Definition at line 36 of file vtkImageGradientMagnitude.h.

Public Types
typedef vtkThreadedImageAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetHandleBoundaries (int)
virtual int	GetHandleBoundaries ()
virtual void	HandleBoundariesOn ()
virtual void	HandleBoundariesOff ()
virtual void	SetDimensionality (int)
virtual int	GetDimensionality ()
Static Public Member Functions
static vtkImageGradientMagnitude *	New ()
static int	IsTypeOf (const char *type)
static vtkImageGradientMagnitude *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageGradientMagnitude ()
	~vtkImageGradientMagnitude ()
virtual int	RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void	ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int extent[6], int id)
Protected Attributes
int	HandleBoundaries
int	Dimensionality

---

Member Typedef Documentation

typedef vtkThreadedImageAlgorithm vtkImageGradientMagnitude::Superclass

Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 40 of file vtkImageGradientMagnitude.h.

---

Constructor & Destructor Documentation

vtkImageGradientMagnitude::vtkImageGradientMagnitude

(

)

[protected]

vtkImageGradientMagnitude::~vtkImageGradientMagnitude

(

)

[inline, protected]

Definition at line 59 of file vtkImageGradientMagnitude.h.

---

Member Function Documentation

static vtkImageGradientMagnitude* vtkImageGradientMagnitude::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageGradientMagnitude::GetClassName

(

)

[virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageGradientMagnitude::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageGradientMagnitude::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageGradientMagnitude* vtkImageGradientMagnitude::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageGradientMagnitude::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

virtual void vtkImageGradientMagnitude::SetHandleBoundaries

(

int

)

[virtual]

If "HandleBoundariesOn" then boundary pixels are duplicated So central differences can get values.

virtual int vtkImageGradientMagnitude::GetHandleBoundaries

(

)

[virtual]

If "HandleBoundariesOn" then boundary pixels are duplicated So central differences can get values.

virtual void vtkImageGradientMagnitude::HandleBoundariesOn

(

)

[virtual]

If "HandleBoundariesOn" then boundary pixels are duplicated So central differences can get values.

virtual void vtkImageGradientMagnitude::HandleBoundariesOff

(

)

[virtual]

If "HandleBoundariesOn" then boundary pixels are duplicated So central differences can get values.

virtual void vtkImageGradientMagnitude::SetDimensionality

(

int

)

[virtual]

Determines how the input is interpreted (set of 2d slices ...)

virtual int vtkImageGradientMagnitude::GetDimensionality

(

)

[virtual]

Determines how the input is interpreted (set of 2d slices ...)

virtual int vtkImageGradientMagnitude::RequestInformation	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageGradientMagnitude::RequestUpdateExtent	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

Reimplemented from vtkImageAlgorithm.

void vtkImageGradientMagnitude::ThreadedExecute	(	vtkImageData *	inData,
		vtkImageData *	outData,
		int	extent[6],
		int	id
	)			[protected, virtual]

Reimplemented from vtkThreadedImageAlgorithm.

---

Member Data Documentation

int vtkImageGradientMagnitude::HandleBoundaries [protected]

Definition at line 59 of file vtkImageGradientMagnitude.h.

int vtkImageGradientMagnitude::Dimensionality [protected]

Definition at line 62 of file vtkImageGradientMagnitude.h.

---

The documentation for this class was generated from the following file:

• dox/Imaging/vtkImageGradientMagnitude.h
