vtkImageIdealLowPass Class Reference

#include <vtkImageIdealLowPass.h>

Inheritance diagram for vtkImageIdealLowPass:

Inheritance graph
[legend]

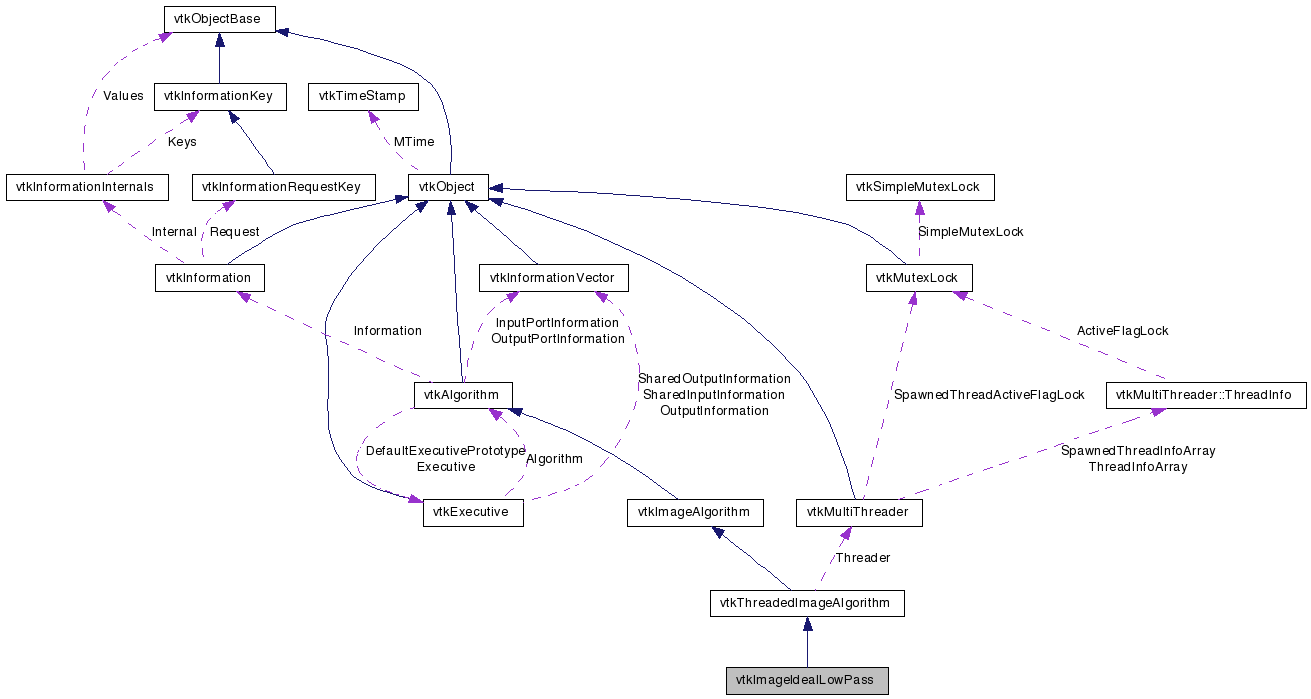

Collaboration diagram for vtkImageIdealLowPass:

Collaboration graph
[legend]

List of all members.


Detailed Description

Simple frequency domain band pass.

This filter only works on an image after it has been converted to frequency domain by a vtkImageFFT filter. A vtkImageRFFT filter can be used to convert the output back into the spatial domain. vtkImageIdealLowPass just sets a portion of the image to zero. The result is an image with a lot of ringing. Input and Output must be doubles. Dimensionality is set when the axes are set. Defaults to 2D on X and Y axes.

See also:
vtkImageButterworthLowPass vtkImageIdealHighPass vtkImageFFT vtkImageRFFT
Tests:
vtkImageIdealLowPass (Tests)

Definition at line 39 of file vtkImageIdealLowPass.h.


Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetCutOff (double, double, double)
virtual void SetCutOff (double[3])
void SetCutOff (double v)
void SetXCutOff (double v)
void SetYCutOff (double v)
void SetZCutOff (double v)
virtual double * GetCutOff ()
virtual void GetCutOff (double &, double &, double &)
virtual void GetCutOff (double[3])
double GetXCutOff ()
double GetYCutOff ()
double GetZCutOff ()

Static Public Member Functions

static vtkImageIdealLowPassNew ()
static int IsTypeOf (const char *type)
static vtkImageIdealLowPassSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageIdealLowPass ()
 ~vtkImageIdealLowPass ()
void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int outExt[6], int id)

Protected Attributes

double CutOff [3]

Member Typedef Documentation

Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 43 of file vtkImageIdealLowPass.h.


Constructor & Destructor Documentation

vtkImageIdealLowPass::vtkImageIdealLowPass (  )  [protected]

vtkImageIdealLowPass::~vtkImageIdealLowPass (  )  [inline, protected]

Definition at line 63 of file vtkImageIdealLowPass.h.


Member Function Documentation

static vtkImageIdealLowPass* vtkImageIdealLowPass::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageIdealLowPass::GetClassName (  )  [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageIdealLowPass::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageIdealLowPass::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageIdealLowPass* vtkImageIdealLowPass::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageIdealLowPass::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

virtual void vtkImageIdealLowPass::SetCutOff ( double  ,
double  ,
double
) [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageIdealLowPass::SetCutOff ( double  [3]  )  [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

void vtkImageIdealLowPass::SetCutOff ( double  v  )  [inline]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

Definition at line 51 of file vtkImageIdealLowPass.h.

void vtkImageIdealLowPass::SetXCutOff ( double  v  )

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

void vtkImageIdealLowPass::SetYCutOff ( double  v  )

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

void vtkImageIdealLowPass::SetZCutOff ( double  v  )

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual double* vtkImageIdealLowPass::GetCutOff (  )  [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageIdealLowPass::GetCutOff ( double &  ,
double &  ,
double &
) [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageIdealLowPass::GetCutOff ( double  [3]  )  [virtual]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

double vtkImageIdealLowPass::GetXCutOff (  )  [inline]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

Definition at line 56 of file vtkImageIdealLowPass.h.

double vtkImageIdealLowPass::GetYCutOff (  )  [inline]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

Definition at line 57 of file vtkImageIdealLowPass.h.

double vtkImageIdealLowPass::GetZCutOff (  )  [inline]

Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

Definition at line 58 of file vtkImageIdealLowPass.h.

void vtkImageIdealLowPass::ThreadedRequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
) [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

double vtkImageIdealLowPass::CutOff[3] [protected]

Definition at line 63 of file vtkImageIdealLowPass.h.
