vtkImageLogic Class Reference

#include <vtkImageLogic.h>

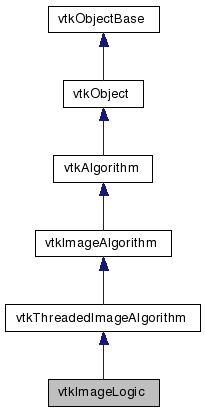

Inheritance diagram for vtkImageLogic:

Inheritance graph
[legend]

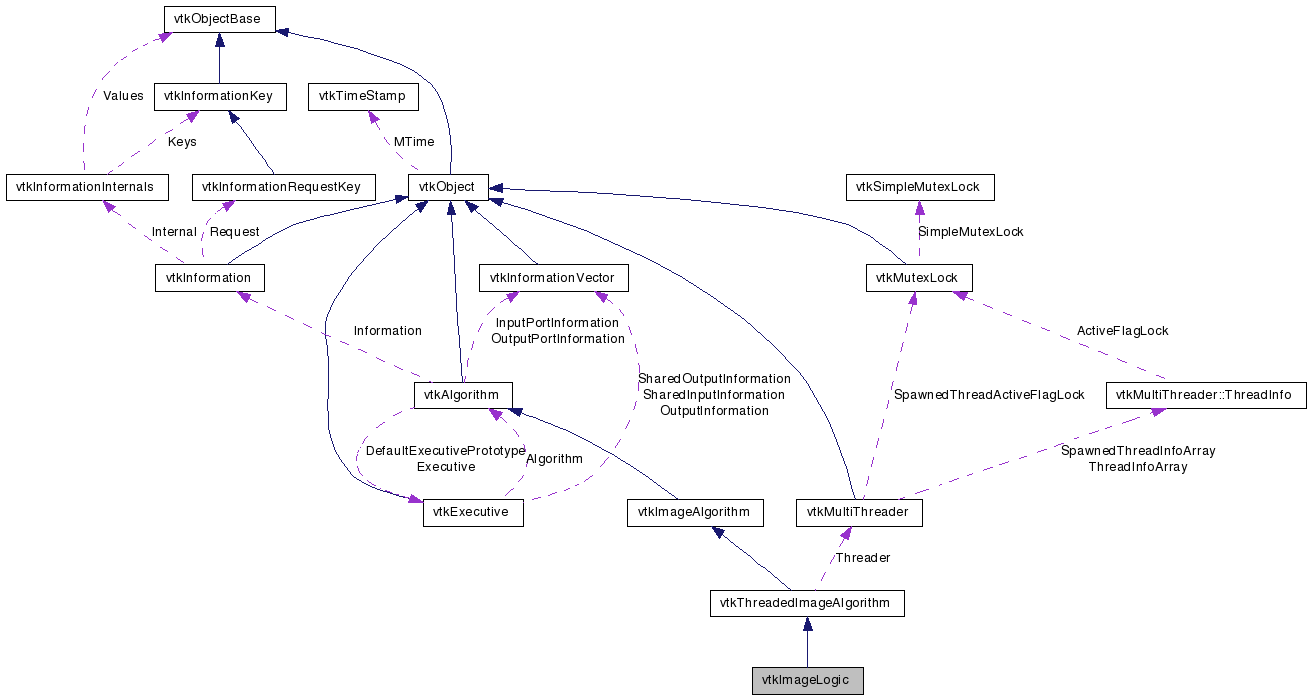

Collaboration diagram for vtkImageLogic:

Collaboration graph
[legend]

List of all members.


Detailed Description

And, or, xor, nand, nor, not.

vtkImageLogic implements basic logic operations. SetOperation is used to select the filter's behavior. The filter can take two or one input. Inputs must have the same type.

Tests:
vtkImageLogic (Tests)

Definition at line 43 of file vtkImageLogic.h.


Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetInput1 (vtkDataObject *input)
virtual void SetInput2 (vtkDataObject *input)
virtual void SetOperation (int)
virtual int GetOperation ()
void SetOperationToAnd ()
void SetOperationToOr ()
void SetOperationToXor ()
void SetOperationToNand ()
void SetOperationToNor ()
void SetOperationToNot ()
virtual void SetOutputTrueValue (double)
virtual double GetOutputTrueValue ()

Static Public Member Functions

static vtkImageLogicNew ()
static int IsTypeOf (const char *type)
static vtkImageLogicSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageLogic ()
 ~vtkImageLogic ()
void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int ext[6], int id)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

int Operation
double OutputTrueValue

Member Typedef Documentation

Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 47 of file vtkImageLogic.h.


Constructor & Destructor Documentation

vtkImageLogic::vtkImageLogic (  )  [protected]

vtkImageLogic::~vtkImageLogic (  )  [inline, protected]

Definition at line 76 of file vtkImageLogic.h.


Member Function Documentation

static vtkImageLogic* vtkImageLogic::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageLogic::GetClassName (  )  [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageLogic::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageLogic::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageLogic* vtkImageLogic::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageLogic::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

virtual void vtkImageLogic::SetOperation ( int   )  [virtual]

Set/Get the Operation to perform.

virtual int vtkImageLogic::GetOperation (  )  [virtual]

Set/Get the Operation to perform.

void vtkImageLogic::SetOperationToAnd (  )  [inline]

Set/Get the Operation to perform.

Definition at line 54 of file vtkImageLogic.h.

void vtkImageLogic::SetOperationToOr (  )  [inline]

Set/Get the Operation to perform.

Definition at line 55 of file vtkImageLogic.h.

void vtkImageLogic::SetOperationToXor (  )  [inline]

Set/Get the Operation to perform.

Definition at line 56 of file vtkImageLogic.h.

void vtkImageLogic::SetOperationToNand (  )  [inline]

Set/Get the Operation to perform.

Definition at line 57 of file vtkImageLogic.h.

void vtkImageLogic::SetOperationToNor (  )  [inline]

Set/Get the Operation to perform.

Definition at line 58 of file vtkImageLogic.h.

void vtkImageLogic::SetOperationToNot (  )  [inline]

Set/Get the Operation to perform.

Definition at line 59 of file vtkImageLogic.h.

virtual void vtkImageLogic::SetOutputTrueValue ( double   )  [virtual]

Set the value to use for true in the output.

virtual double vtkImageLogic::GetOutputTrueValue (  )  [virtual]

Set the value to use for true in the output.

virtual void vtkImageLogic::SetInput1 ( vtkDataObject input  )  [inline, virtual]

Set the Input1 of this filter.

Definition at line 69 of file vtkImageLogic.h.

virtual void vtkImageLogic::SetInput2 ( vtkDataObject input  )  [inline, virtual]

Set the Input2 of this filter.

Definition at line 72 of file vtkImageLogic.h.

void vtkImageLogic::ThreadedRequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
) [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageLogic::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkImageAlgorithm.


Member Data Documentation

int vtkImageLogic::Operation [protected]

Definition at line 76 of file vtkImageLogic.h.

double vtkImageLogic::OutputTrueValue [protected]

Definition at line 79 of file vtkImageLogic.h.


The documentation for this class was generated from the following file:
