vtkImageMaskBits Class Reference

#include <vtkImageMaskBits.h>

Inheritance diagram for vtkImageMaskBits:

Inheritance graph
[legend]

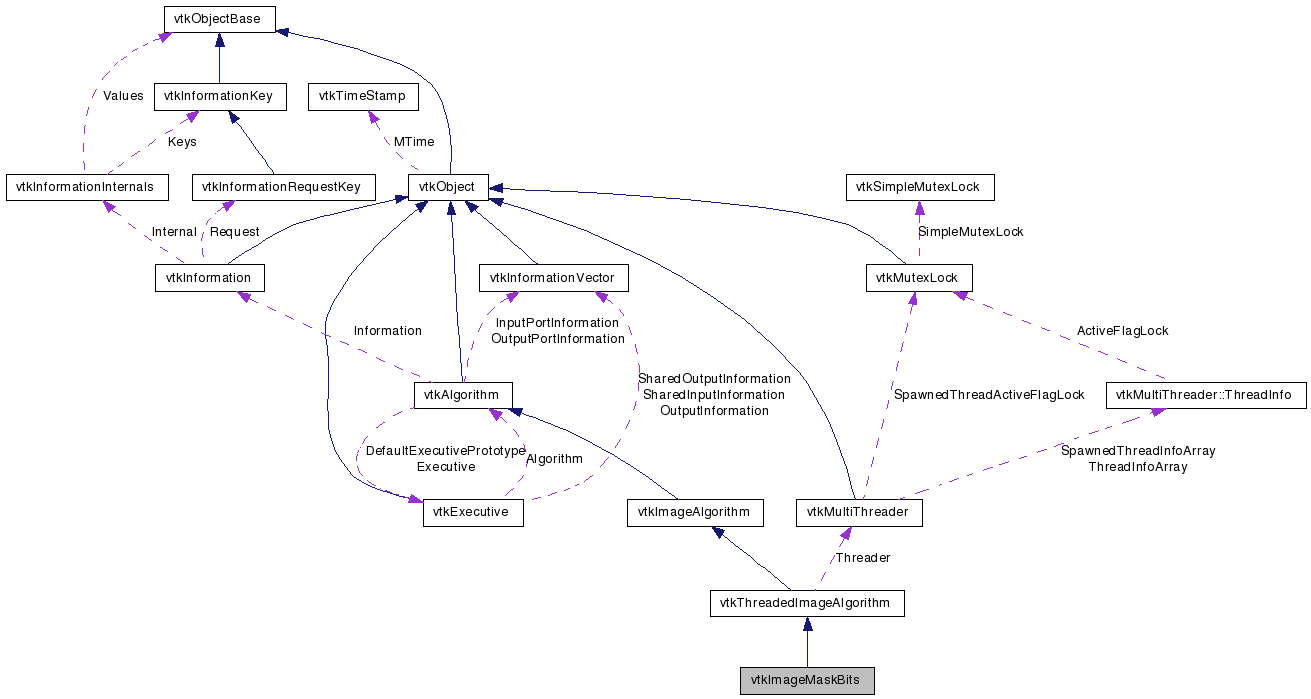

Collaboration diagram for vtkImageMaskBits:

Collaboration graph
[legend]

List of all members.


Detailed Description

applies a bit-mask pattern to each component.

vtkImageMaskBits applies a bit-mask pattern to each component. The bit-mask can be applied using a variety of boolean bitwise operators.

Tests:
vtkImageMaskBits (Tests)

Definition at line 32 of file vtkImageMaskBits.h.


Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetMasks (unsigned int, unsigned int, unsigned int, unsigned int)
virtual void SetMasks (unsigned int[4])
void SetMask (unsigned int mask)
void SetMasks (unsigned int mask1, unsigned int mask2)
void SetMasks (unsigned int mask1, unsigned int mask2, unsigned int mask3)
virtual unsigned int * GetMasks ()
virtual void GetMasks (unsigned int &, unsigned int &, unsigned int &, unsigned int &)
virtual void GetMasks (unsigned int[4])
virtual void SetOperation (int)
virtual int GetOperation ()
void SetOperationToAnd ()
void SetOperationToOr ()
void SetOperationToXor ()
void SetOperationToNand ()
void SetOperationToNor ()

Static Public Member Functions

static vtkImageMaskBitsNew ()
static int IsTypeOf (const char *type)
static vtkImageMaskBitsSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageMaskBits ()
 ~vtkImageMaskBits ()
void ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int ext[6], int id)

Protected Attributes

unsigned int Masks [4]
int Operation

Member Typedef Documentation

Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 36 of file vtkImageMaskBits.h.


Constructor & Destructor Documentation

vtkImageMaskBits::vtkImageMaskBits (  )  [protected]

vtkImageMaskBits::~vtkImageMaskBits (  )  [inline, protected]

Definition at line 64 of file vtkImageMaskBits.h.


Member Function Documentation

static vtkImageMaskBits* vtkImageMaskBits::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageMaskBits::GetClassName (  )  [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageMaskBits::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageMaskBits::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageMaskBits* vtkImageMaskBits::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageMaskBits::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

virtual void vtkImageMaskBits::SetMasks ( unsigned  int,
unsigned  int,
unsigned  int,
unsigned  int
) [virtual]

Set/Get the bit-masks. Default is 0xffffffff.

virtual void vtkImageMaskBits::SetMasks ( unsigned  int[4]  )  [virtual]

Set/Get the bit-masks. Default is 0xffffffff.

void vtkImageMaskBits::SetMask ( unsigned int  mask  )  [inline]

Set/Get the bit-masks. Default is 0xffffffff.

Definition at line 42 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetMasks ( unsigned int  mask1,
unsigned int  mask2
) [inline]

Set/Get the bit-masks. Default is 0xffffffff.

Definition at line 44 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetMasks ( unsigned int  mask1,
unsigned int  mask2,
unsigned int  mask3
) [inline]

Set/Get the bit-masks. Default is 0xffffffff.

Definition at line 46 of file vtkImageMaskBits.h.

virtual unsigned int* vtkImageMaskBits::GetMasks (  )  [virtual]

Set/Get the bit-masks. Default is 0xffffffff.

virtual void vtkImageMaskBits::GetMasks ( unsigned int &  ,
unsigned int &  ,
unsigned int &  ,
unsigned int &
) [virtual]

Set/Get the bit-masks. Default is 0xffffffff.

virtual void vtkImageMaskBits::GetMasks ( unsigned  int[4]  )  [virtual]

Set/Get the bit-masks. Default is 0xffffffff.

virtual void vtkImageMaskBits::SetOperation ( int   )  [virtual]

Set/Get the boolean operator. Default is AND.

virtual int vtkImageMaskBits::GetOperation (  )  [virtual]

Set/Get the boolean operator. Default is AND.

void vtkImageMaskBits::SetOperationToAnd (  )  [inline]

Set/Get the boolean operator. Default is AND.

Definition at line 55 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetOperationToOr (  )  [inline]

Set/Get the boolean operator. Default is AND.

Definition at line 56 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetOperationToXor (  )  [inline]

Set/Get the boolean operator. Default is AND.

Definition at line 57 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetOperationToNand (  )  [inline]

Set/Get the boolean operator. Default is AND.

Definition at line 58 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetOperationToNor (  )  [inline]

Set/Get the boolean operator. Default is AND.

Definition at line 59 of file vtkImageMaskBits.h.

void vtkImageMaskBits::ThreadedExecute ( vtkImageData inData,
vtkImageData outData,
int  ext[6],
int  id
) [protected, virtual]

Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

unsigned int vtkImageMaskBits::Masks[4] [protected]

Definition at line 69 of file vtkImageMaskBits.h.

int vtkImageMaskBits::Operation [protected]

Definition at line 70 of file vtkImageMaskBits.h.


The documentation for this class was generated from the following file:
