vtkImageViewer Class Reference

#include <vtkImageViewer.h>

Inheritance diagram for vtkImageViewer:

Inheritance graph
[legend]

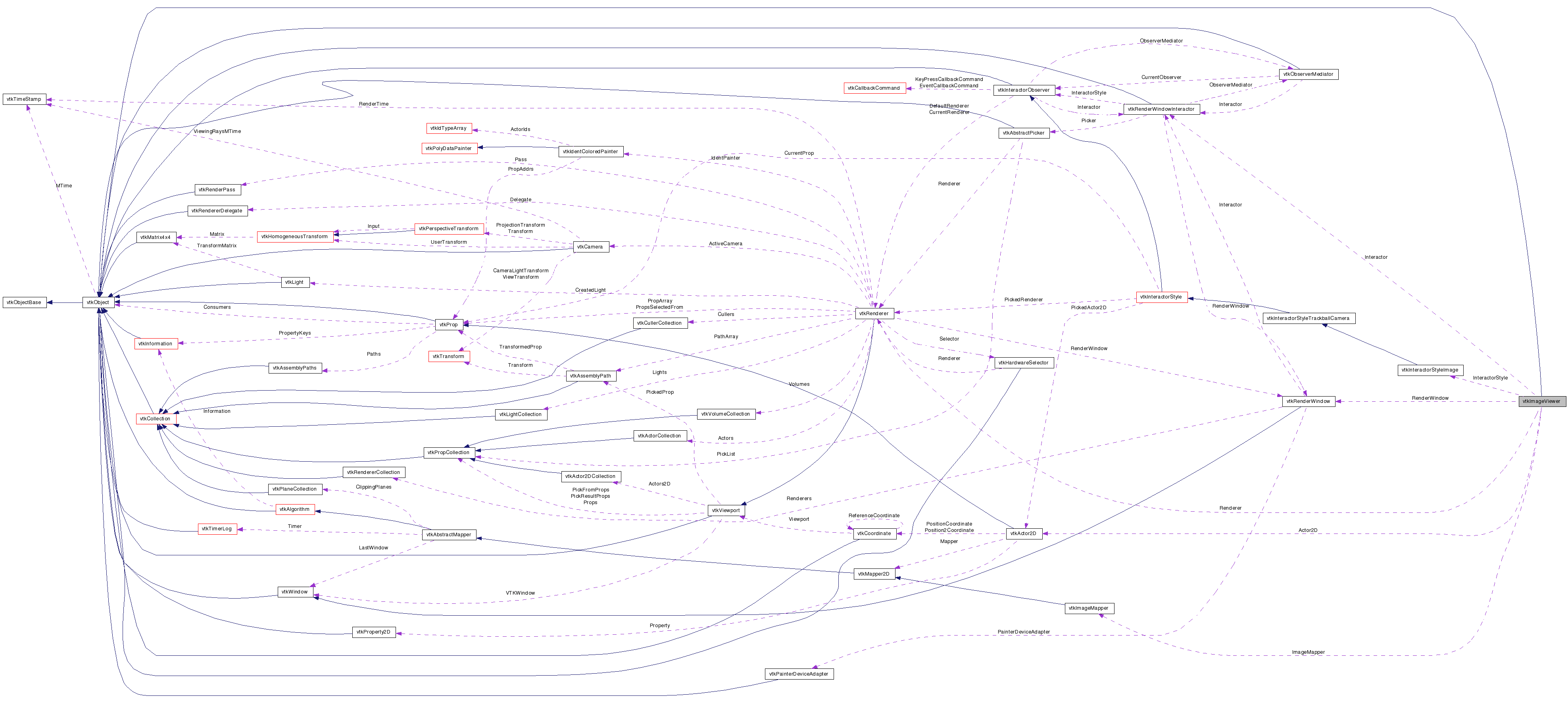

Collaboration diagram for vtkImageViewer:

Collaboration graph
[legend]

List of all members.


Detailed Description

Display a 2d image.

vtkImageViewer is a convenience class for displaying a 2d image. It packages up the functionality found in vtkRenderWindow, vtkRenderer, vtkActor2D and vtkImageMapper into a single easy to use class. Behind the scenes these four classes are actually used to to provide the required functionality. vtkImageViewer is simply a wrapper around them.

See also:
vtkRenderWindow vtkRenderer vtkImageMapper vtkActor2D
Tests:
vtkImageViewer (Tests)

Definition at line 41 of file vtkImageViewer.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
char * GetWindowName ()
virtual void Render (void)
void SetupInteractor (vtkRenderWindowInteractor *)
void SetInput (vtkImageData *in)
vtkImageDataGetInput ()
virtual void SetInputConnection (vtkAlgorithmOutput *input)
int GetWholeZMin ()
int GetWholeZMax ()
int GetZSlice ()
void SetZSlice (int s)
double GetColorWindow ()
double GetColorLevel ()
void SetColorWindow (double s)
void SetColorLevel (double s)
void SetDisplayId (void *a)
void SetWindowId (void *a)
void SetParentId (void *a)
int GetGrayScaleHint ()
void SetGrayScaleHint (int vtkNotUsed(a))
void GrayScaleHintOn ()
void GrayScaleHintOff ()
int * GetPosition ()
void SetPosition (int a, int b)
virtual void SetPosition (int a[2])
int * GetSize ()
void SetSize (int a, int b)
virtual void SetSize (int a[2])
virtual vtkRenderWindowGetRenderWindow ()
virtual vtkRendererGetRenderer ()
virtual vtkImageMapperGetImageMapper ()
virtual vtkActor2DGetActor2D ()
void SetOffScreenRendering (int)
int GetOffScreenRendering ()
void OffScreenRenderingOn ()
void OffScreenRenderingOff ()

Static Public Member Functions

static vtkImageViewerNew ()
static int IsTypeOf (const char *type)
static vtkImageViewerSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageViewer ()
 ~vtkImageViewer ()

Protected Attributes

vtkRenderWindowRenderWindow
vtkRendererRenderer
vtkImageMapperImageMapper
vtkActor2DActor2D
int FirstRender
vtkRenderWindowInteractorInteractor
vtkInteractorStyleImageInteractorStyle

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 46 of file vtkImageViewer.h.


Constructor & Destructor Documentation

vtkImageViewer::vtkImageViewer (  )  [protected]

vtkImageViewer::~vtkImageViewer (  )  [protected]


Member Function Documentation

static vtkImageViewer* vtkImageViewer::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkImageViewer::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkImageViewer::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkImageViewer::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkImageViewer* vtkImageViewer::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkImageViewer::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

char* vtkImageViewer::GetWindowName (  )  [inline]

Get name of rendering window

Definition at line 50 of file vtkImageViewer.h.

virtual void vtkImageViewer::Render ( void   )  [virtual]

Render the resulting image.

void vtkImageViewer::SetInput ( vtkImageData in  )  [inline]

Set/Get the input to the viewer.

Definition at line 57 of file vtkImageViewer.h.

vtkImageData* vtkImageViewer::GetInput (  )  [inline]

Set/Get the input to the viewer.

Definition at line 58 of file vtkImageViewer.h.

virtual void vtkImageViewer::SetInputConnection ( vtkAlgorithmOutput input  )  [inline, virtual]

Set/Get the input to the viewer.

Definition at line 59 of file vtkImageViewer.h.

int vtkImageViewer::GetWholeZMin (  )  [inline]

What is the possible Min/ Max z slices available.

Definition at line 65 of file vtkImageViewer.h.

int vtkImageViewer::GetWholeZMax (  )  [inline]

What is the possible Min/ Max z slices available.

Definition at line 66 of file vtkImageViewer.h.

int vtkImageViewer::GetZSlice (  )  [inline]

Set/Get the current Z Slice to display

Definition at line 71 of file vtkImageViewer.h.

void vtkImageViewer::SetZSlice ( int  s  )  [inline]

Set/Get the current Z Slice to display

Definition at line 72 of file vtkImageViewer.h.

double vtkImageViewer::GetColorWindow (  )  [inline]

Sets window/level for mapping pixels to colors.

Definition at line 77 of file vtkImageViewer.h.

double vtkImageViewer::GetColorLevel (  )  [inline]

Sets window/level for mapping pixels to colors.

Definition at line 78 of file vtkImageViewer.h.

void vtkImageViewer::SetColorWindow ( double  s  )  [inline]

Sets window/level for mapping pixels to colors.

Definition at line 79 of file vtkImageViewer.h.

void vtkImageViewer::SetColorLevel ( double  s  )  [inline]

Sets window/level for mapping pixels to colors.

Definition at line 80 of file vtkImageViewer.h.

void vtkImageViewer::SetDisplayId ( void *  a  )  [inline]

These are here for using a tk window.

Definition at line 85 of file vtkImageViewer.h.

void vtkImageViewer::SetWindowId ( void *  a  )  [inline]

These are here for using a tk window.

Definition at line 86 of file vtkImageViewer.h.

void vtkImageViewer::SetParentId ( void *  a  )  [inline]

These are here for using a tk window.

Definition at line 87 of file vtkImageViewer.h.

int vtkImageViewer::GetGrayScaleHint (  )

By default this is a color viewer. GrayScaleHintOn will improve the appearance of gray scale images on some systems.

void vtkImageViewer::SetGrayScaleHint ( int   vtkNotUseda  )

By default this is a color viewer. GrayScaleHintOn will improve the appearance of gray scale images on some systems.

void vtkImageViewer::GrayScaleHintOn (  )

By default this is a color viewer. GrayScaleHintOn will improve the appearance of gray scale images on some systems.

void vtkImageViewer::GrayScaleHintOff (  )

By default this is a color viewer. GrayScaleHintOn will improve the appearance of gray scale images on some systems.

int* vtkImageViewer::GetPosition (  )  [inline]

Set/Get the position in screen coordinates of the rendering window.

Definition at line 101 of file vtkImageViewer.h.

void vtkImageViewer::SetPosition ( int  a,
int  b
) [inline]

Set/Get the position in screen coordinates of the rendering window.

Definition at line 102 of file vtkImageViewer.h.

virtual void vtkImageViewer::SetPosition ( int  a[2]  )  [virtual]

Set/Get the position in screen coordinates of the rendering window.

int* vtkImageViewer::GetSize (  )  [inline]

Set/Get the size of the window in screen coordinates in pixels.

Definition at line 108 of file vtkImageViewer.h.

void vtkImageViewer::SetSize ( int  a,
int  b
) [inline]

Set/Get the size of the window in screen coordinates in pixels.

Definition at line 109 of file vtkImageViewer.h.

virtual void vtkImageViewer::SetSize ( int  a[2]  )  [virtual]

Set/Get the size of the window in screen coordinates in pixels.

virtual vtkRenderWindow* vtkImageViewer::GetRenderWindow (  )  [virtual]

Get the internal objects

virtual vtkRenderer* vtkImageViewer::GetRenderer (  )  [virtual]

Get the internal objects

virtual vtkImageMapper* vtkImageViewer::GetImageMapper (  )  [virtual]

Get the internal objects

virtual vtkActor2D* vtkImageViewer::GetActor2D (  )  [virtual]

Get the internal objects

void vtkImageViewer::SetupInteractor ( vtkRenderWindowInteractor  )

Create and attach an interactor for this window

void vtkImageViewer::SetOffScreenRendering ( int   )

Create a window in memory instead of on the screen. This may not be supported for every type of window and on some windows you may need to invoke this prior to the first render.

int vtkImageViewer::GetOffScreenRendering (  )

Create a window in memory instead of on the screen. This may not be supported for every type of window and on some windows you may need to invoke this prior to the first render.

void vtkImageViewer::OffScreenRenderingOn (  )

Create a window in memory instead of on the screen. This may not be supported for every type of window and on some windows you may need to invoke this prior to the first render.

void vtkImageViewer::OffScreenRenderingOff (  )

Create a window in memory instead of on the screen. This may not be supported for every type of window and on some windows you may need to invoke this prior to the first render.


Member Data Documentation

Definition at line 138 of file vtkImageViewer.h.

Definition at line 139 of file vtkImageViewer.h.

Definition at line 140 of file vtkImageViewer.h.

Definition at line 141 of file vtkImageViewer.h.

int vtkImageViewer::FirstRender [protected]

Definition at line 142 of file vtkImageViewer.h.

Definition at line 143 of file vtkImageViewer.h.

Definition at line 144 of file vtkImageViewer.h.


The documentation for this class was generated from the following file:
