vtkKdTreePointLocator Class Reference

#include <vtkKdTreePointLocator.h>

Inheritance diagram for vtkKdTreePointLocator:

Inheritance graph
[legend]

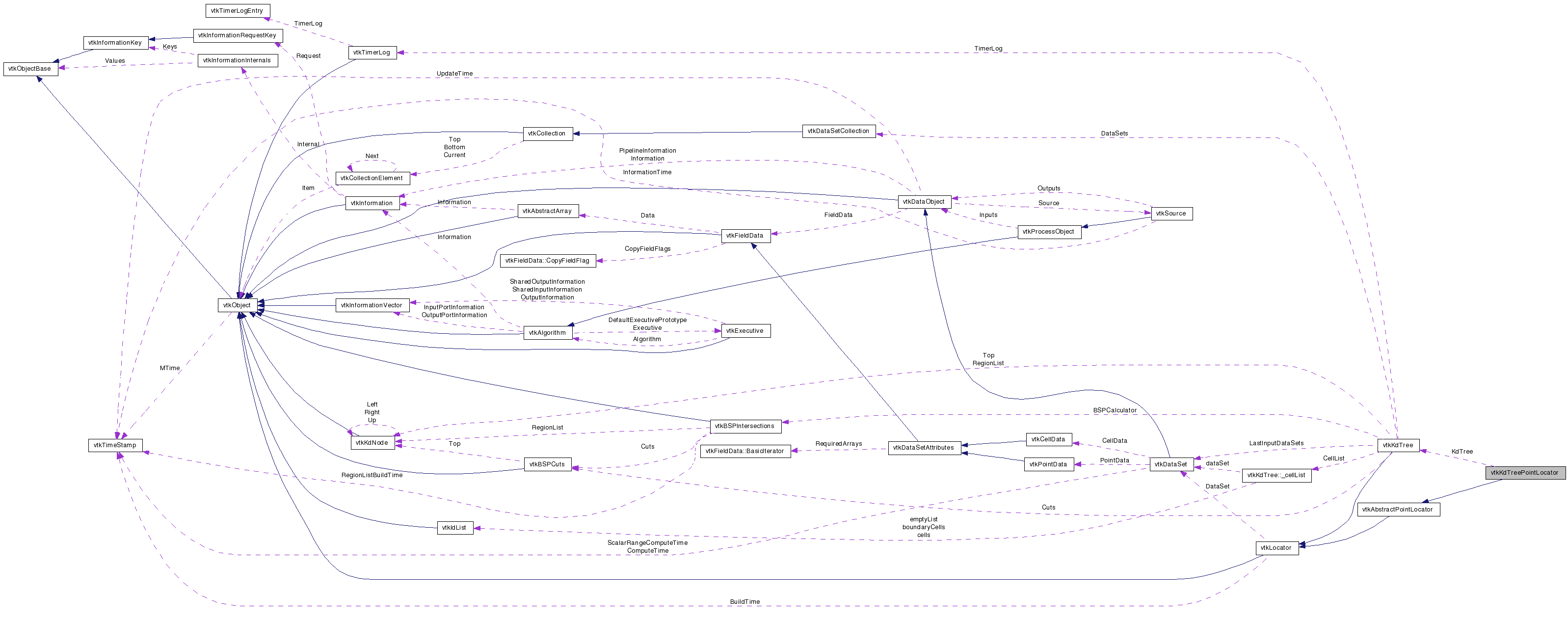

Collaboration diagram for vtkKdTreePointLocator:

Collaboration graph
[legend]

List of all members.


Detailed Description

class to quickly locate points in 3-space

vtkKdTreePointLocator is a wrapper class that derives from vtkAbstractPointLocator and calls the search functions in vtkKdTree.

See also:
vtkKdTree
Tests:
vtkKdTreePointLocator (Tests)

Definition at line 36 of file vtkKdTreePointLocator.h.


Public Types

typedef vtkAbstractPointLocator Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual vtkIdType FindClosestPoint (const double x[3])
virtual vtkIdType FindClosestPointWithinRadius (double radius, const double x[3], double &dist2)
virtual void FindClosestNPoints (int N, const double x[3], vtkIdList *result)
virtual void FindPointsWithinRadius (double R, const double x[3], vtkIdList *result)
virtual void FreeSearchStructure ()
virtual void BuildLocator ()
virtual void GenerateRepresentation (int level, vtkPolyData *pd)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkKdTreePointLocatorSafeDownCast (vtkObject *o)
static vtkKdTreePointLocatorNew ()

Protected Member Functions

 vtkKdTreePointLocator ()
virtual ~vtkKdTreePointLocator ()

Protected Attributes

vtkKdTreeKdTree

Member Typedef Documentation

Reimplemented from vtkAbstractPointLocator.

Definition at line 39 of file vtkKdTreePointLocator.h.


Constructor & Destructor Documentation

vtkKdTreePointLocator::vtkKdTreePointLocator (  )  [protected]

virtual vtkKdTreePointLocator::~vtkKdTreePointLocator (  )  [protected, virtual]


Member Function Documentation

virtual const char* vtkKdTreePointLocator::GetClassName (  )  [virtual]

Reimplemented from vtkAbstractPointLocator.

static int vtkKdTreePointLocator::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractPointLocator.

virtual int vtkKdTreePointLocator::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractPointLocator.

static vtkKdTreePointLocator* vtkKdTreePointLocator::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkAbstractPointLocator.

static vtkKdTreePointLocator* vtkKdTreePointLocator::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

void vtkKdTreePointLocator::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAbstractPointLocator.

virtual vtkIdType vtkKdTreePointLocator::FindClosestPoint ( const double  x[3]  )  [virtual]

Given a position x, return the id of the point closest to it. Alternative method requires separate x-y-z values. These methods are thread safe if BuildLocator() is directly or indirectly called from a single thread first.

Implements vtkAbstractPointLocator.

virtual vtkIdType vtkKdTreePointLocator::FindClosestPointWithinRadius ( double  radius,
const double  x[3],
double &  dist2
) [virtual]

Given a position x and a radius r, return the id of the point closest to the point in that radius. dist2 returns the squared distance to the point.

Implements vtkAbstractPointLocator.

virtual void vtkKdTreePointLocator::FindClosestNPoints ( int  N,
const double  x[3],
vtkIdList result
) [virtual]

Find the closest N points to a position. This returns the closest N points to a position. A faster method could be created that returned N close points to a position, but necessarily the exact N closest. The returned points are sorted from closest to farthest. These methods are thread safe if BuildLocator() is directly or indirectly called from a single thread first.

Implements vtkAbstractPointLocator.

virtual void vtkKdTreePointLocator::FindPointsWithinRadius ( double  R,
const double  x[3],
vtkIdList result
) [virtual]

Find all points within a specified radius R of position x. The result is not sorted in any specific manner. These methods are thread safe if BuildLocator() is directly or indirectly called from a single thread first.

Implements vtkAbstractPointLocator.

virtual void vtkKdTreePointLocator::FreeSearchStructure (  )  [virtual]

See vtkLocator interface documentation. These methods are not thread safe.

Implements vtkAbstractPointLocator.

virtual void vtkKdTreePointLocator::BuildLocator (  )  [virtual]

See vtkLocator interface documentation. These methods are not thread safe.

Implements vtkAbstractPointLocator.

virtual void vtkKdTreePointLocator::GenerateRepresentation ( int  level,
vtkPolyData pd
) [virtual]

See vtkLocator interface documentation. These methods are not thread safe.

Implements vtkAbstractPointLocator.


Member Data Documentation

Definition at line 89 of file vtkKdTreePointLocator.h.


The documentation for this class was generated from the following file:
