vtkLegendBoxActor Class Reference

#include <vtkLegendBoxActor.h>

Inheritance diagram for vtkLegendBoxActor:

Inheritance graph
[legend]

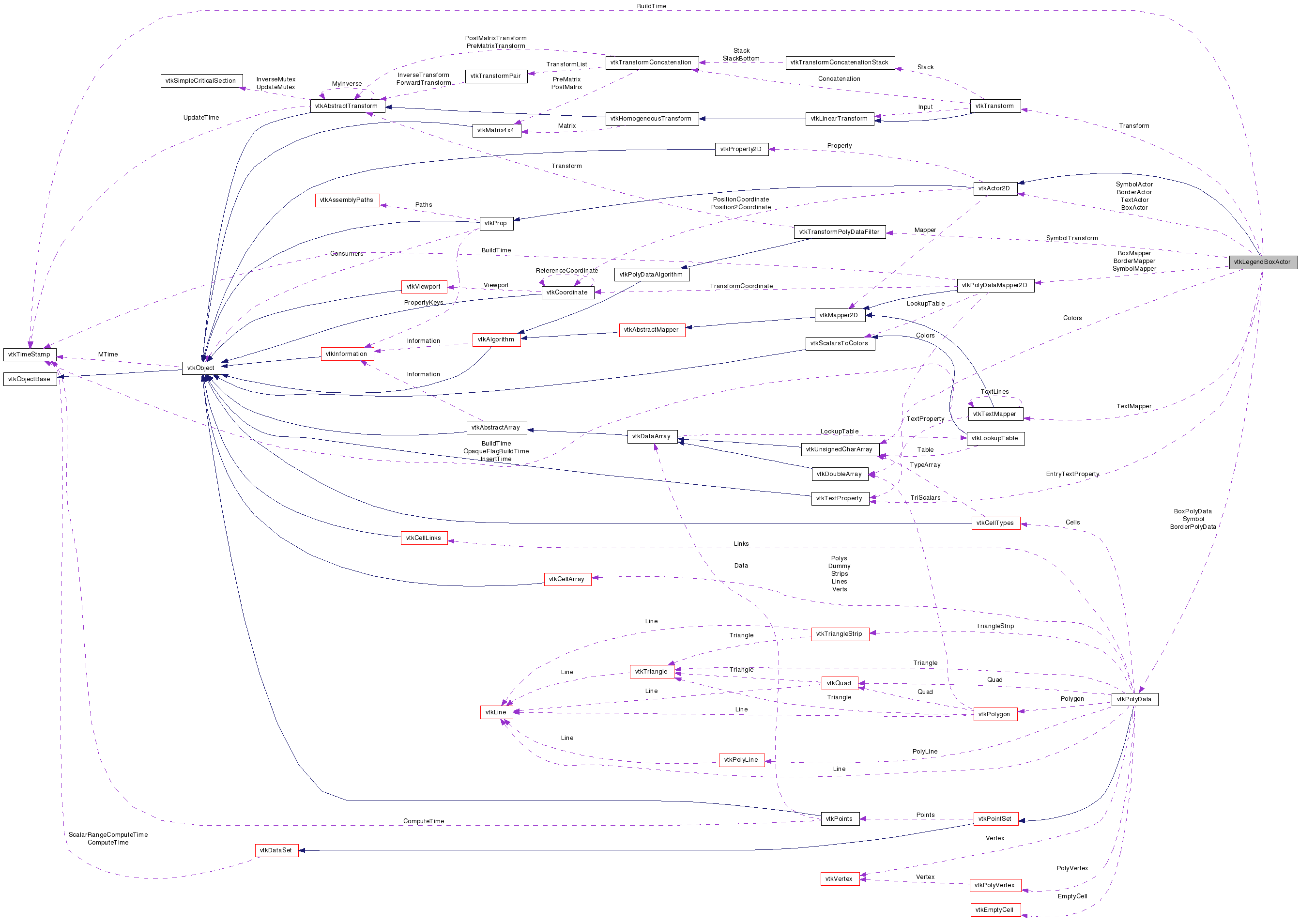

Collaboration diagram for vtkLegendBoxActor:

Collaboration graph
[legend]

List of all members.


Detailed Description

draw symbols with text

vtkLegendBoxActor is used to associate a symbol with a text string. The user specifies a vtkPolyData to use as the symbol, and a string associated with the symbol. The actor can then be placed in the scene in the same way that any other vtkActor2D can be used.

To use this class, you must define the position of the legend box by using the superclasses' vtkActor2D::Position coordinate and Position2 coordinate. Then define the set of symbols and text strings that make up the menu box. The font attributes of the entries can be set through the vtkTextProperty associated to this actor. The class will scale the symbols and text to fit in the legend box defined by (Position,Position2). Optional features like turning on a border line and setting the spacing between the border and the symbols/text can also be set.

See also:
vtkXYPlotActor vtkActor2D vtkGlyphSource2D

Definition at line 53 of file vtkLegendBoxActor.h.


Public Types

typedef vtkActor2D Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkProperty2DGetBoxProperty ()
void ShallowCopy (vtkProp *prop)
virtual void ReleaseGraphicsResources (vtkWindow *)
virtual int HasTranslucentPolygonalGeometry ()
void SetNumberOfEntries (int num)
int GetNumberOfEntries ()
void SetEntry (int i, vtkPolyData *symbol, const char *string, double color[3])
void SetEntrySymbol (int i, vtkPolyData *symbol)
void SetEntryString (int i, const char *string)
void SetEntryColor (int i, double color[3])
void SetEntryColor (int i, double r, double g, double b)
vtkPolyDataGetEntrySymbol (int i)
const char * GetEntryString (int i)
double * GetEntryColor (int i)
virtual void SetEntryTextProperty (vtkTextProperty *p)
virtual vtkTextPropertyGetEntryTextProperty ()
virtual void SetBorder (int)
virtual int GetBorder ()
virtual void BorderOn ()
virtual void BorderOff ()
virtual void SetLockBorder (int)
virtual int GetLockBorder ()
virtual void LockBorderOn ()
virtual void LockBorderOff ()
virtual void SetBox (int)
virtual int GetBox ()
virtual void BoxOn ()
virtual void BoxOff ()
virtual void SetPadding (int)
virtual int GetPadding ()
virtual void SetScalarVisibility (int)
virtual int GetScalarVisibility ()
virtual void ScalarVisibilityOn ()
virtual void ScalarVisibilityOff ()
int RenderOpaqueGeometry (vtkViewport *viewport)
virtual int RenderTranslucentPolygonalGeometry (vtkViewport *)
int RenderOverlay (vtkViewport *viewport)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkLegendBoxActorSafeDownCast (vtkObject *o)
static vtkLegendBoxActorNew ()

Protected Member Functions

 vtkLegendBoxActor ()
 ~vtkLegendBoxActor ()
void InitializeEntries ()

Protected Attributes

int Border
int Box
int Padding
int LockBorder
int ScalarVisibility
double BoxOpacity
int NumberOfEntries
int Size
vtkDoubleArrayColors
vtkTextMapper ** TextMapper
vtkActor2D ** TextActor
vtkPolyData ** Symbol
vtkTransform ** Transform
vtkTransformPolyDataFilter ** SymbolTransform
vtkPolyDataMapper2D ** SymbolMapper
vtkActor2D ** SymbolActor
vtkPolyDataBorderPolyData
vtkPolyDataMapper2DBorderMapper
vtkActor2DBorderActor
vtkPolyDataBoxPolyData
vtkPolyDataMapper2DBoxMapper
vtkActor2DBoxActor
vtkTextPropertyEntryTextProperty
int LegendEntriesVisible
int CachedSize [2]
vtkTimeStamp BuildTime

Member Typedef Documentation

Reimplemented from vtkActor2D.

Definition at line 56 of file vtkLegendBoxActor.h.


Constructor & Destructor Documentation

vtkLegendBoxActor::vtkLegendBoxActor (  )  [protected]

vtkLegendBoxActor::~vtkLegendBoxActor (  )  [protected]


Member Function Documentation

virtual const char* vtkLegendBoxActor::GetClassName (  )  [virtual]

Reimplemented from vtkActor2D.

static int vtkLegendBoxActor::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkActor2D.

virtual int vtkLegendBoxActor::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkActor2D.

static vtkLegendBoxActor* vtkLegendBoxActor::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkActor2D.

void vtkLegendBoxActor::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkActor2D.

static vtkLegendBoxActor* vtkLegendBoxActor::New (  )  [static]

Instantiate object with a rectangle in normaled view coordinates of (0.2,0.85, 0.8, 0.95).

Reimplemented from vtkActor2D.

void vtkLegendBoxActor::SetNumberOfEntries ( int  num  )

Specify the number of entries in the legend box.

int vtkLegendBoxActor::GetNumberOfEntries (  )  [inline]

Specify the number of entries in the legend box.

Definition at line 66 of file vtkLegendBoxActor.h.

void vtkLegendBoxActor::SetEntry ( int  i,
vtkPolyData symbol,
const char *  string,
double  color[3]
)

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

void vtkLegendBoxActor::SetEntrySymbol ( int  i,
vtkPolyData symbol
)

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

void vtkLegendBoxActor::SetEntryString ( int  i,
const char *  string
)

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

void vtkLegendBoxActor::SetEntryColor ( int  i,
double  color[3]
)

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

void vtkLegendBoxActor::SetEntryColor ( int  i,
double  r,
double  g,
double  b
)

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

vtkPolyData* vtkLegendBoxActor::GetEntrySymbol ( int  i  )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

const char* vtkLegendBoxActor::GetEntryString ( int  i  )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

double* vtkLegendBoxActor::GetEntryColor ( int  i  )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

virtual void vtkLegendBoxActor::SetEntryTextProperty ( vtkTextProperty p  )  [virtual]

Set/Get the text property.

virtual vtkTextProperty* vtkLegendBoxActor::GetEntryTextProperty (  )  [virtual]

Set/Get the text property.

virtual void vtkLegendBoxActor::SetBorder ( int   )  [virtual]

Set/Get the flag that controls whether a border will be drawn around the legend box.

virtual int vtkLegendBoxActor::GetBorder (  )  [virtual]

Set/Get the flag that controls whether a border will be drawn around the legend box.

virtual void vtkLegendBoxActor::BorderOn (  )  [virtual]

Set/Get the flag that controls whether a border will be drawn around the legend box.

virtual void vtkLegendBoxActor::BorderOff (  )  [virtual]

Set/Get the flag that controls whether a border will be drawn around the legend box.

virtual void vtkLegendBoxActor::SetLockBorder ( int   )  [virtual]

Set/Get the flag that controls whether the border and legend placement is locked into the rectangle defined by (Position,Position2). If off, then the legend box will adjust its size so that the border fits nicely around the text and symbols. (The ivar is off by default.) Note: the legend box is guaranteed to lie within the original border definition.

virtual int vtkLegendBoxActor::GetLockBorder (  )  [virtual]

Set/Get the flag that controls whether the border and legend placement is locked into the rectangle defined by (Position,Position2). If off, then the legend box will adjust its size so that the border fits nicely around the text and symbols. (The ivar is off by default.) Note: the legend box is guaranteed to lie within the original border definition.

virtual void vtkLegendBoxActor::LockBorderOn (  )  [virtual]

Set/Get the flag that controls whether the border and legend placement is locked into the rectangle defined by (Position,Position2). If off, then the legend box will adjust its size so that the border fits nicely around the text and symbols. (The ivar is off by default.) Note: the legend box is guaranteed to lie within the original border definition.

virtual void vtkLegendBoxActor::LockBorderOff (  )  [virtual]

Set/Get the flag that controls whether the border and legend placement is locked into the rectangle defined by (Position,Position2). If off, then the legend box will adjust its size so that the border fits nicely around the text and symbols. (The ivar is off by default.) Note: the legend box is guaranteed to lie within the original border definition.

virtual void vtkLegendBoxActor::SetBox ( int   )  [virtual]

Set/Get the flag that controls whether a box will be drawn/filled corresponding to the legend box.

virtual int vtkLegendBoxActor::GetBox (  )  [virtual]

Set/Get the flag that controls whether a box will be drawn/filled corresponding to the legend box.

virtual void vtkLegendBoxActor::BoxOn (  )  [virtual]

Set/Get the flag that controls whether a box will be drawn/filled corresponding to the legend box.

virtual void vtkLegendBoxActor::BoxOff (  )  [virtual]

Set/Get the flag that controls whether a box will be drawn/filled corresponding to the legend box.

vtkProperty2D* vtkLegendBoxActor::GetBoxProperty (  )  [inline]

Get the box vtkProperty2D.

Definition at line 124 of file vtkLegendBoxActor.h.

virtual void vtkLegendBoxActor::SetPadding ( int   )  [virtual]

Set/Get the padding between the legend entries and the border. The value is specified in pixels.

virtual int vtkLegendBoxActor::GetPadding (  )  [virtual]

Set/Get the padding between the legend entries and the border. The value is specified in pixels.

virtual void vtkLegendBoxActor::SetScalarVisibility ( int   )  [virtual]

Turn on/off flag to control whether the symbol's scalar data is used to color the symbol. If off, the color of the vtkLegendBoxActor is used.

virtual int vtkLegendBoxActor::GetScalarVisibility (  )  [virtual]

Turn on/off flag to control whether the symbol's scalar data is used to color the symbol. If off, the color of the vtkLegendBoxActor is used.

virtual void vtkLegendBoxActor::ScalarVisibilityOn (  )  [virtual]

Turn on/off flag to control whether the symbol's scalar data is used to color the symbol. If off, the color of the vtkLegendBoxActor is used.

virtual void vtkLegendBoxActor::ScalarVisibilityOff (  )  [virtual]

Turn on/off flag to control whether the symbol's scalar data is used to color the symbol. If off, the color of the vtkLegendBoxActor is used.

void vtkLegendBoxActor::ShallowCopy ( vtkProp prop  )  [virtual]

Shallow copy of this scaled text actor. Overloads the virtual vtkProp method.

Reimplemented from vtkActor2D.

virtual void vtkLegendBoxActor::ReleaseGraphicsResources ( vtkWindow  )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkActor2D.

int vtkLegendBoxActor::RenderOpaqueGeometry ( vtkViewport viewport  )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Draw the legend box to the screen.

Reimplemented from vtkActor2D.

virtual int vtkLegendBoxActor::RenderTranslucentPolygonalGeometry ( vtkViewport  )  [inline, virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Draw the legend box to the screen.

Reimplemented from vtkActor2D.

Definition at line 158 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::RenderOverlay ( vtkViewport viewport  )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Draw the legend box to the screen.

Reimplemented from vtkActor2D.

virtual int vtkLegendBoxActor::HasTranslucentPolygonalGeometry (  )  [virtual]

Does this prop have some translucent polygonal geometry?

Reimplemented from vtkActor2D.

void vtkLegendBoxActor::InitializeEntries (  )  [protected]


Member Data Documentation

int vtkLegendBoxActor::Border [protected]

Definition at line 173 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::Box [protected]

Definition at line 174 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::Padding [protected]

Definition at line 175 of file vtkLegendBoxActor.h.

Definition at line 176 of file vtkLegendBoxActor.h.

Definition at line 177 of file vtkLegendBoxActor.h.

double vtkLegendBoxActor::BoxOpacity [protected]

Definition at line 178 of file vtkLegendBoxActor.h.

Definition at line 181 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::Size [protected]

Definition at line 182 of file vtkLegendBoxActor.h.

Definition at line 183 of file vtkLegendBoxActor.h.

Definition at line 184 of file vtkLegendBoxActor.h.

Definition at line 185 of file vtkLegendBoxActor.h.

Definition at line 186 of file vtkLegendBoxActor.h.

Definition at line 187 of file vtkLegendBoxActor.h.

Definition at line 188 of file vtkLegendBoxActor.h.

Definition at line 189 of file vtkLegendBoxActor.h.

Definition at line 190 of file vtkLegendBoxActor.h.

Definition at line 191 of file vtkLegendBoxActor.h.

Definition at line 192 of file vtkLegendBoxActor.h.

Definition at line 193 of file vtkLegendBoxActor.h.

Definition at line 194 of file vtkLegendBoxActor.h.

Definition at line 195 of file vtkLegendBoxActor.h.

Definition at line 196 of file vtkLegendBoxActor.h.

Definition at line 197 of file vtkLegendBoxActor.h.

Definition at line 200 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::CachedSize[2] [protected]

Definition at line 201 of file vtkLegendBoxActor.h.

Definition at line 202 of file vtkLegendBoxActor.h.


The documentation for this class was generated from the following file:
