vtkTextMapper Class Reference

#include <vtkTextMapper.h>

Inheritance diagram for vtkTextMapper:

Inheritance graph
[legend]

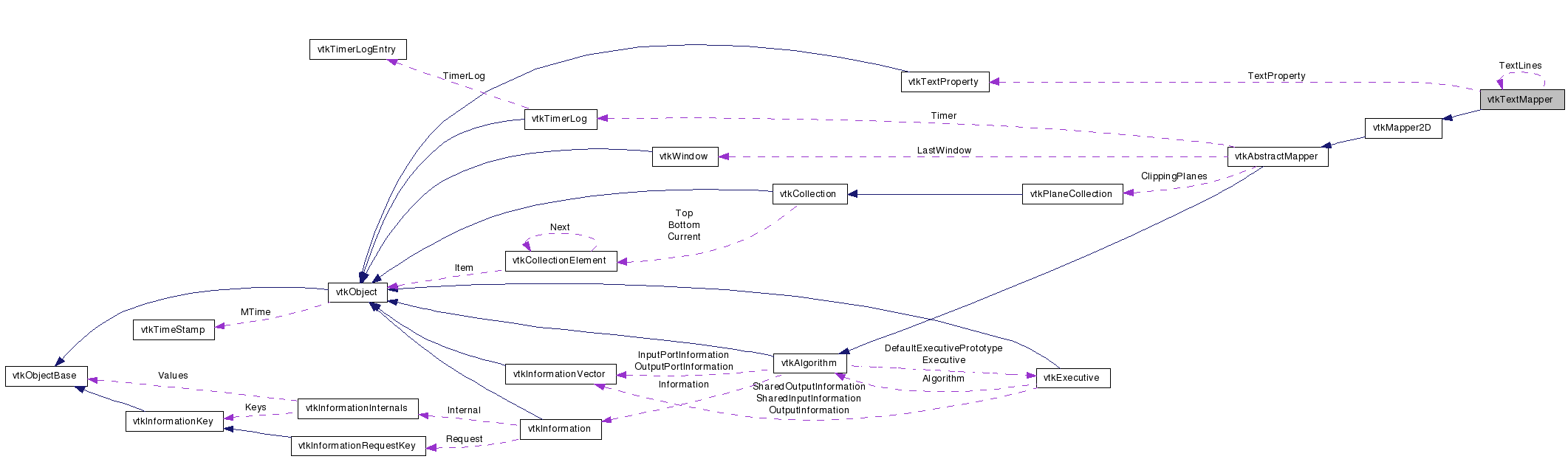

Collaboration diagram for vtkTextMapper:

Collaboration graph
[legend]

List of all members.


Detailed Description

2D text annotation

vtkTextMapper provides 2D text annotation support for VTK. It is a vtkMapper2D that can be associated with a vtkActor2D and placed into a vtkRenderer.

To use vtkTextMapper, specify an input text string.

See also:
vtkMapper2D vtkActor2D vtkLegendBoxActor vtkCaptionActor2D vtkVectorText vtkTextProperty
Tests:
vtkTextMapper (Tests)

Definition at line 40 of file vtkTextMapper.h.

virtual int SetConstrainedFontSize (vtkViewport *, int targetWidth, int targetHeight)
static int SetConstrainedFontSize (vtkTextMapper *, vtkViewport *, int targetWidth, int targetHeight)

Public Types

typedef vtkMapper2D Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void ShallowCopy (vtkTextMapper *tm)
int GetNumberOfLines (const char *input)
virtual void GetSize (vtkViewport *, int size[2])
virtual int GetWidth (vtkViewport *v)
virtual int GetHeight (vtkViewport *v)
virtual void SetInput (const char *inputString)
virtual char * GetInput ()
virtual void SetTextProperty (vtkTextProperty *p)
virtual vtkTextPropertyGetTextProperty ()
virtual int GetNumberOfLines ()
virtual int GetSystemFontSize (int size)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkTextMapperSafeDownCast (vtkObject *o)
static vtkTextMapperNew ()
static int SetMultipleConstrainedFontSize (vtkViewport *, int targetWidth, int targetHeight, vtkTextMapper **mappers, int nbOfMappers, int *maxResultingSize)
static int SetRelativeFontSize (vtkTextMapper *, vtkViewport *, int *winSize, int *stringSize, float sizeFactor=0.0)
static int SetMultipleRelativeFontSize (vtkViewport *viewport, vtkTextMapper **textMappers, int nbOfMappers, int *winSize, int *stringSize, float sizeFactor)

Protected Member Functions

 vtkTextMapper ()
 ~vtkTextMapper ()
char * NextLine (const char *input, int lineNum)
void GetMultiLineSize (vtkViewport *viewport, int size[2])
void RenderOverlayMultipleLines (vtkViewport *viewport, vtkActor2D *actor)

Protected Attributes

char * Input
vtkTextPropertyTextProperty
int LineSize
int NumberOfLines
int NumberOfLinesAllocated
vtkTextMapper ** TextLines

Member Typedef Documentation

Reimplemented from vtkMapper2D.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

Definition at line 43 of file vtkTextMapper.h.


Constructor & Destructor Documentation

vtkTextMapper::vtkTextMapper (  )  [protected]

vtkTextMapper::~vtkTextMapper (  )  [protected]


Member Function Documentation

virtual const char* vtkTextMapper::GetClassName (  )  [virtual]

Reimplemented from vtkMapper2D.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

static int vtkTextMapper::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMapper2D.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

virtual int vtkTextMapper::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMapper2D.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

static vtkTextMapper* vtkTextMapper::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkMapper2D.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

void vtkTextMapper::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMapper2D.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

static vtkTextMapper* vtkTextMapper::New (  )  [static]

Creates a new text mapper.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

virtual void vtkTextMapper::GetSize ( vtkViewport ,
int  size[2]
) [inline, virtual]

Return the size[2]/width/height of the rectangle required to draw this mapper (in pixels).

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

Definition at line 52 of file vtkTextMapper.h.

virtual int vtkTextMapper::GetWidth ( vtkViewport v  )  [virtual]

Return the size[2]/width/height of the rectangle required to draw this mapper (in pixels).

virtual int vtkTextMapper::GetHeight ( vtkViewport v  )  [virtual]

Return the size[2]/width/height of the rectangle required to draw this mapper (in pixels).

virtual void vtkTextMapper::SetInput ( const char *  inputString  )  [virtual]

Set the input text string to the mapper. The mapper recognizes "\n" as a carriage return/linefeed (line separator).

virtual char* vtkTextMapper::GetInput (  )  [virtual]

Set the input text string to the mapper. The mapper recognizes "\n" as a carriage return/linefeed (line separator).

virtual void vtkTextMapper::SetTextProperty ( vtkTextProperty p  )  [virtual]

Set/Get the text property.

virtual vtkTextProperty* vtkTextMapper::GetTextProperty (  )  [virtual]

Set/Get the text property.

void vtkTextMapper::ShallowCopy ( vtkTextMapper tm  )

Shallow copy of an actor.

int vtkTextMapper::GetNumberOfLines ( const char *  input  )

Determine the number of lines in the input string (delimited by "\n").

virtual int vtkTextMapper::GetNumberOfLines (  )  [virtual]

Get the number of lines in the input string (the method GetNumberOfLines(char*) must have been previously called for the return value to be valid).

virtual int vtkTextMapper::SetConstrainedFontSize ( vtkViewport ,
int  targetWidth,
int  targetHeight
) [virtual]

Set and return the font size required to make this mapper fit in a given target rectangle (width x height, in pixels). A static version of the method is also available for convenience to other classes (e.g., widgets).

static int vtkTextMapper::SetConstrainedFontSize ( vtkTextMapper ,
vtkViewport ,
int  targetWidth,
int  targetHeight
) [static]

Set and return the font size required to make this mapper fit in a given target rectangle (width x height, in pixels). A static version of the method is also available for convenience to other classes (e.g., widgets).

static int vtkTextMapper::SetMultipleConstrainedFontSize ( vtkViewport ,
int  targetWidth,
int  targetHeight,
vtkTextMapper **  mappers,
int  nbOfMappers,
int *  maxResultingSize
) [static]

Set and return the font size required to make each element of an array of mappers fit in a given rectangle (width x height, in pixels). This font size is the smallest size that was required to fit the largest mapper in this constraint.

static int vtkTextMapper::SetRelativeFontSize ( vtkTextMapper ,
vtkViewport ,
int *  winSize,
int *  stringSize,
float  sizeFactor = 0.0
) [static]

Use these methods when setting font size relative to the renderer's size. These methods are static so that external classes (e.g., widgets) can easily use them.

static int vtkTextMapper::SetMultipleRelativeFontSize ( vtkViewport viewport,
vtkTextMapper **  textMappers,
int  nbOfMappers,
int *  winSize,
int *  stringSize,
float  sizeFactor
) [static]

Use these methods when setting font size relative to the renderer's size. These methods are static so that external classes (e.g., widgets) can easily use them.

virtual int vtkTextMapper::GetSystemFontSize ( int  size  )  [inline, virtual]

Get the available system font size matching a font size.

Definition at line 119 of file vtkTextMapper.h.

char* vtkTextMapper::NextLine ( const char *  input,
int  lineNum
) [protected]

void vtkTextMapper::GetMultiLineSize ( vtkViewport viewport,
int  size[2]
) [protected]

void vtkTextMapper::RenderOverlayMultipleLines ( vtkViewport viewport,
vtkActor2D actor
) [protected]


Member Data Documentation

char* vtkTextMapper::Input [protected]

Definition at line 127 of file vtkTextMapper.h.

Definition at line 128 of file vtkTextMapper.h.

int vtkTextMapper::LineSize [protected]

Definition at line 130 of file vtkTextMapper.h.

Definition at line 131 of file vtkTextMapper.h.

Definition at line 132 of file vtkTextMapper.h.

Definition at line 134 of file vtkTextMapper.h.


The documentation for this class was generated from the following file:
