vtkNetworkHierarchy Class Reference

#include <vtkNetworkHierarchy.h>

Inheritance diagram for vtkNetworkHierarchy:

[legend]

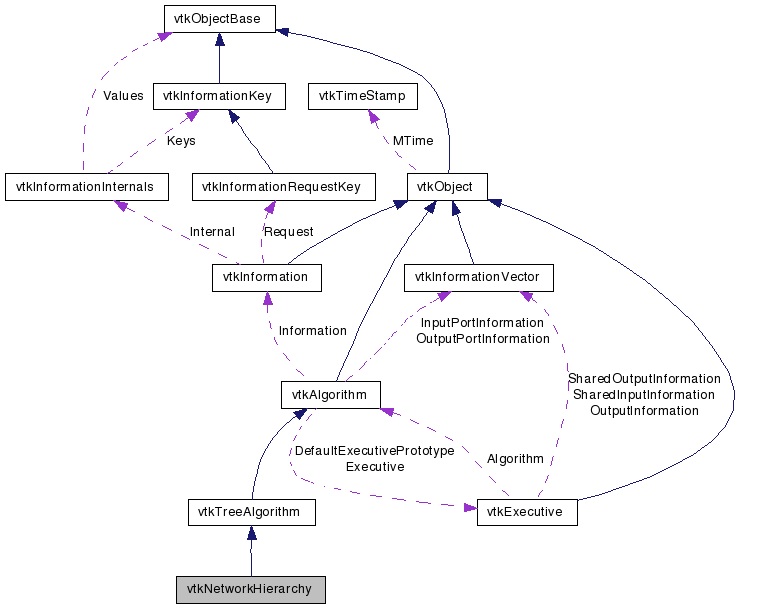

Collaboration diagram for vtkNetworkHierarchy:

[legend]

List of all members.

---

Detailed Description

Filter that takes a graph and makes a tree out of the network ip addresses in that graph.

Use SetInputArrayToProcess(0, ...) to set the array to that has the network ip addresses. Currently this array must be a vtkStringArray.

Tests:

vtkNetworkHierarchy (Tests)

Definition at line 40 of file vtkNetworkHierarchy.h.

Public Types
typedef vtkTreeAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual char *	GetIPArrayName ()
virtual void	SetIPArrayName (const char *)
Static Public Member Functions
static vtkNetworkHierarchy *	New ()
static int	IsTypeOf (const char *type)
static vtkNetworkHierarchy *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkNetworkHierarchy ()
	~vtkNetworkHierarchy ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int	FillOutputPortInformation (int vtkNotUsed(port), vtkInformation *info)
int	FillInputPortInformation (int vtkNotUsed(port), vtkInformation *info)

---

Member Typedef Documentation

typedef vtkTreeAlgorithm vtkNetworkHierarchy::Superclass

Reimplemented from vtkTreeAlgorithm.

Definition at line 44 of file vtkNetworkHierarchy.h.

---

Constructor & Destructor Documentation

vtkNetworkHierarchy::vtkNetworkHierarchy

(

)

[protected]

vtkNetworkHierarchy::~vtkNetworkHierarchy

(

)

[protected]

---

Member Function Documentation

static vtkNetworkHierarchy* vtkNetworkHierarchy::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkTreeAlgorithm.

virtual const char* vtkNetworkHierarchy::GetClassName

(

)

[virtual]

Reimplemented from vtkTreeAlgorithm.

static int vtkNetworkHierarchy::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkTreeAlgorithm.

virtual int vtkNetworkHierarchy::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkTreeAlgorithm.

static vtkNetworkHierarchy* vtkNetworkHierarchy::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkTreeAlgorithm.

virtual char* vtkNetworkHierarchy::GetIPArrayName

(

)

[virtual]

Used to store the ip array name

virtual void vtkNetworkHierarchy::SetIPArrayName

(

const char *

)

[virtual]

Used to store the ip array name

void vtkNetworkHierarchy::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkTreeAlgorithm.

int vtkNetworkHierarchy::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkTreeAlgorithm.

int vtkNetworkHierarchy::FillOutputPortInformation	(	int	vtkNotUsedport,
		vtkInformation *	info
	)			[protected]

int vtkNetworkHierarchy::FillInputPortInformation	(	int	vtkNotUsedport,
		vtkInformation *	info
	)			[protected]

---

The documentation for this class was generated from the following file:

• dox/Infovis/vtkNetworkHierarchy.h
