vtkQtChartRepresentation Class Reference

#include <vtkQtChartRepresentation.h>

Inheritance diagram for vtkQtChartRepresentation:

[legend]

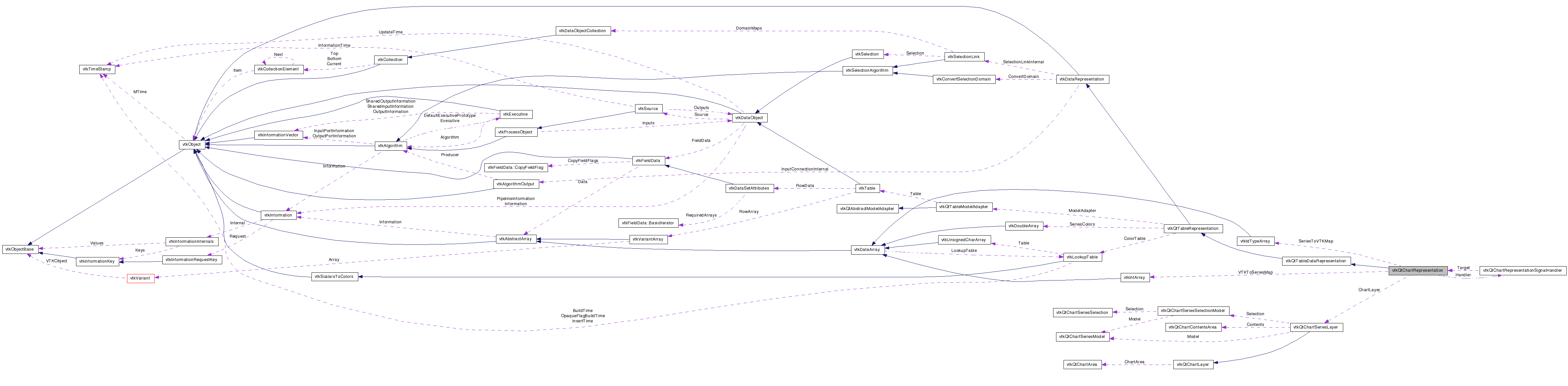

Collaboration diagram for vtkQtChartRepresentation:

[legend]

List of all members.

Detailed Description

Put a vtkTable into a QChartLayer.

This is a specialization of vtkQtTableDataRepresentation to put the data into a QChartLayer. The user must supply the QChartLayer to be used either through SetChartLayer() or via a subclass.

Definition at line 65 of file vtkQtChartRepresentation.h.


Public Types
typedef vtkQtTableDataRepresentation	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetInputConnection (vtkAlgorithmOutput *conn)
virtual void	QtSelectedSeriesChanged (const vtkQtChartSeriesSelection &list)
virtual void	QtModelChanged ()
virtual void	Update ()

virtual void	SetChartLayer (vtkQtChartSeriesLayer *layer)
virtual vtkQtChartSeriesLayer *	GetChartLayer ()

void	SetColumnsAsSeries (bool)
virtual int	GetColumnsAsSeries ()
Static Public Member Functions
static vtkQtChartRepresentation *	New ()
static int	IsTypeOf (const char *type)
static vtkQtChartRepresentation *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkQtChartRepresentation ()
	~vtkQtChartRepresentation ()
bool	AddToView (vtkView *view)
bool	RemoveFromView (vtkView *view)
virtual void	CreateSeriesColors ()
Protected Attributes
vtkQtChartSeriesLayer *	ChartLayer
vtkQtChartRepresentationSignalHandler *	Handler
vtkIdTypeArray *	SeriesToVTKMap
vtkIntArray *	VTKToSeriesMap
bool	ColumnsAsSeries

Member Typedef Documentation

typedef vtkQtTableDataRepresentation vtkQtChartRepresentation::Superclass

Reimplemented from vtkQtTableDataRepresentation.

Definition at line 69 of file vtkQtChartRepresentation.h.

Constructor & Destructor Documentation

vtkQtChartRepresentation::vtkQtChartRepresentation ( ) [protected]

vtkQtChartRepresentation::~vtkQtChartRepresentation ( ) [protected]

Member Function Documentation

static vtkQtChartRepresentation* vtkQtChartRepresentation::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkQtTableDataRepresentation.

virtual const char* vtkQtChartRepresentation::GetClassName ( ) [virtual]

Reimplemented from vtkQtTableDataRepresentation.

static int vtkQtChartRepresentation::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkQtTableDataRepresentation.

virtual int vtkQtChartRepresentation::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkQtTableDataRepresentation.

static vtkQtChartRepresentation* vtkQtChartRepresentation::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkQtTableDataRepresentation.

void vtkQtChartRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkQtTableDataRepresentation.

virtual void vtkQtChartRepresentation::SetInputConnection ( vtkAlgorithmOutput * conn ) [virtual]

Sets the input pipeline connection to this representation.

Reimplemented from vtkQtTableRepresentation.

virtual void vtkQtChartRepresentation::SetChartLayer ( vtkQtChartSeriesLayer * layer ) [virtual]

Set/Get the underlying chart layer for this representation.

virtual vtkQtChartSeriesLayer* vtkQtChartRepresentation::GetChartLayer ( ) [inline, virtual]

Set/Get the underlying chart layer for this representation.

Definition at line 78 of file vtkQtChartRepresentation.h.

virtual void vtkQtChartRepresentation::QtSelectedSeriesChanged ( const vtkQtChartSeriesSelection & list ) [virtual]

Called by the handler when the layer selection changes.

virtual void vtkQtChartRepresentation::QtModelChanged ( ) [virtual]
