vtkQtChartView Class Reference

#include <vtkQtChartView.h>

Inheritance diagram for vtkQtChartView:

[legend]

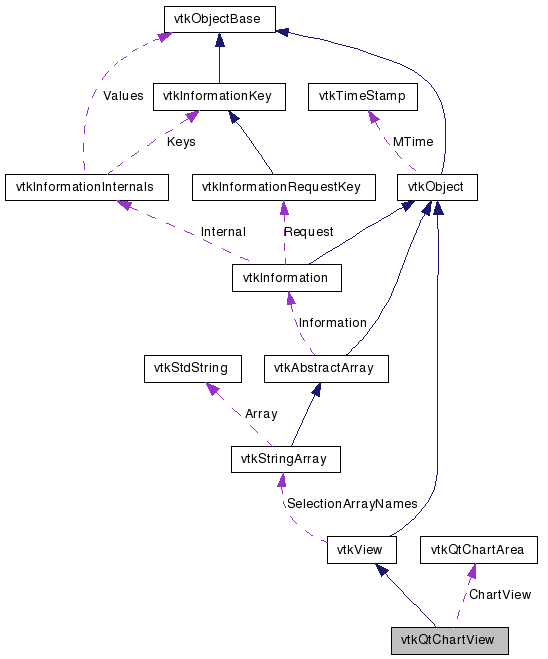

Collaboration diagram for vtkQtChartView:

[legend]

List of all members.

---

Detailed Description

Wraps a vtkQtChartArea into a VTK view.

vtkQtChartView is a vtkView which wraps an instance of vtkQtChartArea. This view expects vtkChartRepresentation instances as its representation.

See also:

vtkQtChartRepresentation

Definition at line 44 of file vtkQtChartView.h.

Public Types
typedef vtkView	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Update ()
virtual void	SetChartView (vtkQtChartArea *)
vtkQtChartArea *	GetChartView ()
Static Public Member Functions
static vtkQtChartView *	New ()
static int	IsTypeOf (const char *type)
static vtkQtChartView *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkQtChartView ()
	~vtkQtChartView ()
Protected Attributes
vtkQtChartArea *	ChartView
bool	IOwnChartView

---

Member Typedef Documentation

typedef vtkView vtkQtChartView::Superclass

Reimplemented from vtkView.

Definition at line 48 of file vtkQtChartView.h.

---

Constructor & Destructor Documentation

vtkQtChartView::vtkQtChartView

(

)

[protected]

vtkQtChartView::~vtkQtChartView

(

)

[protected]

---

Member Function Documentation

static vtkQtChartView* vtkQtChartView::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkView.

virtual const char* vtkQtChartView::GetClassName

(

)

[virtual]

Reimplemented from vtkView.

static int vtkQtChartView::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkView.

virtual int vtkQtChartView::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkView.

static vtkQtChartView* vtkQtChartView::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkView.

void vtkQtChartView::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkView.

virtual void vtkQtChartView::SetChartView

(

vtkQtChartArea *

)

[virtual]

Set and get the underlying Qt view.

vtkQtChartArea* vtkQtChartView::GetChartView

(

)

[inline]

Set and get the underlying Qt view.

Definition at line 54 of file vtkQtChartView.h.

virtual void vtkQtChartView::Update

(

)

[virtual]

Updates the view.

Reimplemented from vtkView.

---

Member Data Documentation

vtkQtChartArea* vtkQtChartView::ChartView [protected]

Pointer to the view.

Definition at line 65 of file vtkQtChartView.h.

bool vtkQtChartView::IOwnChartView [protected]

Do I manage the lifetime of the view.

Definition at line 68 of file vtkQtChartView.h.

---

The documentation for this class was generated from the following file:

• dox/GUISupport/Qt/vtkQtChartView.h
