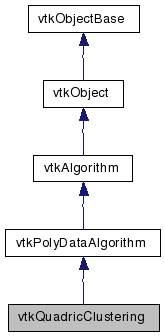

Inheritance diagram for vtkQuadricClustering:

Inheritance graph
[legend]

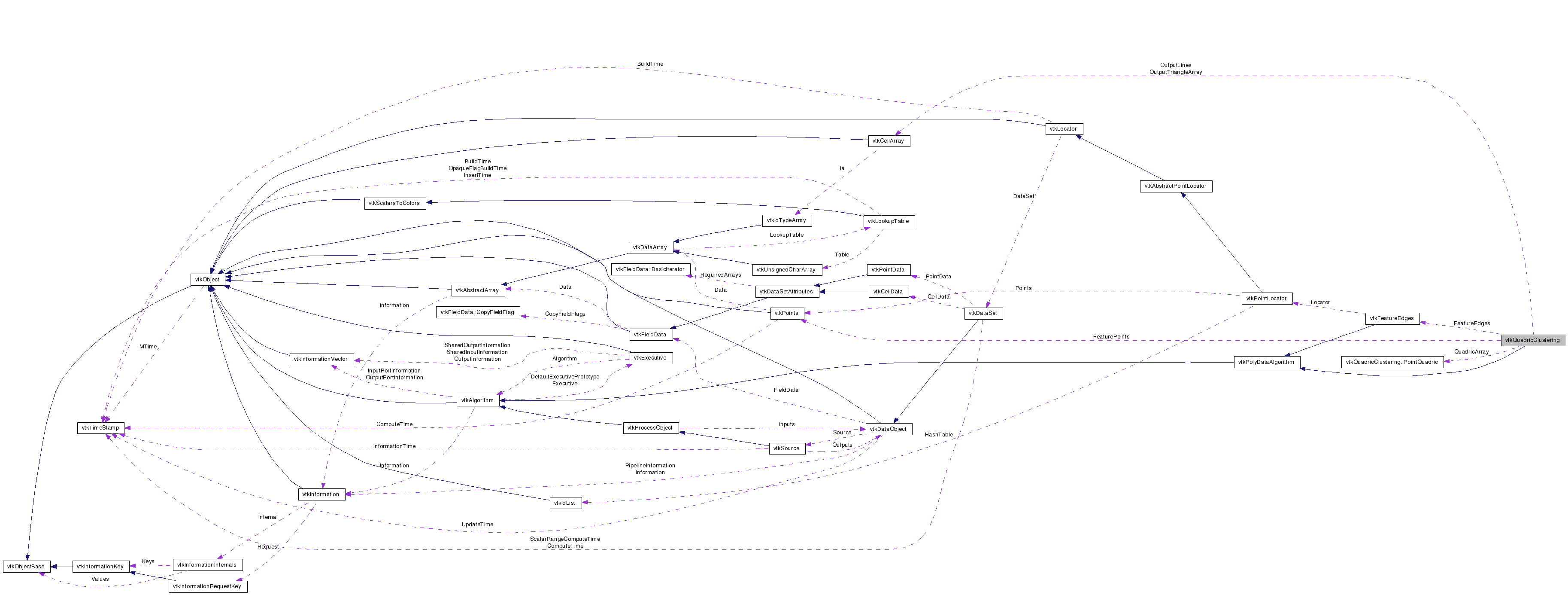

Collaboration diagram for vtkQuadricClustering:

Collaboration graph
[legend]

List of all members.


Detailed Description

reduce the number of triangles in a mesh

vtkQuadricClustering is a filter to reduce the number of triangles in a triangle mesh, forming a good approximation to the original geometry. The input to vtkQuadricClustering is a vtkPolyData object, and all types of polygonal data are handled.

The algorithm used is the one described by Peter Lindstrom in his Siggraph 2000 paper, "Out-of-Core Simplification of Large Polygonal Models." The general approach of the algorithm is to cluster vertices in a uniform binning of space, accumulating the quadric of each triangle (pushed out to the triangles vertices) within each bin, and then determining an optimal position for a single vertex in a bin by using the accumulated quadric. In more detail, the algorithm first gets the bounds of the input poly data. It then breaks this bounding volume into a user-specified number of spatial bins. It then reads each triangle from the input and hashes its vertices into these bins. (If this is the first time a bin has been visited, initialize its quadric to the 0 matrix.) The algorithm computes the error quadric for this triangle and adds it to the existing quadric of the bin in which each vertex is contained. Then, if 2 or more vertices of the triangle fall in the same bin, the triangle is dicarded. If the triangle is not discarded, it adds the triangle to the list of output triangles as a list of vertex identifiers. (There is one vertex id per bin.) After all the triangles have been read, the representative vertex for each bin is computed (an optimal location is found) using the quadric for that bin. This determines the spatial location of the vertices of each of the triangles in the output.

To use this filter, specify the divisions defining the spatial subdivision in the x, y, and z directions. You must also specify an input vtkPolyData. Then choose to either 1) use the original points that minimize the quadric error to produce the output triangles or 2) compute an optimal position in each bin to produce the output triangles (recommended and default behavior).

This filter can take multiple inputs. To do this, the user must explicity call StartAppend, Append (once for each input), and EndAppend. StartAppend sets up the data structure to hold the quadric matrices. Append processes each triangle in the input poly data it was called on, hashes its vertices to the appropriate bins, determines whether to keep this triangle, and updates the appropriate quadric matrices. EndAppend determines the spatial location of each of the representative vertices for the visited bins. While this approach does not fit into the visualization architecture and requires manual control, it has the advantage that extremely large data can be processed in pieces and appended to the filter piece-by-piece.

Warning:
This filter can drastically affect topology, i.e., topology is not preserved.

The filter handles input triangle strips and arbitrary polygons. Arbitrary polygons are assumed convex: during insertion they are triangulated using a fan of triangles from the first point in the polygons. If the polygon is concave, this can produce bad results. In this case, use vtkTriangleFilter to triangulate the polygons first.

The filter also treats polylines and vertices.

Note that for certain types of geometry (e.g., a mostly 2D plane with jitter in the normal direction), the decimator can perform badly. In this sitation, set the number of bins in the normal direction to one.

See also:
vtkQuadricDecimation vtkDecimatePro vtkDecimate vtkQuadricLODActor
Tests:
vtkQuadricClustering (Tests)

Definition at line 98 of file vtkQuadricClustering.h.

typedef vtkPolyDataAlgorithm Superclass
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
static int IsTypeOf (const char *type)
static vtkQuadricClusteringSafeDownCast (vtkObject *o)
static vtkQuadricClusteringNew ()
int UseInputPoints
void EndAppendUsingPoints (vtkPolyData *input, vtkPolyData *output)

Public Member Functions

void SetNumberOfXDivisions (int num)
void SetNumberOfYDivisions (int num)
void SetNumberOfZDivisions (int num)
virtual int GetNumberOfXDivisions ()
virtual int GetNumberOfYDivisions ()
virtual int GetNumberOfZDivisions ()
void SetNumberOfDivisions (int div[3])
void SetNumberOfDivisions (int div0, int div1, int div2)
int * GetNumberOfDivisions ()
void GetNumberOfDivisions (int div[3])
virtual void SetAutoAdjustNumberOfDivisions (int)
virtual int GetAutoAdjustNumberOfDivisions ()
virtual void AutoAdjustNumberOfDivisionsOn ()
virtual void AutoAdjustNumberOfDivisionsOff ()
void SetDivisionOrigin (double x, double y, double z)
void SetDivisionOrigin (double o[3])
virtual double * GetDivisionOrigin ()
virtual void GetDivisionOrigin (double &, double &, double &)
virtual void GetDivisionOrigin (double[3])
void SetDivisionSpacing (double x, double y, double z)
void SetDivisionSpacing (double s[3])
virtual double * GetDivisionSpacing ()
virtual void GetDivisionSpacing (double &, double &, double &)
virtual void GetDivisionSpacing (double[3])
virtual void SetUseInputPoints (int)
virtual int GetUseInputPoints ()
virtual void UseInputPointsOn ()
virtual void UseInputPointsOff ()
virtual void SetUseFeatureEdges (int)
virtual int GetUseFeatureEdges ()
virtual void UseFeatureEdgesOn ()
virtual void UseFeatureEdgesOff ()
vtkFeatureEdgesGetFeatureEdges ()
virtual void SetUseFeaturePoints (int)
virtual int GetUseFeaturePoints ()
virtual void UseFeaturePointsOn ()
virtual void UseFeaturePointsOff ()
virtual void SetFeaturePointsAngle (double)
virtual double GetFeaturePointsAngle ()
virtual void SetUseInternalTriangles (int)
virtual int GetUseInternalTriangles ()
virtual void UseInternalTrianglesOn ()
virtual void UseInternalTrianglesOff ()
void StartAppend (double *bounds)
void StartAppend (double x0, double x1, double y0, double y1, double z0, double z1)
void Append (vtkPolyData *piece)
void EndAppend ()
virtual void SetCopyCellData (int)
virtual int GetCopyCellData ()
virtual void CopyCellDataOn ()
virtual void CopyCellDataOff ()
virtual void SetPreventDuplicateCells (int)
virtual int GetPreventDuplicateCells ()
virtual void PreventDuplicateCellsOn ()
virtual void PreventDuplicateCellsOff ()

Protected Member Functions

 vtkQuadricClustering ()
 ~vtkQuadricClustering ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int FillInputPortInformation (int, vtkInformation *)
vtkIdType HashPoint (double point[3])
void InitializeQuadric (double quadric[9])
void AddQuadric (vtkIdType binId, double quadric[9])
void FindFeaturePoints (vtkCellArray *edges, vtkPoints *edgePts, double angle)
void EndAppendVertexGeometry (vtkPolyData *input, vtkPolyData *output)
void AppendFeatureQuadrics (vtkPolyData *pd, vtkPolyData *output)
void ComputeRepresentativePoint (double quadric[9], vtkIdType binId, double point[3])
void AddPolygons (vtkCellArray *polys, vtkPoints *points, int geometryFlag, vtkPolyData *input, vtkPolyData *output)
void AddStrips (vtkCellArray *strips, vtkPoints *points, int geometryFlag, vtkPolyData *input, vtkPolyData *output)
void AddTriangle (vtkIdType *binIds, double *pt0, double *pt1, double *pt2, int geometeryFlag, vtkPolyData *input, vtkPolyData *output)
void AddEdges (vtkCellArray *edges, vtkPoints *points, int geometryFlag, vtkPolyData *input, vtkPolyData *output)
void AddEdge (vtkIdType *binIds, double *pt0, double *pt1, int geometeryFlag, vtkPolyData *input, vtkPolyData *output)
void AddVertices (vtkCellArray *verts, vtkPoints *points, int geometryFlag, vtkPolyData *input, vtkPolyData *output)
void AddVertex (vtkIdType binId, double *pt, int geometryFlag, vtkPolyData *input, vtkPolyData *output)

Protected Attributes

int UseFeatureEdges
int UseFeaturePoints
int UseInternalTriangles
int NumberOfXDivisions
int NumberOfYDivisions
int NumberOfZDivisions
int PreventDuplicateCells
vtkCellSet * CellSet
vtkIdType NumberOfBins
int NumberOfDivisions [3]
int ComputeNumberOfDivisions
double DivisionOrigin [3]
double DivisionSpacing [3]
int AutoAdjustNumberOfDivisions
double Bounds [6]
double XBinSize
double YBinSize
double ZBinSize
vtkIdType SliceSize
PointQuadricQuadricArray
vtkIdType NumberOfBinsUsed
vtkCellArrayOutputTriangleArray
vtkCellArrayOutputLines
vtkFeatureEdgesFeatureEdges
vtkPointsFeaturePoints
double FeaturePointsAngle
int CopyCellData
int InCellCount
int OutCellCount

Classes

struct  PointQuadric

Member Typedef Documentation

Standard instantition, type and print methods.

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 103 of file vtkQuadricClustering.h.


Constructor & Destructor Documentation

vtkQuadricClustering::vtkQuadricClustering (  )  [protected]

vtkQuadricClustering::~vtkQuadricClustering (  )  [protected]


Member Function Documentation

virtual const char* vtkQuadricClustering::GetClassName (  )  [virtual]

Standard instantition, type and print methods.

Reimplemented from vtkPolyDataAlgorithm.

static int vtkQuadricClustering::IsTypeOf ( const char *  type  )  [static]

Standard instantition, type and print methods.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkQuadricClustering::IsA ( const char *  type  )  [virtual]

Standard instantition, type and print methods.

Reimplemented from vtkPolyDataAlgorithm.

static vtkQuadricClustering* vtkQuadricClustering::SafeDownCast ( vtkObject o  )  [static]

Standard instantition, type and print methods.

Reimplemented from vtkPolyDataAlgorithm.

void vtkQuadricClustering::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard instantition, type and print methods.

Reimplemented from vtkPolyDataAlgorithm.

static vtkQuadricClustering* vtkQuadricClustering::New (  )  [static]

Standard instantition, type and print methods.

Reimplemented from vtkPolyDataAlgorithm.

void vtkQuadricClustering::SetNumberOfXDivisions ( int  num  )

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

void vtkQuadricClustering::SetNumberOfYDivisions ( int  num  )

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

void vtkQuadricClustering::SetNumberOfZDivisions ( int  num  )

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

virtual int vtkQuadricClustering::GetNumberOfXDivisions (  )  [virtual]

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

virtual int vtkQuadricClustering::GetNumberOfYDivisions (  )  [virtual]

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

virtual int vtkQuadricClustering::GetNumberOfZDivisions (  )  [virtual]

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

void vtkQuadricClustering::SetNumberOfDivisions ( int  div[3]  )  [inline]

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

Definition at line 120 of file vtkQuadricClustering.h.

void vtkQuadricClustering::SetNumberOfDivisions ( int  div0,
int  div1,
int  div2
)

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

int* vtkQuadricClustering::GetNumberOfDivisions (  )

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

void vtkQuadricClustering::GetNumberOfDivisions ( int  div[3]  )

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

virtual void vtkQuadricClustering::SetAutoAdjustNumberOfDivisions ( int   )  [virtual]

Enable automatic adjustment of number of divisions. If off, the number of divisions specified by the user is always used (as long as it is valid).

virtual int vtkQuadricClustering::GetAutoAdjustNumberOfDivisions (  )  [virtual]

Enable automatic adjustment of number of divisions. If off, the number of divisions specified by the user is always used (as long as it is valid).

virtual void vtkQuadricClustering::AutoAdjustNumberOfDivisionsOn (  )  [virtual]

Enable automatic adjustment of number of divisions. If off, the number of divisions specified by the user is always used (as long as it is valid).

virtual void vtkQuadricClustering::AutoAdjustNumberOfDivisionsOff (  )  [virtual]

Enable automatic adjustment of number of divisions. If off, the number of divisions specified by the user is always used (as long as it is valid).

void vtkQuadricClustering::SetDivisionOrigin ( double  x,
double  y,
double  z
)

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

void vtkQuadricClustering::SetDivisionOrigin ( double  o[3]  )  [inline]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

Definition at line 142 of file vtkQuadricClustering.h.

virtual double* vtkQuadricClustering::GetDivisionOrigin (  )  [virtual]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

virtual void vtkQuadricClustering::GetDivisionOrigin ( double &  ,
double &  ,
double &
) [virtual]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

virtual void vtkQuadricClustering::GetDivisionOrigin ( double  [3]  )  [virtual]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

void vtkQuadricClustering::SetDivisionSpacing ( double  x,
double  y,
double  z
)

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

void vtkQuadricClustering::SetDivisionSpacing ( double  s[3]  )  [inline]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

Definition at line 146 of file vtkQuadricClustering.h.

virtual double* vtkQuadricClustering::GetDivisionSpacing (  )  [virtual]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

virtual void vtkQuadricClustering::GetDivisionSpacing ( double &  ,
double &  ,
double &
) [virtual]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

virtual void vtkQuadricClustering::GetDivisionSpacing ( double  [3]  )  [virtual]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

virtual void vtkQuadricClustering::SetUseInputPoints ( int   )  [virtual]

Normally the point that minimizes the quadric error function is used as the output of the bin. When this flag is on, the bin point is forced to be one of the points from the input (the one with the smallest error). This option does not work (i.e., input points cannot be used) when the append methods (StartAppend(), Append(), EndAppend()) are being called directly.

virtual int vtkQuadricClustering::GetUseInputPoints (  )  [virtual]

Normally the point that minimizes the quadric error function is used as the output of the bin. When this flag is on, the bin point is forced to be one of the points from the input (the one with the smallest error). This option does not work (i.e., input points cannot be used) when the append methods (StartAppend(), Append(), EndAppend()) are being called directly.

virtual void vtkQuadricClustering::UseInputPointsOn (  )  [virtual]

Normally the point that minimizes the quadric error function is used as the output of the bin. When this flag is on, the bin point is forced to be one of the points from the input (the one with the smallest error). This option does not work (i.e., input points cannot be used) when the append methods (StartAppend(), Append(), EndAppend()) are being called directly.

virtual void vtkQuadricClustering::UseInputPointsOff (  )  [virtual]

Normally the point that minimizes the quadric error function is used as the output of the bin. When this flag is on, the bin point is forced to be one of the points from the input (the one with the smallest error). This option does not work (i.e., input points cannot be used) when the append methods (StartAppend(), Append(), EndAppend()) are being called directly.

virtual void vtkQuadricClustering::SetUseFeatureEdges ( int   )  [virtual]

By default, this flag is off. When "UseFeatureEdges" is on, then quadrics are computed for boundary edges/feature edges. They influence the quadrics (position of points), but not the mesh. Which features to use can be controlled by the filter "FeatureEdges".

virtual int vtkQuadricClustering::GetUseFeatureEdges (  )  [virtual]

By default, this flag is off. When "UseFeatureEdges" is on, then quadrics are computed for boundary edges/feature edges. They influence the quadrics (position of points), but not the mesh. Which features to use can be controlled by the filter "FeatureEdges".

virtual void vtkQuadricClustering::UseFeatureEdgesOn (  )  [virtual]

By default, this flag is off. When "UseFeatureEdges" is on, then quadrics are computed for boundary edges/feature edges. They influence the quadrics (position of points), but not the mesh. Which features to use can be controlled by the filter "FeatureEdges".

virtual void vtkQuadricClustering::UseFeatureEdgesOff (  )  [virtual]

By default, this flag is off. When "UseFeatureEdges" is on, then quadrics are computed for boundary edges/feature edges. They influence the quadrics (position of points), but not the mesh. Which features to use can be controlled by the filter "FeatureEdges".

vtkFeatureEdges* vtkQuadricClustering::GetFeatureEdges (  )  [inline]

By default, this flag is off. When "UseFeatureEdges" is on, then quadrics are computed for boundary edges/feature edges. They influence the quadrics (position of points), but not the mesh. Which features to use can be controlled by the filter "FeatureEdges".

Definition at line 171 of file vtkQuadricClustering.h.

virtual void vtkQuadricClustering::SetUseFeaturePoints ( int   )  [virtual]

By default, this flag is off. It only has an effect when "UseFeatureEdges" is also on. When "UseFeaturePoints" is on, then quadrics are computed for boundary / feature points used in the boundary / feature edges. They influence the quadrics (position of points), but not the mesh.

virtual int vtkQuadricClustering::GetUseFeaturePoints (  )  [virtual]

By default, this flag is off. It only has an effect when "UseFeatureEdges" is also on. When "UseFeaturePoints" is on, then quadrics are computed for boundary / feature points used in the boundary / feature edges. They influence the quadrics (position of points), but not the mesh.

virtual void vtkQuadricClustering::UseFeaturePointsOn (  )  [virtual]

By default, this flag is off. It only has an effect when "UseFeatureEdges" is also on. When "UseFeaturePoints" is on, then quadrics are computed for boundary / feature points used in the boundary / feature edges. They influence the quadrics (position of points), but not the mesh.

virtual void vtkQuadricClustering::UseFeaturePointsOff (  )  [virtual]

By default, this flag is off. It only has an effect when "UseFeatureEdges" is also on. When "UseFeaturePoints" is on, then quadrics are computed for boundary / feature points used in the boundary / feature edges. They influence the quadrics (position of points), but not the mesh.

virtual void vtkQuadricClustering::SetFeaturePointsAngle ( double   )  [virtual]

Set/Get the angle to use in determining whether a point on a boundary / feature edge is a feature point.

virtual double vtkQuadricClustering::GetFeaturePointsAngle (  )  [virtual]

Set/Get the angle to use in determining whether a point on a boundary / feature edge is a feature point.

virtual void vtkQuadricClustering::SetUseInternalTriangles ( int   )  [virtual]

When this flag is on (and it is on by default), then triangles that are completely contained in a bin are added to the bin quadrics. When the the flag is off the filter operates faster, but the surface may not be as well behaved.

virtual int vtkQuadricClustering::GetUseInternalTriangles (  )  [virtual]

When this flag is on (and it is on by default), then triangles that are completely contained in a bin are added to the bin quadrics. When the the flag is off the filter operates faster, but the surface may not be as well behaved.

virtual void vtkQuadricClustering::UseInternalTrianglesOn (  )  [virtual]

When this flag is on (and it is on by default), then triangles that are completely contained in a bin are added to the bin quadrics. When the the flag is off the filter operates faster, but the surface may not be as well behaved.

virtual void vtkQuadricClustering::UseInternalTrianglesOff (  )  [virtual]

When this flag is on (and it is on by default), then triangles that are completely contained in a bin are added to the bin quadrics. When the the flag is off the filter operates faster, but the surface may not be as well behaved.

void vtkQuadricClustering::StartAppend ( double *  bounds  )

These methods provide an alternative way of executing the filter. PolyData can be added to the result in pieces (append). In this mode, the user must specify the bounds of the entire model as an argument to the "StartAppend" method.

void vtkQuadricClustering::StartAppend ( double  x0,
double  x1,
double  y0,
double  y1,
double  z0,
double  z1
) [inline]

These methods provide an alternative way of executing the filter. PolyData can be added to the result in pieces (append). In this mode, the user must specify the bounds of the entire model as an argument to the "StartAppend" method.

Definition at line 208 of file vtkQuadricClustering.h.

void vtkQuadricClustering::Append ( vtkPolyData piece  )

These methods provide an alternative way of executing the filter. PolyData can be added to the result in pieces (append). In this mode, the user must specify the bounds of the entire model as an argument to the "StartAppend" method.

void vtkQuadricClustering::EndAppend (  )

These methods provide an alternative way of executing the filter. PolyData can be added to the result in pieces (append). In this mode, the user must specify the bounds of the entire model as an argument to the "StartAppend" method.

virtual void vtkQuadricClustering::SetCopyCellData ( int   )  [virtual]

This flag makes the filter copy cell data from input to output (the best it can). It uses input cells that trigger the addition of output cells (no averaging). This is off by default, and does not work when append is being called explicitely (non-pipeline usage).

virtual int vtkQuadricClustering::GetCopyCellData (  )  [virtual]

This flag makes the filter copy cell data from input to output (the best it can). It uses input cells that trigger the addition of output cells (no averaging). This is off by default, and does not work when append is being called explicitely (non-pipeline usage).

virtual void vtkQuadricClustering::CopyCellDataOn (  )  [virtual]

This flag makes the filter copy cell data from input to output (the best it can). It uses input cells that trigger the addition of output cells (no averaging). This is off by default, and does not work when append is being called explicitely (non-pipeline usage).

virtual void vtkQuadricClustering::CopyCellDataOff (  )  [virtual]

This flag makes the filter copy cell data from input to output (the best it can). It uses input cells that trigger the addition of output cells (no averaging). This is off by default, and does not work when append is being called explicitely (non-pipeline usage).

virtual void vtkQuadricClustering::SetPreventDuplicateCells ( int   )  [virtual]

Specify a boolean indicating whether to remove duplicate cells (i.e. triangles). This is a little slower, and takes more memory, but in some cases can reduce the number of cells produced by an order of magnitude. By default, this flag is true.

virtual int vtkQuadricClustering::GetPreventDuplicateCells (  )  [virtual]

Specify a boolean indicating whether to remove duplicate cells (i.e. triangles). This is a little slower, and takes more memory, but in some cases can reduce the number of cells produced by an order of magnitude. By default, this flag is true.

virtual void vtkQuadricClustering::PreventDuplicateCellsOn (  )  [virtual]

Specify a boolean indicating whether to remove duplicate cells (i.e. triangles). This is a little slower, and takes more memory, but in some cases can reduce the number of cells produced by an order of magnitude. By default, this flag is true.

virtual void vtkQuadricClustering::PreventDuplicateCellsOff (  )  [virtual]

Specify a boolean indicating whether to remove duplicate cells (i.e. triangles). This is a little slower, and takes more memory, but in some cases can reduce the number of cells produced by an order of magnitude. By default, this flag is true.

int vtkQuadricClustering::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

int vtkQuadricClustering::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.

vtkIdType vtkQuadricClustering::HashPoint ( double  point[3]  )  [protected]

Given a point, determine what bin it falls into.

void vtkQuadricClustering::ComputeRepresentativePoint ( double  quadric[9],
vtkIdType  binId,
double  point[3]
) [protected]

Determine the representative point for this bin.

void vtkQuadricClustering::AddPolygons ( vtkCellArray polys,
vtkPoints points,
int  geometryFlag,
vtkPolyData input,
vtkPolyData output
) [protected]

Add triangles to the quadric array. If geometry flag is on then triangles are added to the output.

void vtkQuadricClustering::AddStrips ( vtkCellArray strips,
vtkPoints points,
int  geometryFlag,
vtkPolyData input,
vtkPolyData output
) [protected]

Add triangles to the quadric array. If geometry flag is on then triangles are added to the output.

void vtkQuadricClustering::AddTriangle ( vtkIdType binIds,
double *  pt0,
double *  pt1,
double *  pt2,
int  geometeryFlag,
vtkPolyData input,
vtkPolyData output
) [protected]

Add triangles to the quadric array. If geometry flag is on then triangles are added to the output.

void vtkQuadricClustering::AddEdges ( vtkCellArray edges,
vtkPoints points,
int  geometryFlag,
vtkPolyData input,
vtkPolyData output
) [protected]

Add edges to the quadric array. If geometry flag is on then edges are added to the output.

void vtkQuadricClustering::AddEdge ( vtkIdType binIds,
double *  pt0,
double *  pt1,
int  geometeryFlag,
vtkPolyData input,
vtkPolyData output
) [protected]

Add edges to the quadric array. If geometry flag is on then edges are added to the output.

void vtkQuadricClustering::AddVertices ( vtkCellArray verts,
vtkPoints points,
int  geometryFlag,
vtkPolyData input,
vtkPolyData output
) [protected]

Add vertices to the quadric array. If geometry flag is on then vertices are added to the output.

void vtkQuadricClustering::AddVertex ( vtkIdType  binId,
double *  pt,
int  geometryFlag,
vtkPolyData input,
vtkPolyData output
) [protected]

Add vertices to the quadric array. If geometry flag is on then vertices are added to the output.

void vtkQuadricClustering::InitializeQuadric ( double  quadric[9]  )  [protected]

Initialize the quadric matrix to 0's.

void vtkQuadricClustering::AddQuadric ( vtkIdType  binId,
double  quadric[9]
) [protected]

Add this quadric to the quadric already associated with this bin.

void vtkQuadricClustering::FindFeaturePoints ( vtkCellArray edges,
vtkPoints edgePts,
double  angle
) [protected]

Find the feature points of a given set of edges. The points returned are (1) those used by only one edge, (2) those used by > 2 edges, and (3) those where the angle between 2 edges using this point is < angle.

void vtkQuadricClustering::EndAppendUsingPoints ( vtkPolyData input,
vtkPolyData output
) [protected]

This method will rep[lace the quadric generated points with the input points with the lowest error.

void vtkQuadricClustering::EndAppendVertexGeometry ( vtkPolyData input,
vtkPolyData output
) [protected]

This method sets the verticies of the output. It duplicates the structure of the input cells (but decimiated).

void vtkQuadricClustering::AppendFeatureQuadrics ( vtkPolyData pd,
vtkPolyData output
) [protected]


Member Data Documentation

This method will rep[lace the quadric generated points with the input points with the lowest error.

Definition at line 297 of file vtkQuadricClustering.h.

Definition at line 306 of file vtkQuadricClustering.h.

Definition at line 307 of file vtkQuadricClustering.h.

Definition at line 308 of file vtkQuadricClustering.h.

Definition at line 310 of file vtkQuadricClustering.h.

Definition at line 311 of file vtkQuadricClustering.h.

Definition at line 312 of file vtkQuadricClustering.h.

Definition at line 315 of file vtkQuadricClustering.h.

vtkCellSet* vtkQuadricClustering::CellSet [protected]

Definition at line 316 of file vtkQuadricClustering.h.

Definition at line 317 of file vtkQuadricClustering.h.

Definition at line 321 of file vtkQuadricClustering.h.

Definition at line 326 of file vtkQuadricClustering.h.

double vtkQuadricClustering::DivisionOrigin[3] [protected]

Definition at line 328 of file vtkQuadricClustering.h.

Definition at line 329 of file vtkQuadricClustering.h.

Definition at line 330 of file vtkQuadricClustering.h.

double vtkQuadricClustering::Bounds[6] [protected]

Definition at line 332 of file vtkQuadricClustering.h.

double vtkQuadricClustering::XBinSize [protected]

Definition at line 333 of file vtkQuadricClustering.h.

double vtkQuadricClustering::YBinSize [protected]

Definition at line 334 of file vtkQuadricClustering.h.

double vtkQuadricClustering::ZBinSize [protected]

Definition at line 335 of file vtkQuadricClustering.h.

Definition at line 336 of file vtkQuadricClustering.h.

Definition at line 352 of file vtkQuadricClustering.h.

Definition at line 353 of file vtkQuadricClustering.h.

Definition at line 357 of file vtkQuadricClustering.h.

Definition at line 358 of file vtkQuadricClustering.h.

Definition at line 360 of file vtkQuadricClustering.h.

Definition at line 361 of file vtkQuadricClustering.h.

Definition at line 362 of file vtkQuadricClustering.h.

Definition at line 364 of file vtkQuadricClustering.h.

Definition at line 365 of file vtkQuadricClustering.h.

Definition at line 366 of file vtkQuadricClustering.h.


The documentation for this class was generated from the following file:

Generated on Wed Jun 3 19:29:59 2009 for VTK by  doxygen 1.5.6
