vtkStreamLine Class Reference

#include <vtkStreamLine.h>

Inheritance diagram for vtkStreamLine:

[legend]

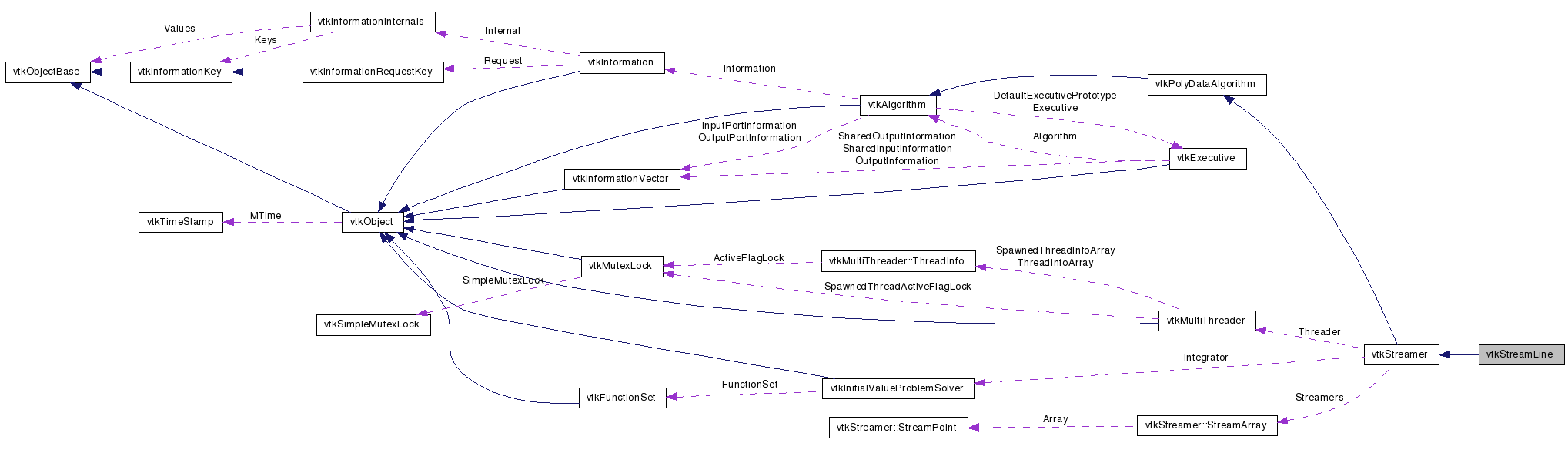

Collaboration diagram for vtkStreamLine:

[legend]

List of all members.

Detailed Description

generate streamline in arbitrary dataset

vtkStreamLine is a filter that generates a streamline for an arbitrary dataset. A streamline is a line that is everywhere tangent to the vector field. Scalar values also are calculated along the streamline and can be used to color the line. Streamlines are calculated by integrating from a starting point through the vector field. Integration can be performed forward in time (see where the line goes), backward in time (see where the line came from), or in both directions. It also is possible to compute vorticity along the streamline. Vorticity is the projection (i.e., dot product) of the flow rotation on the velocity vector, i.e., the rotation of flow around the streamline.

vtkStreamLine defines the instance variable StepLength. This parameter controls the time increment used to generate individual points along the streamline(s). Smaller values result in more line primitives but smoother streamlines. The StepLength instance variable is defined in terms of time (i.e., the distance that the particle travels in the specified time period). Thus, the line segments will be smaller in areas of low velocity and larger in regions of high velocity. (NOTE: This is different than the IntegrationStepLength defined by the superclass vtkStreamer. IntegrationStepLength is used to control integration step size and is expressed as a fraction of the cell length.) The StepLength instance variable is important because subclasses of vtkStreamLine (e.g., vtkDashedStreamLine) depend on this value to build their representation.

See also:: vtkStreamer vtkDashedStreamLine vtkStreamPoints

Tests:: vtkStreamLine (Tests)

Definition at line 54 of file vtkStreamLine.h.


Public Types
typedef vtkStreamer	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetStepLength (double)
virtual double	GetStepLength ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkStreamLine *	SafeDownCast (vtkObject *o)
static vtkStreamLine *	New ()
Protected Member Functions
	vtkStreamLine ()
	~vtkStreamLine ()
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
double	StepLength

Member Typedef Documentation

typedef vtkStreamer vtkStreamLine::Superclass

Reimplemented from vtkStreamer.

Reimplemented in vtkDashedStreamLine.

Definition at line 57 of file vtkStreamLine.h.

Constructor & Destructor Documentation

vtkStreamLine::vtkStreamLine ( ) [protected]

vtkStreamLine::~vtkStreamLine ( ) [inline, protected]

Definition at line 73 of file vtkStreamLine.h.

Member Function Documentation

virtual const char* vtkStreamLine::GetClassName ( ) [virtual]

Reimplemented from vtkStreamer.

Reimplemented in vtkDashedStreamLine.

static int vtkStreamLine::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkStreamer.

Reimplemented in vtkDashedStreamLine.

virtual int vtkStreamLine::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkStreamer.

Reimplemented in vtkDashedStreamLine.

static vtkStreamLine* vtkStreamLine::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkStreamer.

Reimplemented in vtkDashedStreamLine.

void vtkStreamLine::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkStreamer.

Reimplemented in vtkDashedStreamLine.

static vtkStreamLine* vtkStreamLine::New ( ) [static]

Construct object with step size set to 1.0.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkDashedStreamLine.

virtual void vtkStreamLine::SetStepLength ( double ) [virtual]

Specify the length of a line segment. The length is expressed in terms of elapsed time. Smaller values result in smoother appearing streamlines, but greater numbers of line primitives.

virtual double vtkStreamLine::GetStepLength ( ) [virtual]

Specify the length of a line segment. The length is expressed in terms of elapsed time. Smaller values result in smoother appearing streamlines, but greater numbers of line primitives.

virtual int vtkStreamLine::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
